Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|

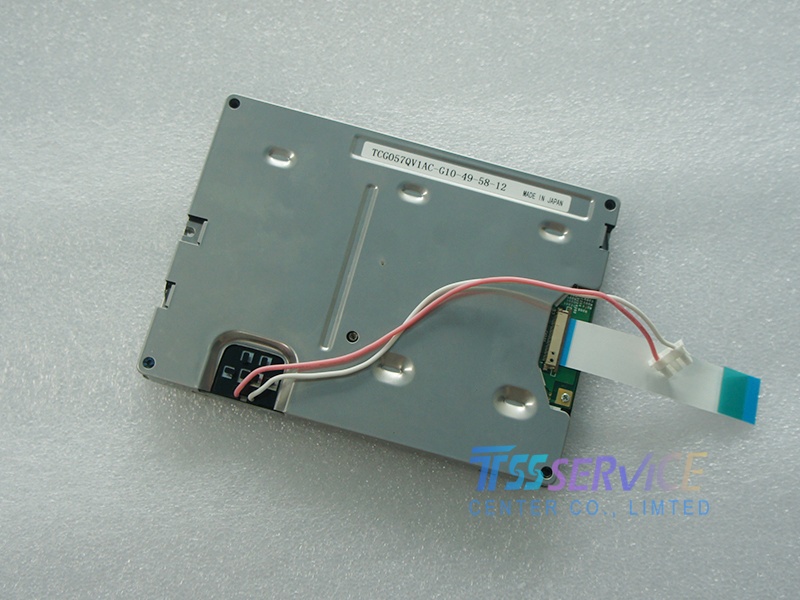

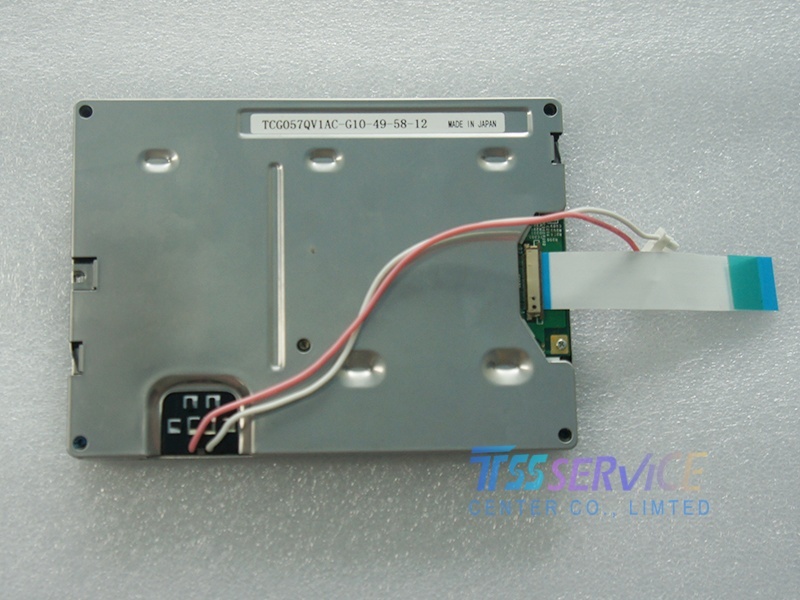

| Model Number | TCG057QV1AC-G10 |
| Manufacturer | Kyocera Display Solutions |

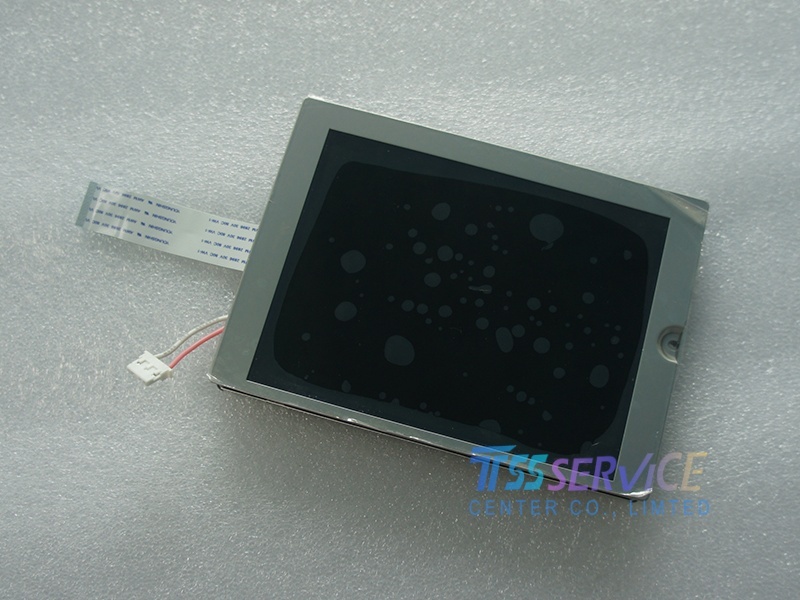

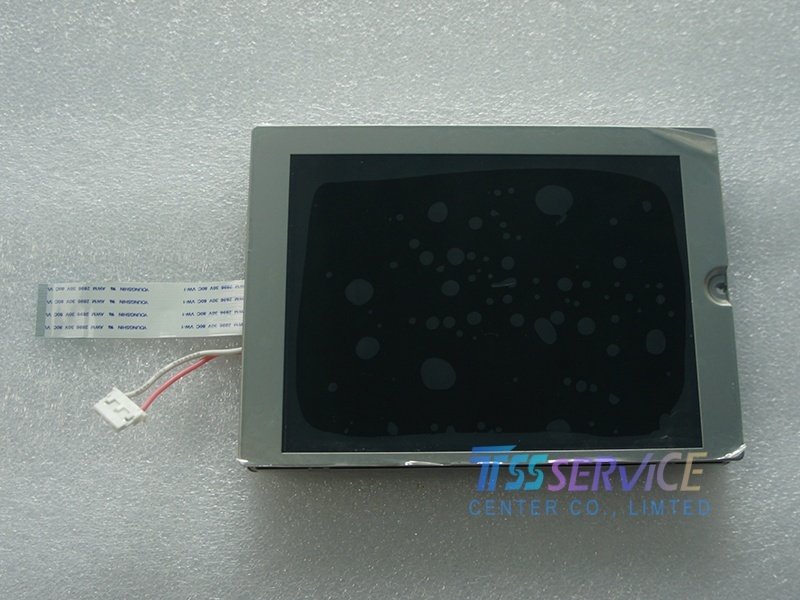

| Display Type | 5.7" TFT Active Matrix LCD |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Aspect Ratio | 4:3 |
| Active Area (AA) | 115.20 × 86.40 mm |
| Outline Dimensions | Approx. 144.0 × 104.0 × 13.0 mm (Varies slightly by connector height) |
| Pixel Pitch | 0.360 × 0.360 mm |
| Brightness | 500 cd/m² (Typical) – High Brightness for outdoor visibility |
| Contrast Ratio | 350:1 (Typical) |
| Color Depth | 262K Colors (6-bit RGB data input) |
| Viewing Angle | 12 o'clock direction (Top view optimized); Wide viewing angle available depending on sub-revision |
| Backlight | White LED (Long life, mercury-free) |

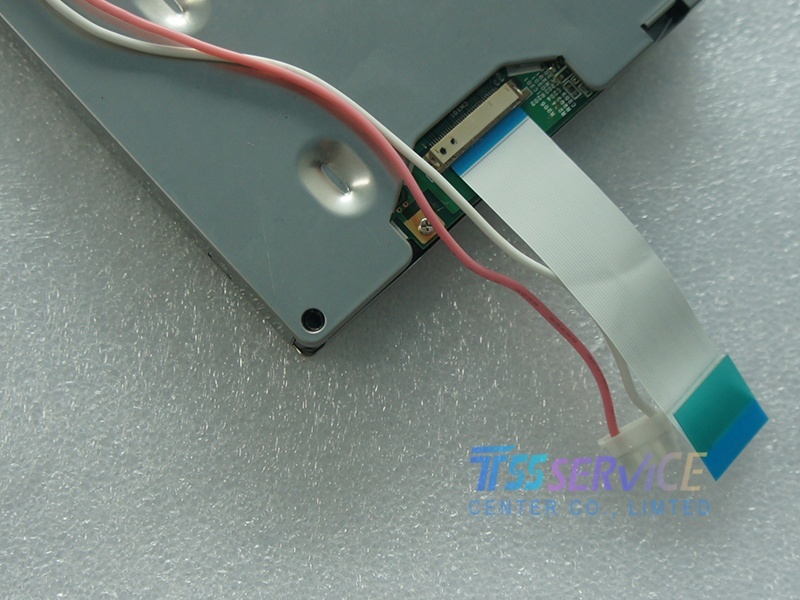

| Interface | TTL Parallel Interface (24-bit or 18-bit color data) |
| Operating Temperature | -30°C to +80°C (Wide Temperature Range) |
| Storage Temperature | -40°C to +90°C |
| Power Supply | 3.3V (Logic), Backlight voltage varies (typically constant current drive) |
| Touch Interface | None integrated (Designed for external resistive/capacitive overlay) |
| Compliance | RoHS Compliant, REACH Compliant |
