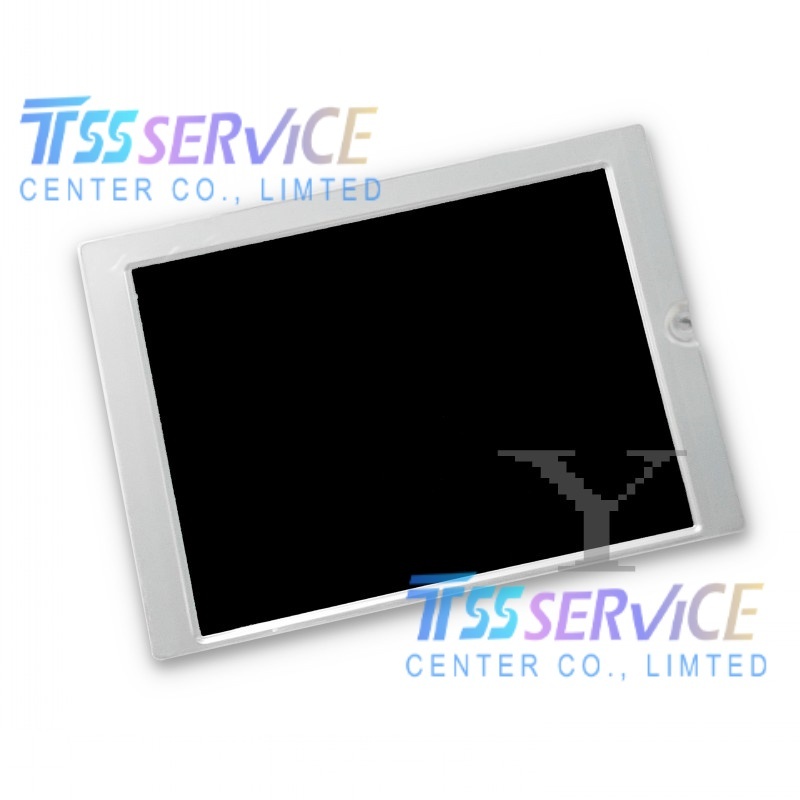

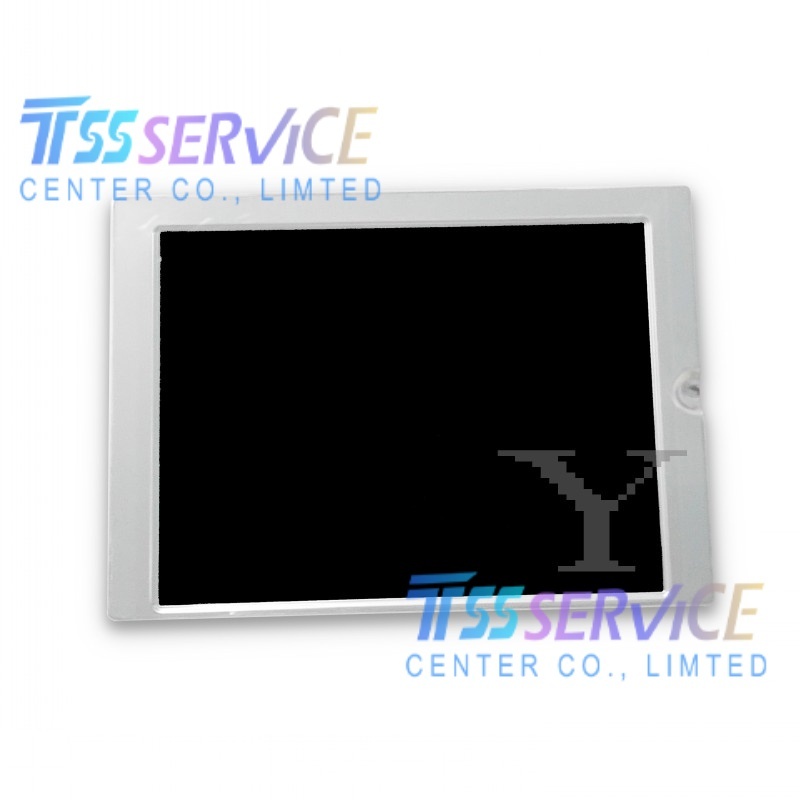

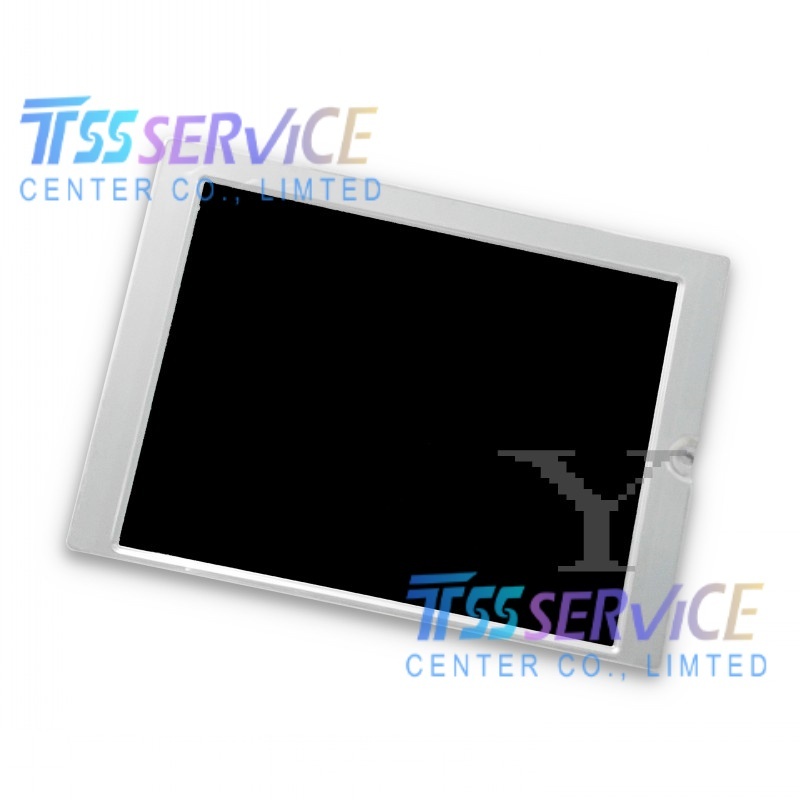

TCG057QV1AC-G11 5.7" 320*240 TFT-LCD PANEL FOR KYOCERA
| Category |
Item |
Specification |
| Basic Info |
Manufacturer |
Kyocera |
|
Display Size |
5.7 inches (diagonal) |
|
Panel Type |
a-Si TFT-LCD, TN (Normally White, Transmissive) |
|
Aspect Ratio |
4:3 |
|
Production Status |
Discontinued (Legacy Industrial) |
| Resolution & Pixels |
Resolution |
320 (RGB) × 240 (QVGA) |
|
Pixel Pitch |
0.360 (H) × 0.360 (V) mm |
|
Pixel Layout |
RGB Vertical Stripe |
|
PPI |
70 (Typ.) |
| Optical Performance |
Brightness (Typ.) |
400 cd/m² |
|
Contrast Ratio (Typ.) |
450:1 (Transmission) |
|
Display Colors |
262K (6-bit) |
|
Response Time (Typ.) |
Tr/Td = 10/25 ms |
|
Viewing Angle (Typ., CR≥5) |
70°(L) / 70°(R) / 70°(U) / 70°(D) |
|
Surface Treatment |
Glossy (Haze 0%) |
| Backlight |
Type |
CCFL (Single Tube) |
|
Life Expectancy |
75,000 hours (Typ.) |
| Interface |
Signal Interface |
Parallel RGB (TTL, 1 channel, 6-bit, 33 pins) |
|
Input Voltage |
3.3V (Typ.) |
| Mechanical |
Active Area |
115.2 (W) × 86.4 (H) mm |
|
Visible Area |
117.2 (W) × 88.4 (H) mm |
|
Module Outline |
144.0 (W) × 104.8 (H) × 13.5 (D) mm |
|
Net Weight (Typ.) |
220 g |
| Environmental |
Operating Temperature |
-10 °C to +70 °C |
|
Storage Temperature |
-30 °C to +80 °C |
| Compliance |
RoHS |
Compliant |
TCG057QV1AC-G11 is optimized for industrial durability, legacy interface compatibility, and stable performance in harsh conditions, making it ideal for:
1. Industrial Control & HMI
- Use Cases: PLC operator panels, CNC machine displays, factory automation controllers, SCADA terminals, industrial IPCs.
- Why It Fits: Wide temperature range (-10°C to +70°C) and robust CCFL backlight withstand factory heat/cold; Parallel RGB (TTL) supports legacy industrial control systems; 400 cd/m² brightness ensures readability in bright production areas.
2. Test & Measurement Instruments
- Use Cases: Oscilloscopes, multimeters, data loggers, environmental testers, process analyzers.
- Why It Fits: Stable 6-bit color and 450:1 contrast deliver clear waveform/data visualization; compact 5.7-inch form factor fits portable/benchtop test gear; wide storage temp (-30°C to +80°C) suits field deployment.
3. Transportation & Heavy Machinery
- Use Cases: Construction equipment dashboards, agricultural machinery monitors, forklift control panels, marine navigation terminals.
- Why It Fits: High vibration tolerance (industrial-grade design) and wide operating temp handle vehicle/machinery shocks and outdoor thermal extremes; glossy surface minimizes reflection in cab environments.
4. Medical & Laboratory Equipment
- Use Cases: Portable patient monitors, diagnostic analyzers, laboratory data displays, veterinary equipment.
- Why It Fits: Reliable CCFL backlight (75,000 hrs) supports 24/7 clinical use; 3.3V low-voltage design suits battery-powered portable devices; RoHS compliance meets medical safety standards.
5. Legacy Embedded & POS Systems
- Use Cases: Legacy industrial terminals, cash registers, barcode scanners, self-service kiosks, ATM peripherals.
- Why It Fits: Parallel RGB (TTL) interface is compatible with older embedded controllers; 4:3 aspect ratio matches legacy UI designs; cost-effective industrial-grade performance for long-term system maintenance.
