Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL / FedEx / UPS
| Parameter | Specification / Description |
|---|---|

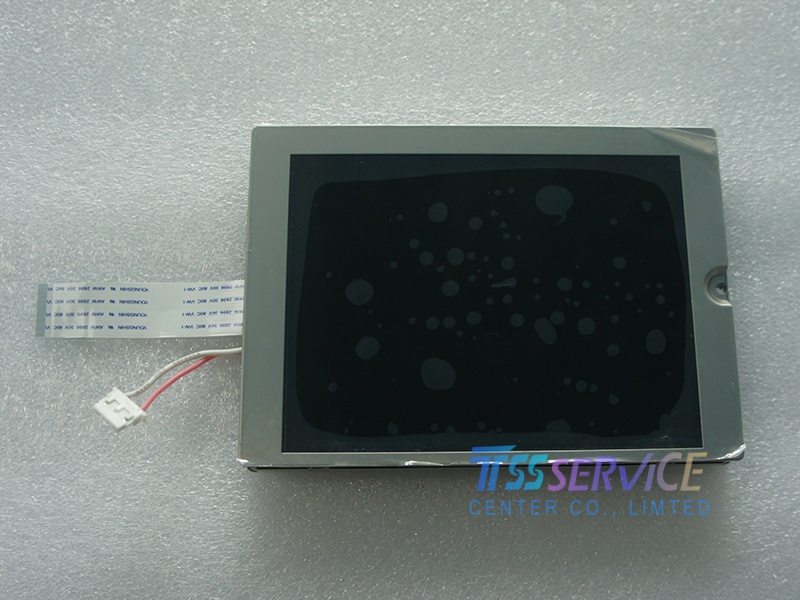

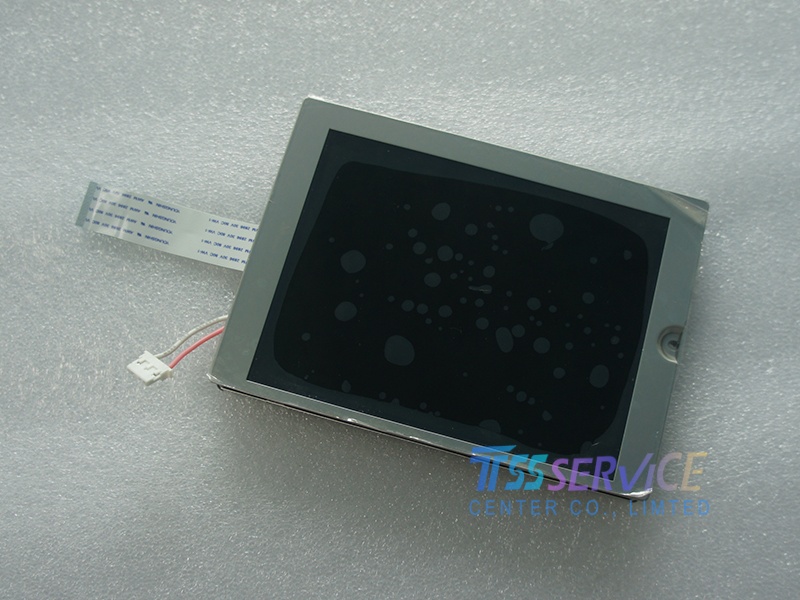

| Model Number | TCG057QV1AC-G50 |
| Manufacturer | Kyocera (Japan) |
| Panel Type | a-Si TFT-LCD, Transmissive Mode |
| Display Size | 5.7 inches (Diagonal) |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Aspect Ratio | 4:3 |
| Pixel Pitch | 0.120 mm (H) × 0.360 mm (V) (Note: Vertical pitch may vary based on specific stripe arrangement, typically ~0.36mm for QVGA 5.7") |
| Display Area | 115.2 mm (W) × 86.4 mm (H) |
| Outline Dimensions | Approx. 144.0 mm (W) × 104.8 mm (H) × 13.0 mm (D)* |
| Color Depth | 262K colors (6-bit) or 18-bit (262K) via TTL |
| Brightness | Typical 400~500 cd/m² (Industrial High Brightness) |
| Contrast Ratio | 400:1 to 500:1 (Typ.) |
| Viewing Angle | 70/70/60/60 (Left/Right/Up/Down, CR≥10) |
| Surface Treatment | Matte / Anti-glare |
| Backlight Type | CCFL or High-Reliability LED (Integrated Inverter/Driver) |
| Backlight Life | > 50,000 hours |
| Operating Temperature | -30°C to +80°C (Wide Temperature Industrial Grade) |
| Storage Temperature | -30°C to +80°C |
| Interface | TTL (Parallel RGB Interface), 6-bit/8-bit configurable |

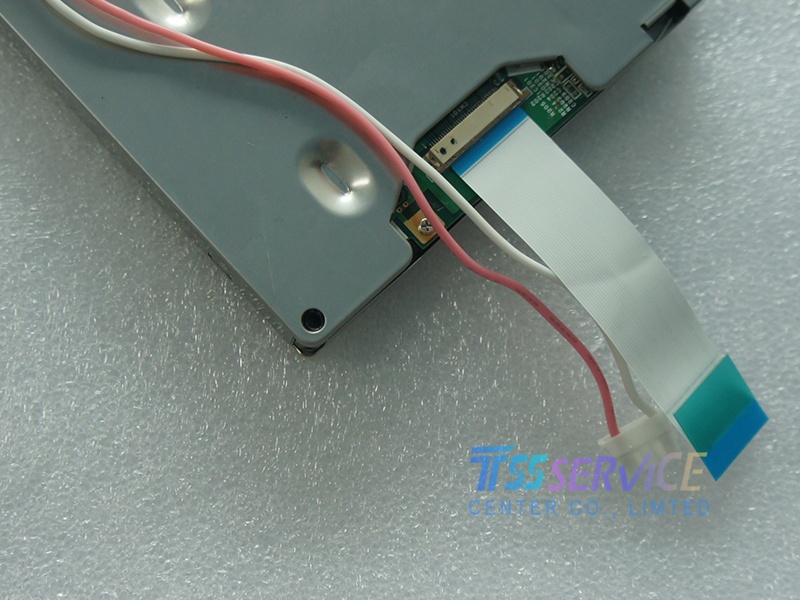

| Signal Connector | Standard Pin Header (e.g., 30-pin or 40-pin, specific to G50 revision) |
| Mechanical Feature | Metal bezel reinforcement; RoHS Compliant |
| Vibration Resistance | 1.5G (14.7 m/s²) |
| Touch Panel | No Touch (Open Frame for optional analog/resistive touch) |
