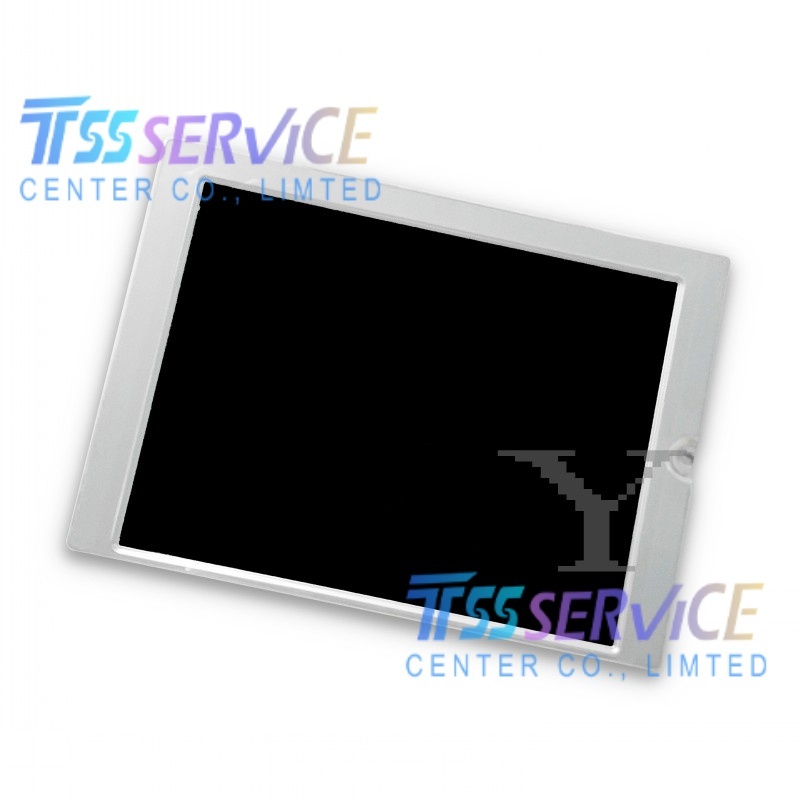

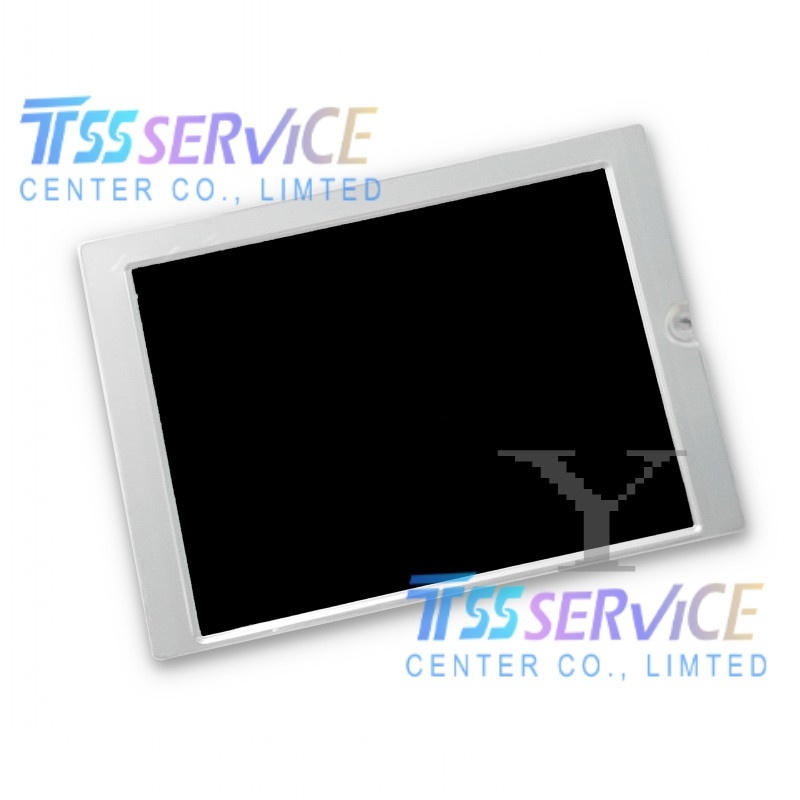

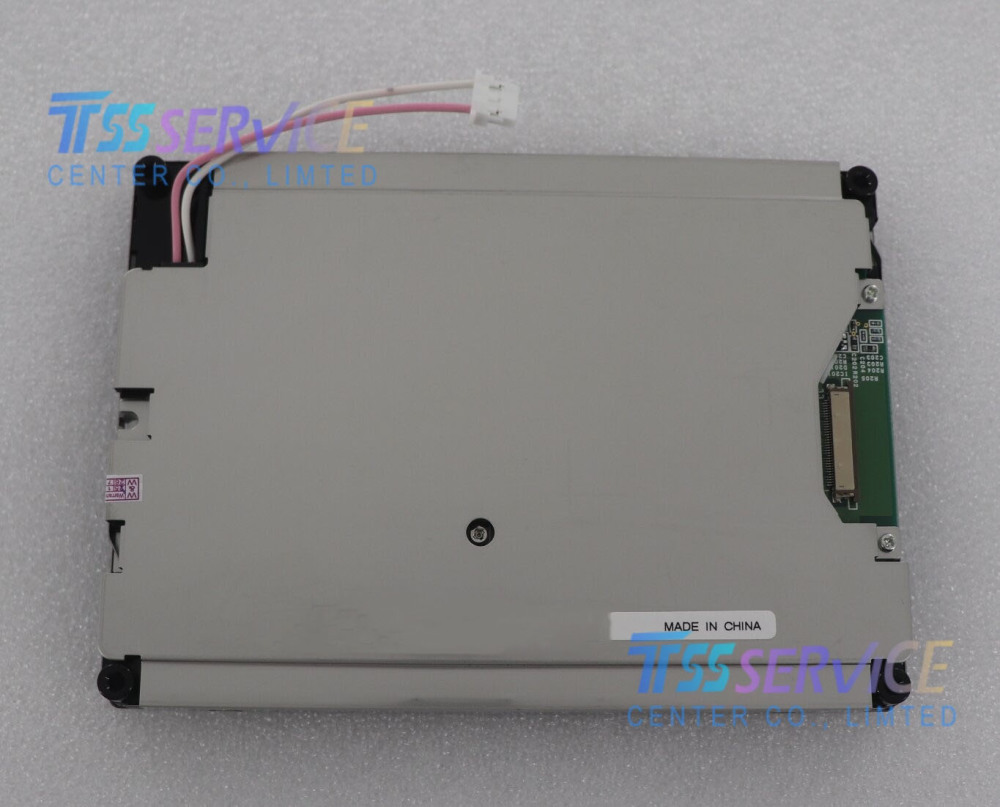

KYOCERA NEW 5.7 inch LCD Display Panel TCG057VGLCCAFA-GA00 for Industrial
| Parameter |
Specification |
| Model Number |
TCG057QV1AC-H50 |
| Brand / Type |
Kyocera / a-Si TFT-LCD Module |
| Screen Size |
5.7 Inches |
| Resolution |
320(RGB) × 240 [QVGA] |
| Brightness |
1000 cd/m² (Typ.) |
| Contrast Ratio |
450:1 (Typ.) |
| Display Mode |
TN, Normally White, Transmissive |
| Color Depth |
262K Colors (50% NTSC) |
| Backlight |
1 pcs CCFL (>75K hours lifespan) |
| Interface |
Parallel RGB (1 ch, 6-bit), 33 pins |
| Supply Voltage |
3.3V (Typ.) |
| Viewing Angle |
120°(V) / 140°(H) (CR ≧ 5) |
| Response Time |
35 ms |
| Surface Treatment |
Mirror Surface with Anti-Reflection |
| Operating Temp. |
-10°C to +70°C |
| Storage Temp. |
-30°C to +80°C |
- ndustrial & CNC Control Systems: Widely used in numerical control system displays for industrial machinery, such as FANUC, Siemens, and Mitsubishi CNC systems, providing high-brightness visual feedback for factory operations.
- Outdoor High-Brightness Terminals: Due to its ultra-high brightness, it is highly suitable for outdoor equipment and self-service terminals that require clear visibility under direct sunlight.
- Medical & Testing Instruments: Integrated into medical devices, paperless recorders, power equipment, and professional testing instruments where reliable color display and durability are essential.
- Automotive & Monitoring Equipment: Applied in vehicle navigation systems, handheld PDAs, and surveillance monitoring equipment requiring stable performance across varying temperatures.
