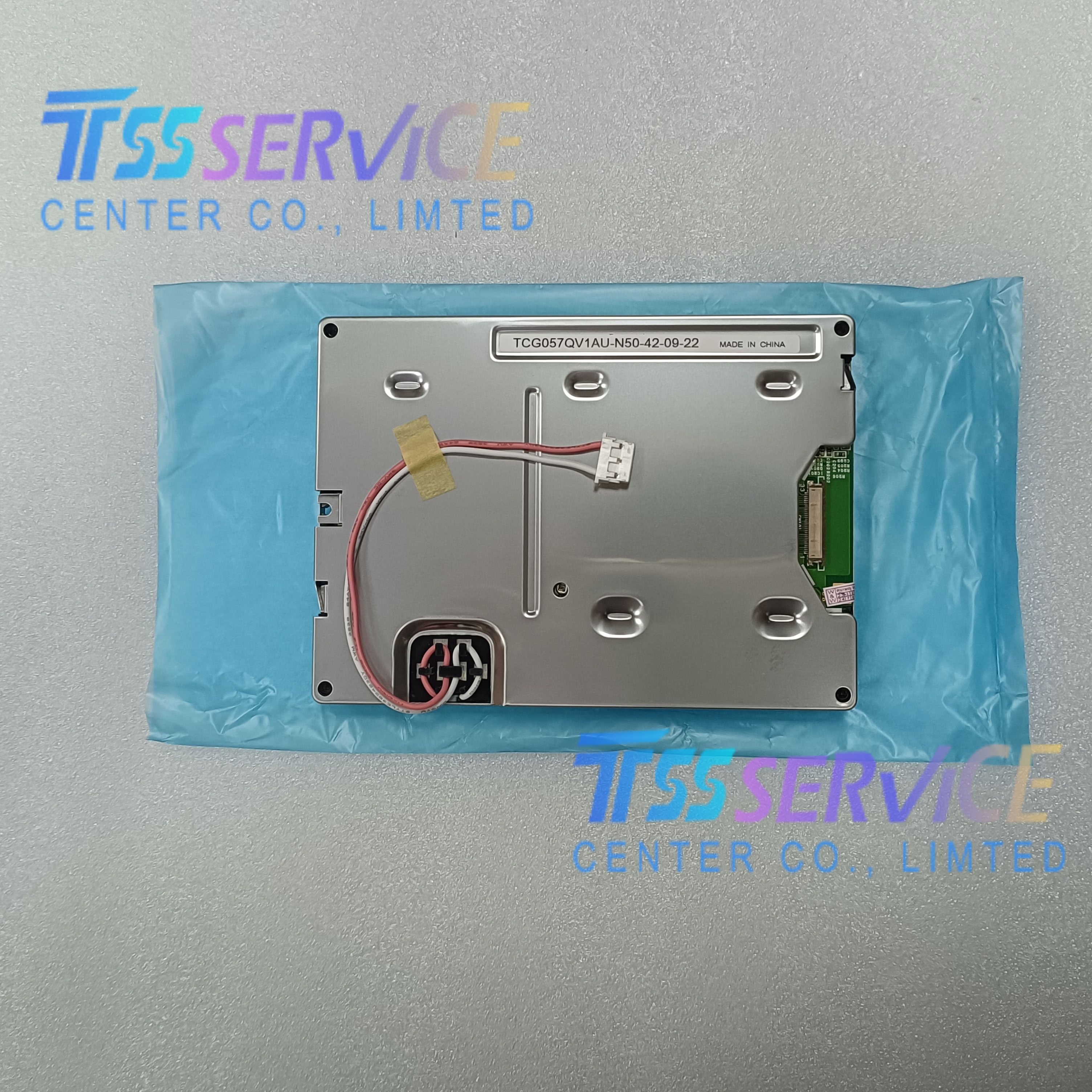

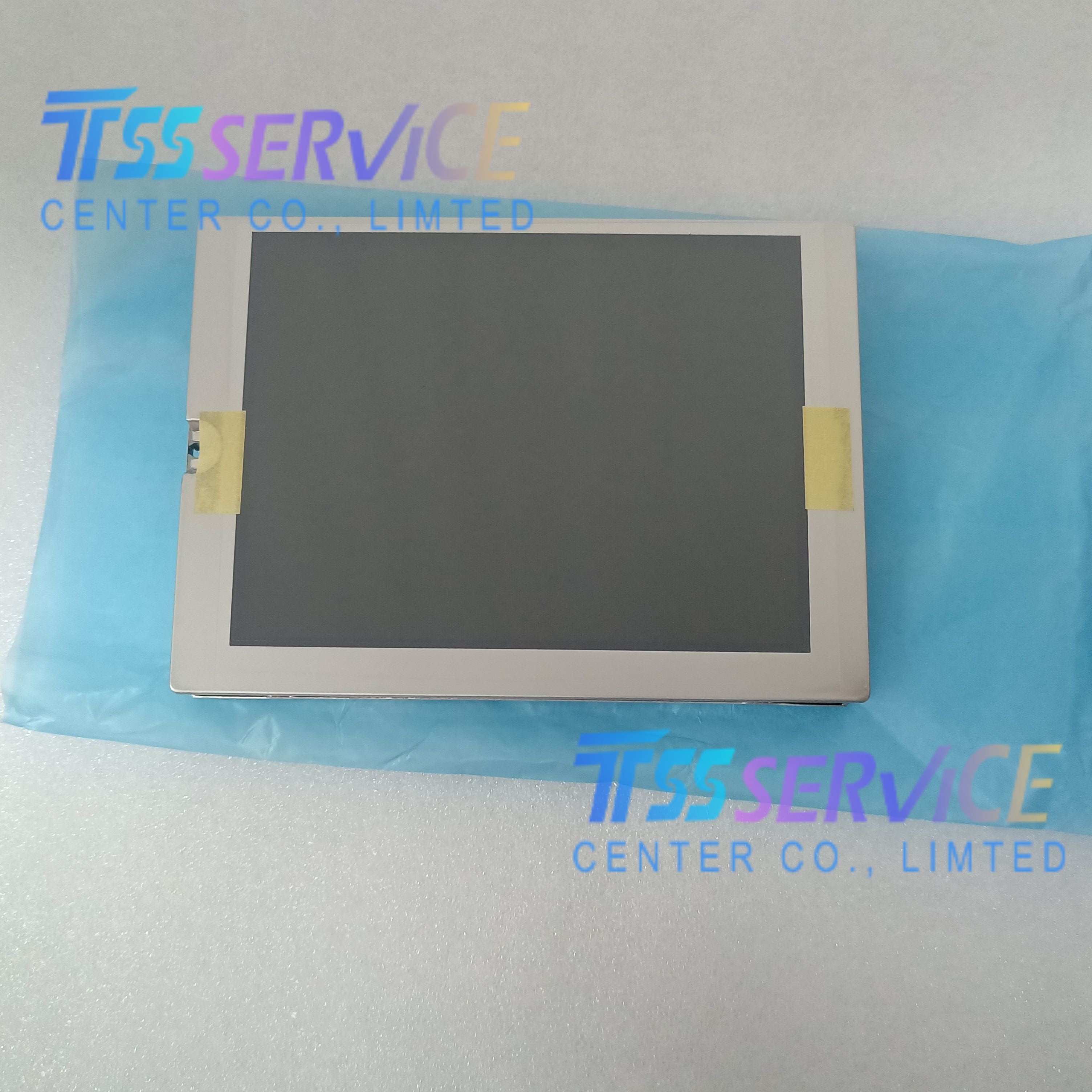

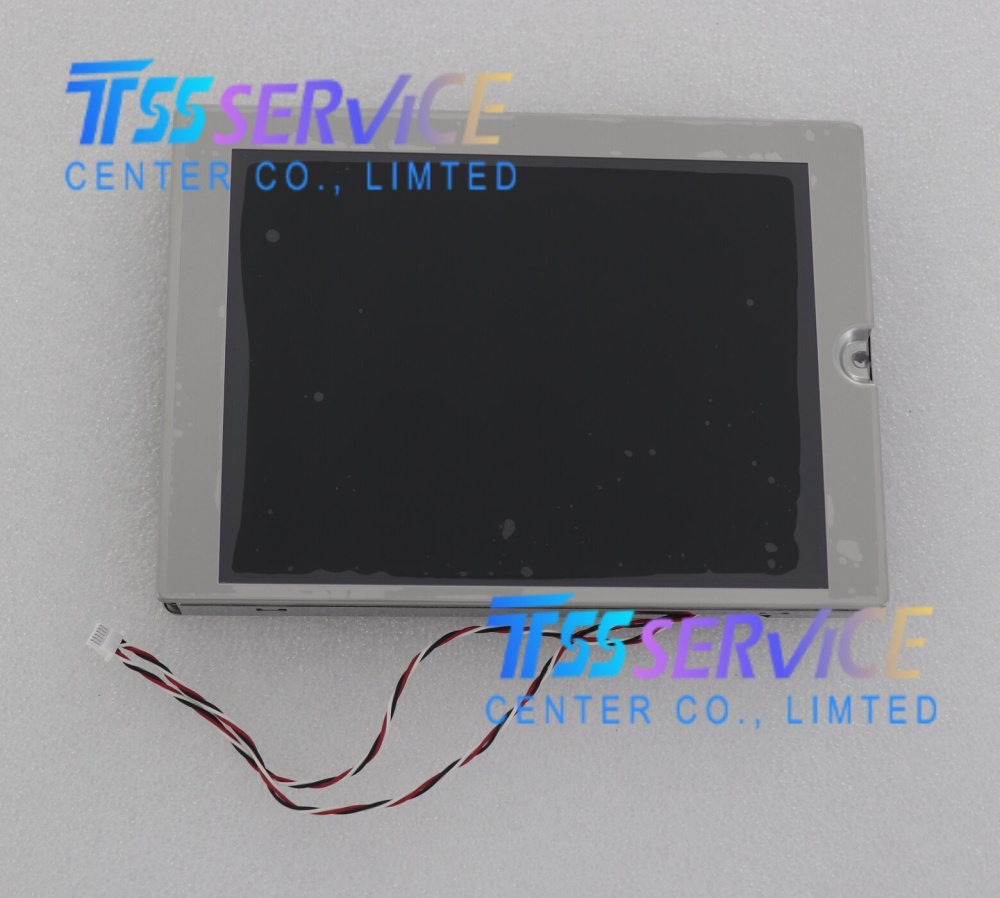

TCG057QV1AU-N50 Kyocera 5.7 inch LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Kyocera (京瓷) |
| Model |
TCG057QV1AU-N50 |
| Display Size |
5.7-inch diagonal |
| Resolution |
320×240 (QVGA) |
| Display Type |
Color TFT-LCD |
| Color Depth |
18-bit RGB (262K colors) |
| Brightness |
600 cd/m² (typical) |
| Contrast Ratio |
500:1 (typical) |
| Backlight |
LED backlight (long lifetime) |
| Interface |
TTL parallel interface |
| Viewing Angle |
60/60/40/70° (L/R/U/D) |
| Supply Voltage |
DC 3.3V |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
TCG057QV1AU-N50 is a high-performance 5.7-inch industrial color TFT LCD module, mainly applied in industrial control and CNC equipment fields.
Main Application Scenarios:
- CNC Machine Tools
- Replacement display for FANUC, Mitsubishi and other CNC systems
- Applied in CNC lathes, machining centers, grinding machines and milling equipment
- Industrial Automation Equipment
- Industrial HMI touch panels
- Injection molding machines and packaging machinery
- Textile equipment and printing machines
- Industrial Control Terminals
- Factory automation control systems
- Test and measurement instruments
- Legacy industrial display replacement and upgrading
