Kyocera TCG057QV1CC-G00 5.7 inch LCD Panel for Industrial Machine

Name: Kyocera TCG057QV1CC-G00 5.7 inch LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QV1CC-G00
Price: 78 USD
Availability: InStock

SKU: TCG057QV1CC-G00

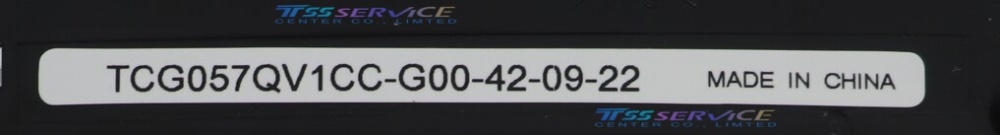

Model P/N: TCG057QV1CC-G00
Diagonal Size: 5.7"
Panel Type: a-Si TFT, Transmissive
Resolution: 320 (H) × 240 (V) pixels (QVGA)

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

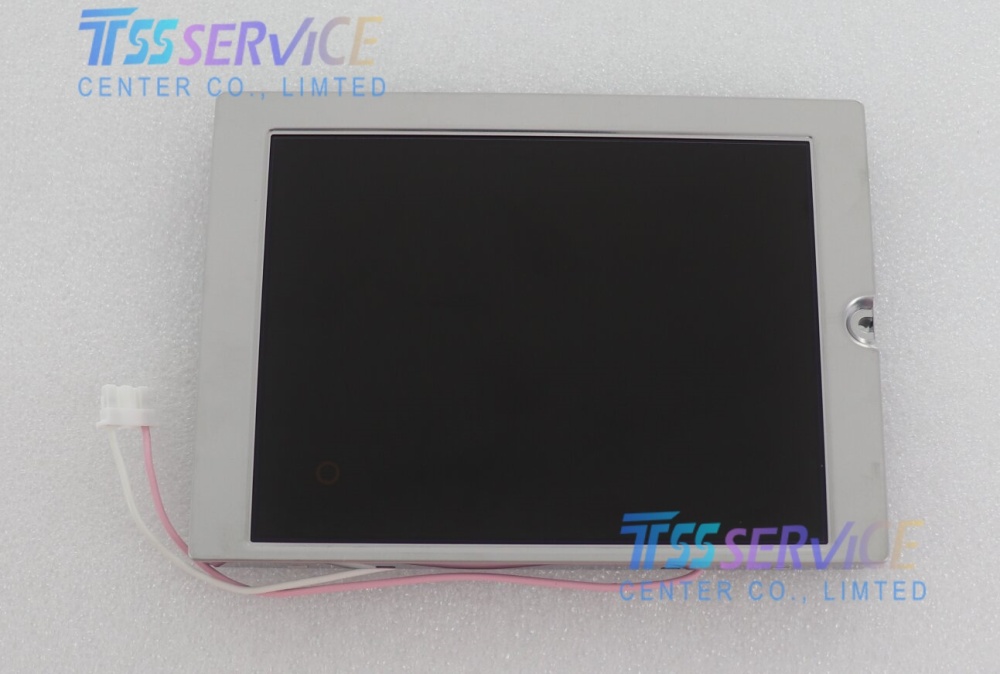

Kyocera TCG057QV1CC-G00 5.7 inch LCD Panel for Industrial Machine

Parameter	Specification
Manufacturer	Kyocera (Optrex)
Part Number	TCG057QV1CC-G00
LCD Type	a-Si TFT, Transmissive, Normally White
Diagonal Size	5.7 inches
Resolution	320 (H) × 240 (V) pixels (QVGA)
Active Area	115.2 × 86.4 mm
Outline Dimensions	144.0 × 104.8 × 12.7 mm
Pixel Pitch	0.36 × 0.36 mm
Display Colors	262K colors
Brightness	220 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.)
Viewing Angle (CR≥2)	70° (U), 70° (D), 70° (L), 50° (R)
Response Time	Tr/Tf: 10/15 ms (Typ.)
Backlight	CCFL (1 lamp), Long Life
Interface	TTL (Parallel RGB)
Input Voltage	3.3V / 5V
Operating Temp.	-20°C to +70°C
Storage Temp.	-30°C to +80°C
Weight	175 g (Max.)

Applications

Industrial Control & HMI: Factory automation panels, PLC interfaces, CNC machine displays, and process control systems.
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments requiring reliable color display.
Test & Measurement: Oscilloscopes, spectrum analyzers, data loggers, and field meters.
Office Automation: Printers, copiers, multifunction devices, and fax machines.
Marine & Avionics: Navigation systems and control panels for rugged environments.
Embedded Systems: Industrial PCs, vehicle-mounted terminals, and legacy equipment upgrades.
