Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|

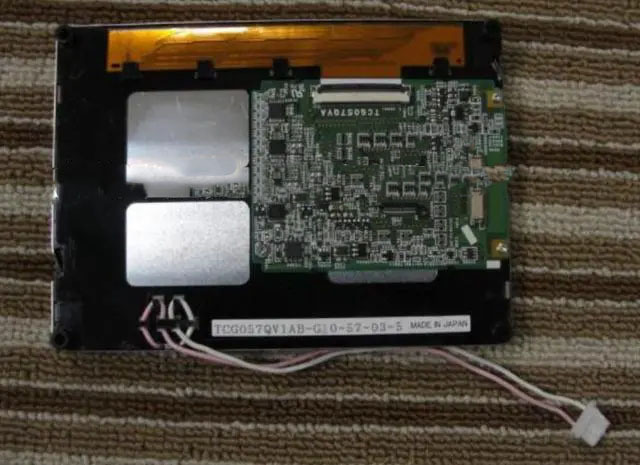

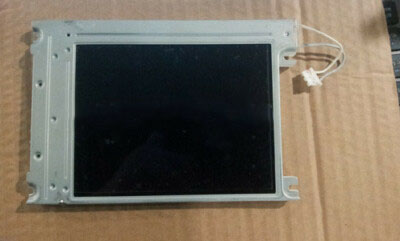

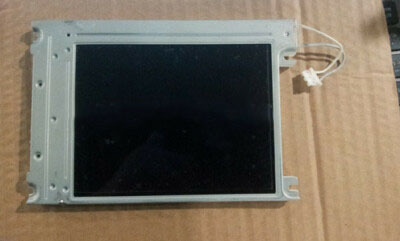

| Model Number | TCG057QV1DC-G00 |
| Manufacturer | Kyocera Display Solutions |
| Display Type | 5.7" TFT Active Matrix LCD |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Aspect Ratio | 4:3 |
| Active Area (AA) | 115.20 × 86.40 mm |
| Outline Dimensions | Approx. 144.0 × 104.0 × 13.5 mm (Slightly thicker due to enhanced backlight) |
| Pixel Pitch | 0.360 × 0.360 mm |
| Brightness | 800 ~ 1000 cd/m² (Typical for "DC" High-Brightness Variant)* |
| Contrast Ratio | 400:1 (Typical at high brightness) |
| Color Depth | 262,144 Colors (6-bit RGB) |
| Viewing Angle | Wide viewing angle (12 o'clock direction optimized) |
| Backlight | High-Power White LED Array |
| Interface | TTL Parallel Interface |
| Operating Temperature | -30°C to +85°C (Extended Range)* |
| Storage Temperature | -40°C to +95°C |
| Power Supply | 3.3V (Logic); Backlight requires higher voltage/current driver |
| Touch Panel | Not integrated (Compatible with external bonding) |
| Compliance | RoHS Compliant, REACH Compliant |
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
