Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|

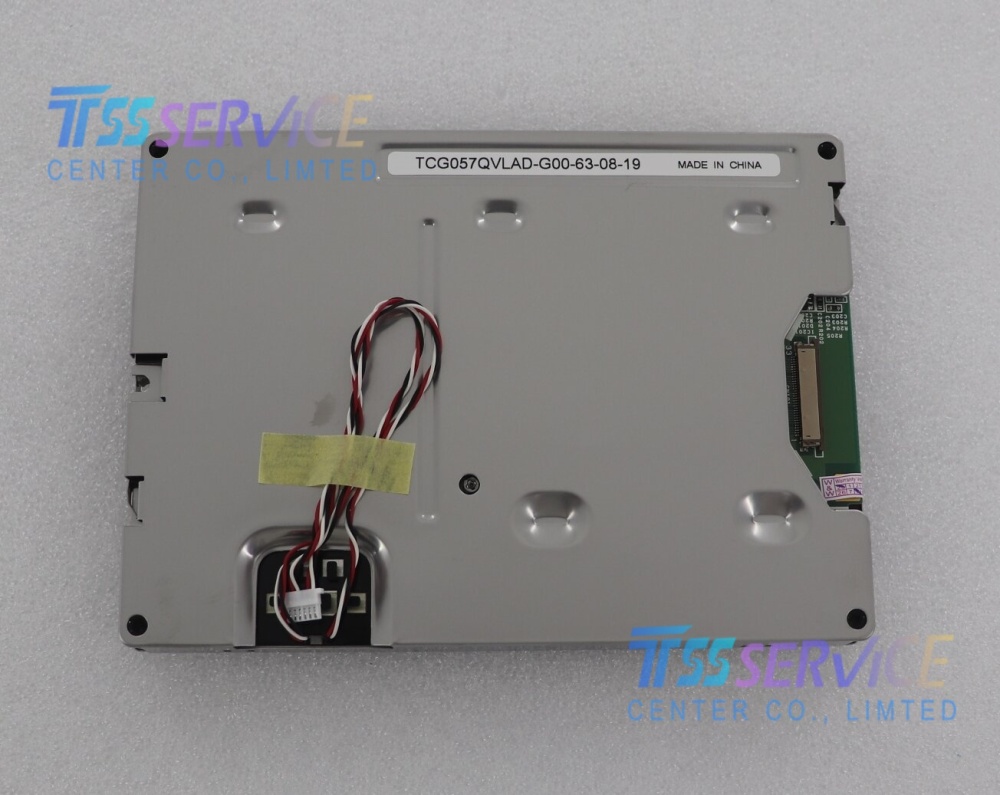

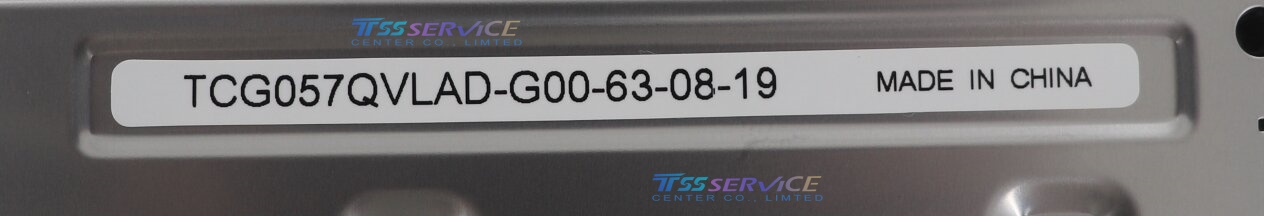

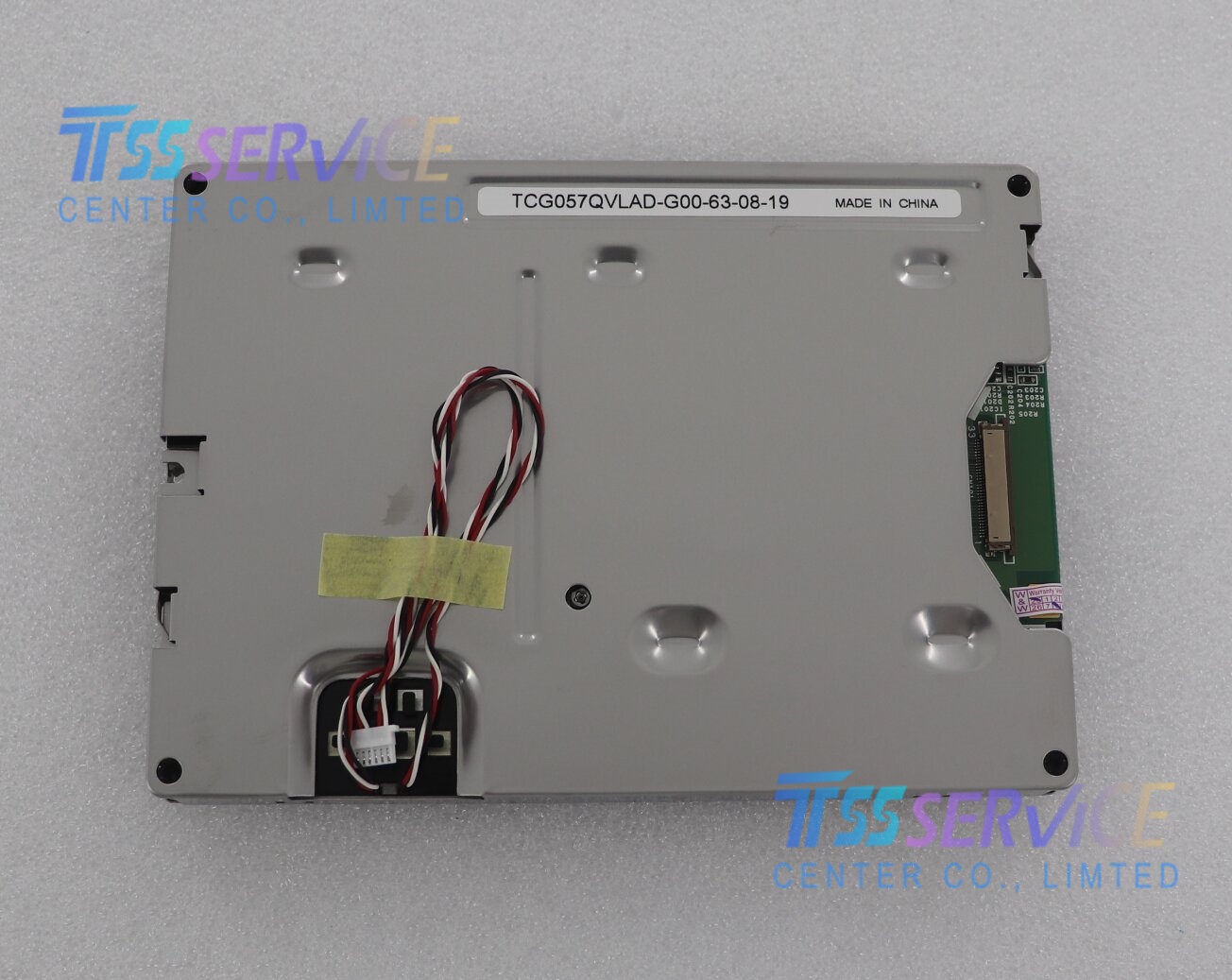

| Model Number | TCG057QVLAD-G00 |
| Manufacturer | Kyocera Display Solutions |

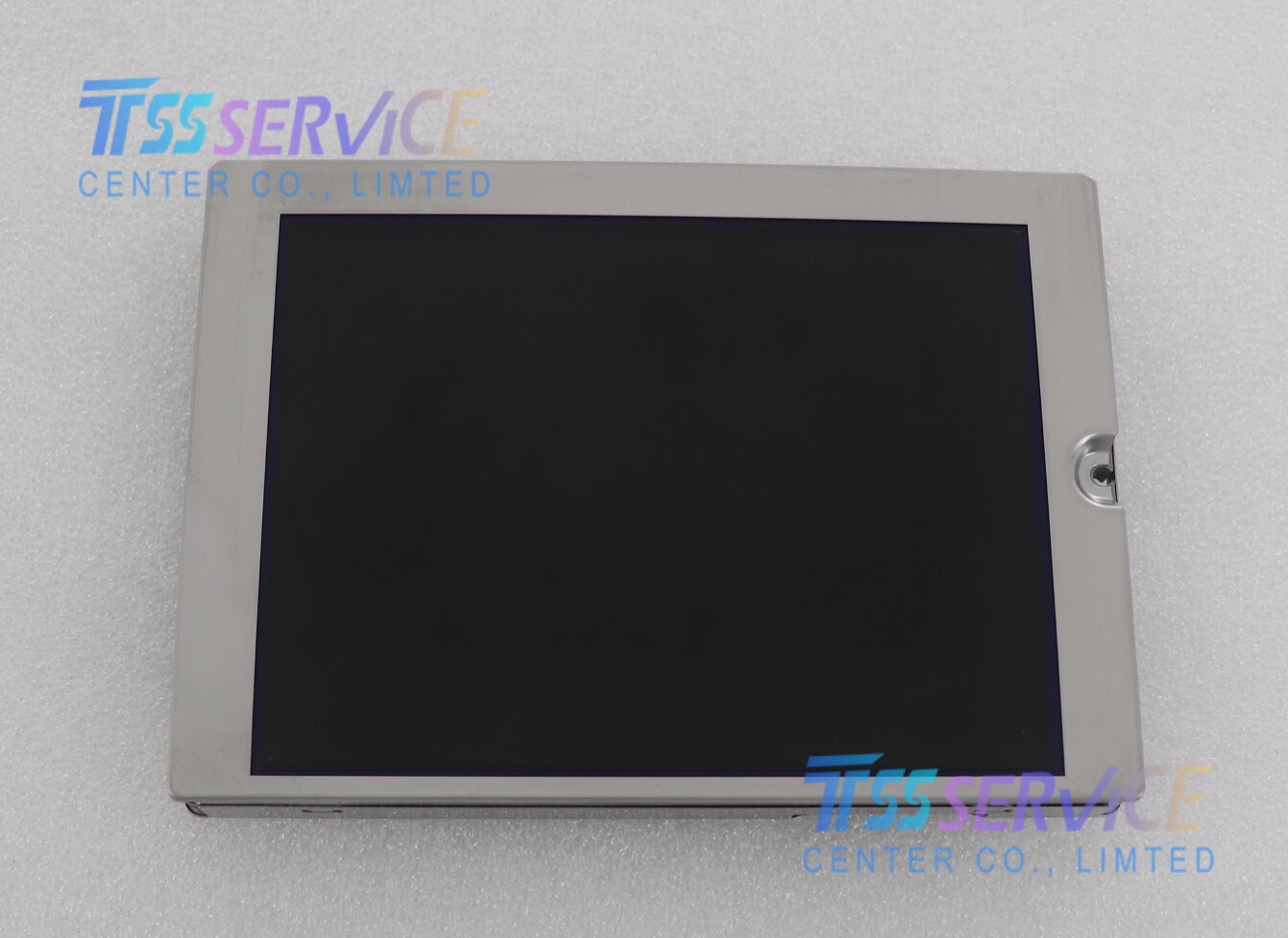

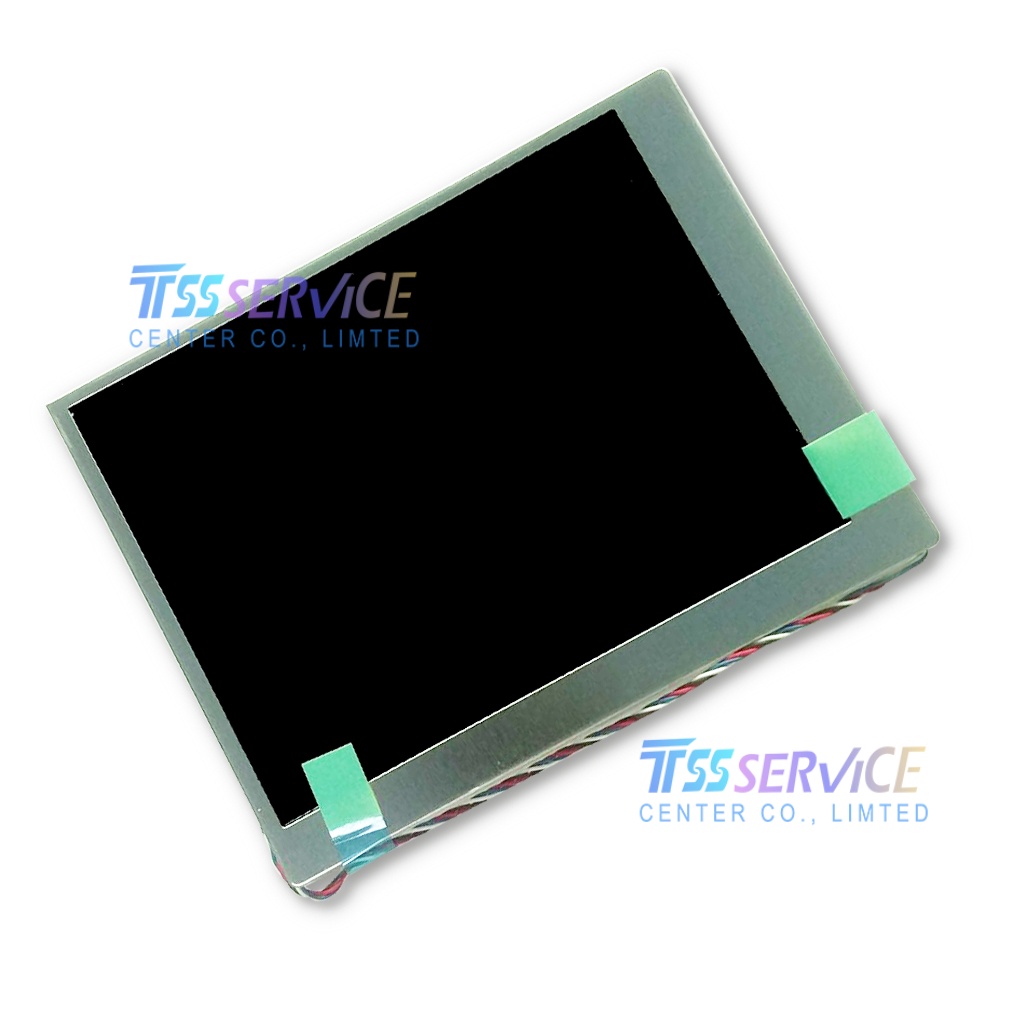

| Display Type | 5.7" TFT Active Matrix LCD |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Aspect Ratio | 4:3 |
| Active Area (AA) | 115.20 × 86.40 mm |
| Outline Dimensions | 144.0 × 104.0 × 12.9 mm (Approx., varies slightly by connector) |
| Pixel Pitch | 0.360 × 0.360 mm |
| Brightness | 500 cd/m² (Typical) – High Brightness Version |
| Contrast Ratio | 300:1 to 400:1 (Typical) |
| Color Support | 262,144 colors (6-bit data input) |
| Viewing Angle | 12 o'clock (Top) / 6 o'clock (Bottom) dependent on orientation; typically wide view |
| Backlight Type | White LED Array |
| Interface | TTL (Transistor-Transistor Logic) Parallel Interface |
| Operating Temperature | -30°C to +80°C (Wide Temperature Range - Key Feature of AD series) |
| Storage Temperature | -40°C to +90°C |
| Power Supply Voltage | 3.3V (Logic), Variable for Backlight (typically 10-20V depending on LED config) |
| Touch Panel | Not integrated (Open frame for external touch integration) |
| RoHS Compliance | Yes |
