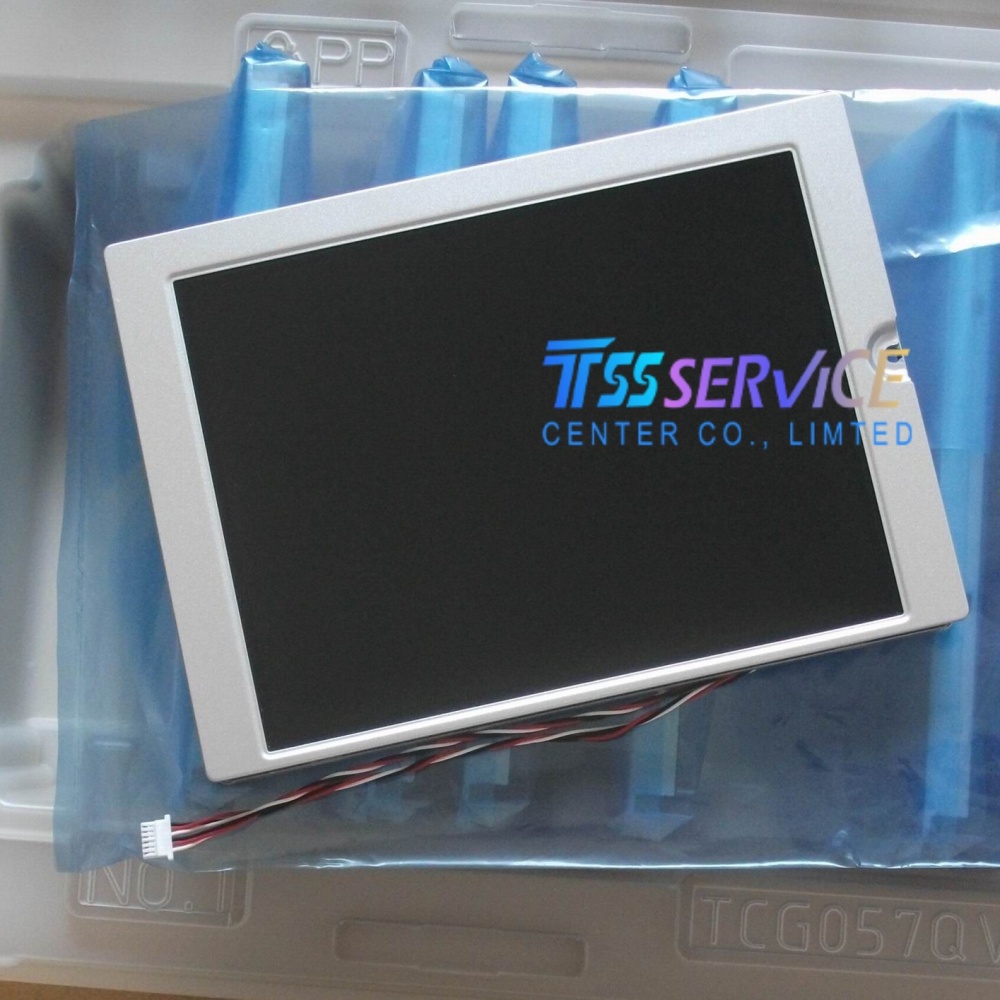

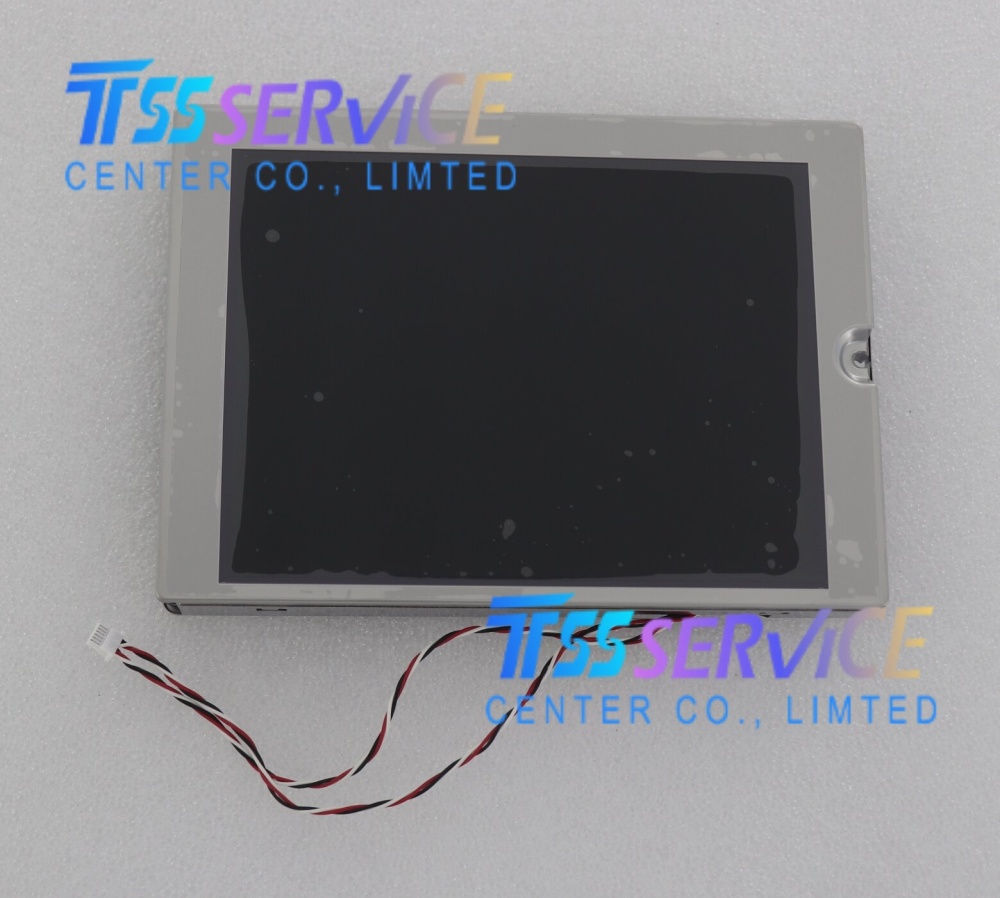

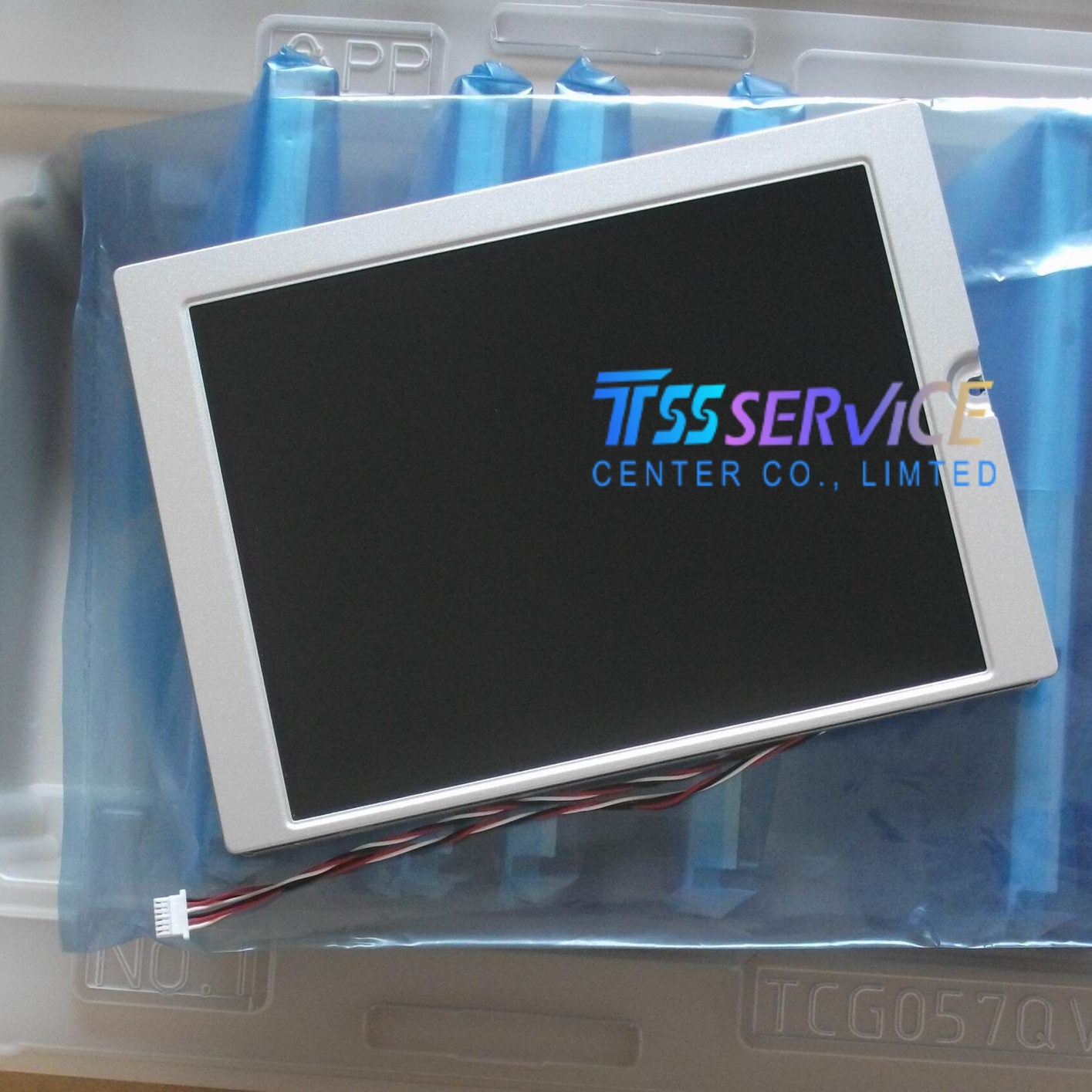

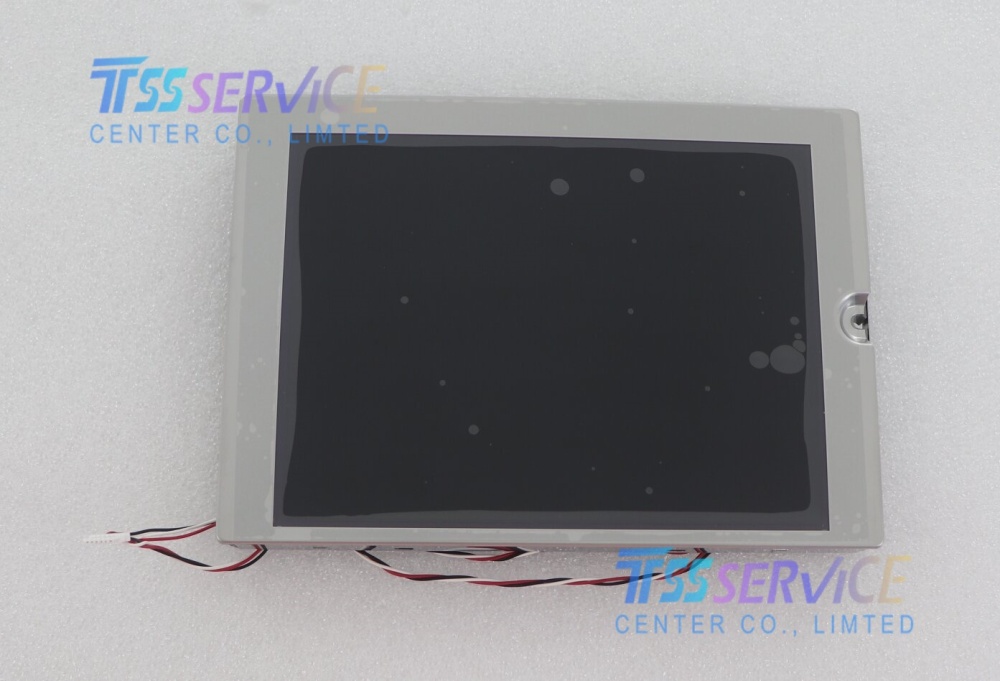

Kyocera TCG057QVLCAANN-HN50 5.7 inch 320×240 LCD Display Screen For Industrial

Name: Kyocera TCG057QVLCAANN-HN50 5.7 inch 320×240 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLCAANN-HN50
Price: 130 USD
Availability: InStock

SKU: TCG057QVLCAANN-HN50

Model: TCG057QVLCAANN‑HN50
Brand: Kyocera
Diagonal Size: 5.7 inches
Panel Type: a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution: 320 × 240 (QVGA, RGB), 70 PPI

0.0 (0 Reviews)

0 Sold

~~$133.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057QVLCAANN-HN50 5.7 inch 320×240 LCD Display Screen For Industrial

Parameter	Details
Model	TCG057QVLCAANN‑HN50
Brand	Kyocera
Diagonal Size	5.7 inches
Panel Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution	320 × 240 (QVGA, RGB), 70 PPI
Active Area	115.2 (W) × 86.4 (H) mm
Outline Dimensions	144 (W) × 104.8 (H) × 13 (D) mm
Brightness	1000 cd/m² (High Brightness)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	80°/80°/80°/80° (L/R/U/D, CR ≥ 10)
Color Depth	262K colors (RGB 6‑bit)
Backlight	WLED, long life (50,000 hrs typ.)
Interface	CMOS (40 pins, 18‑bit RGB)
Operating Voltage	3.3 V (Single Supply)
Operating Temperature	−20 °C ~ +70 °C
Storage Temperature	−30 °C ~ +80 °C
Features	High brightness, industrial grade, wide temperature, sunlight readable

Applications (English)

Industrial HMI: CNC machinery, injection molding machines, PLC control panels, factory automation terminals.
Outdoor & Bright Environment: Outdoor kiosks, parking ticket machines, solar‑powered devices, construction equipment dashboards (1000 cd/m² sunlight readable).
Medical Equipment: Patient monitors, diagnostic devices, portable medical instruments (wide temp & reliable).
Automotive & Special Vehicles: Forklifts, agricultural machinery, construction vehicle displays, marine instrument panels.
Smart Home & Commercial: Industrial control panels, vending machines, audio/visual control systems.
