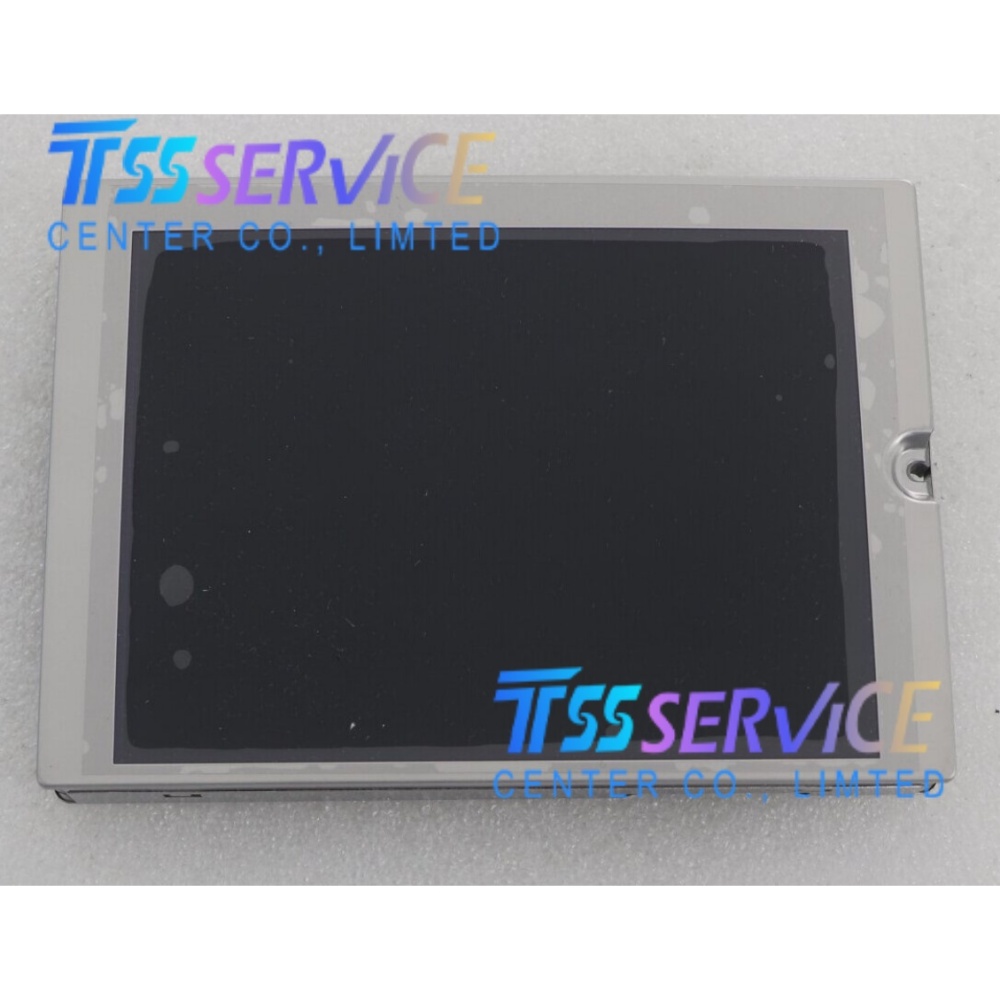

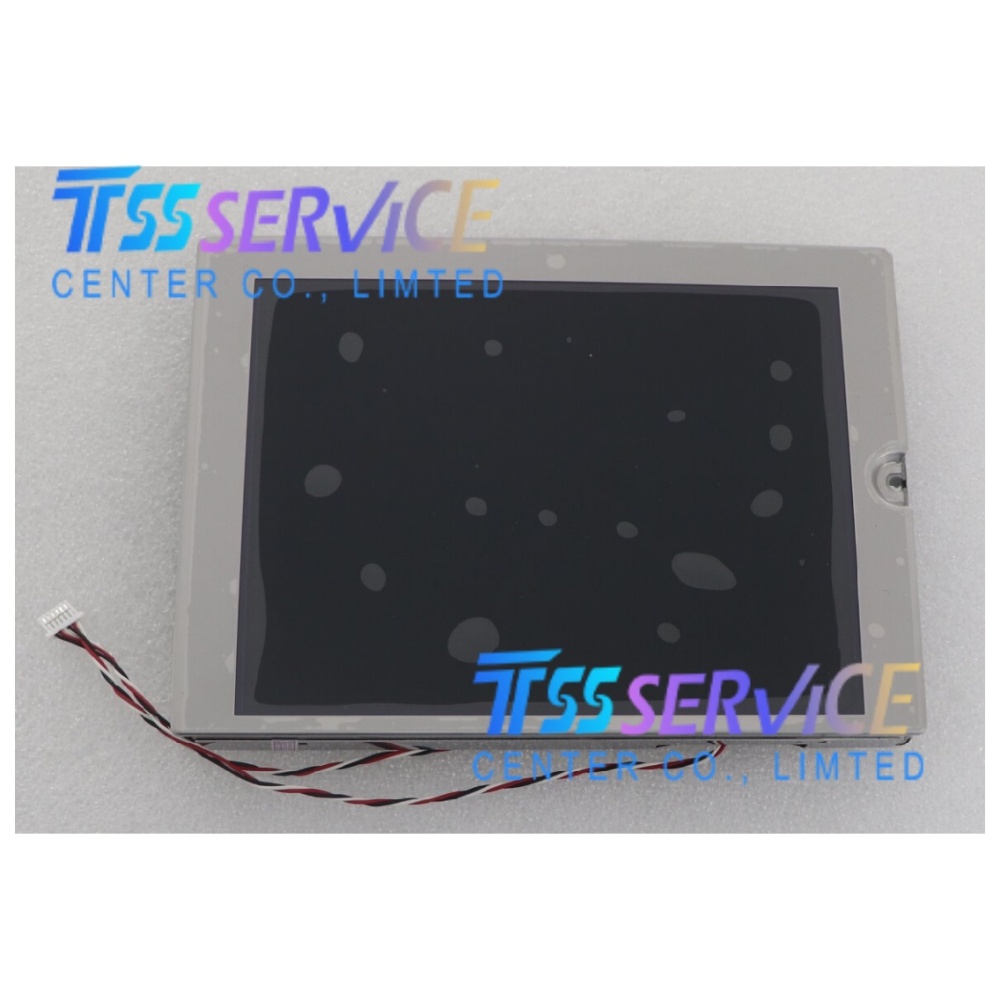

Kyocera TCG057QVLCL-G00 5.7 Inch QVGA 320×240 Industrial TFT LCD Screen For Industrial

Name: Kyocera TCG057QVLCL-G00 5.7 Inch QVGA 320×240 Industrial TFT LCD Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLCL-G00
Price: 153 USD
Availability: InStock

SKU: TCG057QVLCL-G00

Model: TCG057QVLCL-G00
Screen Size: 5.7 inch
Resolution: 320(RGB)×240 QVGA,4:3
Display Type: a-Si TFT-LCD,TN Normally White,Transmissive

0.0 (0 Reviews)

0 Sold

~~$165.00~~ $153.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057QVLCL-G00 5.7 Inch QVGA 320×240 Industrial TFT LCD Screen For Industrial

Parameter	Detailed Spec
Model	TCG057QVLCL-G00
Manufacturer	Kyocera
Screen Size	5.7 inch
Resolution	320(RGB)×240 QVGA,4:3
Display Type	a-Si TFT-LCD,TN Normally White,Transmissive
Active Area	115.2(H)×86.4(V) mm
Overall Dimension	144(H)×104.8(V)×12.7(D) mm
Typical Weight	180g
Brightness	350 cd/m²(Typ.)
Contrast Ratio	500:1(Typ.)
View Angle(L/R/U/D)	80/80/80/80 (CR≥5,Full Wide View)
Response Time	Tr=10ms / Td=25ms
Color Rendering	262K Colors,60% NTSC
Surface	Glossy(0% Haze)
Backlight	WLED,50000H lifespan,With Built-in LED Driver
Interface	Parallel RGB 1CH 6-bit,33Pin Connector
Supply Voltage	3.3V(Typ.)
Touch Screen	Without Touch
Operating Temp	-20℃ ~ +70℃
Storage Temp	-30℃ ~ +80℃

Application

Industrial Automation & CNC HMI
Replacement screen for old Siemens,Weinview,Mitsubishi,Omron HMI touch panel,CNC lathe/milling machine operation display,injection molding machine controller,frequency converter & servo driver operation terminal,PLC factory automation control host.
Medical Diagnostic Equipment
Bedside patient monitor,portable blood biochemistry analyzer,clinical laboratory testing instrument,rehabilitation therapy equipment control LCD panel.
Precision Test & Measuring Instruments
Laboratory environmental gas detector,portable industrial calibration tester,electronic oscilloscope,precision measuring equipment display screen.
Special Industrial On-board Terminal
Construction machinery cab control monitor,industrial fixed POS terminal,factory access control host display.
