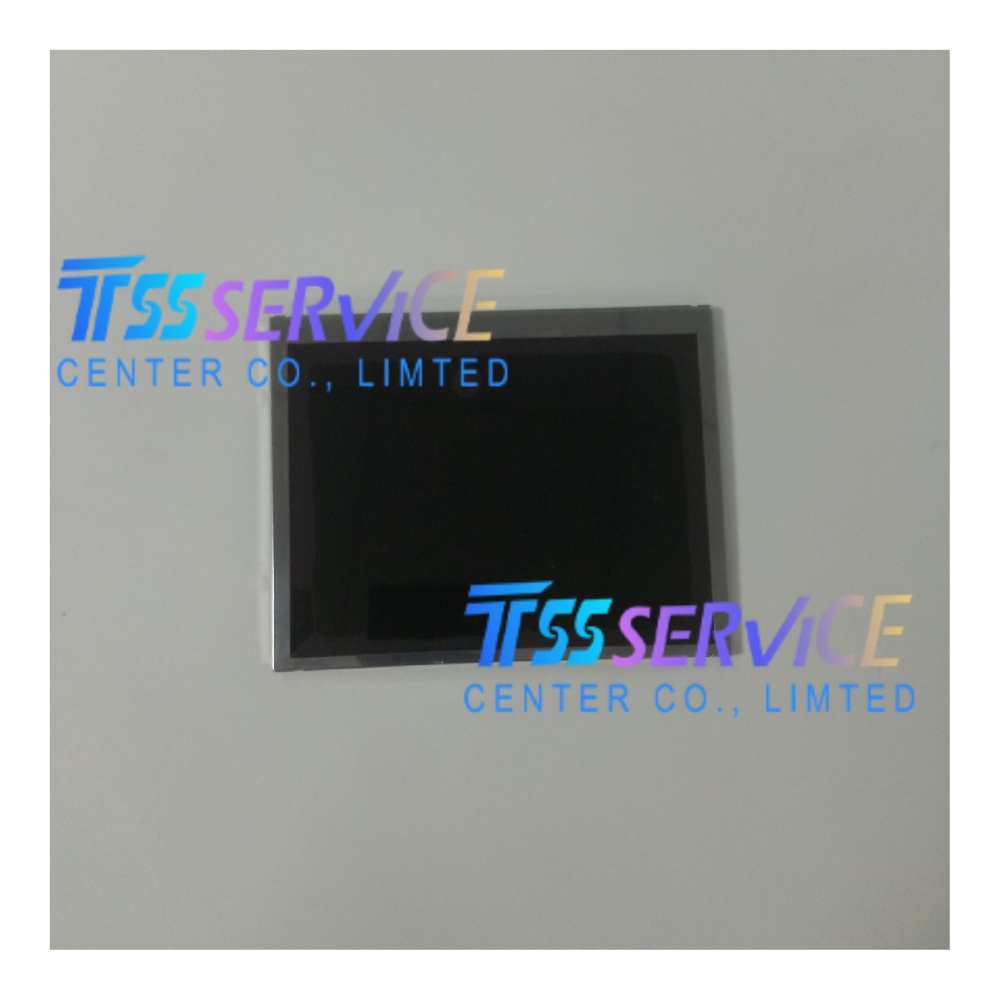

TCG057QVLCSANN-GN00 LCD Display is a 5.7-inch LCD screen from KYOCERA brand without touch. It has a resolution of 320x240 pixels (QVGA), a brightness of 300 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 500:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.
SPECIFICATION
| Resolution |
320(RGB)×240, QVGA 70PPI |
Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
Bezel Opening |
117.2(W)×88.4(H) mm |
| Outline Dim. |
127.2(H)×100.4(V) ×6(D) mm |
Treatment |
Glare (Haze 0%) |
| Luminance |
300 cd/m² (Typ.) |
Contrast Ratio |
500:1 (Typ.) (TM) |
Q:Can you give me a discount if I need a large quantity of TCG057QVLCSANN-GN00?
A:Of course！If you make a large order, we will give you a discount.
Q:How can I trace my order of TCG057QVLCSANN-GN00 ?
A:we will give you tracking number then you can trace your order from website.
Q:Can You declare my order of TCG057QVLCSANN-GN00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
