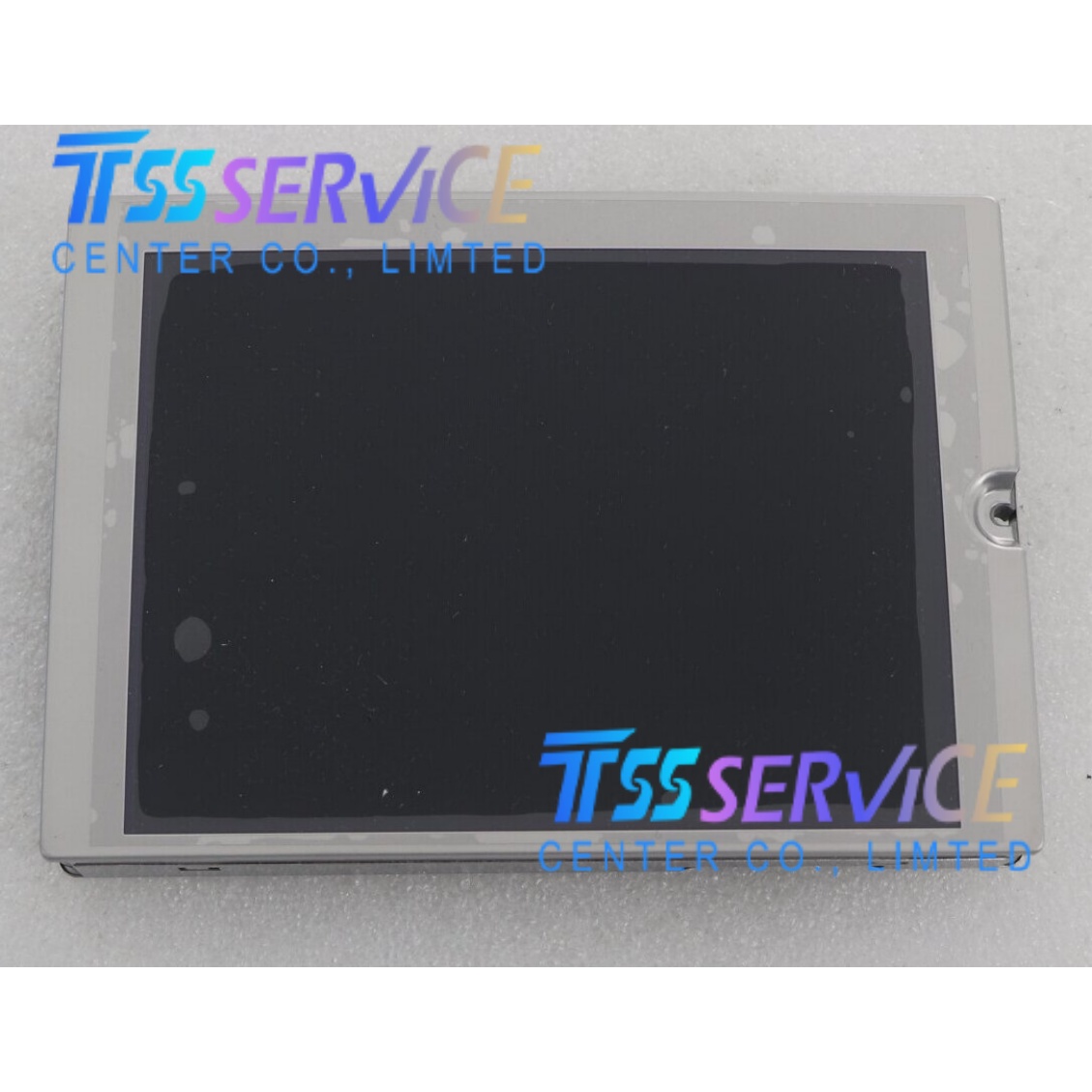

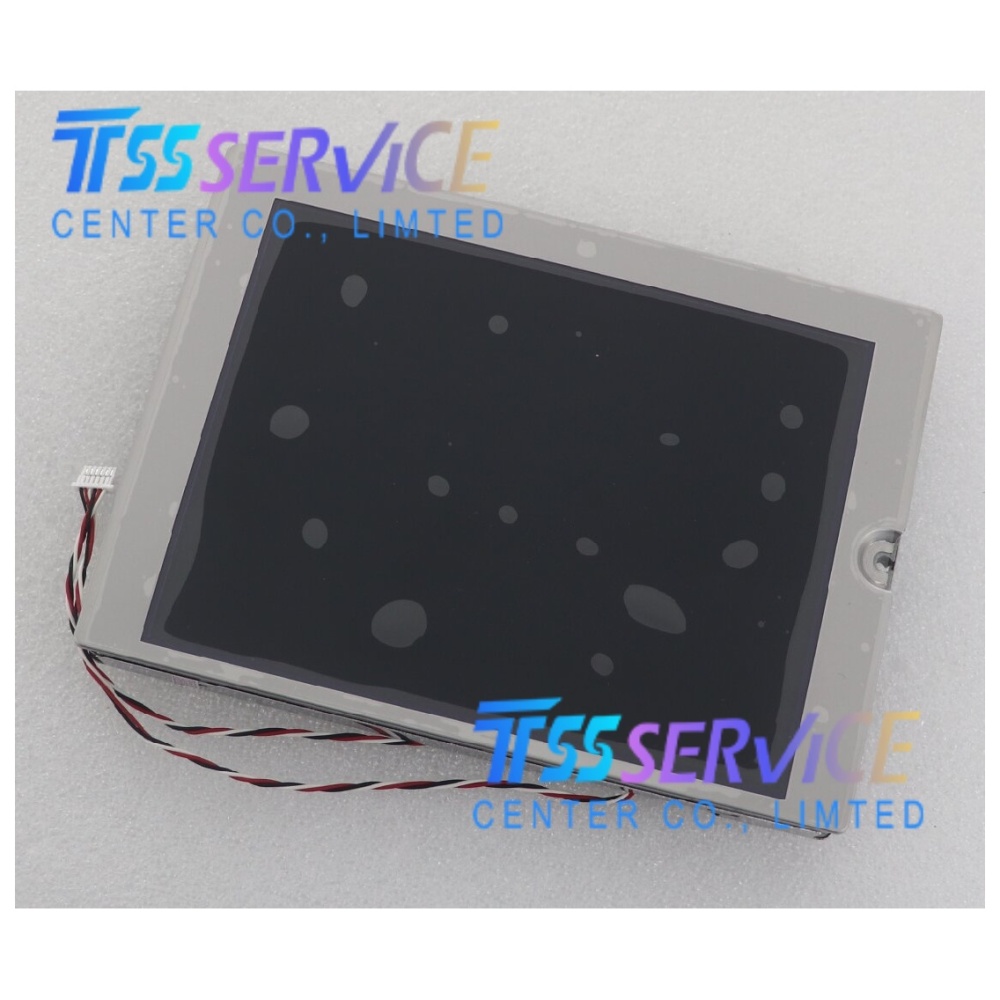

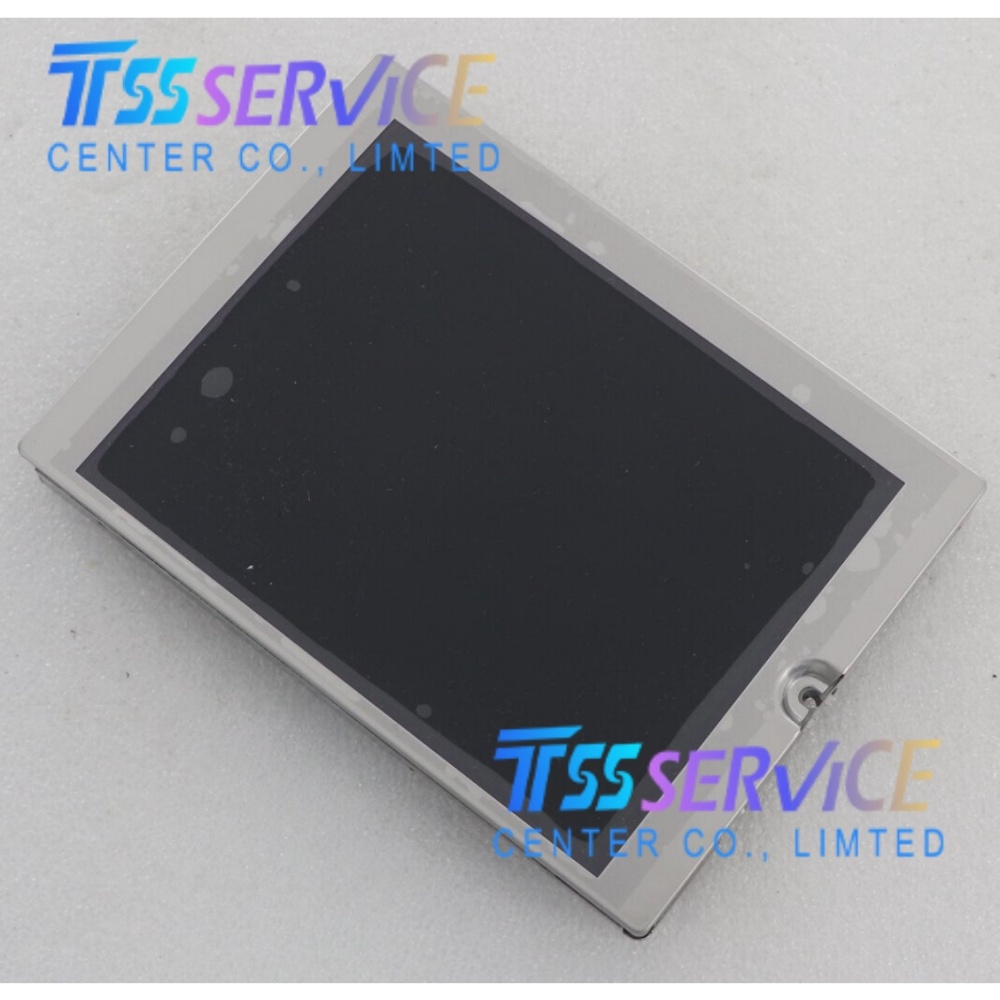

Kyocera TCG057QVLCTANN-GN20 5.7 inch LCD Display Screen For Industrial

Name: Kyocera TCG057QVLCTANN-GN20 5.7 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLCTANN-GN20
Price: 162 USD
Availability: InStock

SKU: TCG057QVLCTANN-GN20

Model: TCG057QVLCTANN-GN20
Size: 5.7 inch (Diagonal)
Resolution: 320 × 240 pixels (QVGA)
Display Type: Transmissive Color TFT

0.0 (0 Reviews)

0 Sold

~~$165.00~~ $162.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057QVLCTANN-GN20 5.7 inch LCD Display Screen For Industrial

Parameter	Details
Model	TCG057QVLCTANN-GN20
Size	5.7 inch (Diagonal)
Resolution	320 × 240 pixels (QVGA)
Display Type	Transmissive Color TFT, Normally White
Backlight	WLED, long lifespan (100,000 hours)
Brightness	800 cd/m² (High Brightness)
Contrast Ratio	500:1
Viewing Angle (U/D/L/R)	80°/80°/80°/80°
Interface	CMOS
Supply Voltage	3.3V (with built‑in timing controller & power circuit)
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C
Outline Dimensions	127.2 (W) × 100.4 (H) × 5.7 (D) mm
Active Area	115.2 (W) × 86.4 (H) mm
Dot Pitch	0.12 (W) × 0.36 (H) mm
Mass	110 g
Compliance	RoHS

Applications

Industrial Control Panels: Factory automation, CNC machinery, and PLC operator interfaces.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments requiring reliable performance.
Marine & Automotive: Navigation displays, vehicle dashboards, and marine control panels (high brightness for sunlight readability).
Test & Measurement: Oscilloscopes, data loggers, and analytical instruments in labs and field environments.
Smart Home & Office: High‑end home appliances, POS terminals, and industrial printers with graphical interfaces
