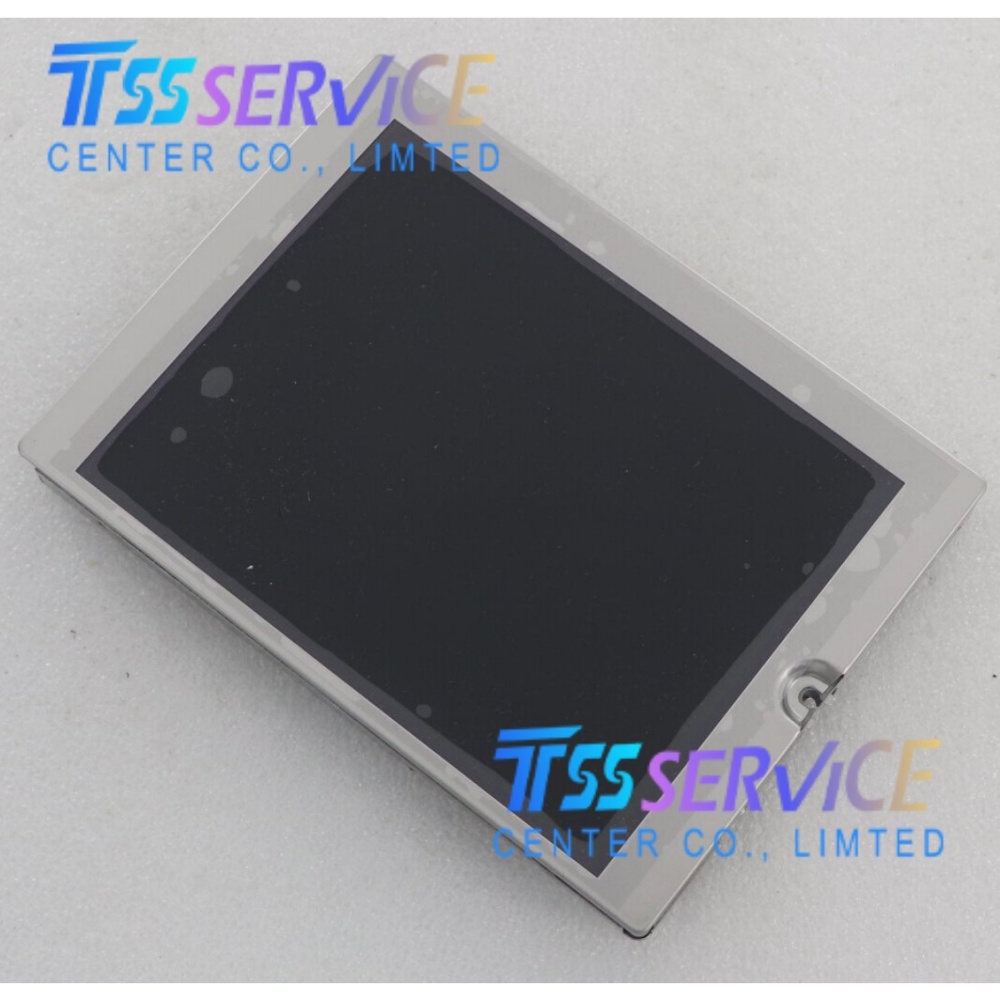

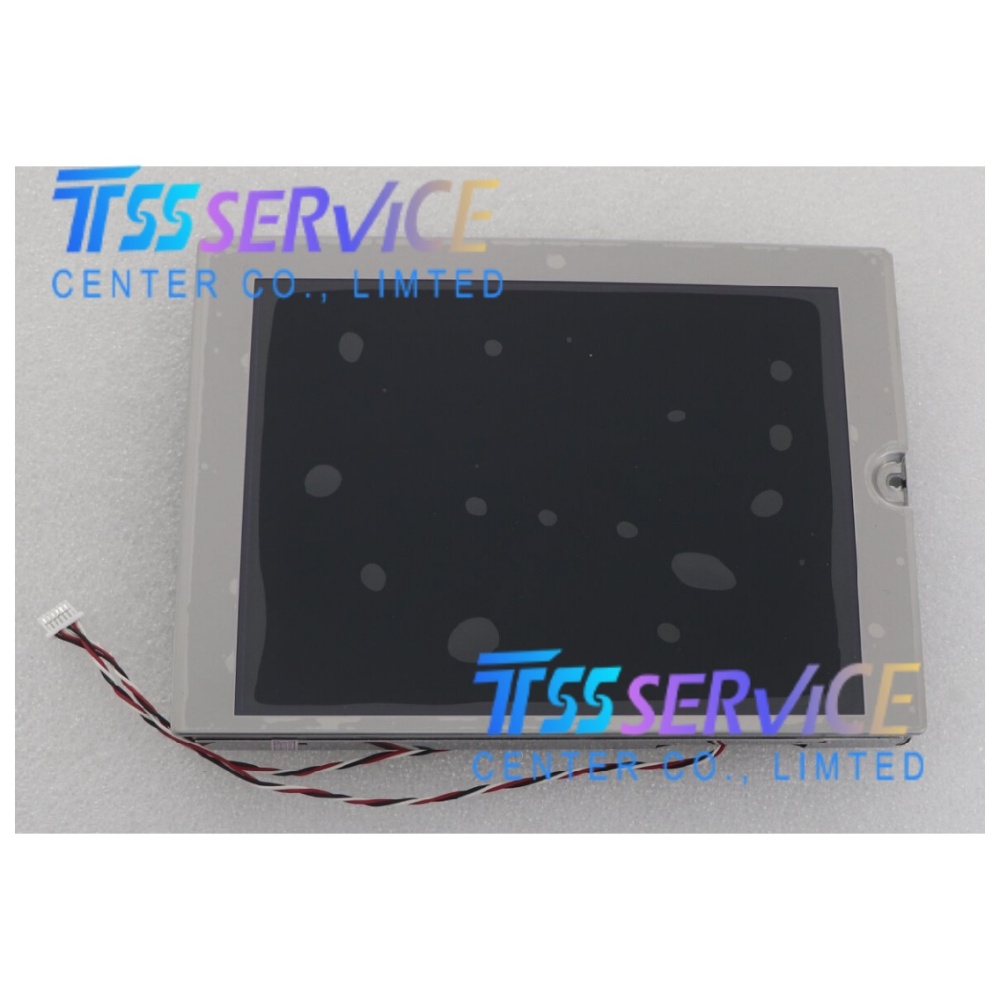

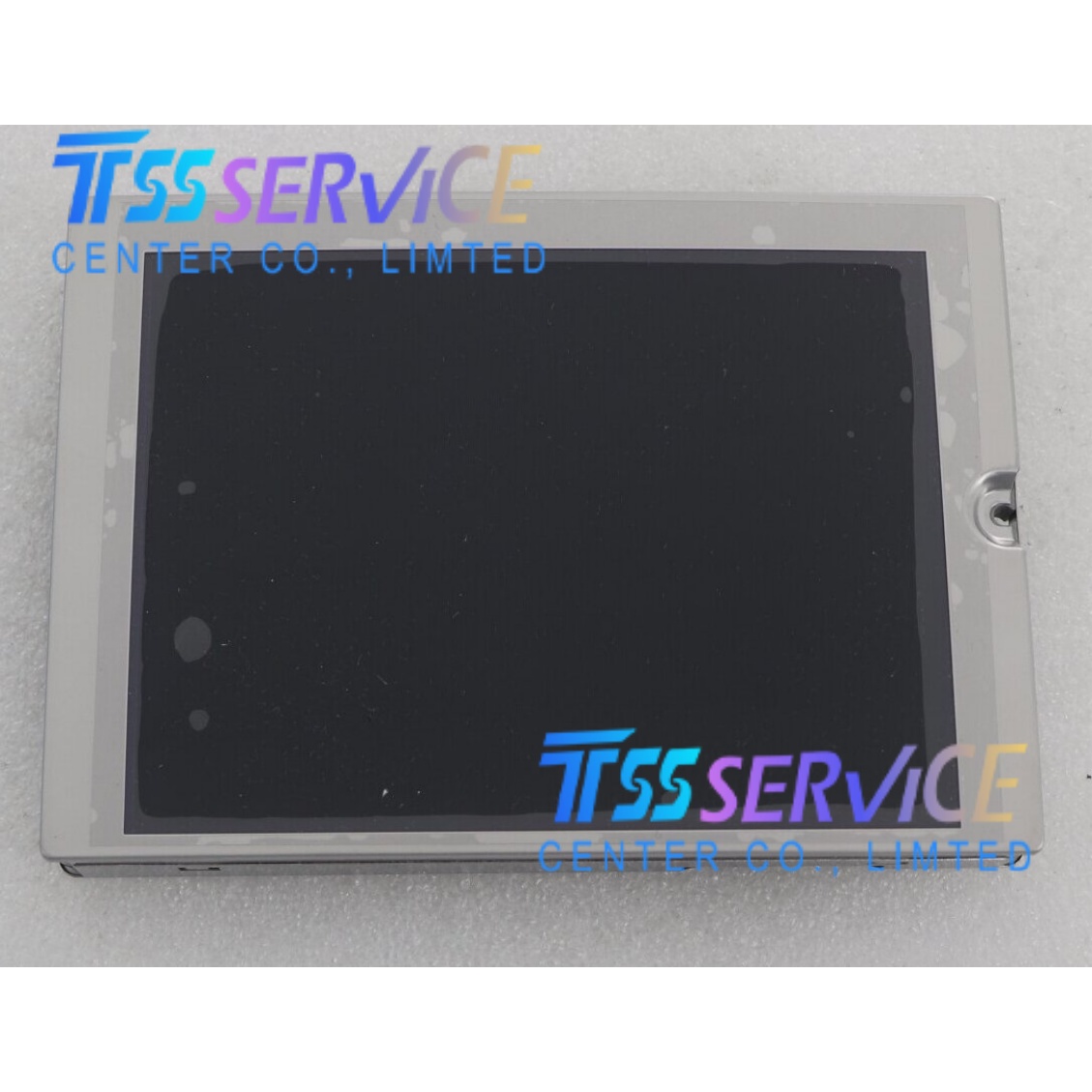

Kyocera TCG057QVLCUANN-GN01-US 5.7 Inch LCD Display Screen For Industrial

Name: Kyocera TCG057QVLCUANN-GN01-US 5.7 Inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLCUANN-GN01-US
Price: 243 USD
Availability: InStock

SKU: TCG057QVLCUANN-GN01-US

Model: TCG057QVLCUANN-GN01-US
Brand: Kyocera
Diagonal Size: 5.7 inch
Resolution: 320 × 240 (QVGA)
Display Type:Transmissive Color TFT, TN

0.0 (0 Reviews)

0 Sold

~~$245.00~~ $243.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057QVLCUANN-GN01-US 5.7 Inch LCD Display Screen For Industrial

Parameter	Description
Model	TCG057QVLCUANN-GN01-US
Brand	Kyocera
Diagonal Size	5.7 inch
Resolution	320 × 240 (QVGA)
Display Type	Transmissive Color TFT, TN (Normally White)
Backlight	WLED, 50,000+ hours lifetime
Brightness	500 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	80°/80°/80°/80° (L/R/U/D, CR≥5)
Interface	CMOS (Parallel RGB, 33-pin connector)
Power Supply	3.3V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Outline Dimensions	134.5 × 103.4 × 8 mm
Active Area	115.2 × 86.4 mm
Dot Pitch	0.12 × 0.36 mm
Weight	145 g
Compliance	RoHS

Applications

Industrial Control Panels: HMI, PLC interfaces, factory automation displays.
Office Automation Devices: Printers, copiers, and multifunction equipment.
Audio/Video Control Systems: Professional audio mixers, video surveillance controllers.
Home Appliances: High-end refrigerators, washing machines, and smart ovens.
Medical Equipment (Non-Imaging): Patient monitors, diagnostic devices, and lab instruments.
Portable & Semi-Outdoor Devices: Field test equipment, vehicle-mounted terminals, and marine displays.
