| Parameter | Specification | Details |
|---|---|---|

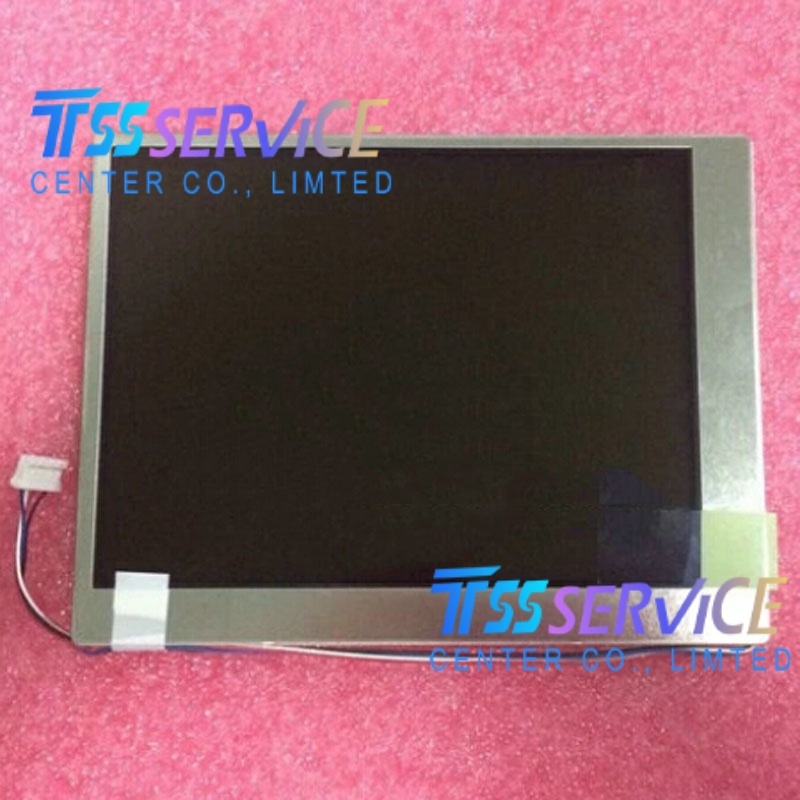

| Model Number | TCG057QVLGF-G00 | - |
| Manufacturer | Kyocera (Japan) | Formerly Optrex / Kyocera Display |
| Screen Size | 5.7 inches | Diagonal measurement |
| Display Technology | a-Si TFT-LCD | Active Matrix, Transmissive |
| Resolution | 320 (RGB) × 240 | QVGA Format |
| Aspect Ratio | 4:3 | Standard industrial ratio |
| Pixel Pitch | 0.360 × 0.360 mm | Large pixels for clarity |
| Display Colors | 262K / 16.2M | 6-bit or 8-bit per color (TTL) |
| Interface Type | TTL / CMOS | Digital RGB parallel interface |
| Connector | 30-pin or 34-pin FPC/Connector | Kyocera standard pinout (verify datasheet) |
| Brightness | 600 ~ 800 cd/m² (Typical) | High Brightness (Sunlight Readable) |
| Contrast Ratio | 400:1 ~ 500:1 (Typical) | High contrast for clear text/graphics |
| Viewing Angle | 80/80/80/80 (Typ.) | CR ≥ 10 (All directions) |
| Backlight Type | WLED (White LED) | Long life, RoHS compliant |
| Backlight Life | ~70,000 - 100,000 hours | Until 50% brightness decay |
| Active Area | 115.20 (W) × 86.40 (H) mm | Viewable image size |
| Module Dimensions | Approx. 132.0 (W) × 105.0 (H) × 11.0 (D) mm | Varies slightly by frame/bezel |
| Supply Voltage | 3.3V (Logic) / Variable (Backlight Driver) | Check specific driver IC requirements |
| Operating Temp. | -30°C to +80°C | Extended Industrial Temperature Range |
| Storage Temp. | -40°C to +85°C | - |
| Weight | Approx. 200g - 250g | Robust metal housing |
| Surface Treatment | Anti-Glare (AG) / Hard Coat | 3H hardness typical |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
