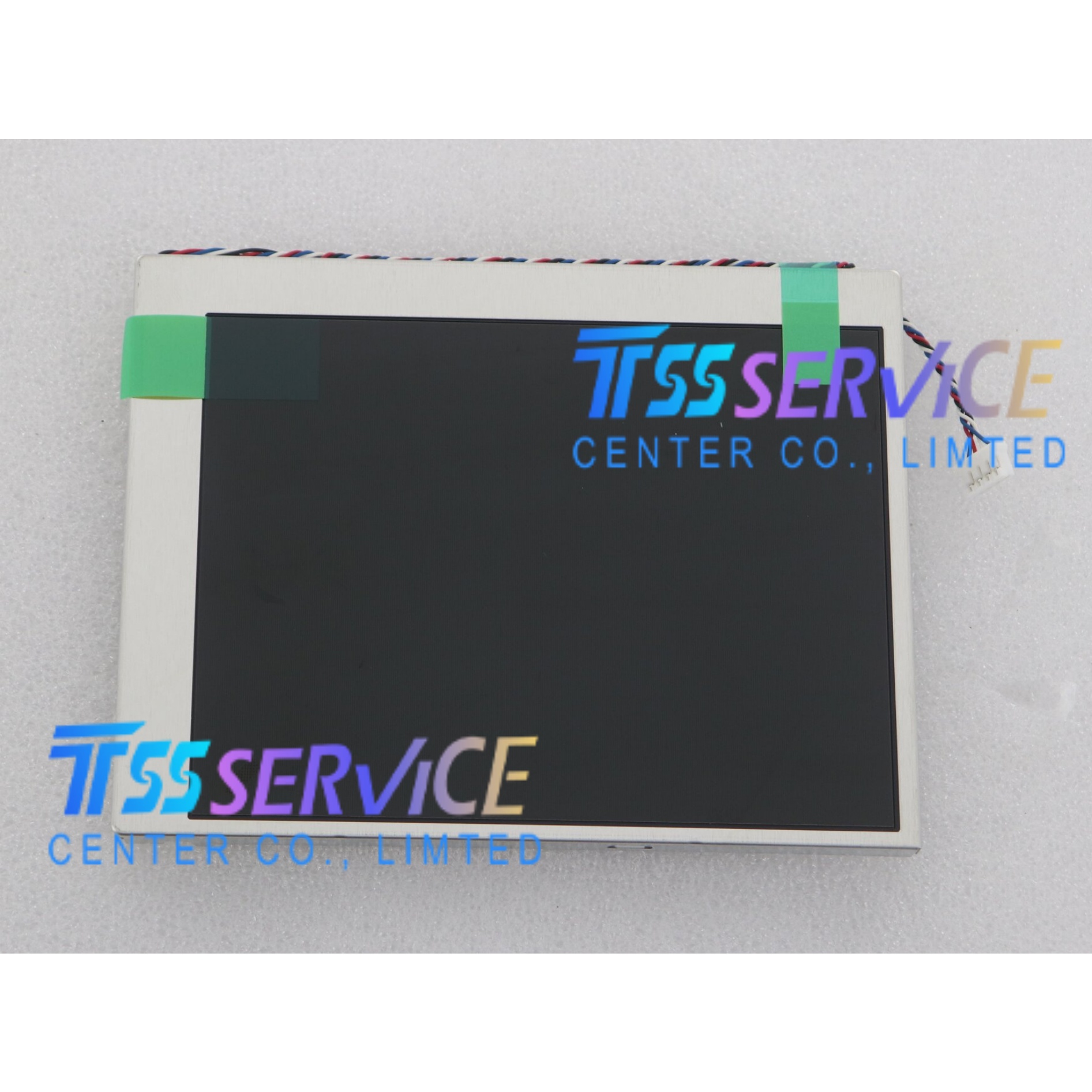

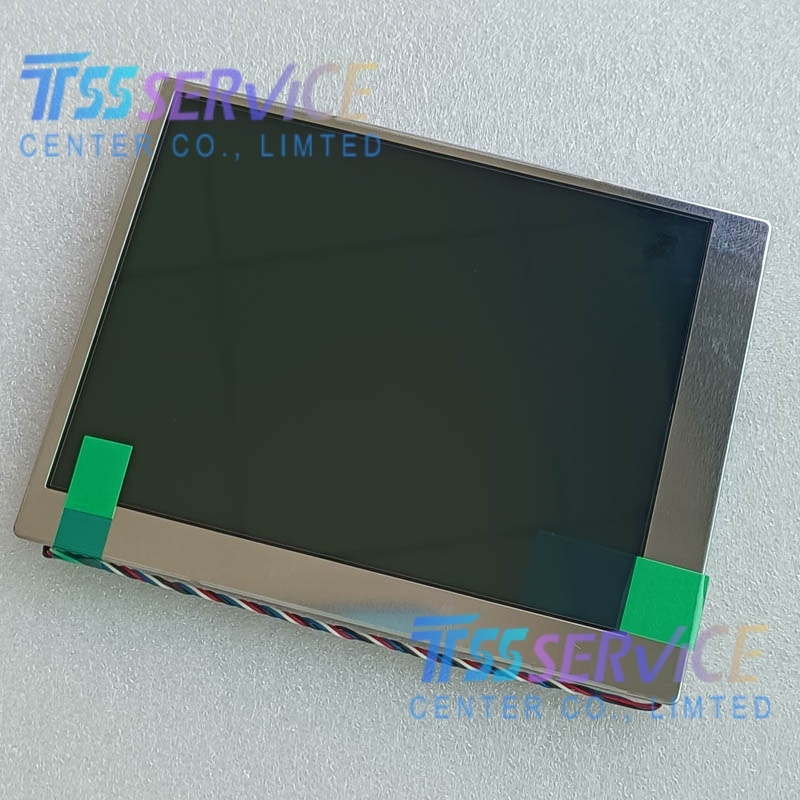

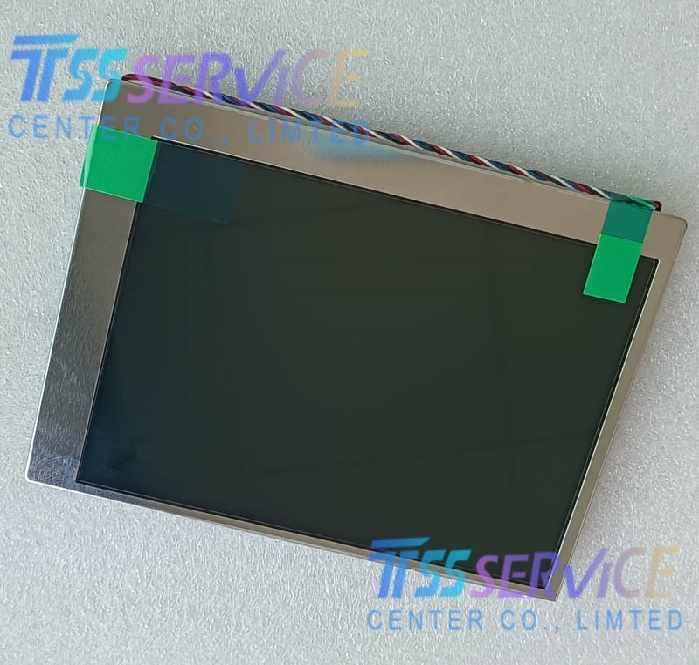

TCG057QVLHA-G00-S KYOCERA 5.7 inch LCD Display Panel For Industrial
| Parameter |
Specification |
Unit |
| Manufacturer |
KYOCERA |
- |
| Model Number |
TCG057QVLHA-G00-S |
- |
| Panel Type |
a‑Si TFT‑LCD, TN, Normally White, Transmissive |
- |
| Diagonal Size |
5.7 |
inch |
| Resolution |
320 (RGB) × 240 |
pixels (QVGA) |
| Aspect Ratio |
4:3 (H:V) |
- |
| Pixel Pitch |
0.360 × 0.360 |
mm |
| Dot Pitch |
0.120 × 0.360 |
mm |
| Active Area |
115.2 (W) × 86.4 (V) |
mm |
| Outline Dimensions |
134.5 (W) × 103.4 (V) × 8.0 (D) |
mm |
| Surface Treatment |
Anti‑glare (AG) |
- |
| Brightness |
1000 |
cd/m² (Typ.) |
| Contrast Ratio |
500:1 |
(Typ.) |
| Response Time |
10 (Tr) |
ms (Typ.) |
| Viewing Angle |
80/80/80/80 |
(L/R/U/D, Typ., CR≥10) |
| Color Depth |
262K |
Colors |
| Backlight |
WLED, Edge‑lit, 100,000 hrs lifetime |
- |
| Interface |
CMOS (Parallel RGB/TTL) |
- |
| Input Voltage |
3.3 |
V (Typ.) |
| Operating Temperature |
-20 ~ +70 |
°C |
| Storage Temperature |
-30 ~ +80 |
°C |
| Refresh Rate |
60 |
Hz |
Specific Applications
- Industrial HMI & Control Panels: Factory automation systems, CNC machine interfaces, PLC control consoles, and industrial robot operation panels.
- Test & Measurement Instruments: Oscilloscopes, signal analyzers, data loggers, and portable test equipment.
- Medical Devices: Patient monitors, portable diagnostic equipment, and medical imaging displays.
- Marine & Avionics: Shipboard navigation systems, aircraft cockpit displays, and ruggedized avionics terminals.
- Transportation & Automotive: In‑vehicle infotainment, fleet management terminals, and railway signaling displays.
- Office & Industrial Equipment: Printers, copiers, POS terminals, and factory automation control units.
