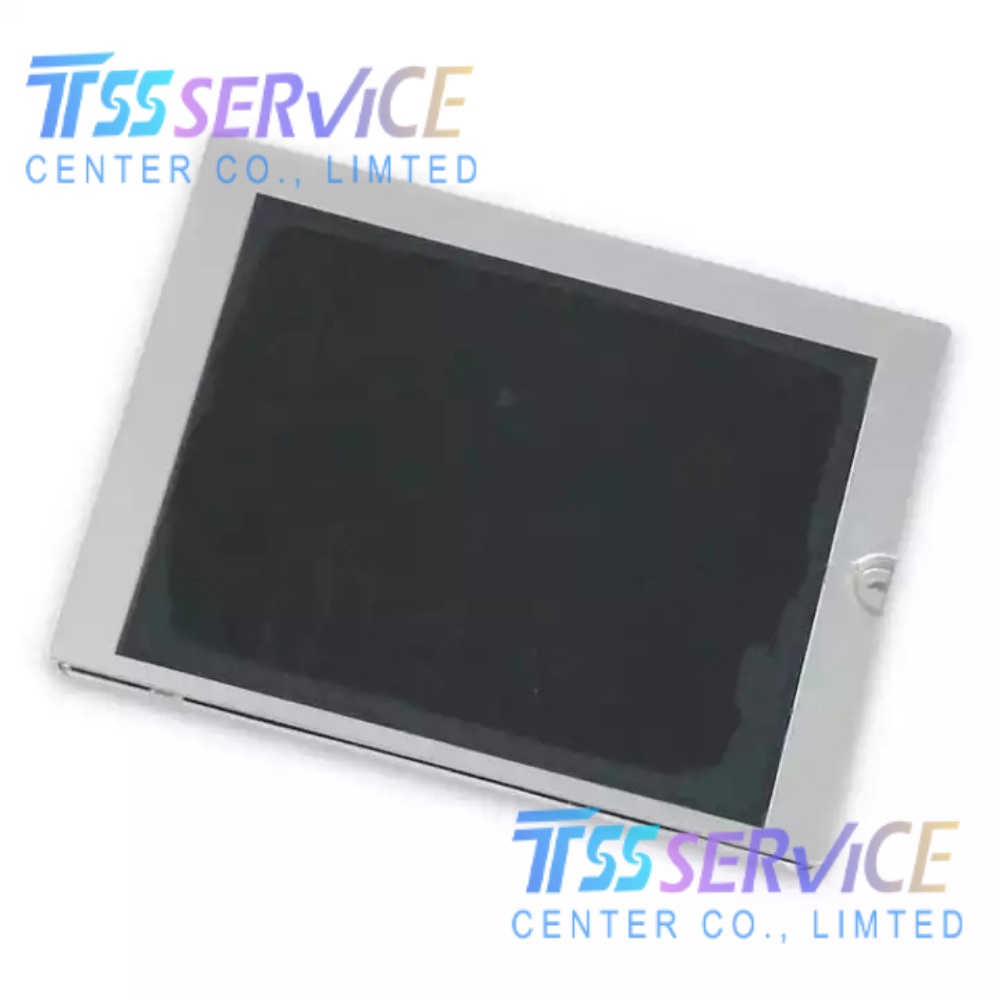

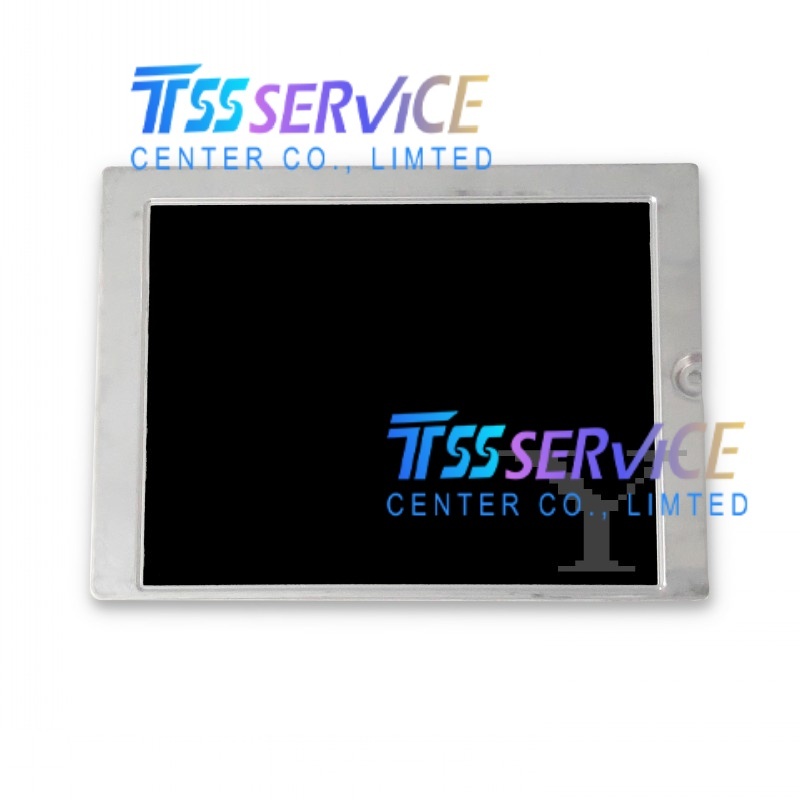

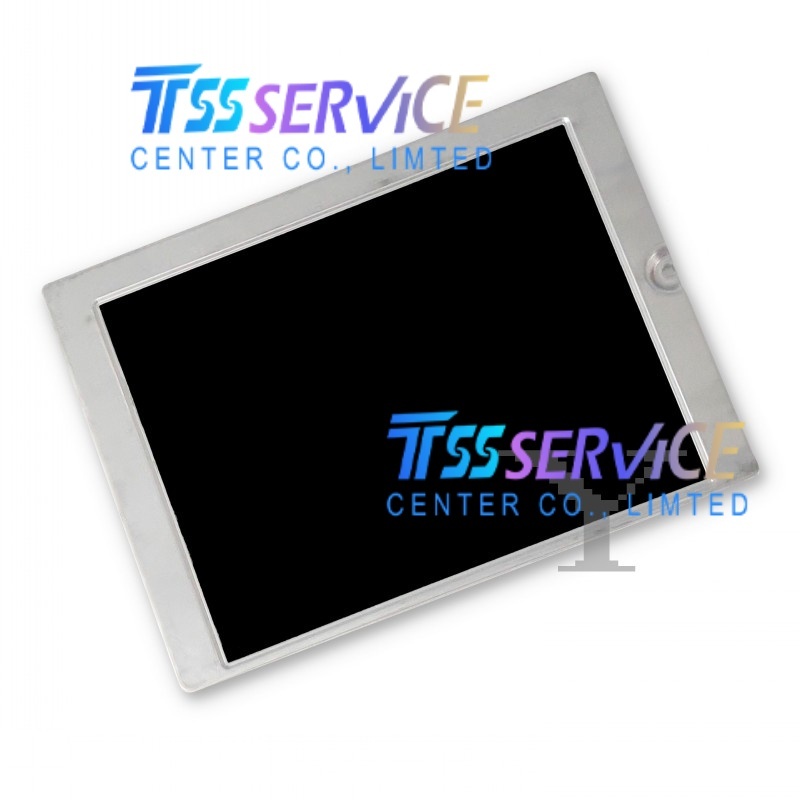

Kyocera TCG057QVLPBANN-GN00 5.7 inch LCD Panel Display For Industrial

Name: Kyocera TCG057QVLPBANN-GN00 5.7 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLPBANN-GN00
Price: 130 USD
Availability: InStock

SKU: TCG057QVLPBANN-GN00

Model: TCG057QVLPBANN-GN00
Size: 5.7 inch (4:3)
Resolution: 320(RGB)×240 (QVGA), 70 PPI
Panel Type: a-Si TFT-LCD, Transmissive

0.0 (0 Reviews)

0 Sold

~~$134.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057QVLPBANN-GN00 5.7 inch LCD Panel Display For Industrial

Item	Specification
Model	TCG057QVLPBANN-GN00
Brand	Kyocera (KOE)
Size	5.7 inch (4:3)
Resolution	320(RGB)×240 (QVGA), 70 PPI
Panel Type	a-Si TFT-LCD, Transmissive, TN Normally White
Brightness	500 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	80/80/80/80° (L/R/U/D, CR≥5)
Backlight	WLED, ≥50,000 hrs lifespan, no driver
Interface	Parallel RGB (1ch, 6-bit), 33 pins
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Active Area	115.2 × 86.4 mm
Outline Dimension	134.5 × 103.4 × 8.5 mm
Weight	~210g
Surface	Mirror (Haze 0%)
Color Depth	262K colors (6-bit)
Response Time	10/25 ms (Tr/Td)
Input Voltage	3.3V (Typ.)
Compliance	RoHS

Applications

Industrial HMI: PLC control panels, CNC machines, textile and packaging machinery terminals
Medical Devices: Patient monitors, diagnostic equipment and laboratory analyzers (non-life support)
Outdoor & Kiosk Systems: Outdoor information terminals, parking systems and marine displays
Transportation Equipment: Construction machinery dashboards and railway control screens
Embedded Systems: Industrial terminals, POS machines and data loggers
