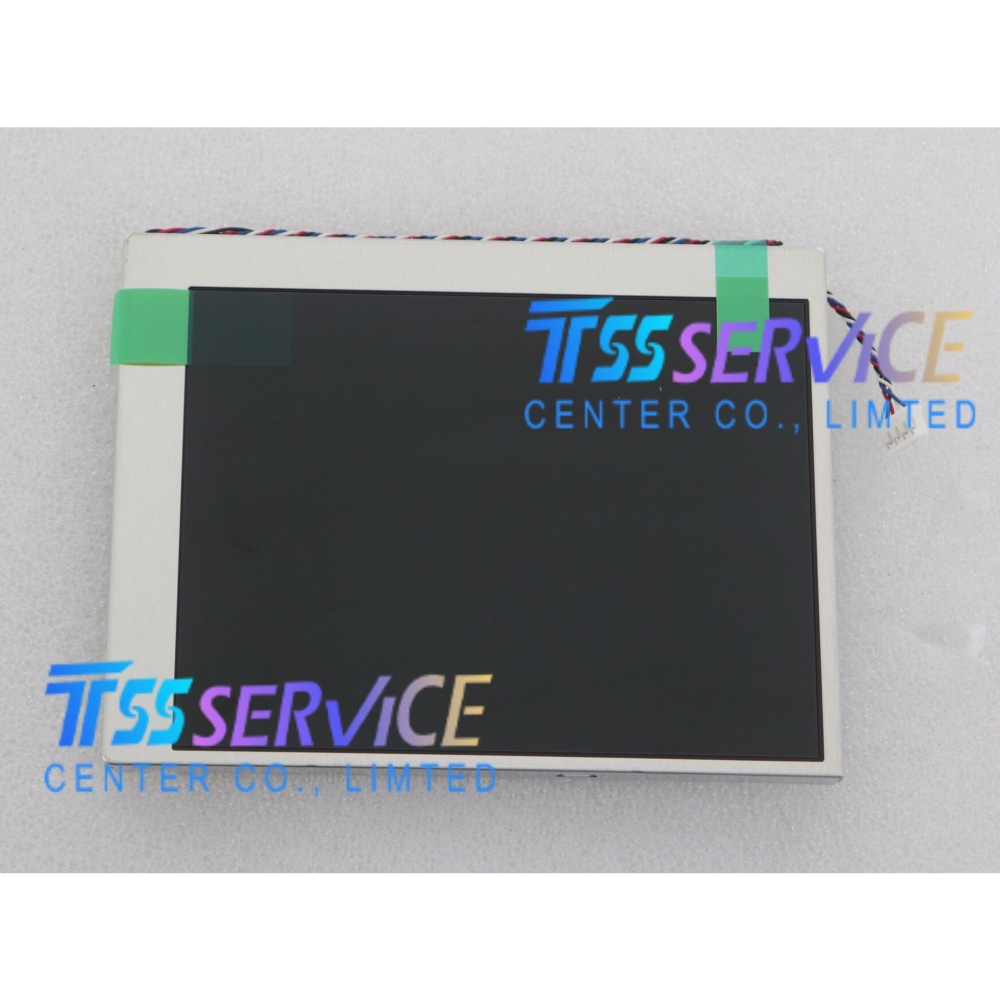

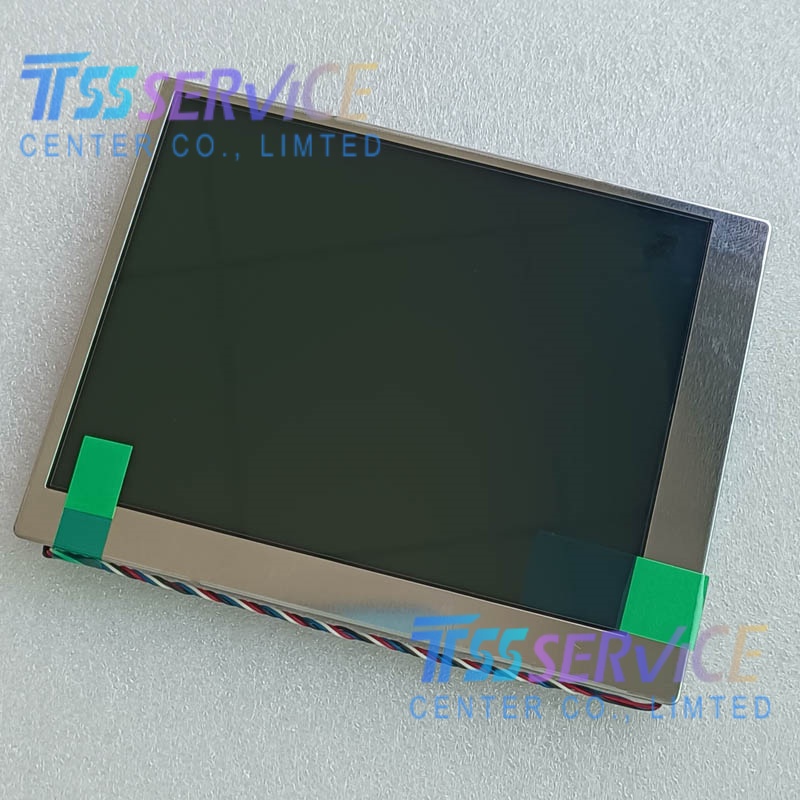

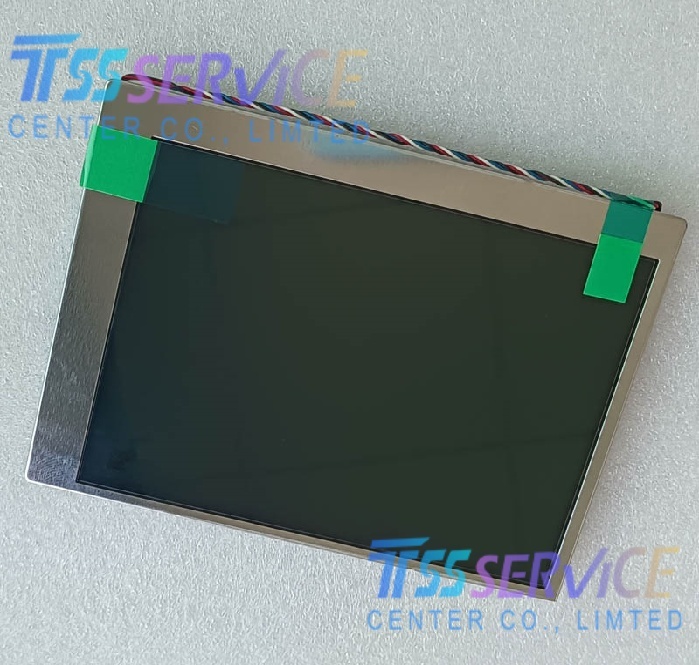

TCG057QVLPGANN-GN01 KYOCERA 5.7 inch LCD Display Panel For Industrial

Name: TCG057QVLPGANN-GN01 KYOCERA 5.7 inch LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLPGANN-GN01
Price: 153 USD
Availability: InStock

SKU: TCG057QVLPGANN-GN01

Model P/N: TCG057QVLPGANN-GN01
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320 (RGB) × 240
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$155.00~~ $153.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG057QVLPGANN-GN01 KYOCERA 5.7 inch LCD Display Panel For Industrial

Parameter	Specification	Unit
Manufacturer	KYOCERA	-
Model Number	TCG057QVLHA-G00-S	-
Panel Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive	-
Diagonal Size	5.7	inch
Resolution	320 (RGB) × 240	pixels (QVGA)
Aspect Ratio	4:3 (H:V)	-
Pixel Pitch	0.360 × 0.360	mm
Dot Pitch	0.120 × 0.360	mm
Active Area	115.2 (W) × 86.4 (V)	mm
Outline Dimensions	134.5 (W) × 103.4 (V) × 8.0 (D)	mm
Surface Treatment	Anti‑glare (AG)	-
Brightness	1000	cd/m² (Typ.)
Contrast Ratio	500:1	(Typ.)
Response Time	10 (Tr)	ms (Typ.)
Viewing Angle	80/80/80/80	(L/R/U/D, Typ., CR≥10)
Color Depth	262K	Colors
Backlight	WLED, Edge‑lit, 100,000 hrs lifetime	-
Interface	CMOS (Parallel RGB/TTL)	-
Input Voltage	3.3	V (Typ.)
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Refresh Rate	60	Hz

Specific Applications

Industrial HMI & Control Panels: Factory automation systems, CNC machine interfaces, PLC control consoles, and industrial robot operation panels.
Test & Measurement Instruments: Oscilloscopes, signal analyzers, data loggers, and portable test equipment.
Medical Devices: Patient monitors, portable diagnostic equipment, and medical imaging displays.
Marine & Avionics: Shipboard navigation systems, aircraft cockpit displays, and ruggedized avionics terminals.
Transportation & Automotive: In‑vehicle infotainment, fleet management terminals, and railway signaling displays.
Office & Industrial Equipment: Printers, copiers, POS terminals, and factory automation control units.
