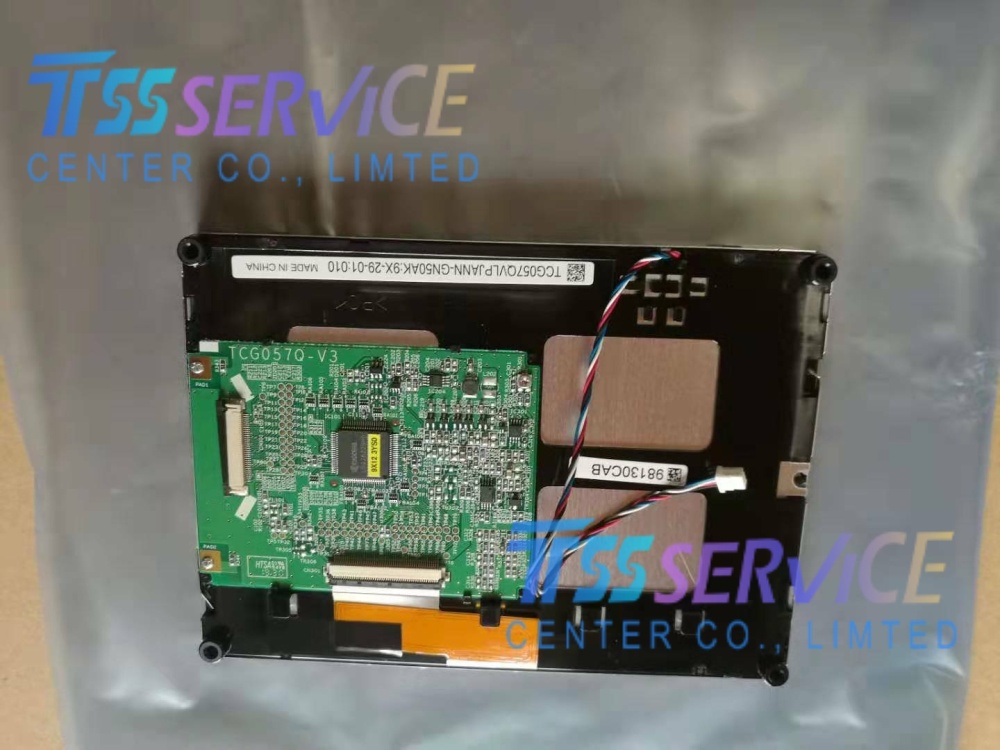

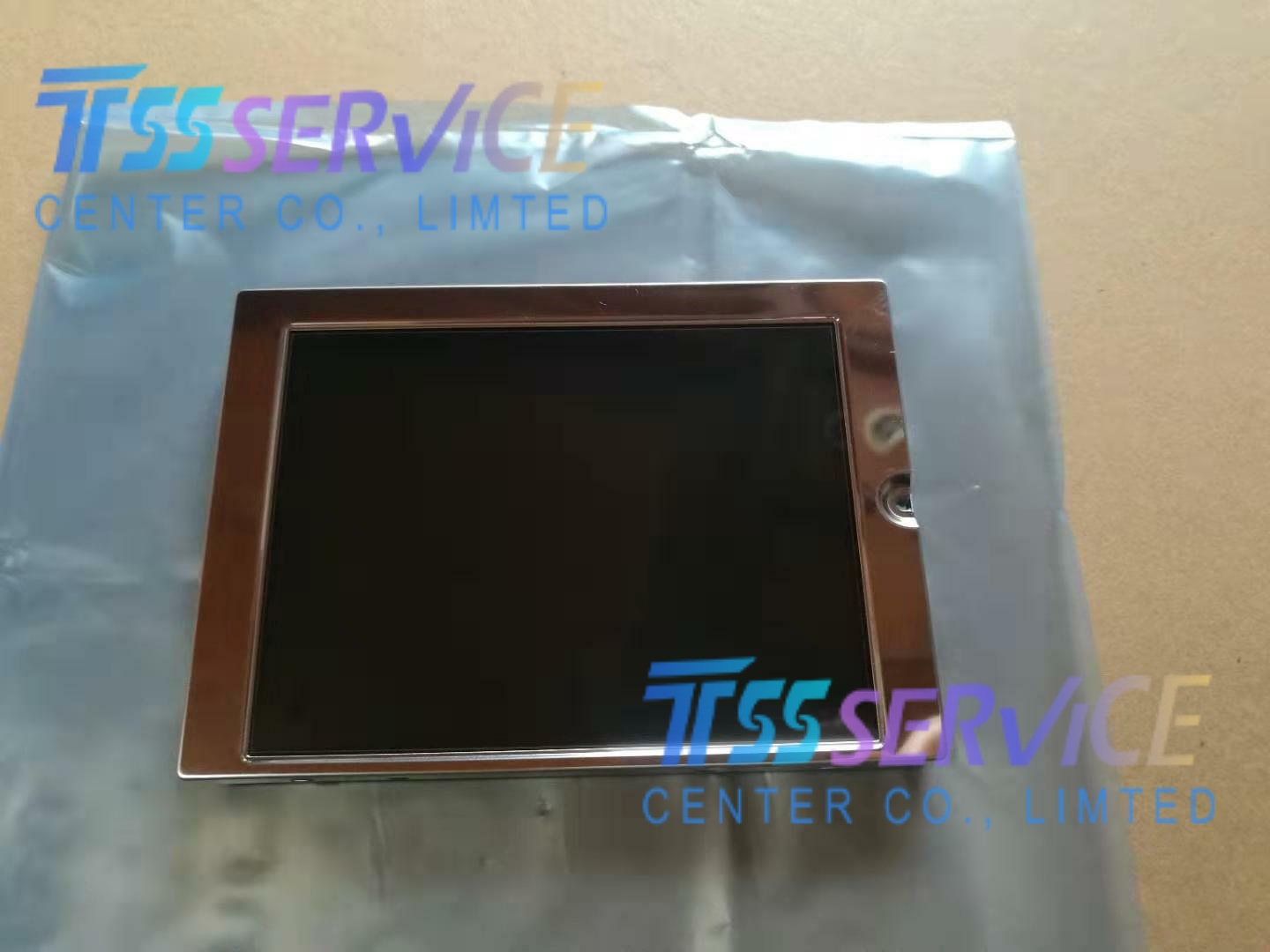

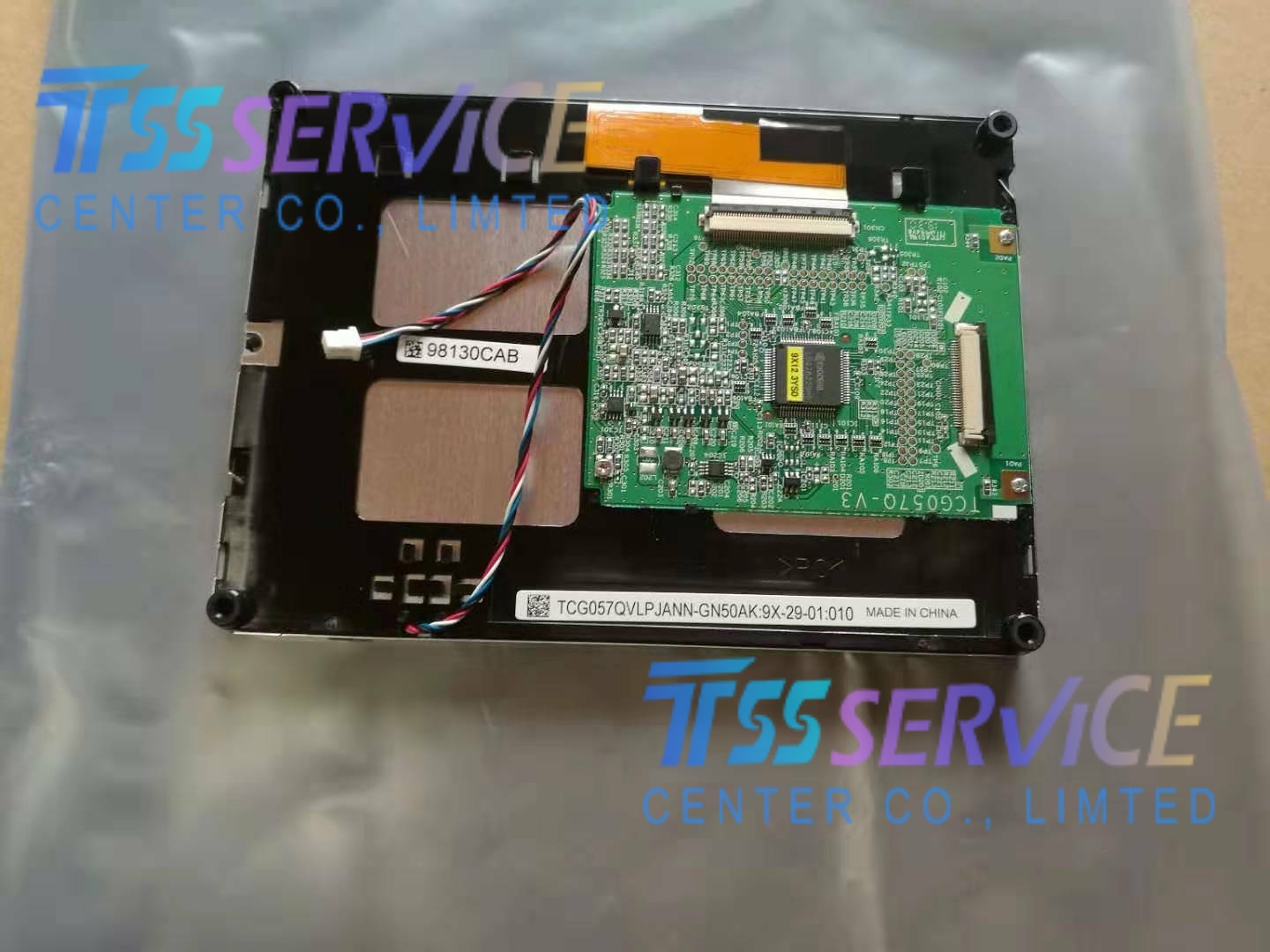

TCG057QVLPJANN-GN50AK Kyocera 5.7" QVGA TFT-LCD 320×240 Industrial Display Module

Name: TCG057QVLPJANN-GN50AK Kyocera 5.7" QVGA TFT-LCD 320×240 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057QVLPJANN-GN50AK
Price: 150 USD
Availability: InStock

SKU: TCG057QVLPJANN-GN50AK

Model: TCG057QVLPJANN-GN50AK
Brand: Kyocera
Screen Size: 5.7 inches
Panel Type: a-Si TFT-LCD (TN, Normally White)
Resolution: 320 (RGB) × 240 (QVGA)

0.0 (0 Reviews)

0 Sold

~~$156.00~~ $150.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG057QVLPJANN-GN50AK Kyocera 5.7" QVGA TFT-LCD 320×240 Industrial Display Module

Parameter	Details
Model	TCG057QVLPJANN-GN50AK
Brand	Kyocera
Screen Size	5.7 inches
Panel Type	a-Si TFT-LCD (TN, Normally White)
Resolution	320 (RGB) × 240 (QVGA)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	80/80/80/80 (CR≥10)
Color Depth	262K colors (6-bit)
Backlight	WLED, 100,000 hours, no driver
Interface	CMOS (1 ch, 6-bit), 33 pins
Operating Voltage	3.3V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Display Area	115.2 × 86.4 mm
Outline Dimension	144 × 104.8 × 13 mm
Panel Weight	210g (Typ.)
Compliance	RoHS

Applications

Industrial HMI & Control: PLC, industrial touch panels, factory automation, CNC machinery, and industrial controllers.
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments requiring high reliability.
Outdoor & Logistics Terminals: Handheld scanners, warehouse management devices, and outdoor kiosks with high brightness demand.
Smart Instruments: Energy meters, environmental monitoring systems, and industrial test equipment.
Transportation & Automotive: In-vehicle displays, railway control panels, and marine navigation terminals.
