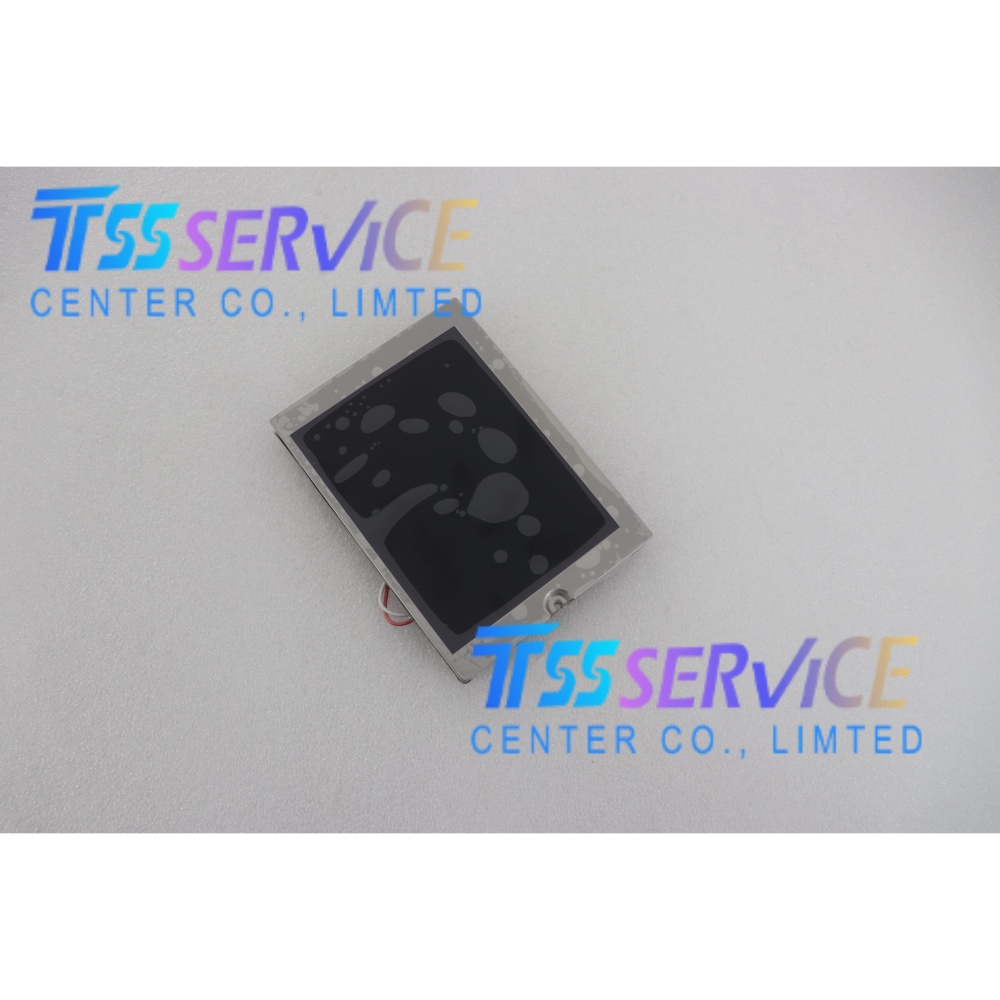

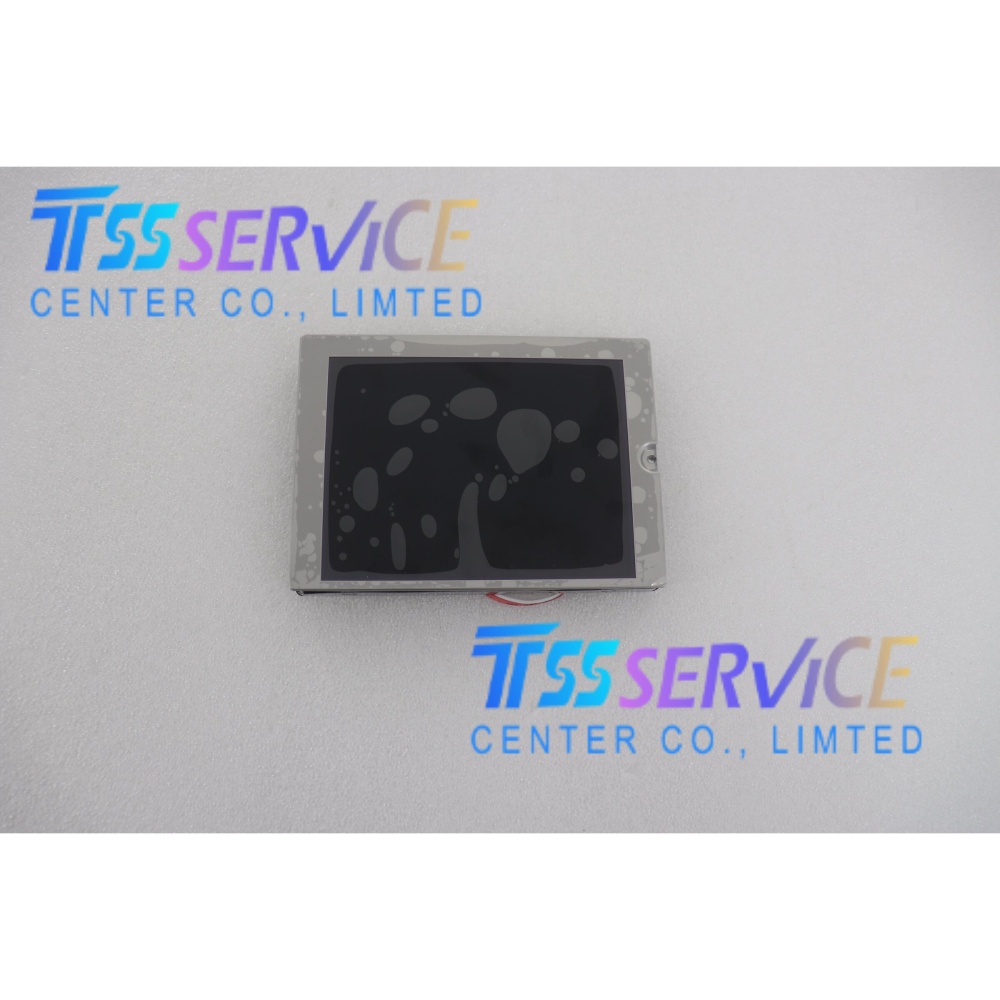

KYOCERA NEW 5.7 inch LCD Display Panel TCG057VG1CE-G00 for Industrial
| Parameter |
Value |
| Model |
TCG057VG1CE-G00 |
| Brand |
KYOCERA |
| Display Type |
a-Si TFT-LCD, Transmissive, TN Mode |
| Screen Size |
5.7 inches |
| Resolution |
640(RGB) × 480 (VGA) |
| Pixel Density |
141 PPI |
| Color Support |
262K colors (6-bit) |
| Brightness |
350 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical) |
| Viewing Angle |
80/80/80/80 (Typ., CR≥5) |
| Operating Temperature |
-10°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp), 75,000 hours (Typ.) |
| Supply Voltage |
3.3V (Logic) |
| Interface |
33-pin Parallel RGB (1 channel, 6-bit), Terminal |
| Dimensions |
144.0(H) × 104.8(V) × 13.5(D) mm (Outline) |
| Active Area |
115.2(H) × 86.4(V) mm |
The KYOCERA TCG057VG1CE-G00 is a versatile industrial display module designed for reliable performance in standard indoor industrial environments. Its VGA resolution and durable design make it suitable for the following specific applications:
- Industrial Automation: Human-Machine Interface (HMI) panels, PLC control units, and factory automation terminals.
- CNC Machinery: Operator panels and control displays for数控机床 (CNC machines) and robotics.
- Medical Equipment: Patient monitoring systems, diagnostic devices, and portable medical instruments requiring stable displays.
- Test & Measurement: Benchtop testing equipment and data acquisition systems.
- Transportation: In-vehicle displays for industrial vehicles, such as forklifts or agricultural machinery.
- Legacy System Upgrades: Replacement displays for older industrial systems utilizing standard Parallel RGB interfaces and CCFL backlighting.
