| Parameter | Specification |
|---|---|

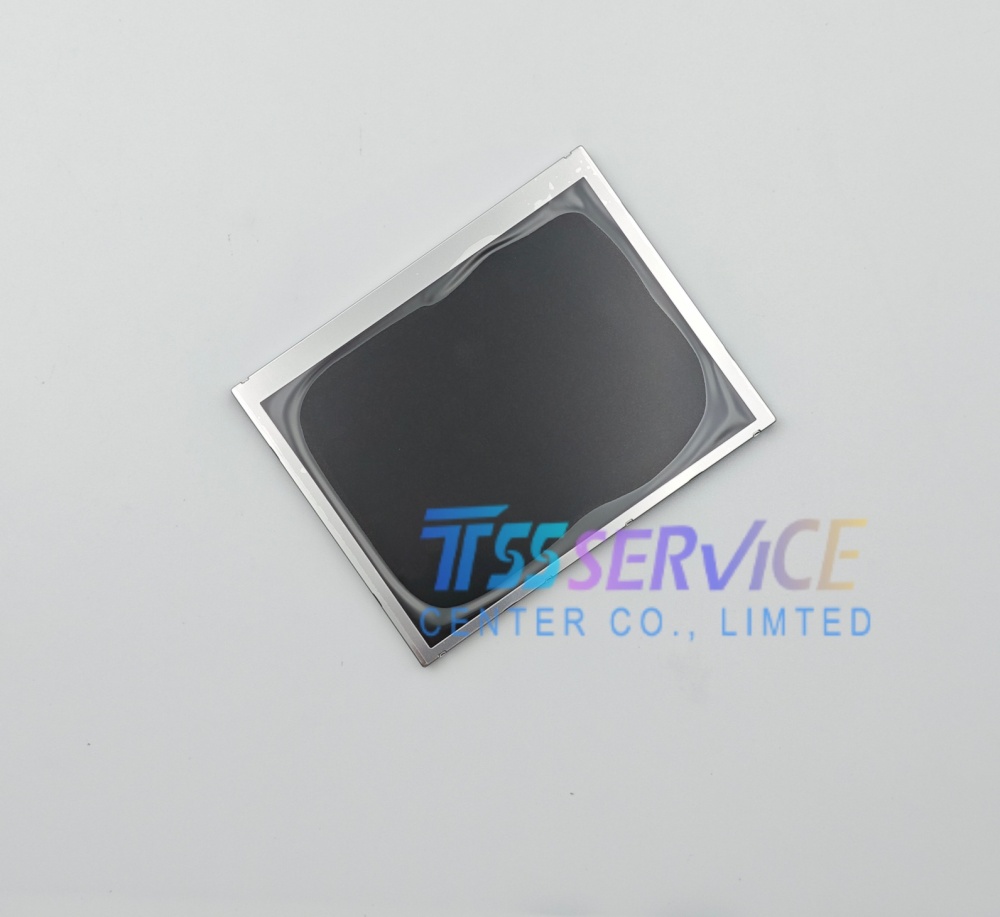

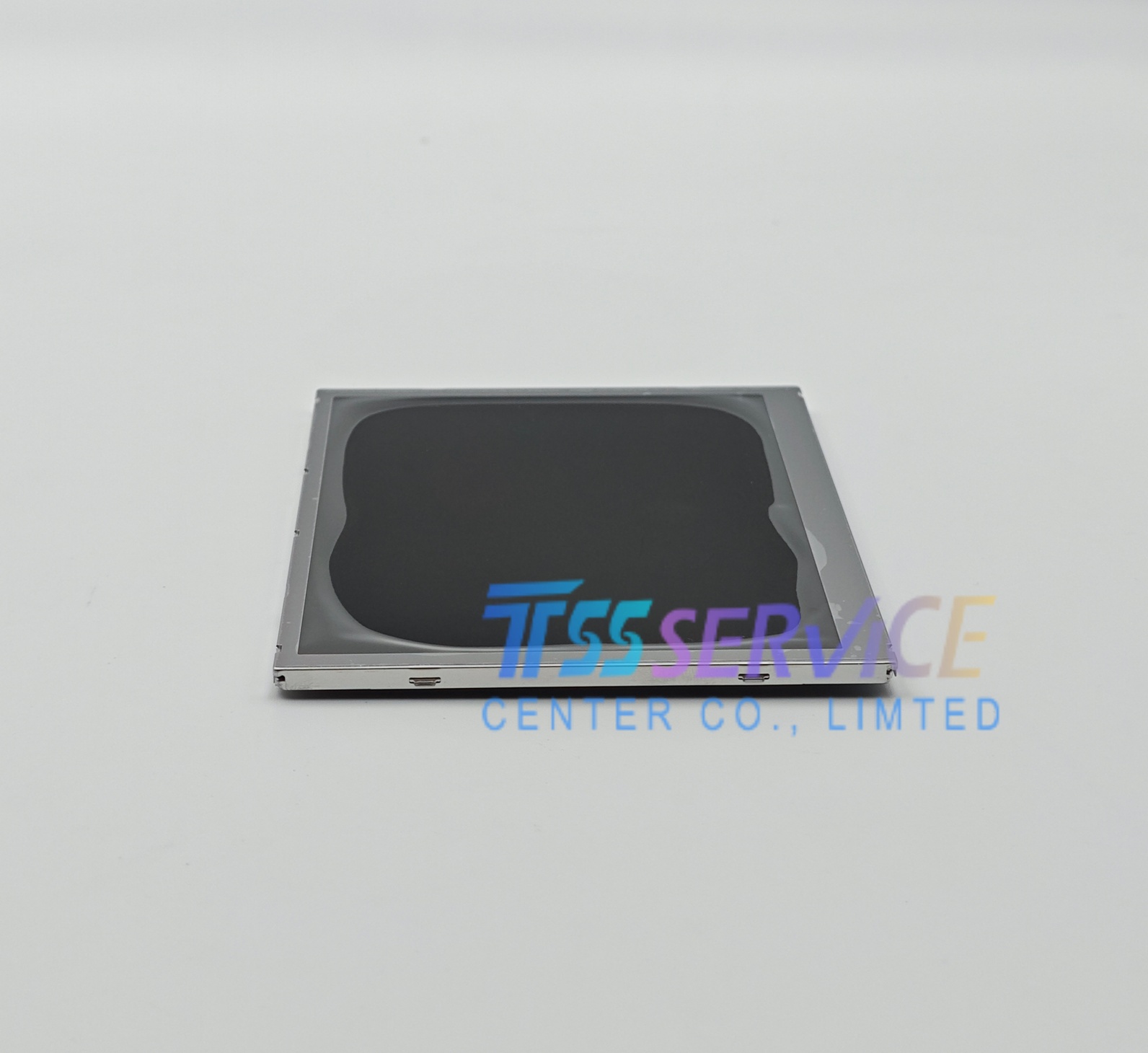

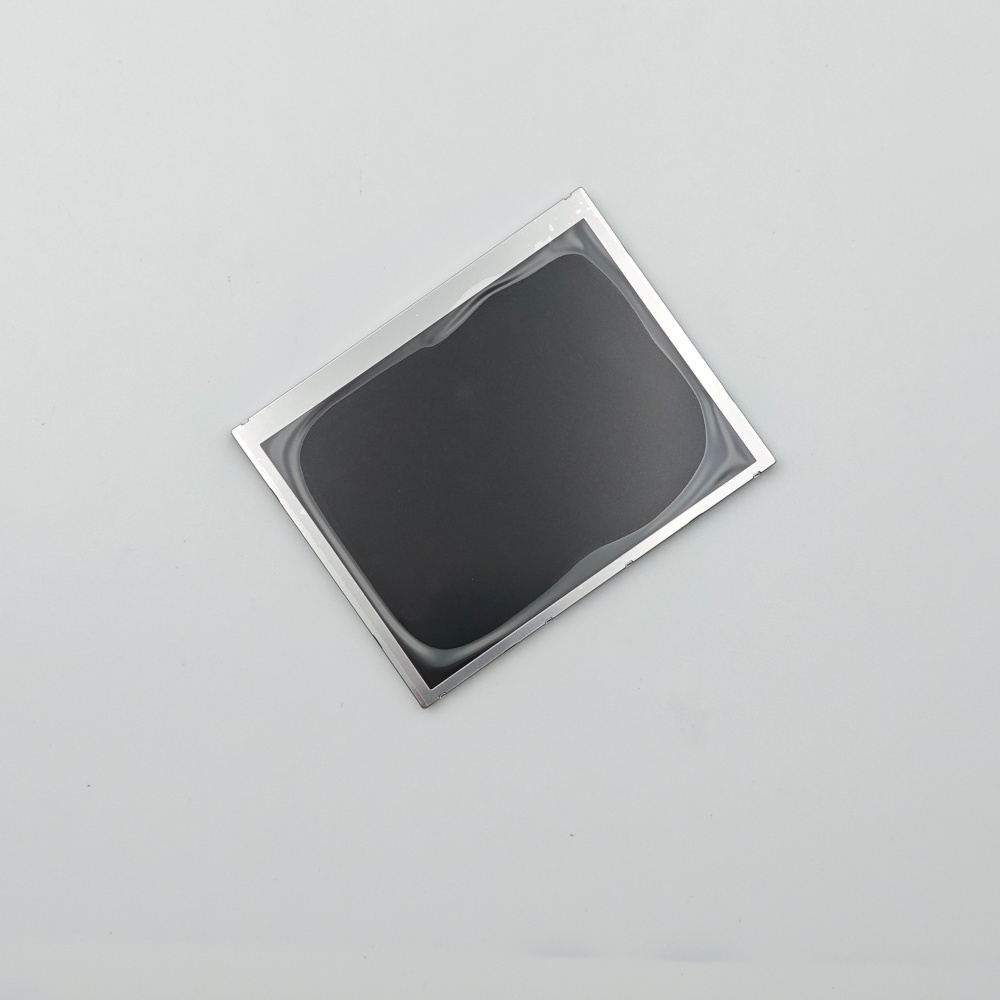

| Model Number | TCG057VG1CE-H50 |
| Brand | Kyocera |
| Screen Size | 5.7 inches |
| Resolution | 640 (RGB) × 480 pixels (VGA) |
| Pixel Pitch | 0.180 mm (H) × 0.180 mm (V) |
| Display Mode | Transmissive, TN (Twisted Nematic), Normally White |
| Brightness | Typically 800 ~ 1000 cd/m² (Very High Brightness) |
| Contrast Ratio | 500:1 to 700:1 (Typical) |
| Viewing Angle | 70/70/50/60 (Left/Right/Up/Down) at CR≥10 |
| Interface Type | RGB Parallel Interface (TTL) |
| Color Depth | 262K colors (18-bit) or 16.2M colors (24-bit) selectable |
| Backlight | WLED (White LED), Edge-lit |
| Backlight Life | Typically 50,000 - 70,000 hours |
| Operating Temp. | -20°C to +70°C |
| Storage Temp. | -30°C to +80°C |
| Dimensions | Approx. 144.0 × 104.8 × 13.5 mm (Active Area: 115.2 × 86.4 mm) |
| Weight | Approx. 260g - 280g |
| RoHS Compliance | Yes |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
