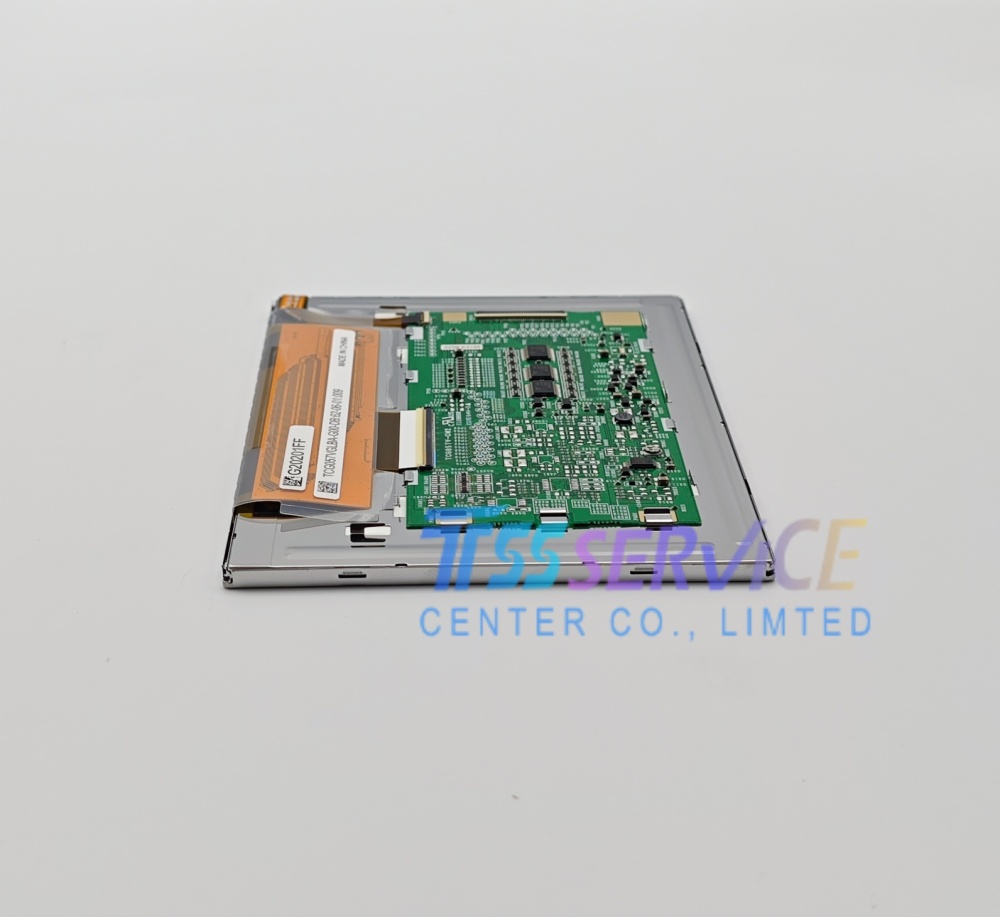

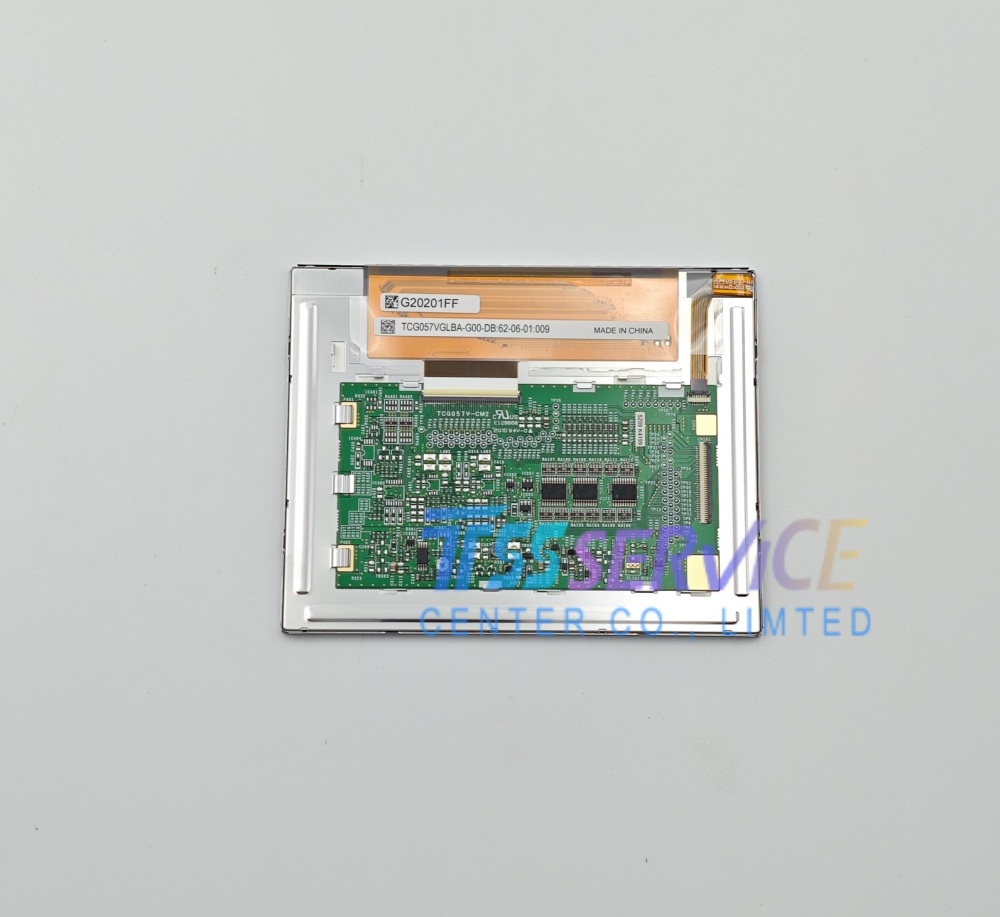

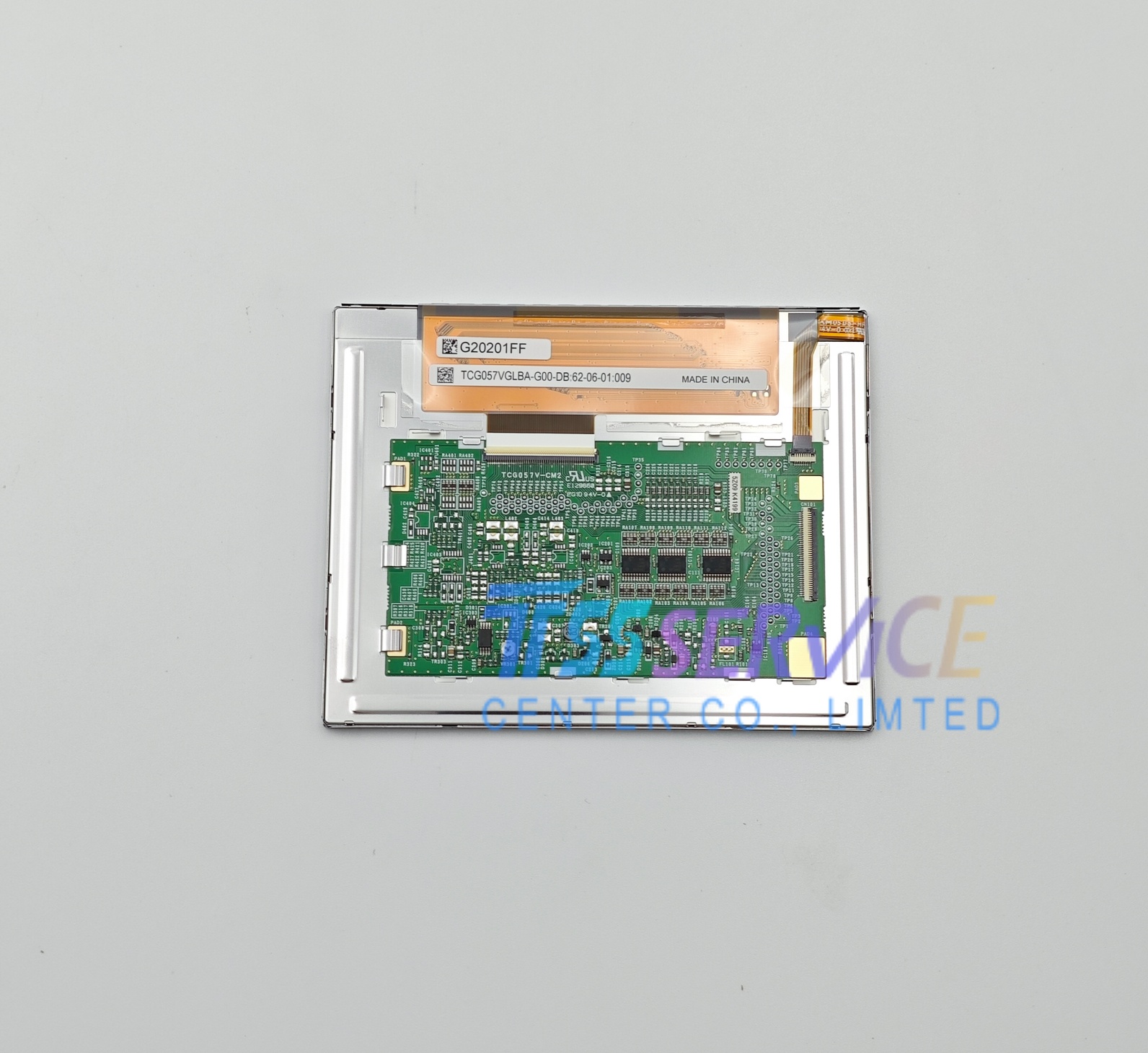

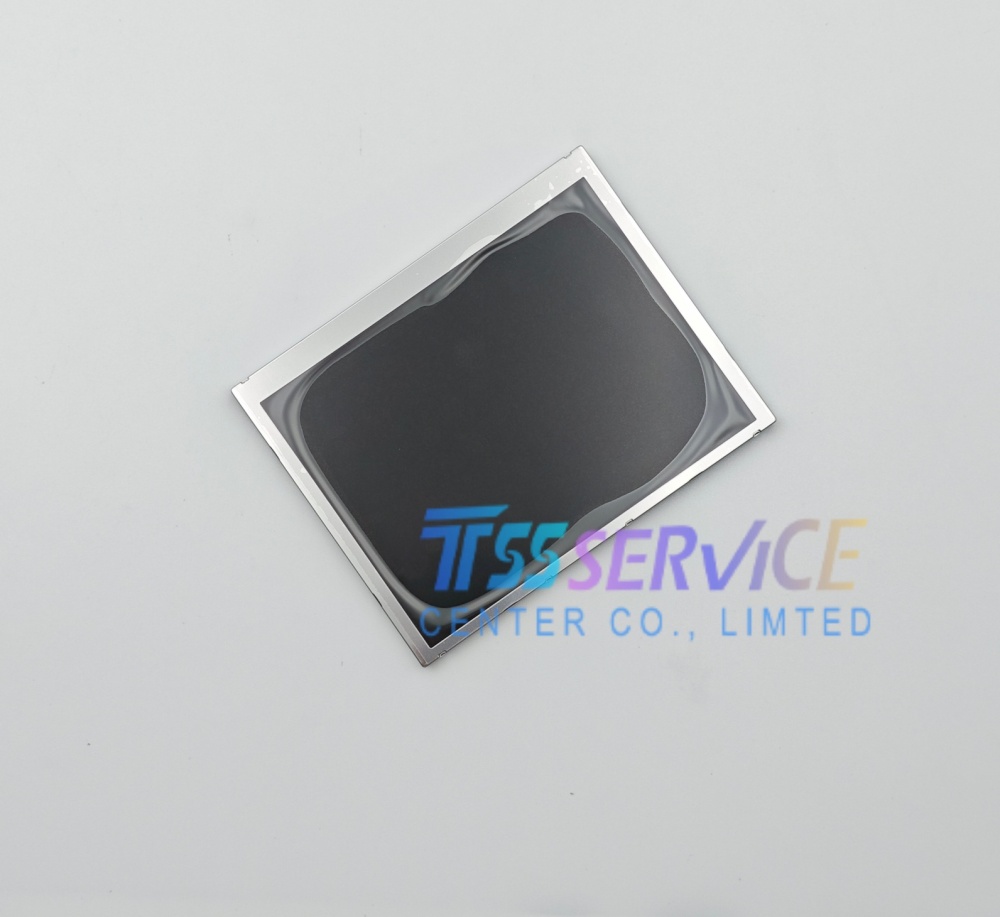

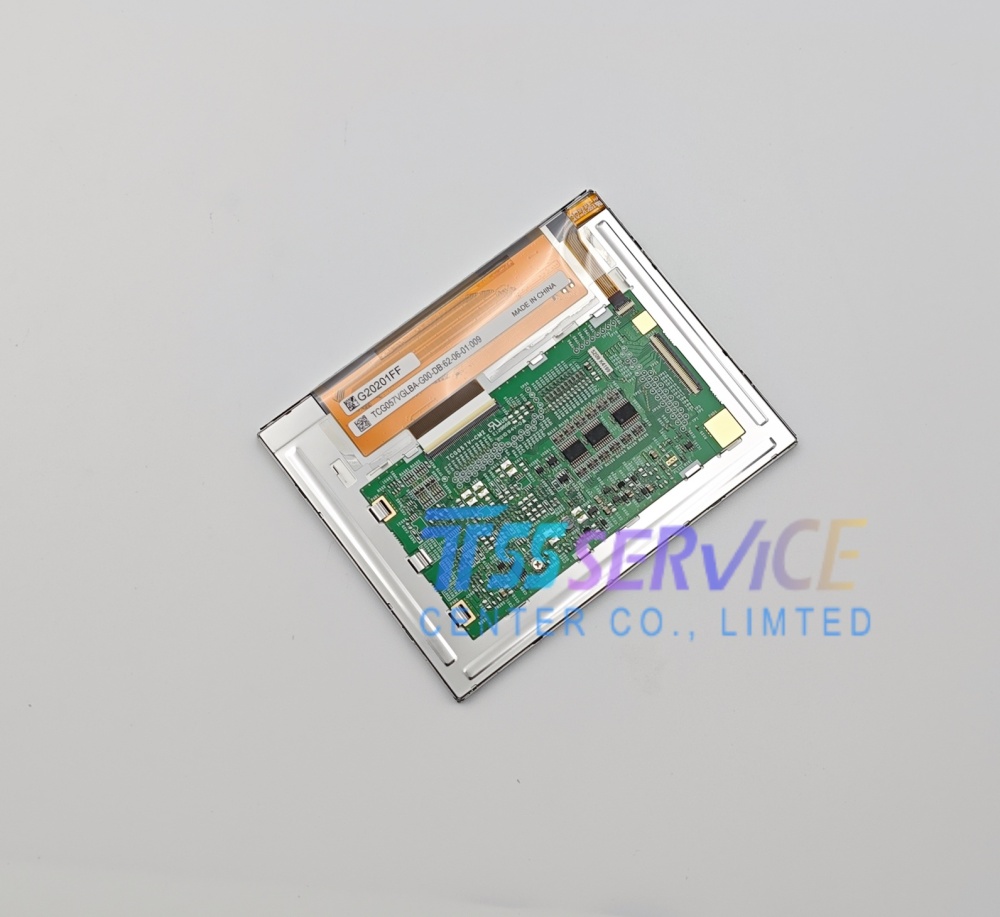

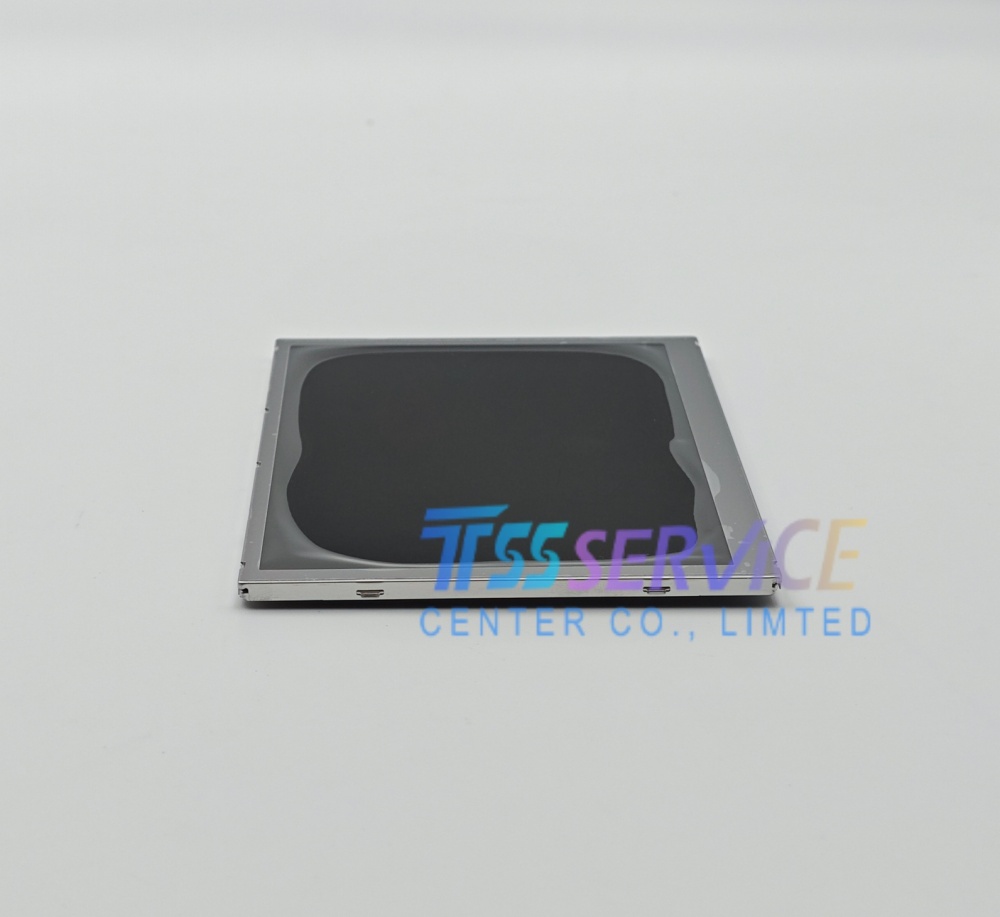

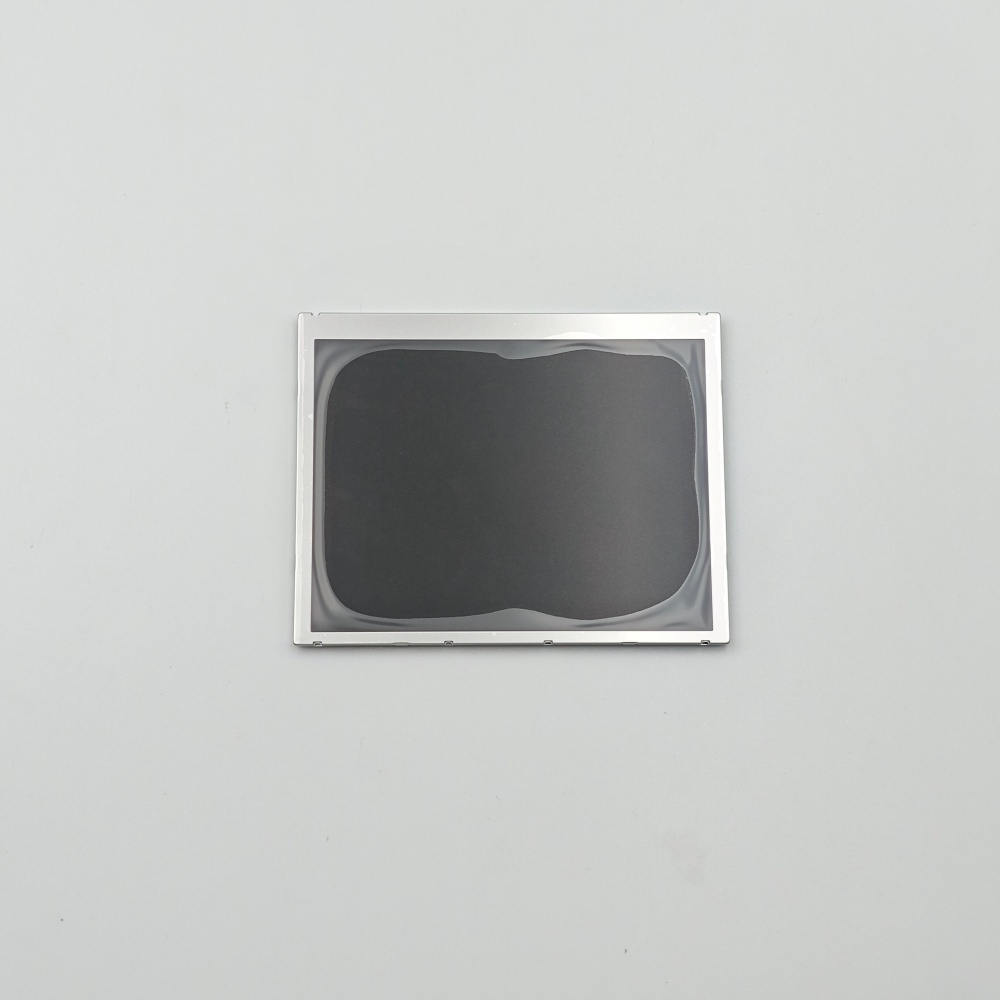

TCG057VGLBA-G00-DB is a
5.7‑inch industrial‑grade a‑Si TFT‑LCD module by
Kyocera Display, a derivative of TCG057VGLBA‑G00 with
DB suffix for driver‑board integrated configuration, featuring VGA resolution, wide temperature tolerance, WLED backlight, and stable parallel RGB interface, ideal for industrial HMI, measurement, and embedded systems.
| Parameter |
Value |
| Part Number |
TCG057VGLBA‑G00‑DB |
| Manufacturer |
Kyocera |
| Display Type |
a‑Si TFT‑LCD Module (LCM, Driver‑Board Integrated) |
| Display Mode |
TN, Normally White, Transmissive |
| Diagonal Size |
5.7 inches |
| Resolution |
640(RGB) × 480 (VGA, 141 PPI) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Dot Pitch |
0.18 × 0.18 mm (W×H) |
| Active Area |
115.2(W) × 86.4(H) mm |
| Outline Dimension |
144(W) × 104.8(H) × 13(D) mm |
| Surface Treatment |
Glare (Mirror, Haze 0%) |
| Weight |
~110 g (Typ.) |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Response Time |
10/25 ms (Tr/Td, Typ.) |
| Viewing Angle |
80°(L)/80°(R)/80°(U)/80°(D) (Typ., CR≥5) |
| Display Colors |
262K (6‑bit) |
| Backlight |
White LED (WLED, Side‑lit, 3‑string) |
| Backlight Lifetime |
≥40,000 hours (Typ.) |
| Backlight Driver |
Integrated (DB suffix denotes built‑in driver) |
| Interface |
Parallel RGB (1 channel, 6‑bit, TTL, 40‑pin) |
| Supply Voltage |
VDD: 3.3 V (Typ., 3.0–3.6 V) |
| Input Current |
150 mA (Typ.) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| RoHS Compliance |
Yes |
| Production Status |
Obsolete (Replacement available) |
Specific Applications
- Industrial Control & HMI: Integrated into factory automation panels, PLCs, CNC machines, and industrial PCs for reliable operation in harsh industrial environments.
- Test & Measurement Instruments: Used in oscilloscopes, signal analyzers, data loggers, and multimeters for clear data visualization and stable performance.
- Embedded & Rugged Systems: Deployed in industrial embedded computers, rugged POS terminals, self‑service kiosks, and vehicle‑mounted HMIs.
- Office & Commercial Equipment: Applied in printers, copiers, fax machines, and audio control panels for long‑term reliability.
- Medical & Healthcare Devices: Utilized in portable diagnostic equipment, patient monitors, and medical carts requiring consistent color display.
- Vehicle & Marine Displays: Used in automotive dashboards, marine navigation systems, and heavy‑duty vehicle control interfaces.
