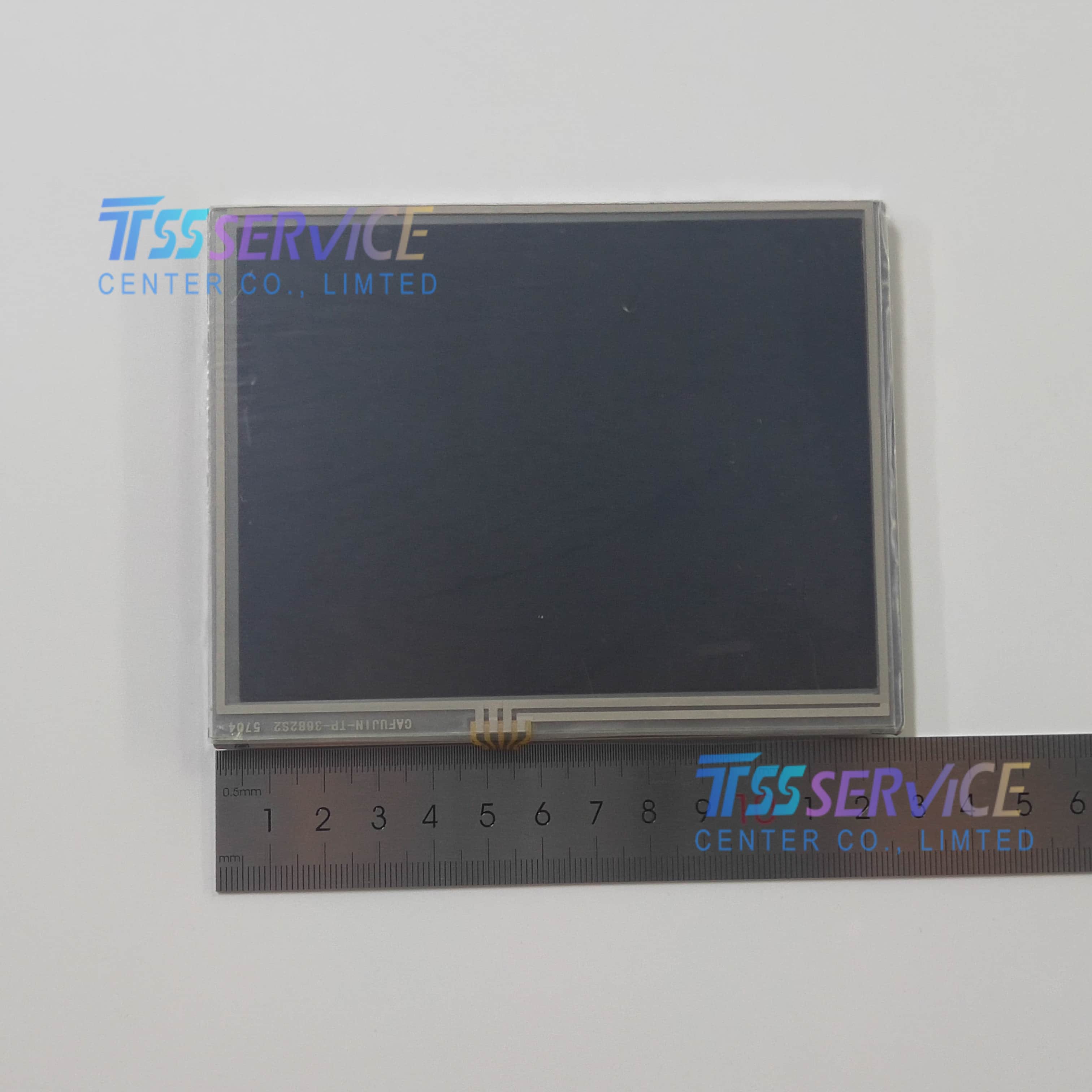

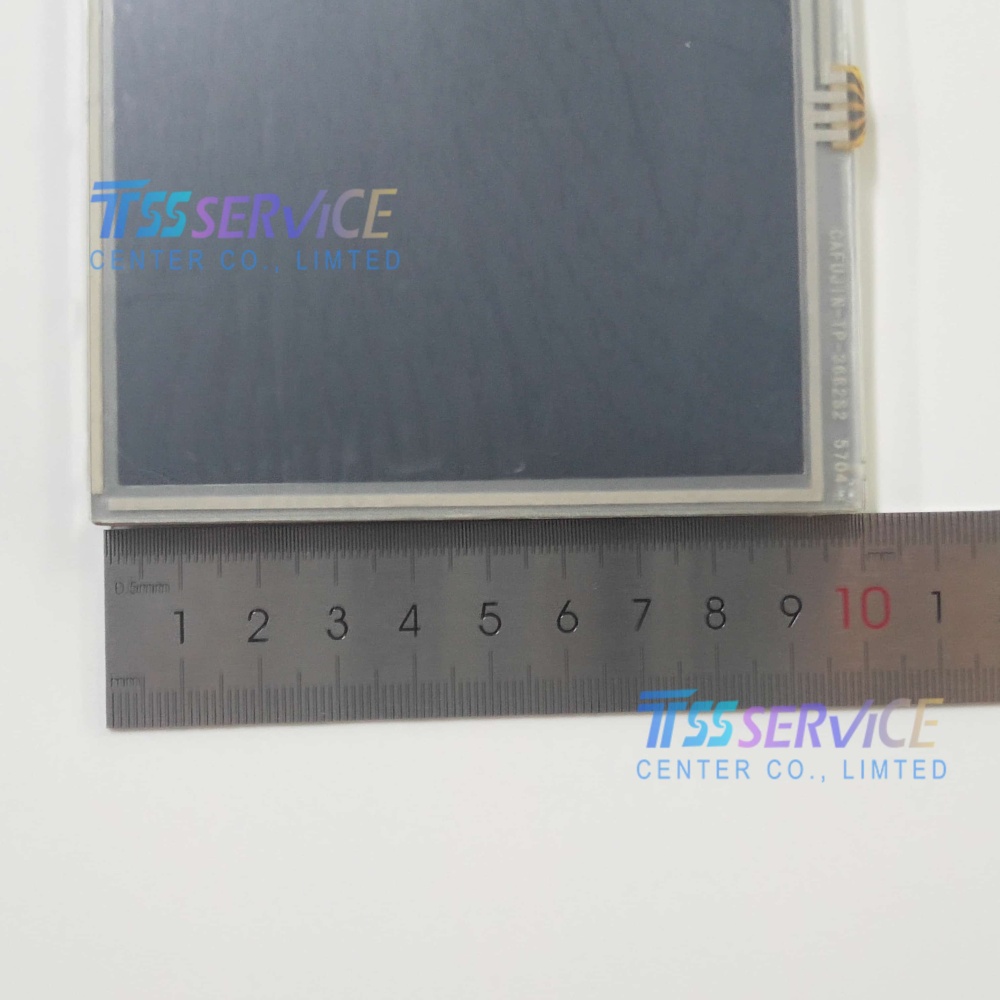

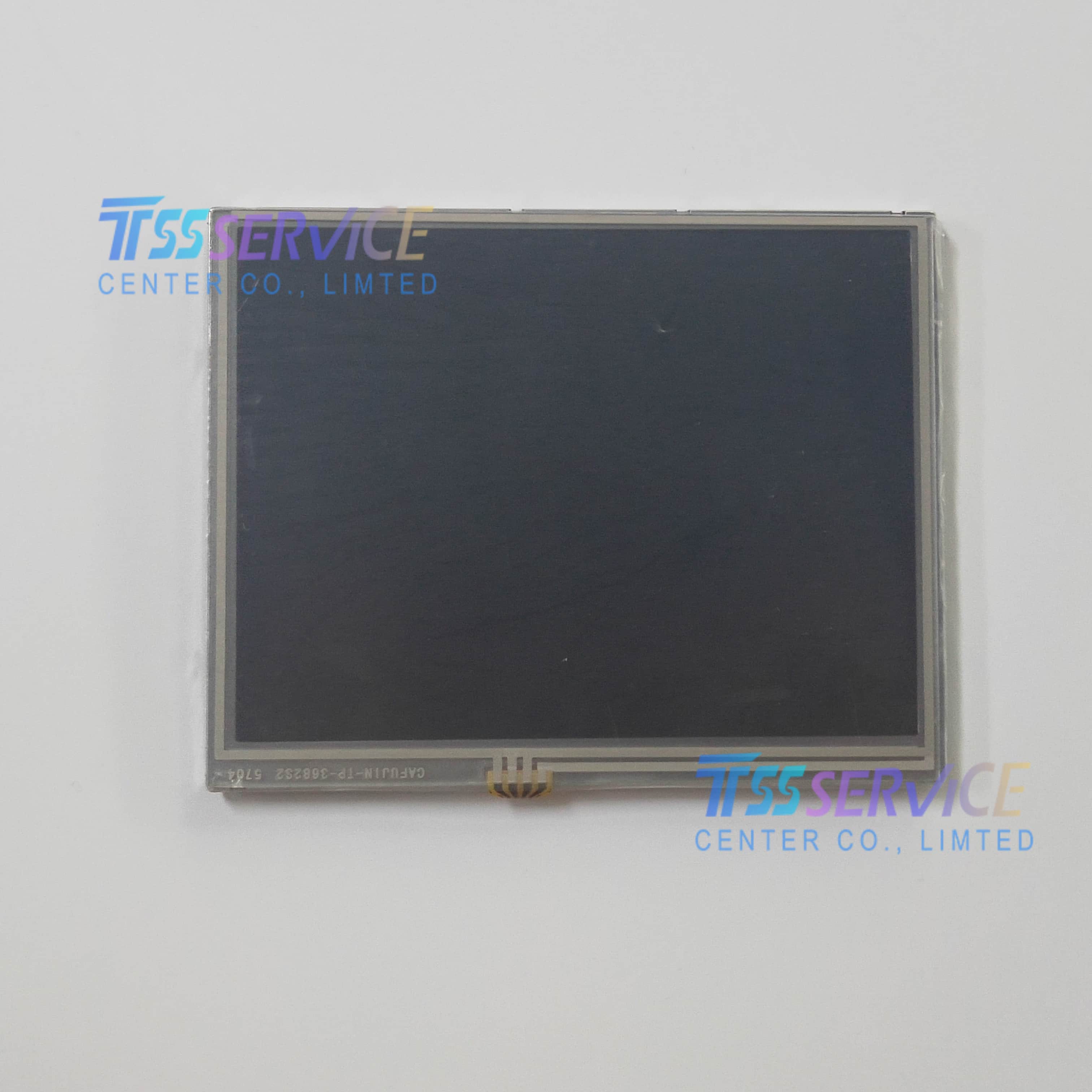

TCG057VGLBB-G00 5.7 inch Kyocera Lcd Panel with Touch Glass

SKU: TCG057VGLBB-G00
Model P/N : TCG057VGLBB-G00
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD,
Resolution :640(RGB)×480, VGA  141PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$150.00 $145.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
1/1
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
  • TCG057VGLBB-G00 Original 5.7 inch Kyocera lcd panel with 640(RGB)×480
  • Description
The TCG057VGLBB-G00 is an original, industrial-grade TFT LCD panel module manufactured by Kyocera. Designed for applications requiring durability, reliability, and a clear digital display, this panel combines a compact form factor with a classic and sharp resolution.

Parameter Specification
Model Number TCG057VGLBB-G00
Manufacturer Kyocera
Panel Type a-Si TFT-LCD, LCM
Screen Size 5.7 inches
Active Area 115.2 × 86.4 mm (typical)
Resolution 640 (RGB) × 480 dots
Pixel Format RGB Vertical Stripe
Display Mode Normally White, Transmissive
Interface Type Parallel RGB (1 ch, 6-bit) , 40 pins Connector
Backlight Type 3 strings WLED
Typical Brightness 200 cd/m² (Typ.)
Contrast Ratio 500:1 (typical)
Viewing Angle  80/80/80/80 (Typ.)(CR≥5)
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Supply Voltage (VDD) 3.3V (typical)
Power Consumption ~1.5W (typical, panel only)

Simple Applications

The TCG057VGLBB-G00 is specifically designed for industrial use . Kyocera's official documentation lists the following typical applications :

Application Area Specific Examples
Industrial Control Factory automation equipment, CNC machine HMIs, PLC control panels
Test & Measurement Oscilloscopes, signal generators, chart recorders, scales
Medical Devices Patient monitors, diagnostic equipment (Note: not for life-support systems)
Office Automation Printers, copiers, office equipment control panels
Retail & Banking POS terminals, ATMs, bank kiosks
Specialized Equipment Fish finders, musical instruments, sewing machines
