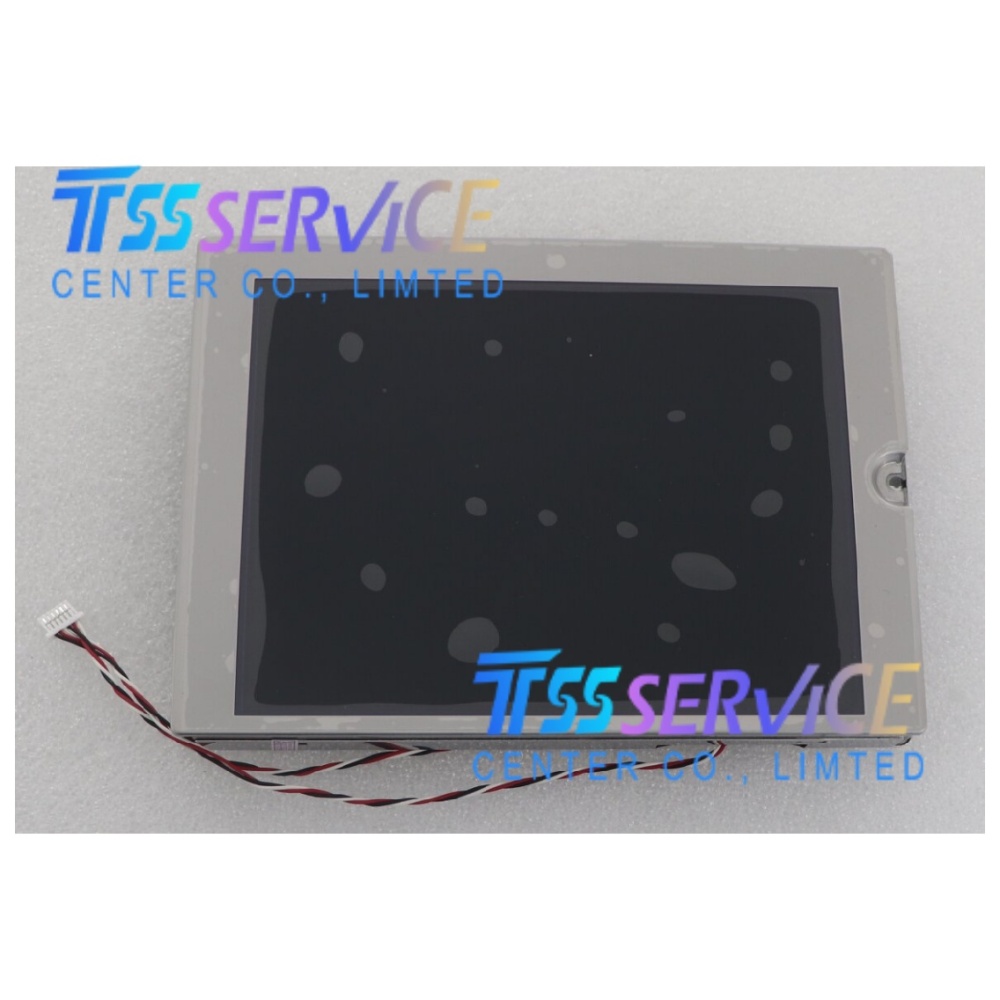

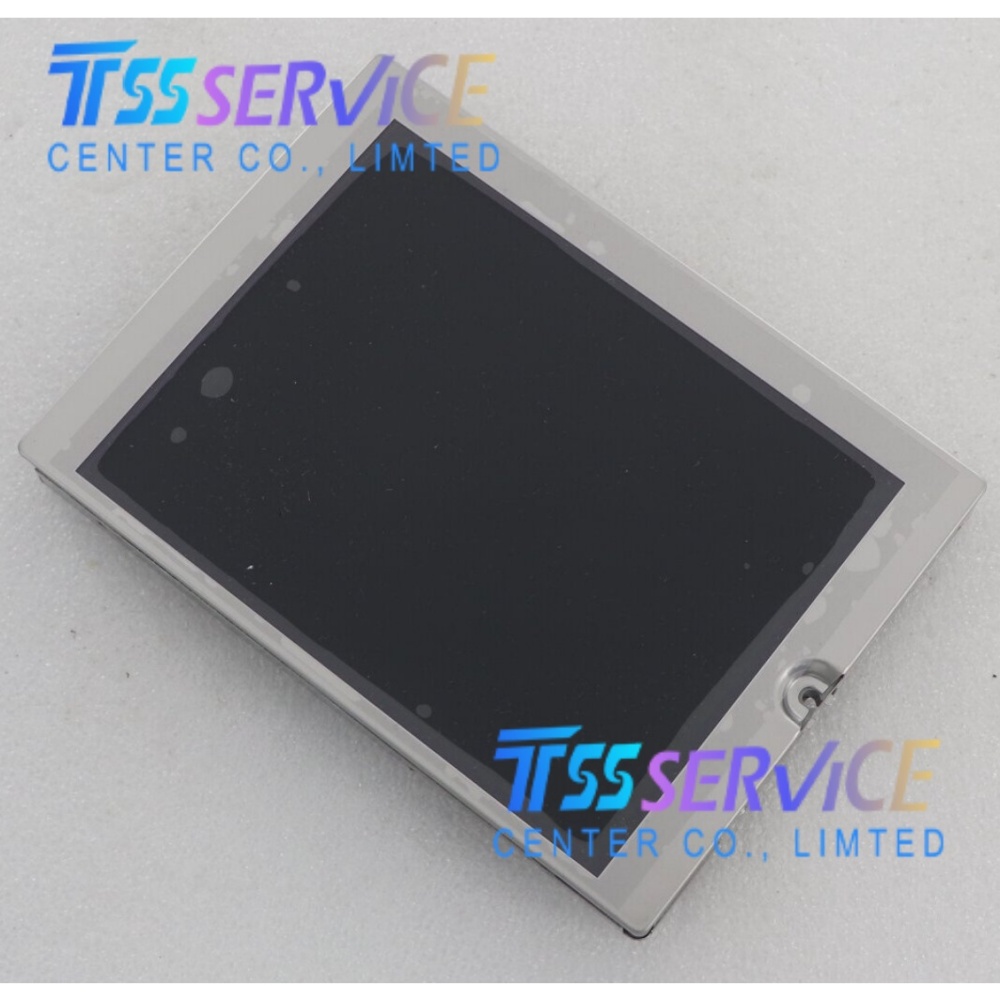

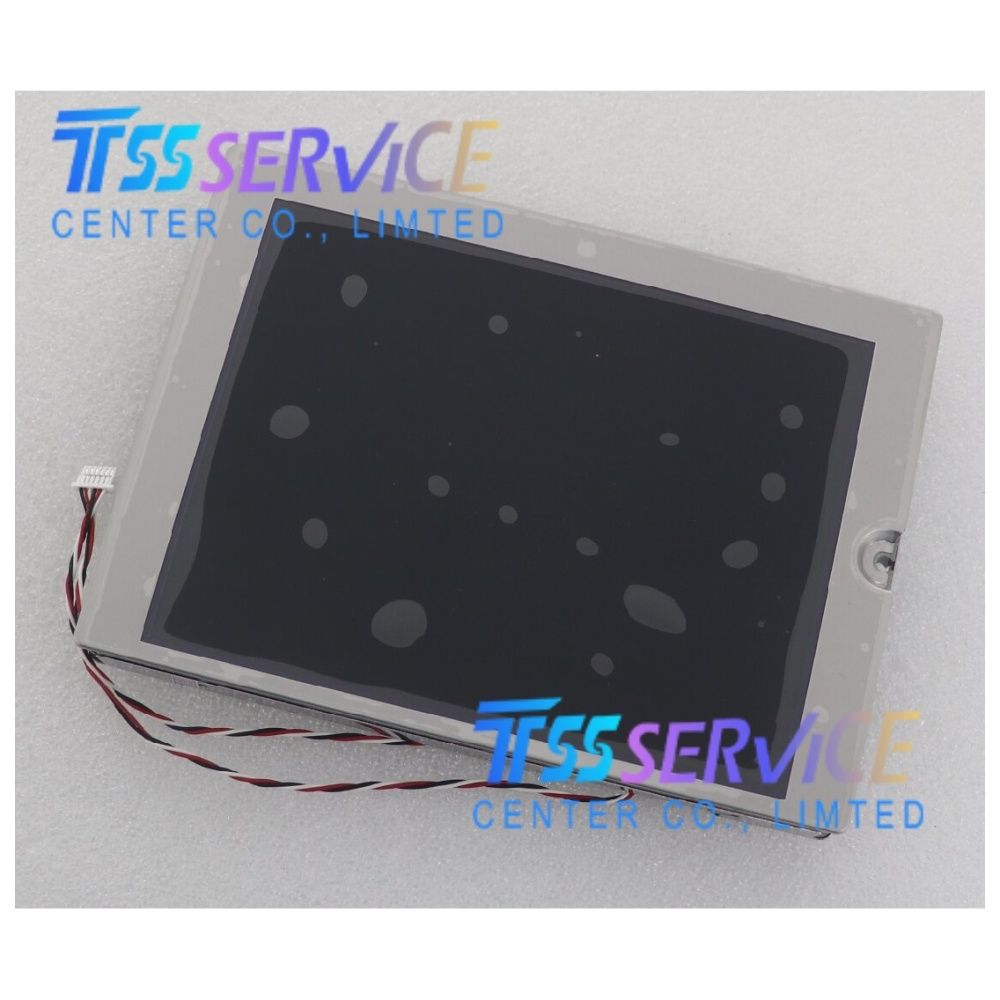

Kyocera TCG057VGLDHANN-GN00 5.7 inch LCD Display Screen For Industrial

Name: Kyocera TCG057VGLDHANN-GN00 5.7 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057VGLDHANN-GN00
Price: 130 USD
Availability: InStock

SKU: TCG057VGLDHANN-GN00

Model Name: TCG057VGLDHANN-GN00
Display Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, 4:3, VGA
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$133.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057VGLDHANN-GN00 5.7 inch LCD Display Screen For Industrial

Parameter	Details
Model Number	TCG057VGLDHANN-GN00
Brand	Kyocera
Screen Size	5.7 inch
Resolution	640×480 VGA
Display Mode	Transmissive Color TFT LCD
Backlight Type	WLED, Long lifespan
Typical Brightness	3000 cd/m²
Contrast Ratio	500:1
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)
Interface	Parallel RGB Interface
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Application Level	Industrial Grade
Compliance	RoHS Certified

Specific Application

Industrial automation HMI human-machine interface, industrial control cabinet display and PLC operation panel.
CNC machine tools, mechanical equipment industrial display, instrumentation and testing equipment terminal screen.
Medical auxiliary equipment, laboratory analytical instruments and portable diagnostic device display.
Vehicle-mounted industrial terminal, engineering machinery, agricultural equipment dashboard display.
Commercial POS terminal, smart self-service kiosk and outdoor semi-outdoor industrial display system.
