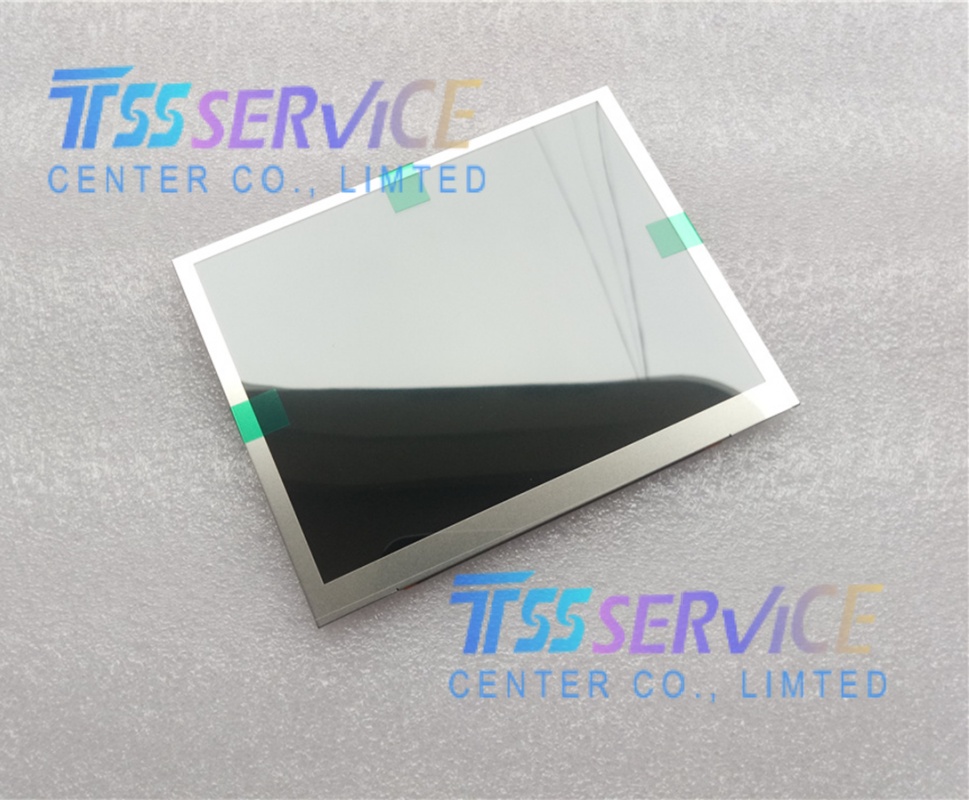

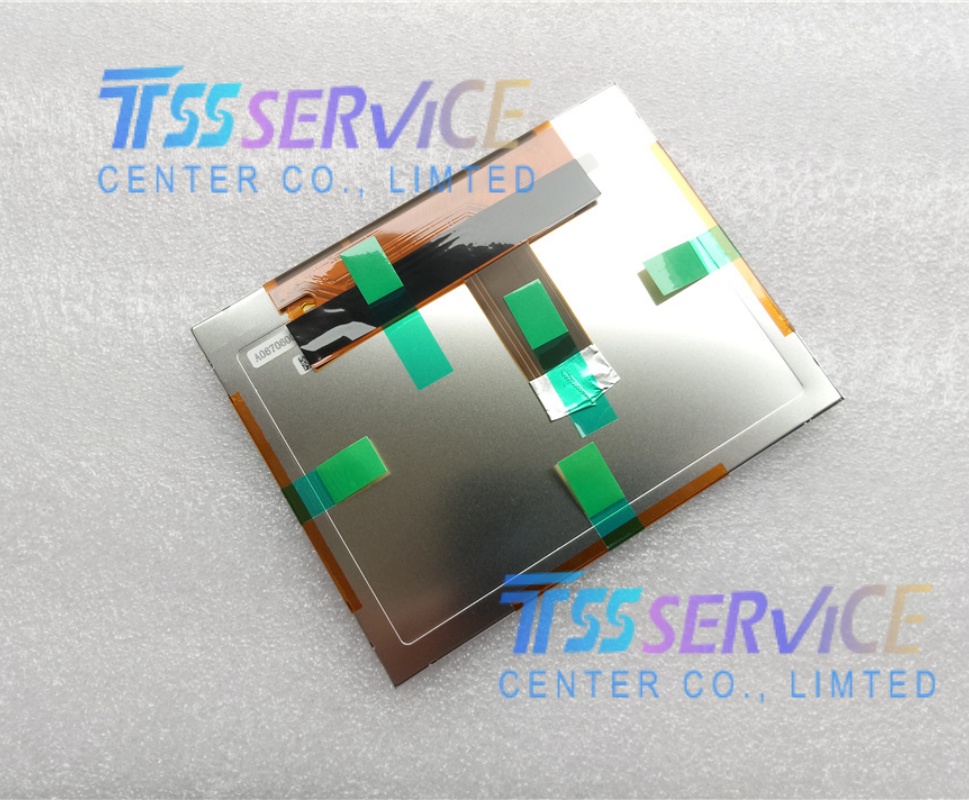

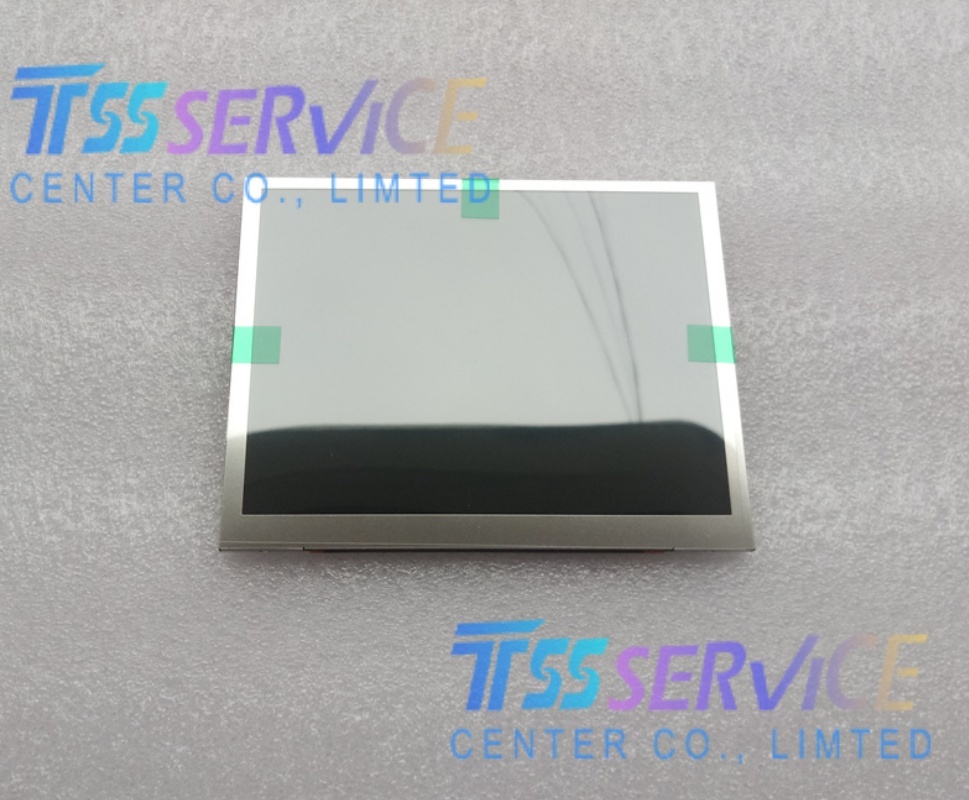

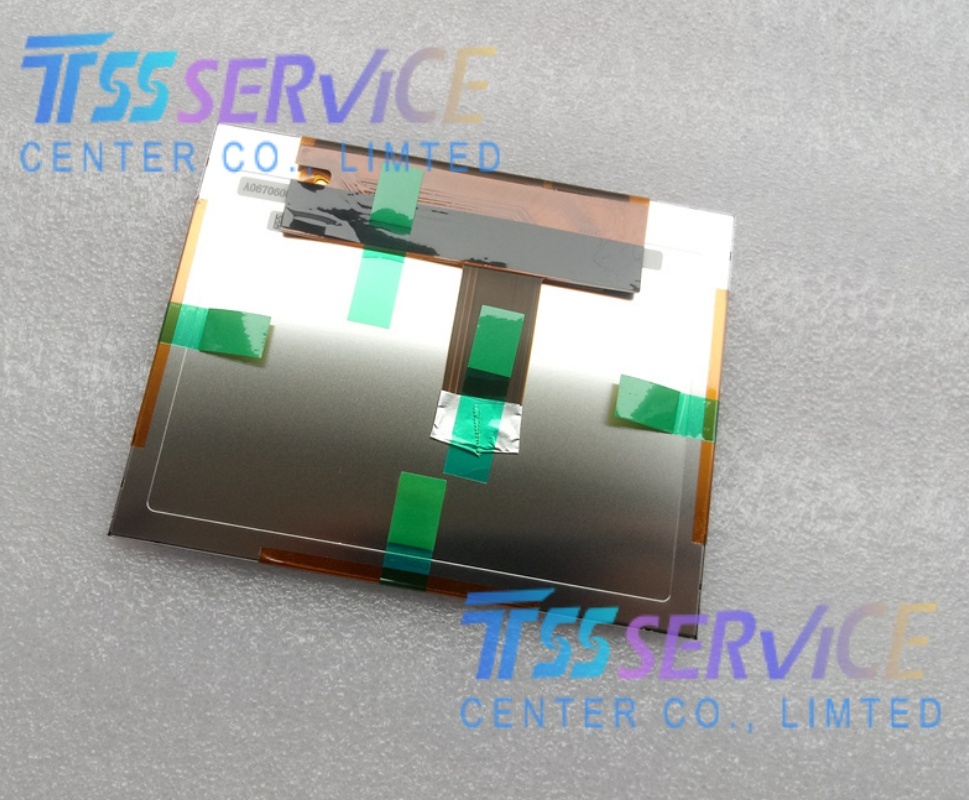

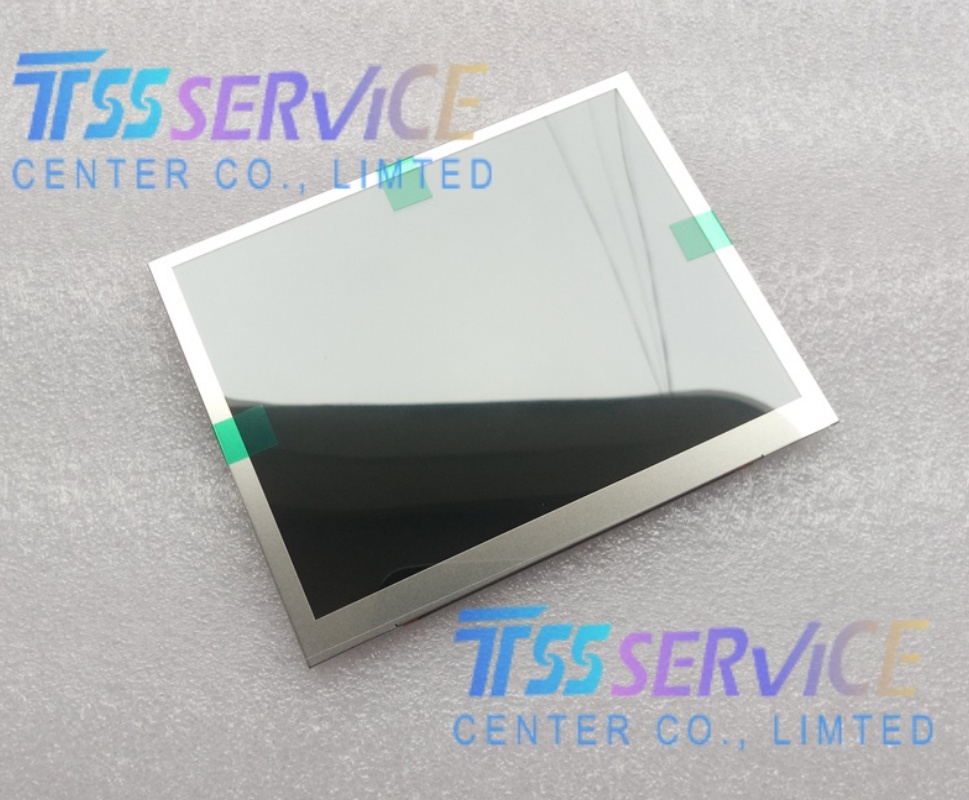

TCG057VGLPBANN-GN00 Kyocera 5.7 Inch Industrial TFT LCD Screen 640×480 Display Panel for HMI Equipment

Name: TCG057VGLPBANN-GN00 Kyocera 5.7 Inch Industrial TFT LCD Screen 640×480 Display Panel for HMI Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057VGLPBANN-GN00
Price: 135 USD
Availability: InStock

SKU: TCG057VGLPBANN-GN00

Model Number: TCG057VGLPBANN-GN00
Brand: KYOCERA (Industrial Grade Display)
Diagonal Size: 5.7 Inch
Native Resolution: 640(RGB) × 480 VGA, 4:3 Aspect Ratio
Panel Type: a-Si TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$140.00~~ $135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG057VGLPBANN-GN00 Kyocera 5.7 Inch Industrial TFT LCD Screen 640×480 Display Panel for HMI Equipment

Item	Specification Parameter
Model Number	TCG057VGLPBANN-GN00
Brand	KYOCERA (Industrial Grade Display)
Diagonal Size	5.7 Inch
Native Resolution	640(RGB) × 480 VGA, 4:3 Aspect Ratio
Panel Type	a-Si TFT-LCD
Backlight	Edge-lit WLED, Service Life ≥100,000 Hours
Typical Brightness	800 cd/m² (Ultra High Bright)
Contrast Ratio	500:1 (Typical)
Viewing Angle L/R/U/D	80° / 80° / 80° / 80° (CR≥5)
Signal Interface	Single Channel Parallel RGB 6-bit
Active Display Area	115.2 (W) × 86.4 (H) mm
Overall Outline Dimension	134.5 (W) × 103.4 (H) × 8.5 (T) mm
Surface Treatment	Hard Anti-glare Coating, Anti-scratch
Touch Function	No touch glass included
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Display Color	262K Colors
Input Voltage	3.3V Standard Industrial Voltage
Net Weight	Approx 0.5 KG
Quality Grade	Original New Grade A, Fully Tested Before Shipment

Applications

Industrial HMI & Factory Automation
CNC machine operation terminals, PLC control panels, injection molding machine screens, robotic handheld controllers, packaging equipment displays, industrial monitoring consoles, factory access control touch terminals.
Medical Portable Diagnostic Devices
Bedside patient monitors, portable ECG analyzers, infusion pump control screens, medical handheld testing instruments, clinical diagnostic auxiliary displays, veterinary medical equipment panels.
Handheld & Portable Test Instruments
Portable power quality analyzers, environmental gas detection equipment, optical measuring testers, underground pipeline inspection devices, industrial handheld data recorders.
Construction & Agricultural Machinery On-board Displays
Forklift monitoring screens, tractor control panels, excavator auxiliary dashboards, small engineering vehicle operating terminals, agricultural spraying machine displays.
Commercial Self-service & Special Equipment
Industrial vending machine control modules, portable outdoor kiosks, mining monitoring equipment, marine small instrument screens, security industrial monitoring terminals.
