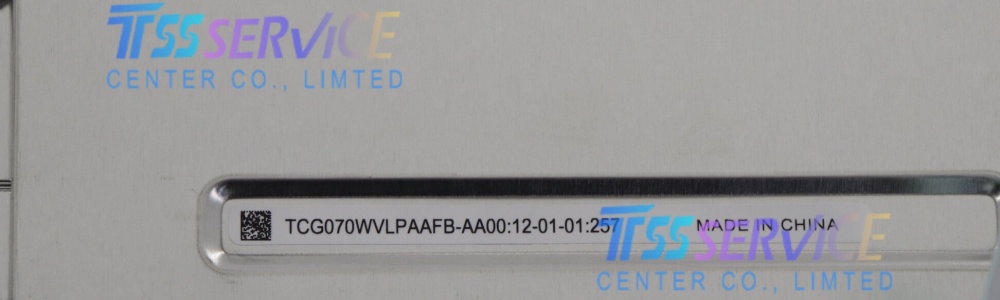

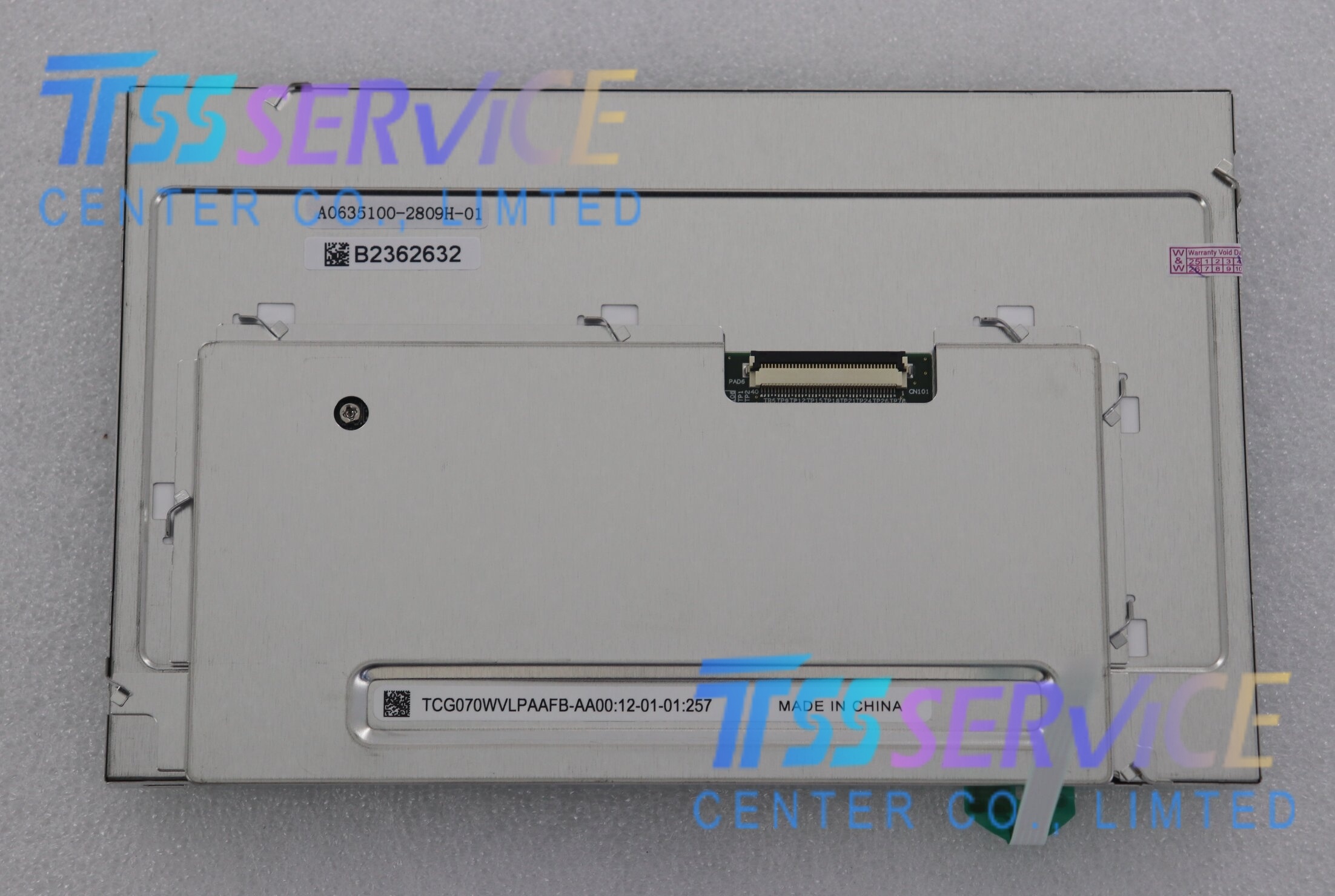

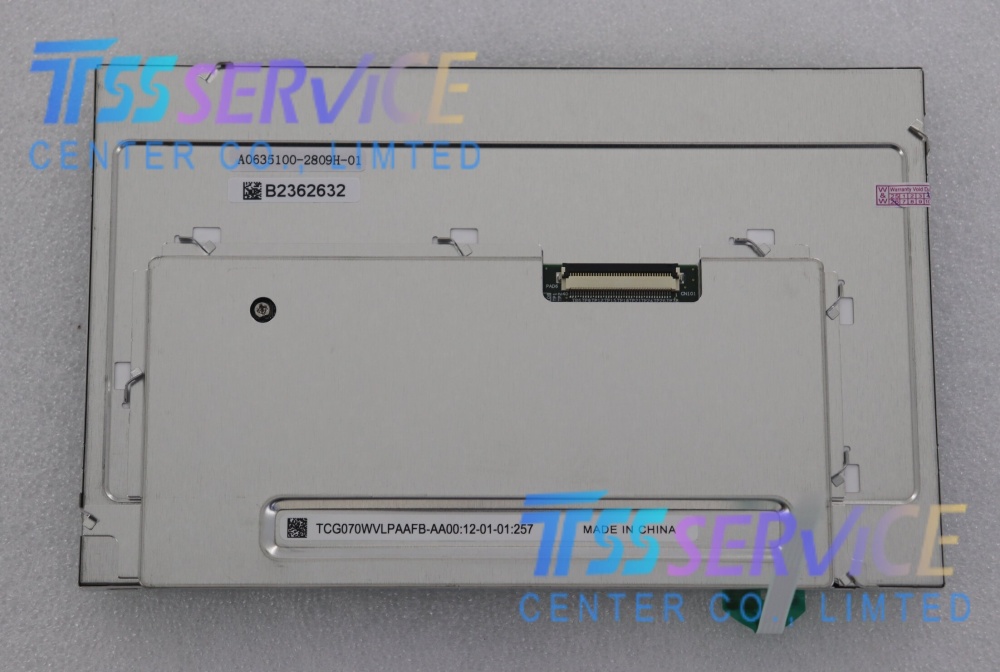

TCG070WVLPAAFB-AA00 Kyocera 7" WVGA TFT-LCD 800×480 Industrial Display Module

Name: TCG070WVLPAAFB-AA00 Kyocera 7" WVGA TFT-LCD 800×480 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG070WVLPAAFB-AA00
Price: 166 USD
Availability: InStock

SKU: TCG070WVLPAAFB-AA00

Model: TCG070WVLPAAFB-AA00
Brand: Kyocera
Screen Size: 7.0 inches
Panel Type: a-Si TFT-LCD, TN, Normally White
Resolution: 800×480 (WVGA, 15:9)

0.0 (0 Reviews)

0 Sold

~~$168.00~~ $166.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG070WVLPAAFB-AA00 Kyocera 7" WVGA TFT-LCD 800×480 Industrial Display Module

Parameter	Details
Model	TCG070WVLPAAFB-AA00
Brand	Kyocera
Screen Size	7.0 inches
Panel Type	a-Si TFT-LCD, TN, Normally White
Resolution	800×480 (WVGA, 15:9)
Brightness	270 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle (CR≥10)	80°/80°/60°/80° (L/R/U/D)
Color Depth	262K Colors (6-bit, 49% NTSC)
Response Time	25 ms (G to G, Typ.)
Backlight	WLED (side-entry), 100,000 hrs lifespan

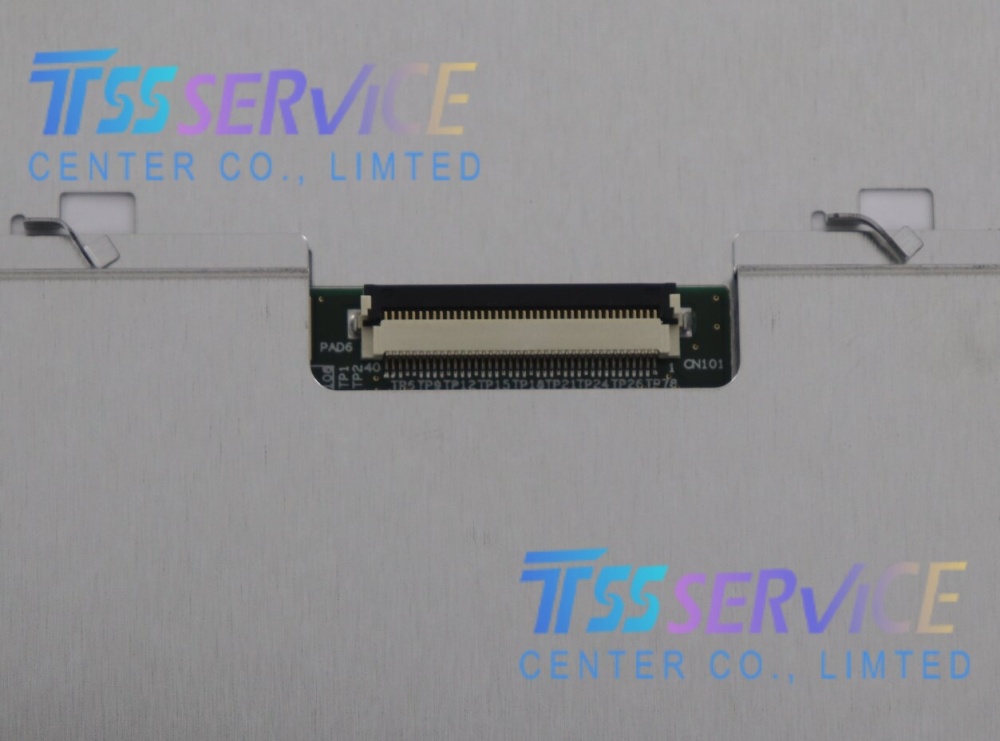

Interface	Parallel RGB (1 ch, 6-bit), 40 pins
Operating Voltage	3.3V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Display Area	154.08 × 85.92 mm
Outline Dimension	165 × 105 × 6.5 mm
Weight	Approx. 300g
Surface Treatment	Hard Coating (2H)
Compliance	RoHS
Product Status	Active (In production)
