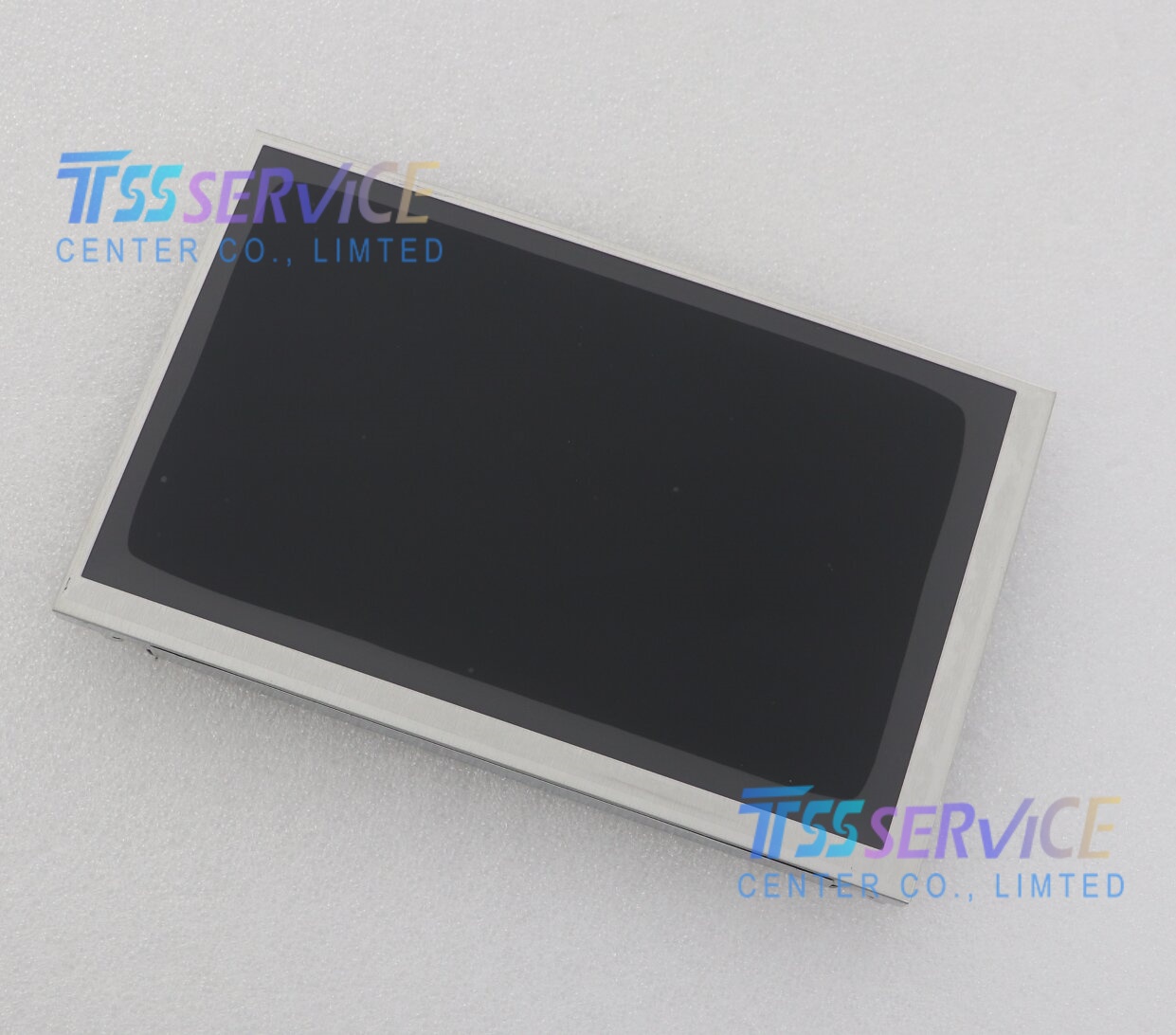

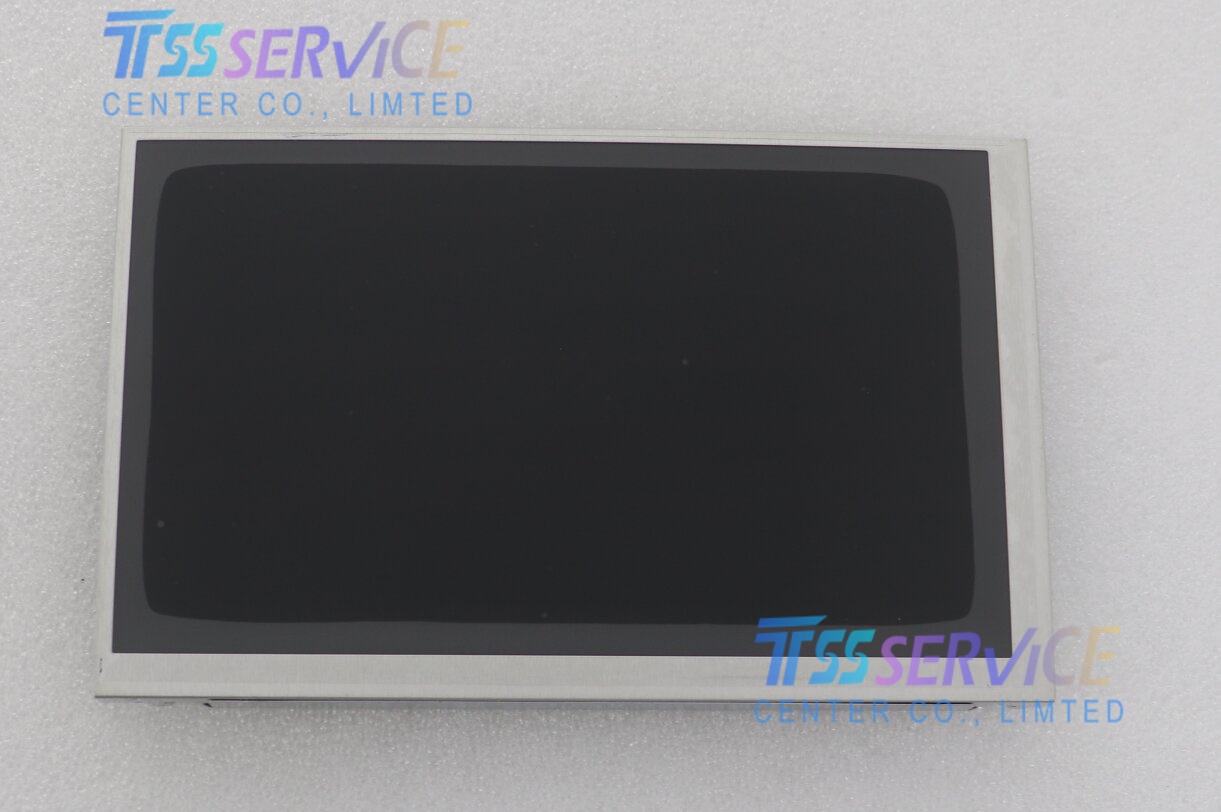

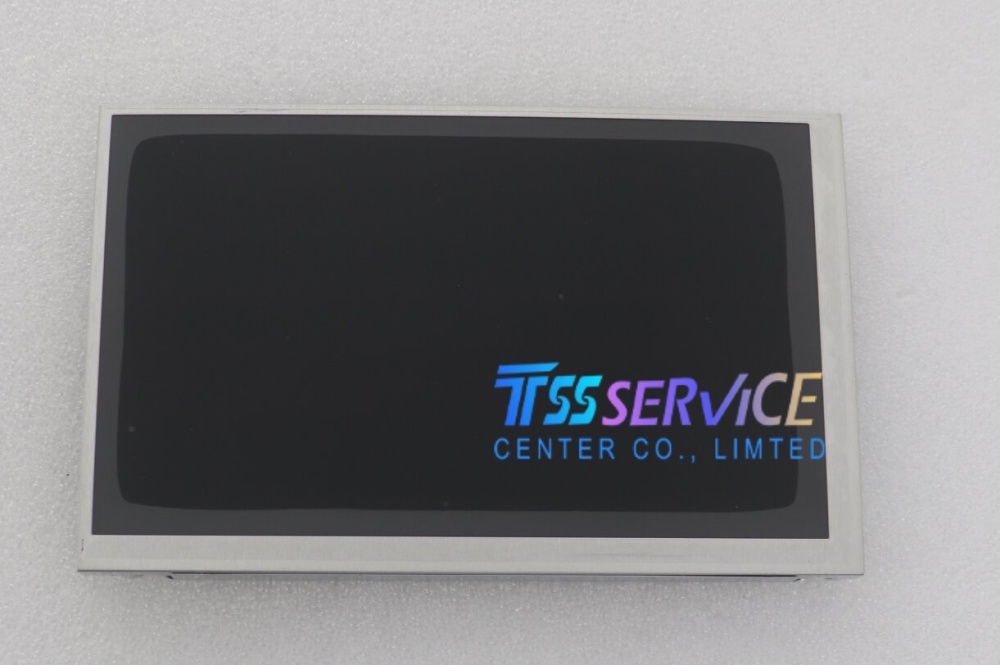

Kyocera TCG070WVLPEANN-AN21 7 inch LCD Display Screen For Industrial
| Parameter |
Specification |
Unit |
| Brand |
Kyocera Display |
– |
| Model |
TCG070WVLPEANN-AN21 |
– |
| Display Size |
7.0 (diagonal) |
inch |
| Panel Type |
a‑Si TFT‑LCD, LCM |
– |
| Resolution |
800 (RGB) × 480 (WVGA), 133PPI |
pixel |
| Active Area |
152.4 (H) × 91.44 (V) |
mm |
| Outline Dimensions |
165 (H) × 104.4 (V) × 9.1 (D) |
mm |
| Pixel Configuration |
RGB Vertical Stripe |
– |
| Brightness |
350 (Typ.) |
cd/m² |
| Contrast Ratio |
1000:1 (Typ., TM) |
– |
| Viewing Angle (CR≥10) |
80/80/60/80 (L/R/U/D) |
deg |
| View Direction |
6 o’clock |
– |
| Response Time |
5/25 (Typ., Tr/Td) |
ms |
| Display Mode |
TN, Normally White, Transmissive |
– |
| Surface Treatment |
Antiglare (Matte), Hard coating (3H) |
– |
| Colors |
262K (6‑bit) / 16.2M (8‑bit) |
– |
| Backlight |
WLED, 100,000 hours, w/o driver |
– |
| Interface |
LVDS (1 ch, 6/8‑bit), 30‑pin connector |
– |
| Supply Voltage |
+3.3V (Typ.) |
DC |
| Operating Temperature |
−20 ~ +70 |
°C |
| Storage Temperature |
−30 ~ +80 |
°C |
| Weight |
205 (Typ.) |
g |
Typical applications include:
- Industrial HMI & Control Panels – Factory automation, PLC terminals, and small IPCs.
- Standard Machinery & Equipment – Packaging, textile, and plastic processing machinery.
- Medical Devices (Non‑Critical) – Patient monitors, lab analyzers, and dental equipment.
- Rugged Transportation – Forklift terminals, construction vehicle dashboards, and railway displays.
- Kiosks & Digital Signage (Indoor) – Information terminals, vending machines, and factory floor displays.
- Test & Measurement Instruments – Oscilloscopes, power supplies, and general laboratory equipment.
