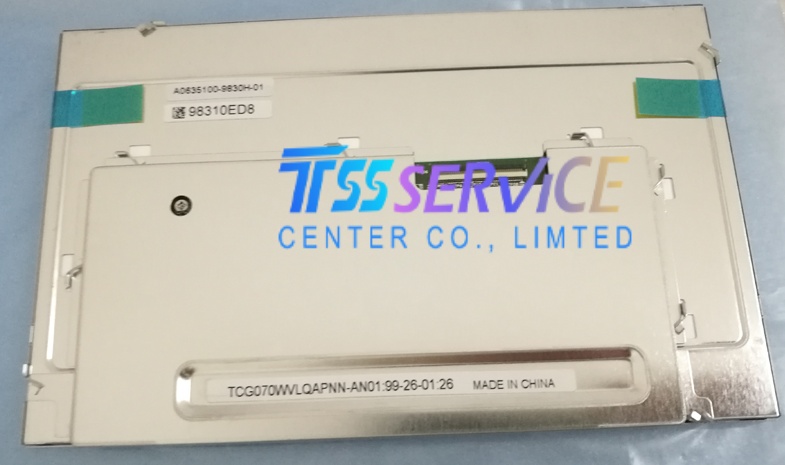

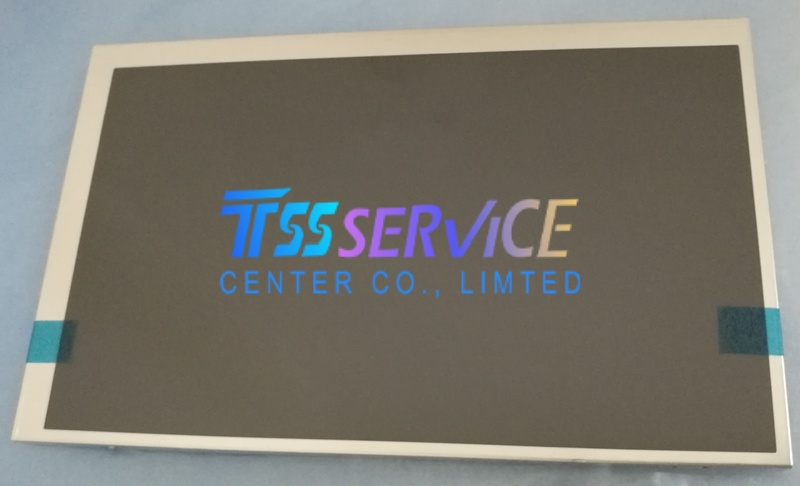

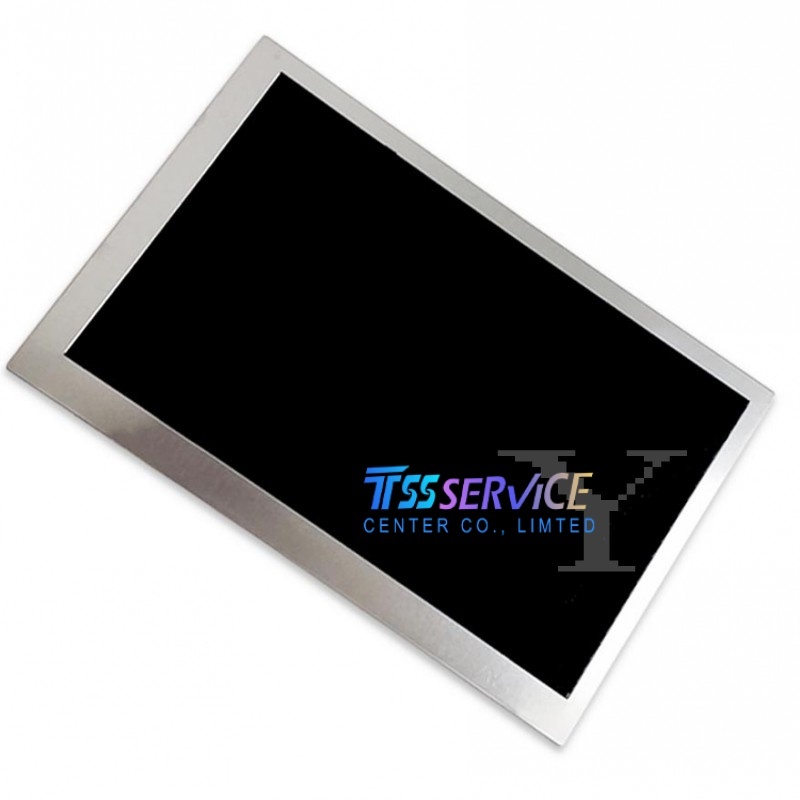

Kyocera TCG070WVLQAPNN-AN01 7 Inch 800×480 Industrial TFT LCD Panel Display Screen

Name: Kyocera TCG070WVLQAPNN-AN01 7 Inch 800×480 Industrial TFT LCD Panel Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG070WVLQAPNN-AN01
Price: 178 USD
Availability: InStock

SKU: TCG070WVLQAPNN-AN01

Model Number: TCG070WVLQAPNN-AN01
Diagonal Size: 7.0 inch
Native Resolution: 800(RGB) × 480, WVGA, 133 PPI
Display Type: a-Si TFT-LCD, Transmissive

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $178.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG070WVLQAPNN-AN01 7 Inch 800×480 Industrial TFT LCD Panel Display Screen

Item	Parameter
Model Number	TCG070WVLQAPNN-AN01
Diagonal Size	7.0 inch
Native Resolution	800(RGB) × 480, WVGA, 133 PPI
Display Type	a-Si TFT-LCD, Transmissive, Normally Black
Active Area	152.4 mm (W) × 91.44 mm (H)
Pixel Arrangement	RGB Vertical Strip
Typical Brightness	350 cd/m²
Contrast Ratio	500:1 (Typical)
Viewing Angle (CR≥10)	85° / 85° / 85° / 85° (L/R/U/D) Full Symmetric Wide View
Display Color	262K, 51% NTSC
Response Time	12/18 (Typ.)(Tr/Td) ms
Refresh Rate	60 Hz
Backlight	WLED Backlight, 70,000 Hours Lifespan (No Built-in Driver)
Signal Interface	Single Channel 6-bit Parallel RGB, 40Pin FPC Connector
Supply Voltage	3.3 V (Typical)
Surface Treatment	Hard Anti-Scratch Coating
Touch Option	LCD Only, No Integrated Touch Glass
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C

Applications

Industrial HMI & PLC Control Panels, Factory Automation Operation Terminals
CNC Lathe, Milling, Injection Molding & Packaging Machine Operator Displays
Portable Test & Measurement Instruments, Data Recorders & Field Detectors
Construction, Agricultural & Off-Road Machinery Cabin Monitoring Screens
Medical Auxiliary Monitoring Equipment, Portable Diagnostic Devices
Marine Onboard Small Control Terminals & Vessel Monitoring Displays
Elevator Main Control Operating Panels & Floor Indicator Displays
Security Inspection Equipment, Portable CCTV Controllers & Access Control Panels
Textile, Welding & Printing Machinery Embedded Control Modules
Vintage Embedded Industrial Equipment LCD Replacement Spare Parts
Smart Factory Small Touch Control Units, Low Power Embedded Systems
Outdoor Light Industrial Monitoring Devices (Standard Wide Temp Environment)
