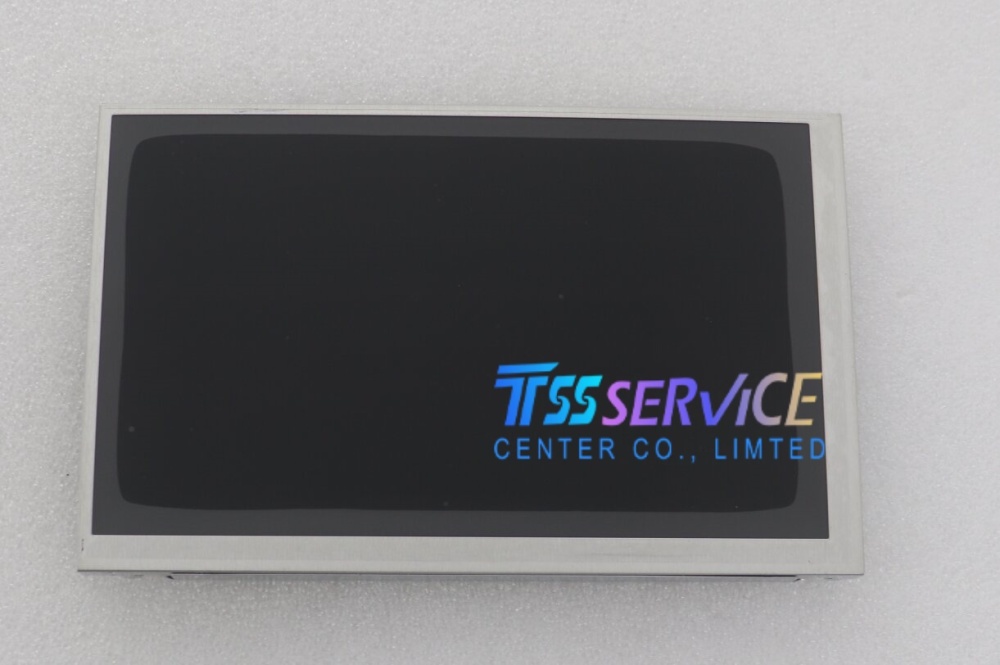

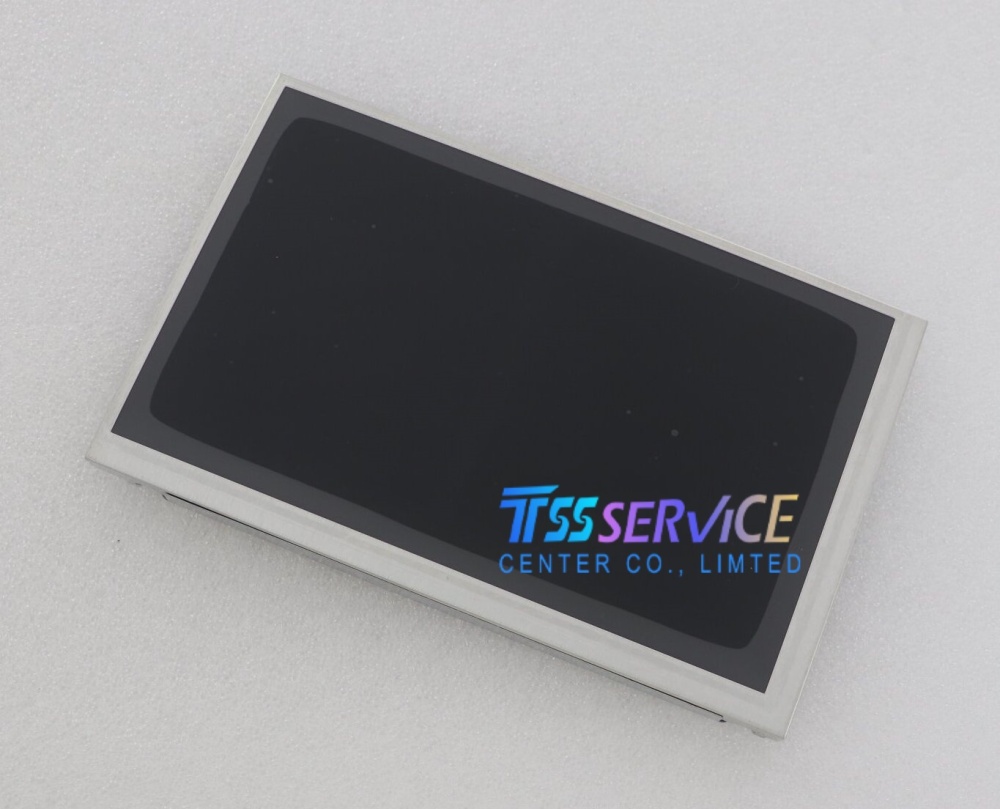

KYOCERA NEW 7.0 inch LCD Display Panel TCG070WVLDCDNN-AN00 for Industrial
| Parameter |
Specification |
| Brand |
Kyocera |
| Model |
TCG070WVLDCDNN-AN00 |
| Screen Size |
7.0 inches |
| Display Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×480 (WVGA) |
| Pixel Density |
133 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
152.4 (W) × 91.44 (H) mm |
| Outline Dimension |
165.0 (W) × 104.4 (H) × 8.5 (D) mm |
| Surface Treatment |
Antiglare |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Viewing Direction |
12 o'clock (6 o'clock preferred) |
| Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
| Response Time |
5/25 (Typ.)(Tr/Td) ms |
| Display Colors |
262K (49% NTSC) |
| Backlight |
WLED
(Life: 100,000 hours Typ.) |
| Weight |
195g (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Interface |
Parallel RGB (1 ch, 6-bit) |
| Connector |
40 pins |
| Input Voltage |
3.3V (Typ.) |
| Touch Panel |
Without (Optional) |

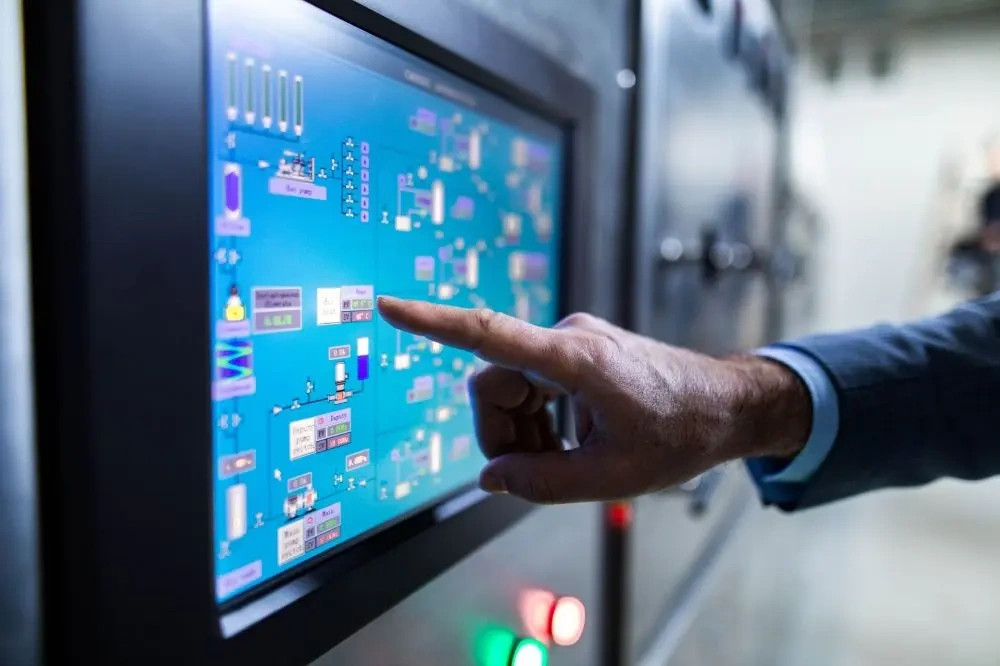

1. Industrial Control & Automation (HMIs)
-
Application: PLC operator panels, CNC machine controllers, and factory automation terminals.
-
Why this model? The industrial temperature range ensures operation near machinery, and the 1000:1 contrast allows for clear viewing of complex graphs and data under workshop lighting
2. Medical Devices
-
Application: Patient monitoring systems, portable diagnostic equipment, and dental/surgical displays.
-
Why this model? The long backlight life (100,000 hours) ensures low maintenance in critical care environments, while the durability allows for frequent cleaning and disinfection.
3. Test & Measurement Equipment
-
Application: Oscilloscopes, spectrum analyzers, and bench-top instruments.
-
Why this model? The 800x480 resolution provides ample space to display waveform details and numeric readings simultaneously without scrolling
4. Commercial Kiosks & POS
-
Application: Self-service kiosks, ticketing machines, and Point-of-Sale terminals.
-
Why this model? The anti-glare treatment improves readability under indoor lighting, and the robust construction supports high-traffic usage.
5. Navigation Systems
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
