TCG075VG2AC-A02 7.5" 640×480 Kyocera LCD Panel In-stock

Name: TCG075VG2AC-A02 7.5" 640×480 Kyocera LCD Panel In-stock
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VG2AC-A02
Price: 174 USD
Availability: InStock

SKU: TCG075VG2AC-A02

1，Condition: New，Grade A

2，Description: TCG075VG2AC-A02 7.5inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$176.00~~ $174.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

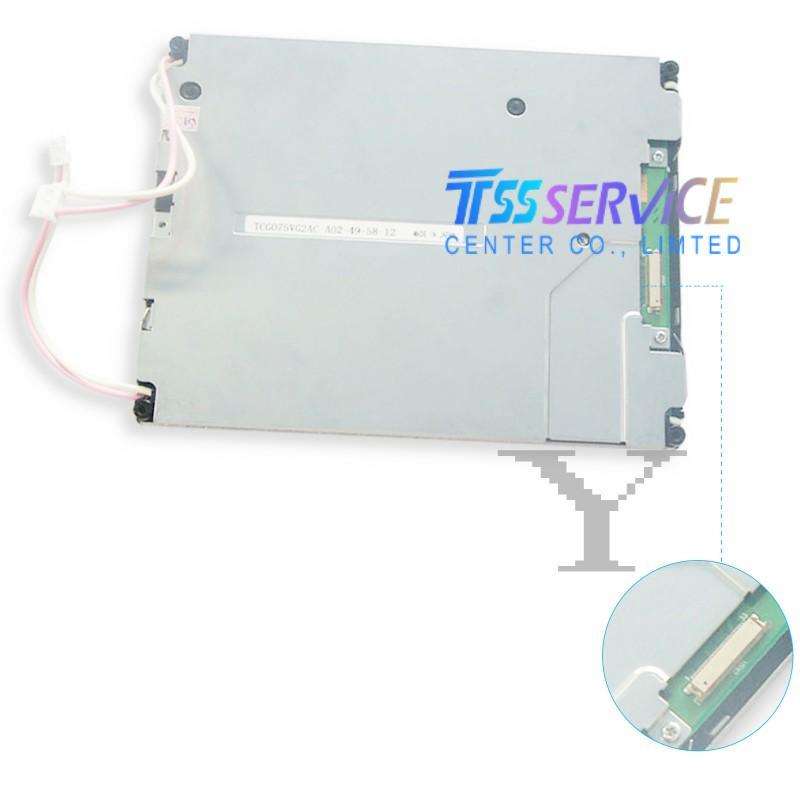

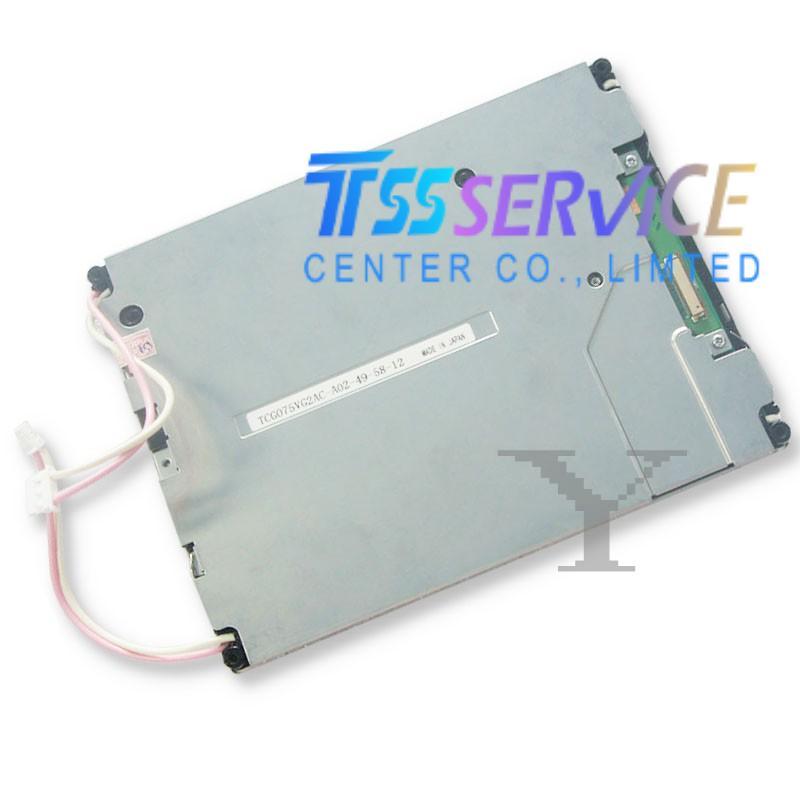

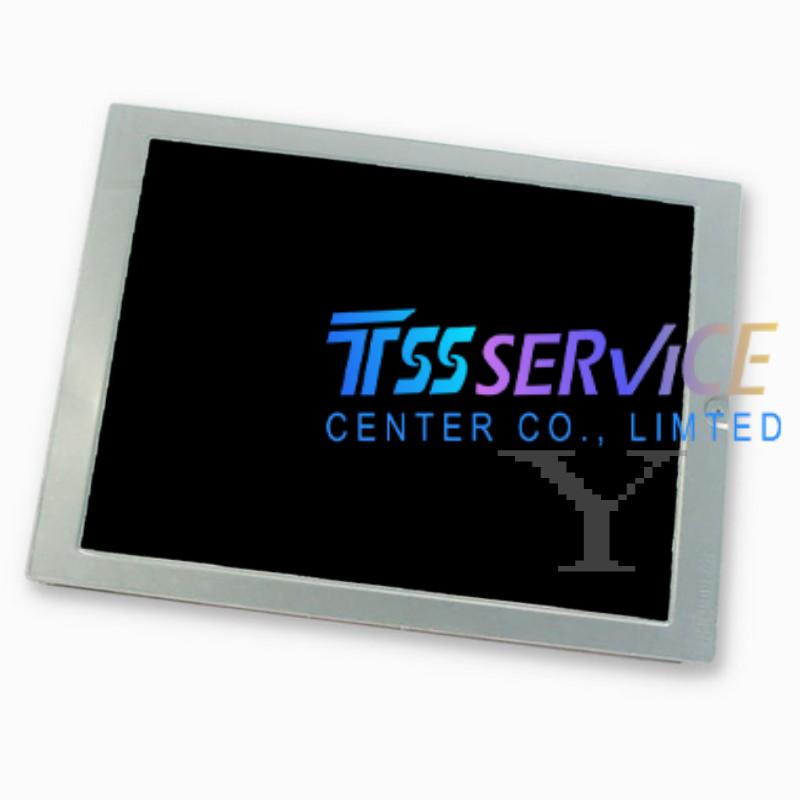

The Kyocera TCG075VG2AC-A02 is a 7.5-inch a-Si TFT-LCD module designed for industrial and embedded applications. With VGA resolution (640×480) and a compact 4:3 aspect ratio, this display delivers reliable performance, excellent readability, and long-term availability. Currently in stock and ready for immediate shipment.

Parameter	Value
Brand	Kyocera
Model	TCG075VG2AC-A02
Diagonal Size	7.5 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	640(RGB)×480, 4:3, VGA
Pixel Structure	RGB Vertical Stripe
Active Area	151.68(H)×113.76(V) mm
Physical Size	184(H)×139.8(V)×13.2(D) mm
Mass	370g (Typ.)
Surface Coating	Antiglare
Luminance	270 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
Response Time	5/15 (Typ.)(Tr/Td) ms
Viewing Angle	80/80/70/70 (Typ.)(CR≥5)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Power Consumption	5.06W (Typ.)
Light Source	2 pcs CCFL, 54K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) Connector

Applications

Industrial control panels
Medical equipment displays
POS (Point of Sale) systems
Human-machine interface (HMI) terminals
Test and measurement instruments
