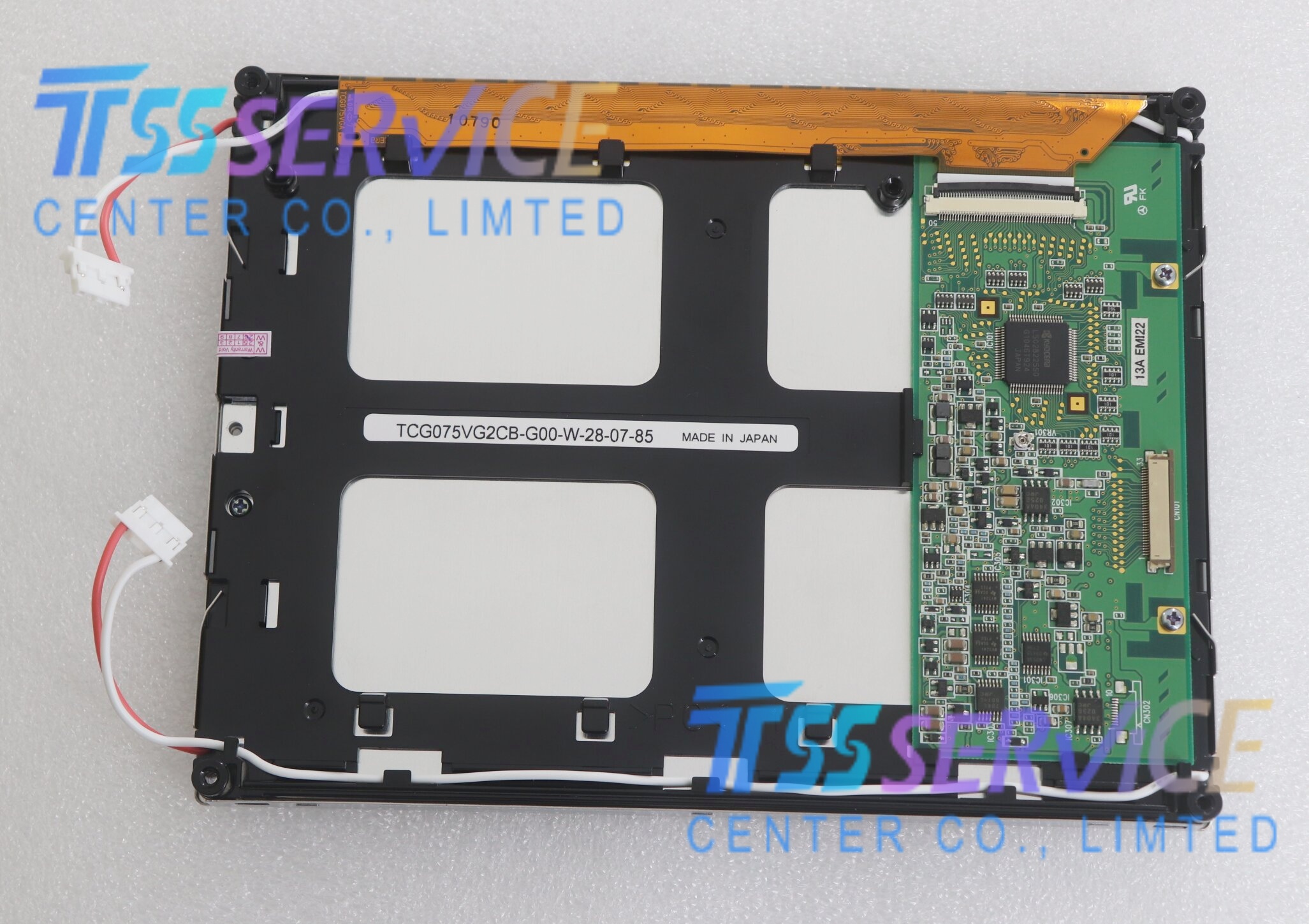

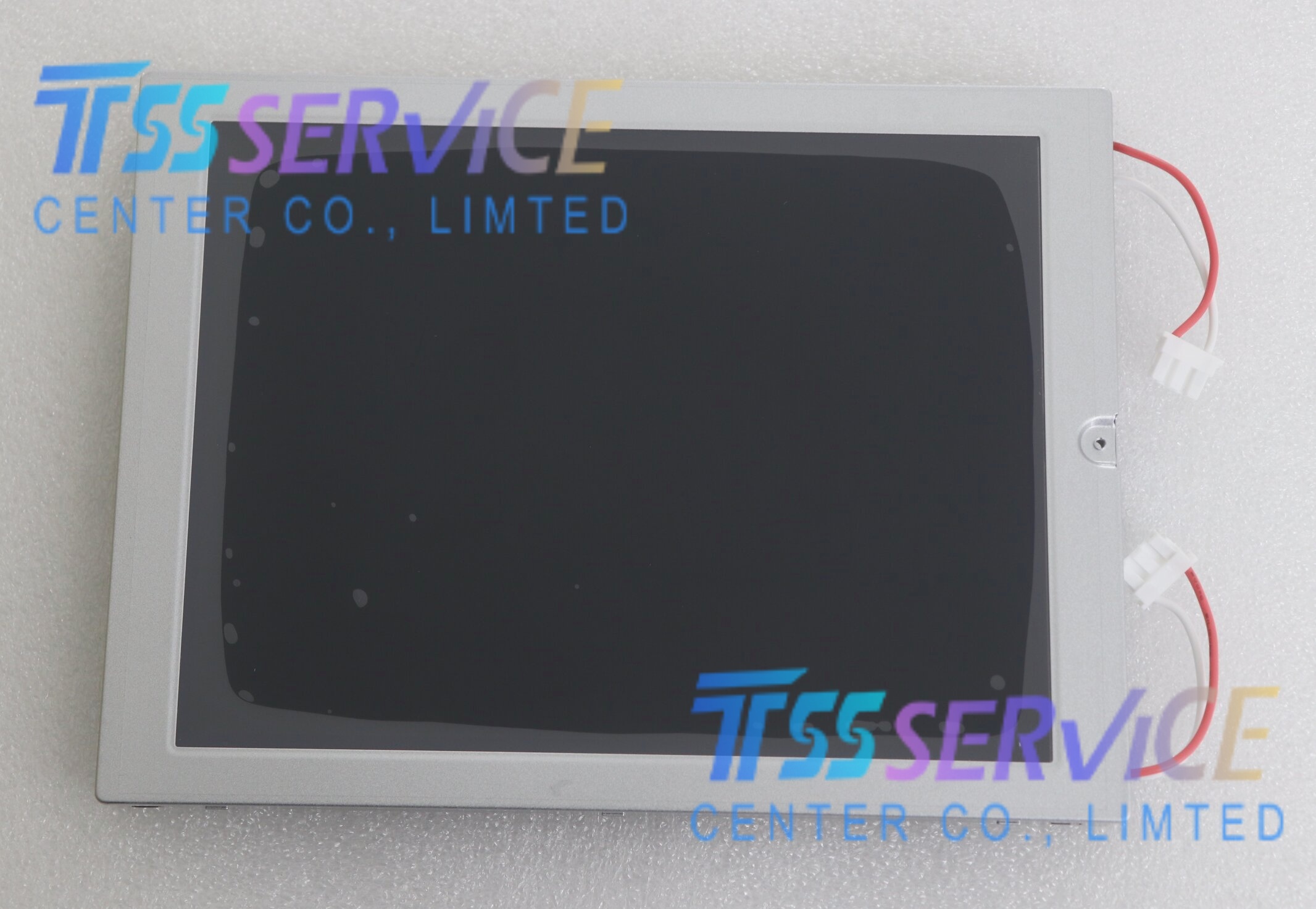

Kyocera TCG075VG2CB-G00-W 7.5 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Equipment

Name: Kyocera TCG075VG2CB-G00-W 7.5 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VG2CB-G00-W
Price: 200 USD
Availability: InStock

SKU: TCG075VG2CB-G00-W

Model No.: TCG075VG2CB-G00-W
Brand: Kyocera Industrial Display
Diagonal Size: 7.5 inch
Native Resolution: 640 × 480 (VGA, 4:3, RGB Vertical Stripe)
Display Type: a-Si TN TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$220.00~~ $200.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG075VG2CB-G00-W 7.5 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Equipment

Parameter Item	Detailed Specification
Model No.	TCG075VG2CB-G00-W
Brand	Kyocera Industrial Display
Diagonal Size	7.5 inch
Native Resolution	640 × 480 (VGA, 4:3, RGB Vertical Stripe)
Display Type	a-Si TN TFT-LCD, Transmissive Normally White
Active Display Area	151.68(W) × 113.76(H) mm
Overall Outline Dimension	184(W) × 139.8(H) × 13.2(D) mm
Net Weight	370g (Typical)
Typical Brightness	800 cd/m² Ultra High Brightness
Contrast Ratio	500:1 (Typ.)
Viewing Angle (CR≥10)	Horizontal 70°/70°, Vertical 50°/70°
Response Time (Tr/Td)	5ms / 15ms
View Direction	6 o’clock
Backlight	Dual CCFL Cold Cathode Lamp, Lifespan 50,000 Hours, External Inverter Required
Signal Interface	Single Channel Parallel RGB 6-bit, 33 Pin Connector
Refresh Rate	60Hz Standard Industrial Frequency
Color Depth	262K Full RGB Display Colors
Supply Voltage	3.3V DC Input
Surface Treatment	Anti-Glare Hard Coating
Touch Function	Without Touch Glass, Compatible External Resistive Touch Overlay
Operating Temperature	-10°C ~ +70°C
Storage Temperature	-30°C ~ +80°C

Application

Outdoor Industrial HMI, Outdoor Charging Pile High-bright Control Terminals
CNC Lathe, Milling Machine, EDM Original Control Panel Replacement Screen
Injection Molding, Blow Molding & Packaging Automation Equipment Operation Display
Medical Diagnostic Instruments, Hospital Monitoring & Bedside Terminals
Construction Machinery, Forklift, Agricultural Vehicle On-board Display Modules
Printing, Textile, Welding Legacy Industrial Control Operation Screens
Laboratory Test & Measuring Equipment, Industrial Visual Inspection Terminals
Factory Outdoor Assembly Line Monitoring Display Panels
Old-generation PLC Control Cabinet Embedded Human Machine Interface
