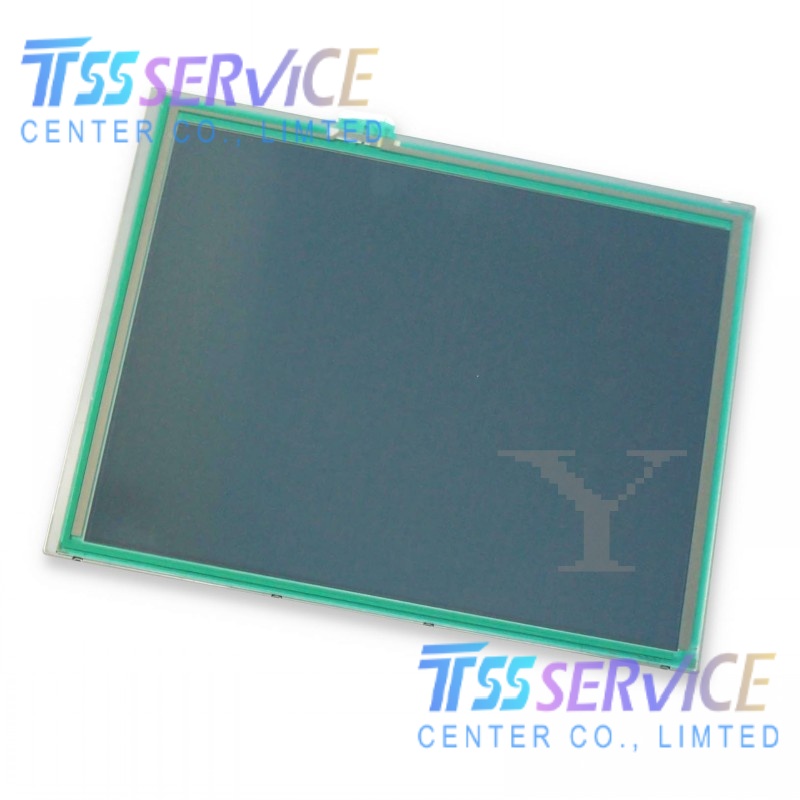

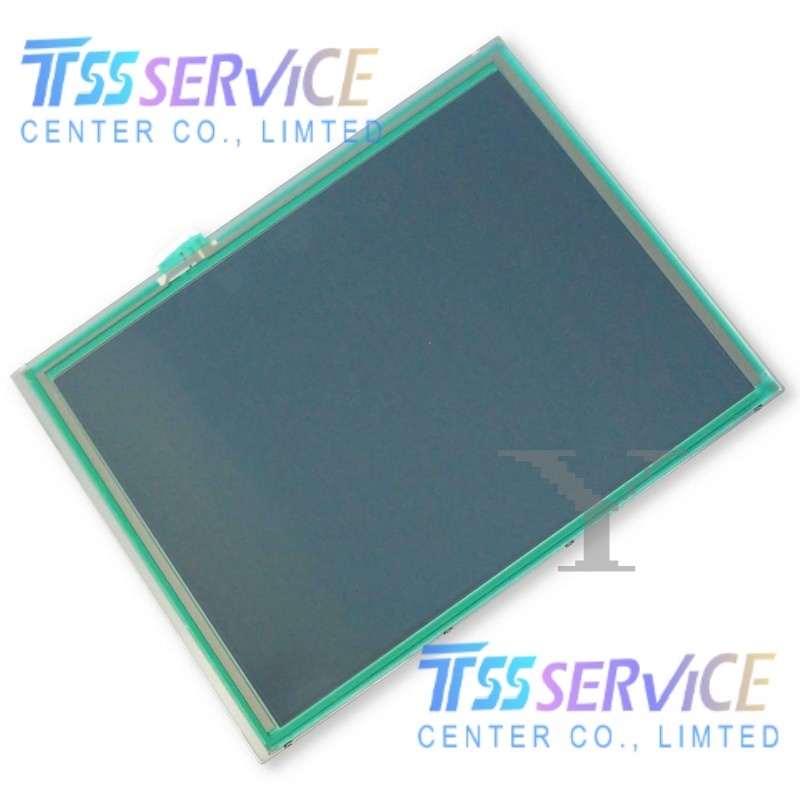

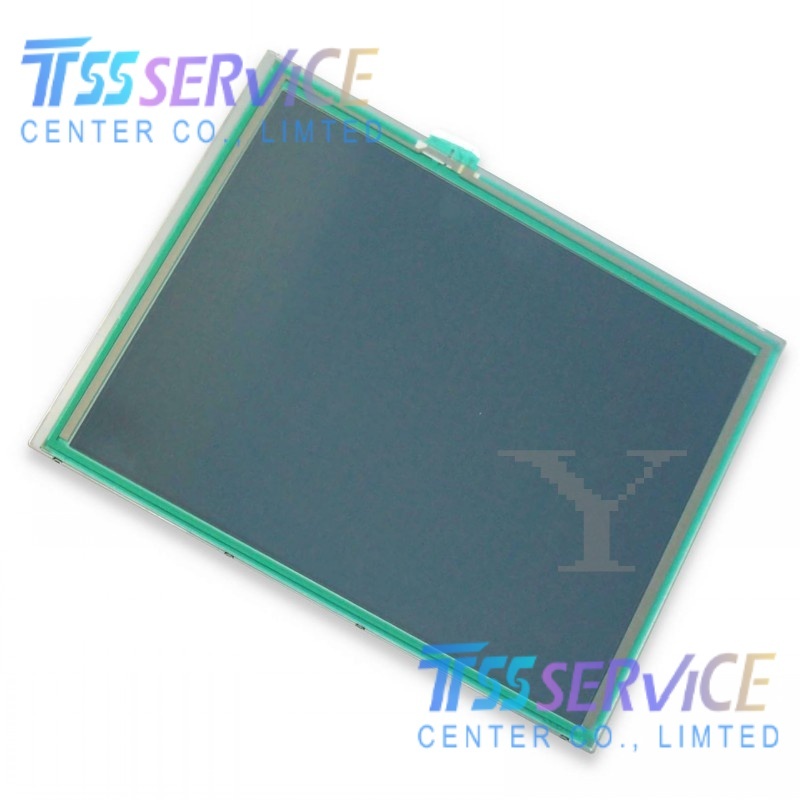

Kyocera TCG075VGLAF-G00 7.5" VGA Industrial TFT LCD with 4-Wire Resistive Touch Panel

Name: Kyocera TCG075VGLAF-G00 7.5" VGA Industrial TFT LCD with 4-Wire Resistive Touch Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VGLAF-G00
Price: 221 USD
Availability: InStock

SKU: TCG075VGLAF-G00

Model: TCG075VGLAF-G00
Diagonal Size: 7.5 inch
Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480 (VGA, 4:3)
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$223.00~~ $221.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG075VGLAF-G00 7.5" VGA Industrial TFT LCD with 4-Wire Resistive Touch Panel

Parameter	Details
Brand	Kyocera
Model	TCG075VGLAF-G00
Diagonal Size	7.5 inch
Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480 (VGA, 4:3)
Dot Layout	RGB Vertical Stripe
Active Area	151.68(H) × 113.76(V) mm / 5.97" × 4.48"
Physical Size	184(H) × 139.8(V) × 15.3(D) mm / 7.24" × 5.50" × 0.60"
Mass	440g / 0.97 lb
Luminance	220 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
Response Time	5/15 ms (Typ.) (Tr/Td)
Viewing Angle	70°/70°/50°/70° (Typ., CR≥5)
Operating Mode	TN, Normally White, Transmissive
Display Colors	262K, 47% NTSC
Light Source	4 strings WLED, 50,000 hrs lifespan, No Driver
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface	Parallel RGB (1 ch, 6-bit), 33-pin Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Surface Coating	Glare (Haze 0%)

Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, CNC machine controls.
Embedded Systems: Industrial computers, embedded control units, IoT gateways.
Medical Equipment (Non-Life Support): Patient monitoring devices, diagnostic equipment displays.
Marine & Heavy Machinery: Control terminals for marine vessels, construction equipment, and agricultural machinery.
Kiosks & POS Systems: Industrial self-service terminals, rugged point-of-sale devices.
