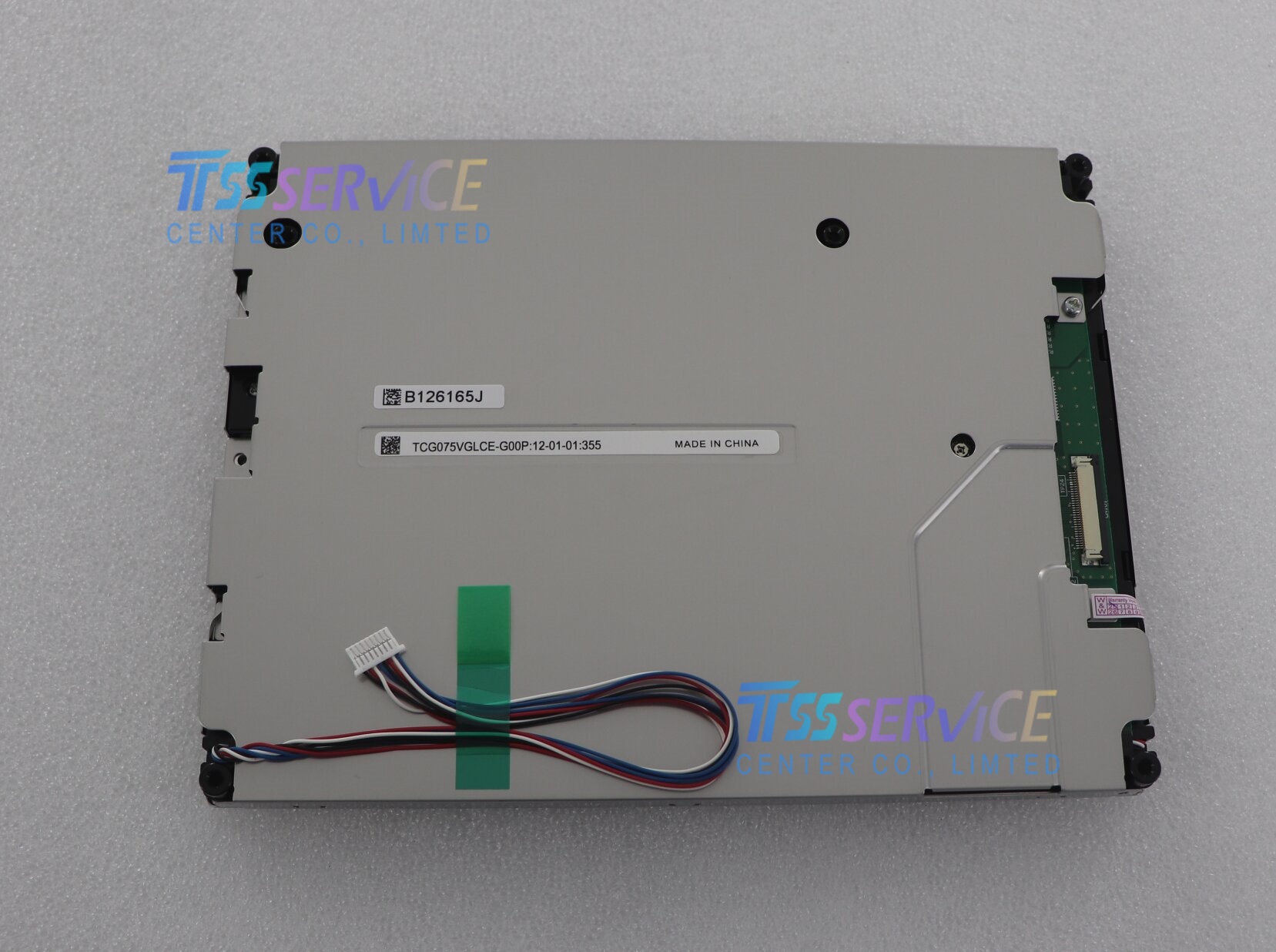

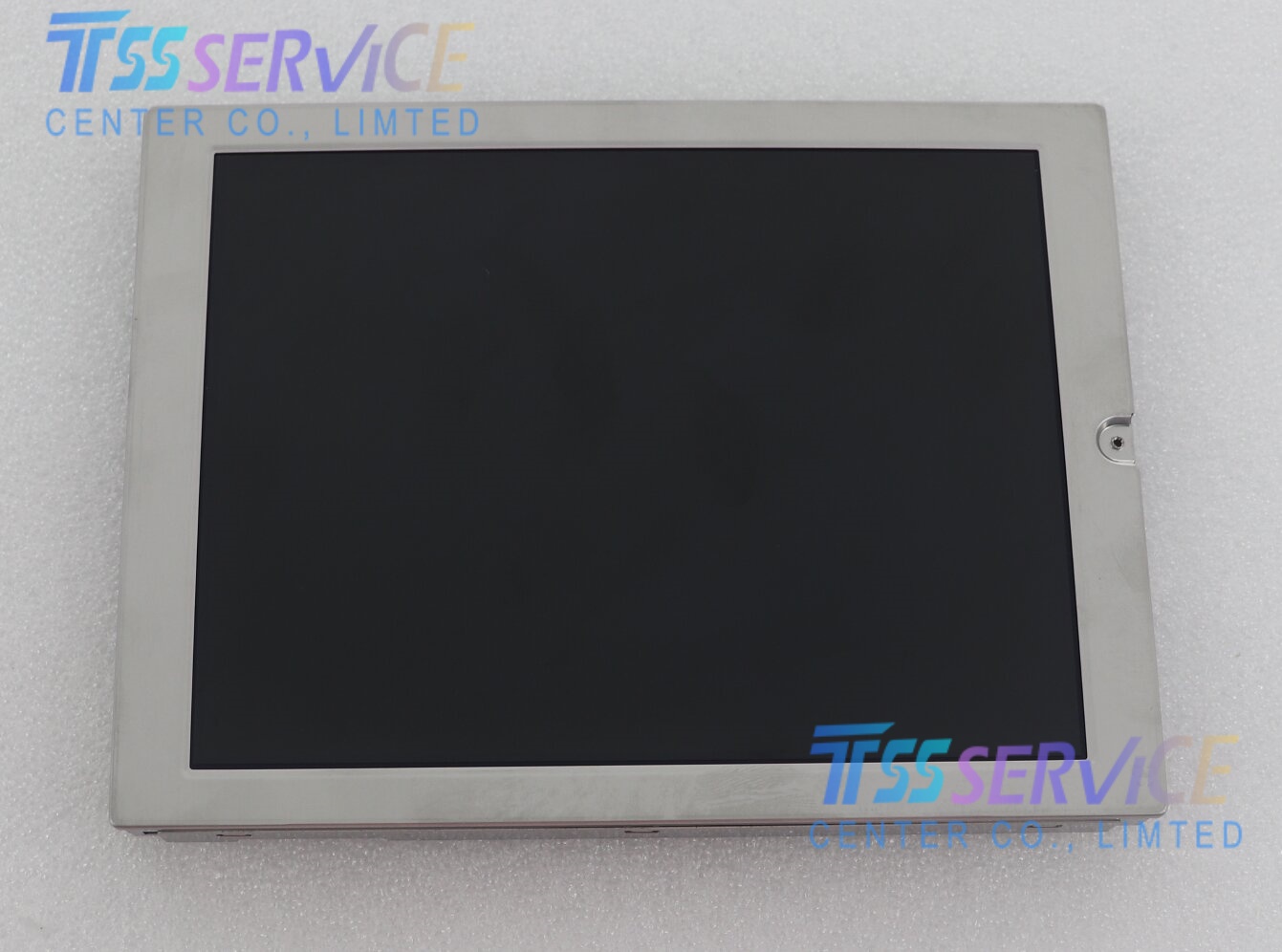

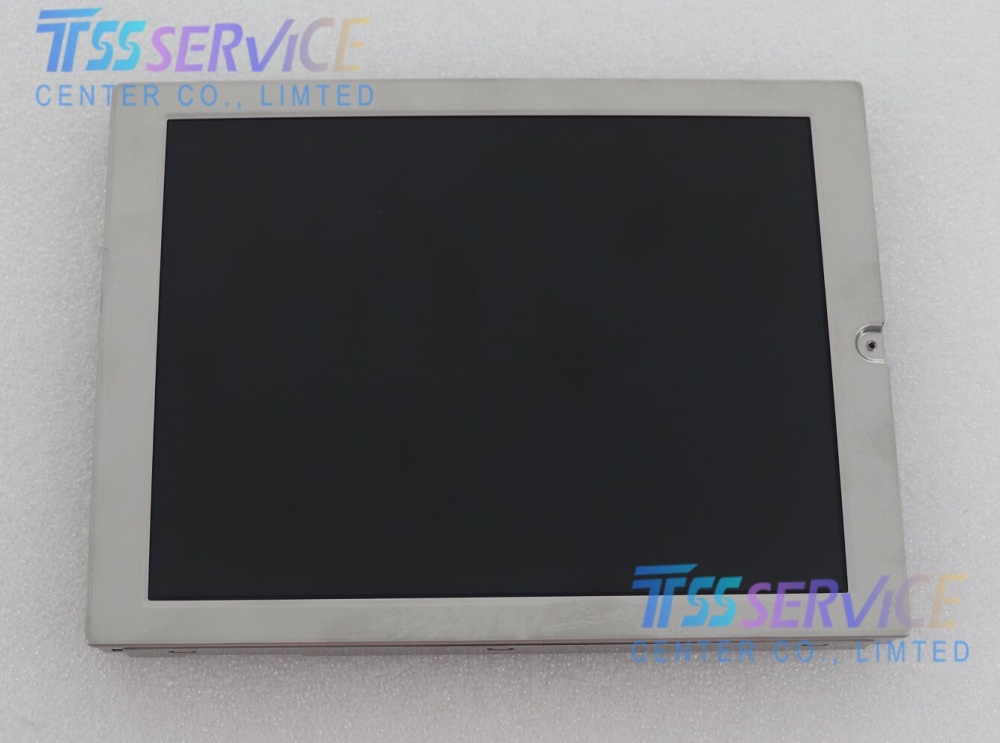

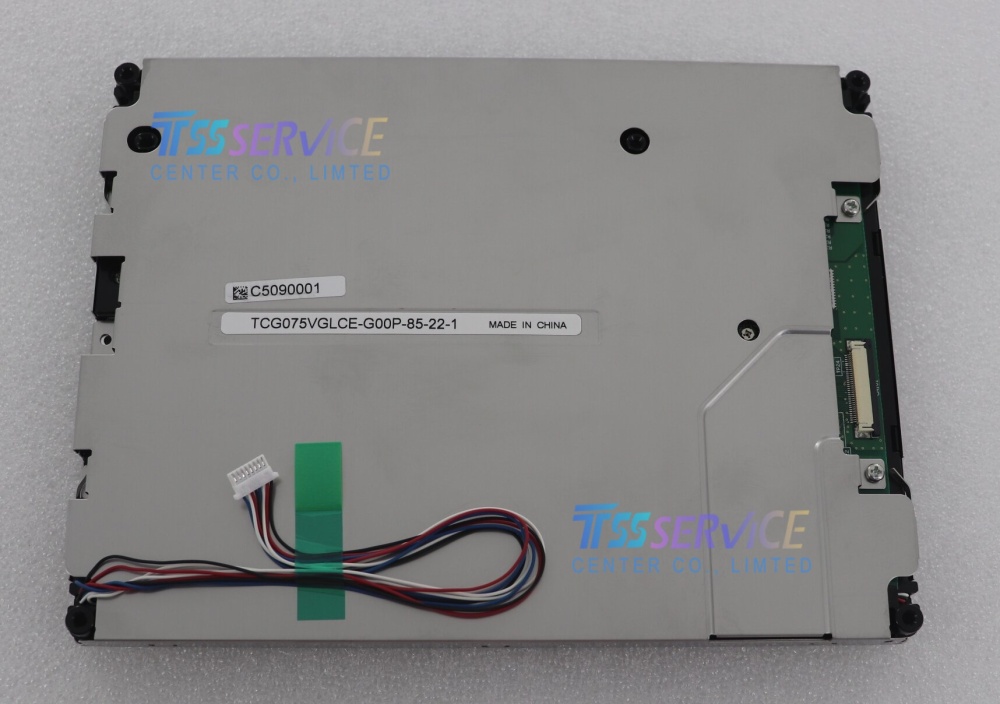

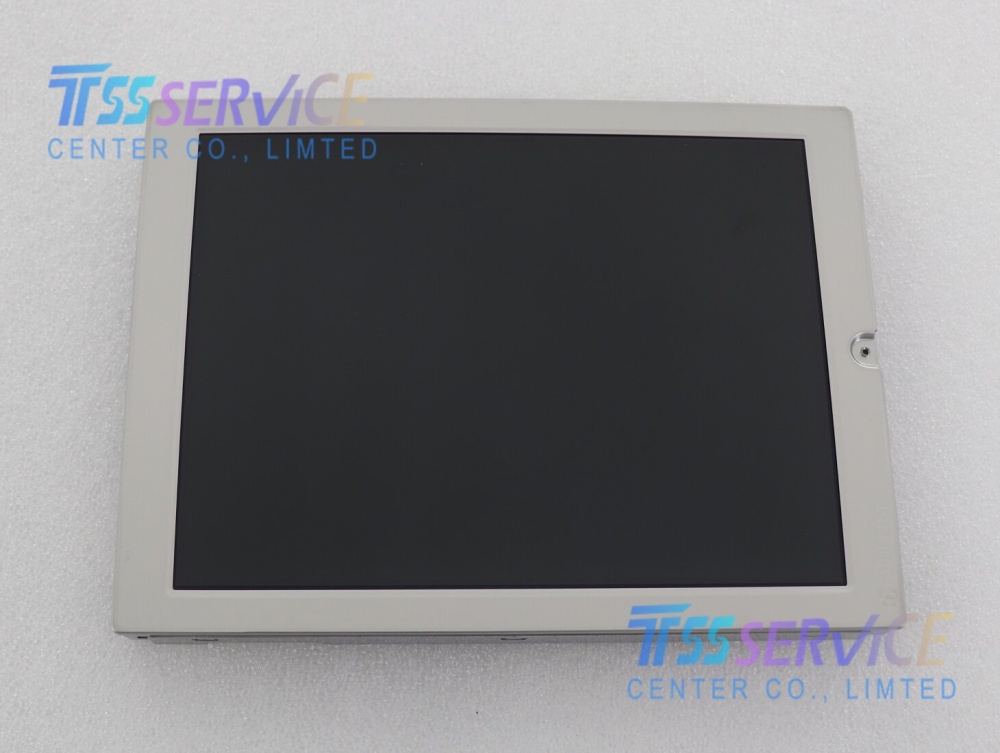

Kyocera TCG075VGLCE-G00P 7.5 inch LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Kyocera (京瓷) |
| Model |
TCG075VGLCE-G00P |
| Screen Size |
7.5-inch diagonal (4:3 aspect ratio) |
| Resolution |
640 × 480 pixels (VGA) |
| Display Type |
Color TFT-LCD (TN, Normally White) |
| Color Depth |
262,144 colors (18-bit RGB) |
| Brightness |
280 cd/m² (typical) |
| Contrast Ratio |
500:1 (typical) |
| Backlight |
WLED (White LED, 4 strings) |
| Backlight Lifetime |
50,000 hours (typical) |

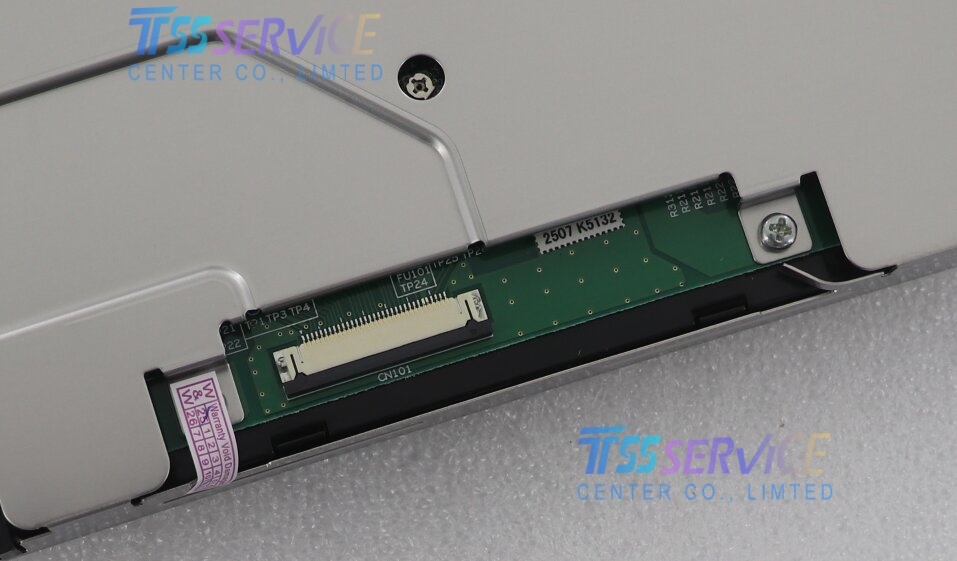

| Interface |
Parallel RGB (TTL/CMOS) |
| Viewing Angle |
80°(L)/80°(R)/80°(U)/80°(D) (CR≥5) |
| Operating Voltage |
DC 3.3V |
| Operating Temp. |
-20°C ~ +70°C |
| Storage Temp. |
-30°C ~ +80°C |
| Outline Dimensions |
184.0 × 139.8 mm |
| Active Area |
151.68 × 113.76 mm |
| Weight |
355 g (typical) |
TCG075VGLCE-G00P is a robust 7.5-inch VGA color TFT LCD module designed for industrial and professional display applications. Its key features include wide temperature tolerance, long-life LED backlight, and stable parallel interface, making it ideal for harsh factory environments.
Main Application Scenarios:
- CNC Machine Tools & Industrial Controls
- Replacement display for FANUC, Mitsubishi, and other CNC systems.
- Operator panels for machining centers, lathes, and grinding machines.
- Factory Automation Equipment
- Human-Machine Interface (HMI) terminals.
- PLC (Programmable Logic Controller) displays.
- Robotics control interfaces.
- Test & Measurement Instruments
- Digital oscilloscopes, signal analyzers.
- Industrial data acquisition systems.
- Specialized Industrial Equipment
- Printing and packaging machinery.
- Textile manufacturing equipment.
- Injection molding machines.
