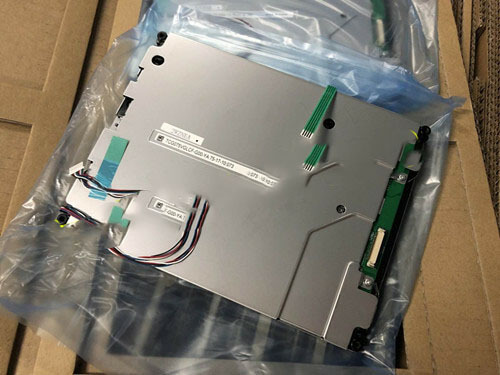

TCG075VGLCF-G00 7.5'' 640(RGB)×480 Kyocera LCD PANEL

Name: TCG075VGLCF-G00 7.5'' 640(RGB)×480 Kyocera LCD PANEL
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VGLCF-G00
Price: 170 USD
Availability: InStock

SKU: TCG075VGLCF-G00

Model P/N：TCG075VGLCF-G00
Diagonal Size：7.5"
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480, VGA 107PPI
Pixel Format：RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$172.00~~ $170.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TCG075VGLCF-G00 is a high-performance 7.5-inch Thin Film Transistor (TFT) Liquid Crystal Display (LCD) module manufactured by Kyocera Corporation, a global leader in advanced ceramics and electronic components. This module is engineered to deliver exceptional image quality, reliability, and durability, making it an excellent choice for demanding industrial, medical, and professional applications. Its 4:3 aspect ratio and VGA-level resolution offer a versatile display area suitable for a wide range of user interfaces and data visualization tasks.

Parameter	Specification
Model	TCG075VGLCF-G00
Display Type	a-Si TFT LCD, Transmissive
Diagonal Size	7.5 inches
Active Area	151.68(W)×113.76(H) mm
Resolution	640 (RGB) × 480 pixels
Interface	Parallel RGB (1 ch, 6-bit) , 33 pins Connector
Backlight	4 strings WLED
Power Supply (Typical)	+3.3V (Logic)
Key Feature	High Reliability, Wide Operating Temperature Range (optional)
Typical Applications	Industrial HMI, Medical Devices, Test Equipment, Marine Electronics
