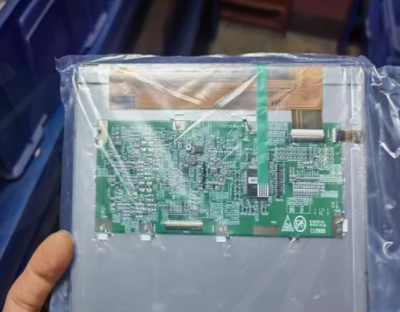

KYOCERA NEW 7.5 inch LCD Display Panel TCG075VGLDB-G00 for Industrial
| Parameter |
Specification |
| Model Number |
TCG075VGLDB-G00 |
| Brand |
Kyocera |
| Product Type |
LCD Module, a-Si TFT-LCD |
| Screen Size |
7.5 inches |
| Resolution |
640(RGB) × 480 [VGA] |
| Aspect Ratio |
4:3 (Landscape) |
| Overall Dimensions |
173 × 133 × 5.85/7.8 (Typ./Max.) mm |
| Active Display Area |
151.68 × 113.76 mm (H × V) |
| Display Brightness |
200 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Color Support |
262K colors (6-bit) |
| Viewing Angle |
80/80/80/80 (Typ.) (CR≥5) (L/R/U/D) |
| Backlight Type |
WLED, 40K hours lifespan, without driver |
| Interface Type |
Parallel RGB (1 ch, 6-bit), Terminal, 40 pins |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Touch Function |
4-wire Resistive Touch Panel |
- Industrial Equipment: Widely used as display screens for CNC system computers, such as Japanese FANUC, German Siemens, Japanese Mitsubishi, KND, and Guangzhou CNC systems.
- Medical Instruments: Integrated into various medical diagnostic and monitoring devices.
- Automotive Navigation: Utilized in vehicle navigation and display systems.
- Monitoring Equipment: Applied in security and surveillance display terminals.
- Handheld PDAs: Used in portable data collectors and personal digital assistants.
- Self-service Terminals: Deployed in automated service kiosks and interactive machines.
