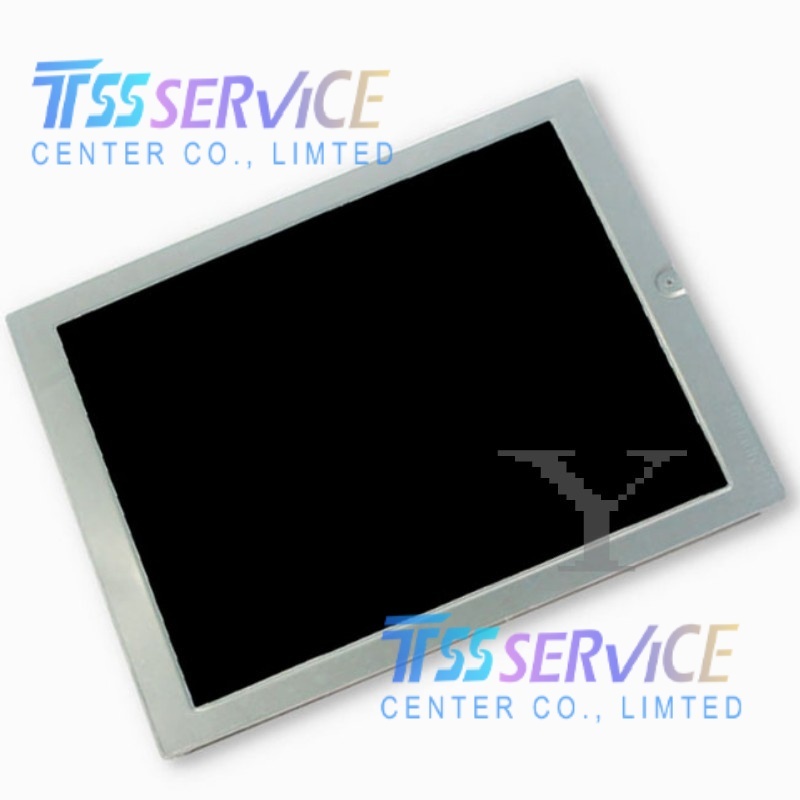

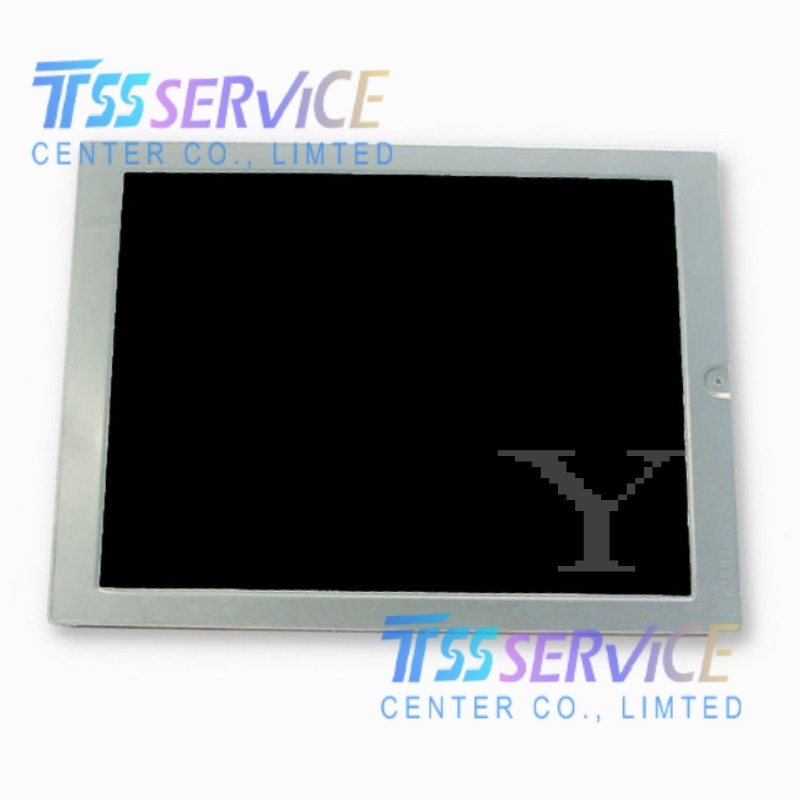

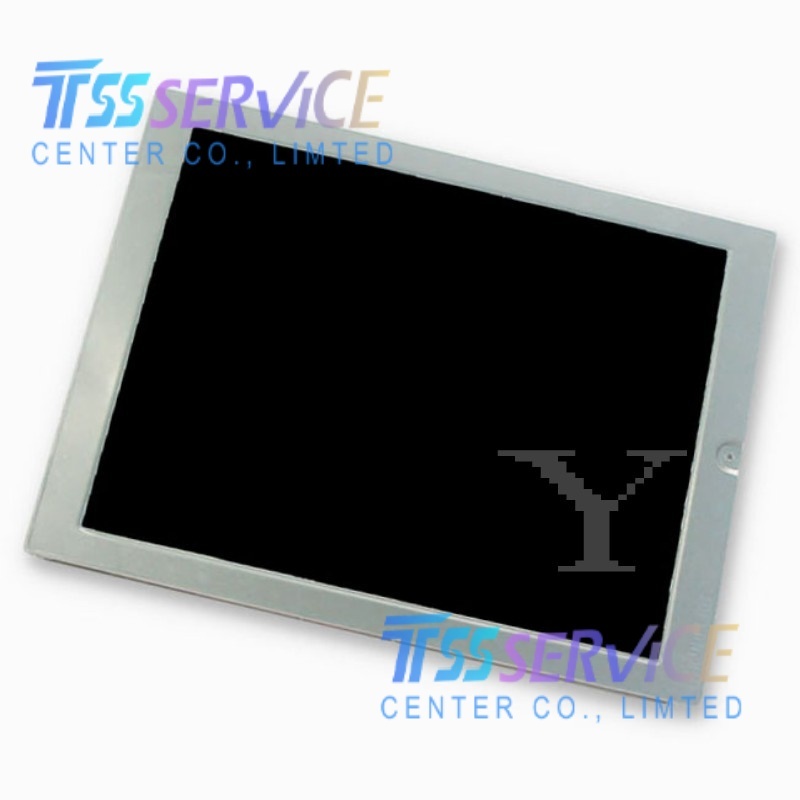

TCG075VGLEAAFA-GA00-S Kyocera 7.5" VGA TFT‑LCD 640×480 Resistive Touch Industrial Display Module

Name: TCG075VGLEAAFA-GA00-S Kyocera 7.5" VGA TFT‑LCD 640×480 Resistive Touch Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VGLEAAFA-GA00-S
Price: 200 USD
Availability: InStock

SKU: TCG075VGLEAAFA-GA00-S

Model: TCG075VGLEAAFA-GA00-S
Screen Size: 7.5 inches
Panel Type: a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution: 640×480 (VGA, 4:3)

0.0 (0 Reviews)

0 Sold

~~$202.00~~ $200.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG075VGLEAAFA-GA00-S Kyocera 7.5" VGA TFT‑LCD 640×480 Resistive Touch Industrial Display Module

Parameter	Details
Model	TCG075VGLEAAFA-GA00-S
Brand	Kyocera
Screen Size	7.5 inches
Panel Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution	640×480 (VGA, 4:3)
Brightness	320 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle (CR≥5)	80°/80°/80°/80° (L/R/U/D)
Color Depth	262K Colors (6‑bit, 49% NTSC)
Response Time	15/20 ms (Tr/Td, Typ.)
Backlight	2 strings WLED, 50,000 hrs lifespan
Touch Screen	4‑wire resistive touch (integrated)
Interface	Parallel RGB (1 ch, 6‑bit, TTL), 33 pins
Operating Voltage	3.3V (Typ.)
Operating Temperature	‑20°C ~ +70°C
Storage Temperature	‑30°C ~ +80°C
Display Area	151.68 × 113.76 mm
Outline Dimension	184 × 139.8 × 14.95 mm
Weight	Approx. 340g
Surface Treatment	Hard Coating (2H), Haze 0% (mirror)
Compliance	RoHS
