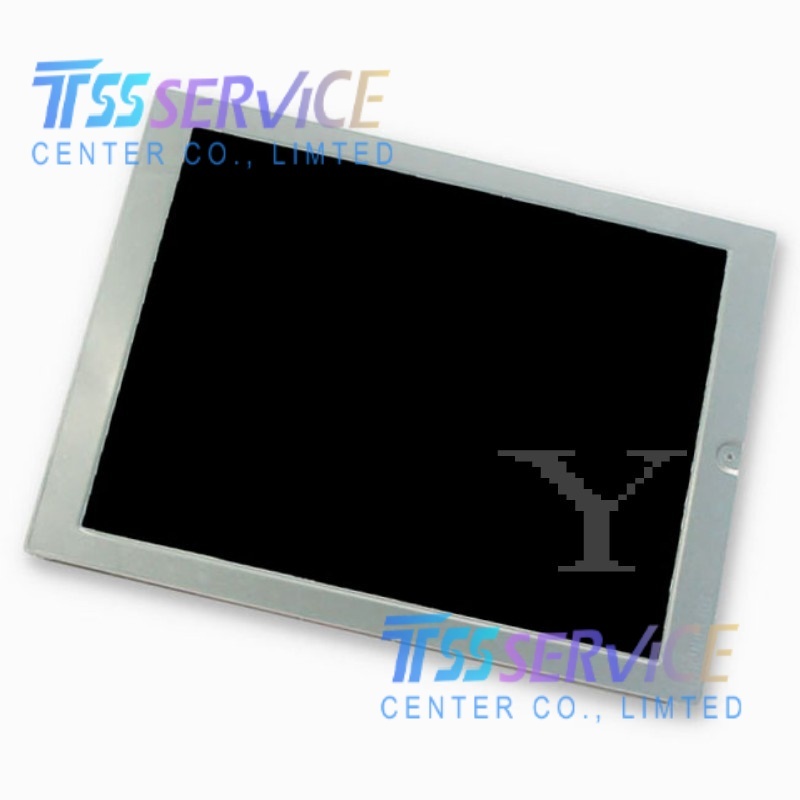

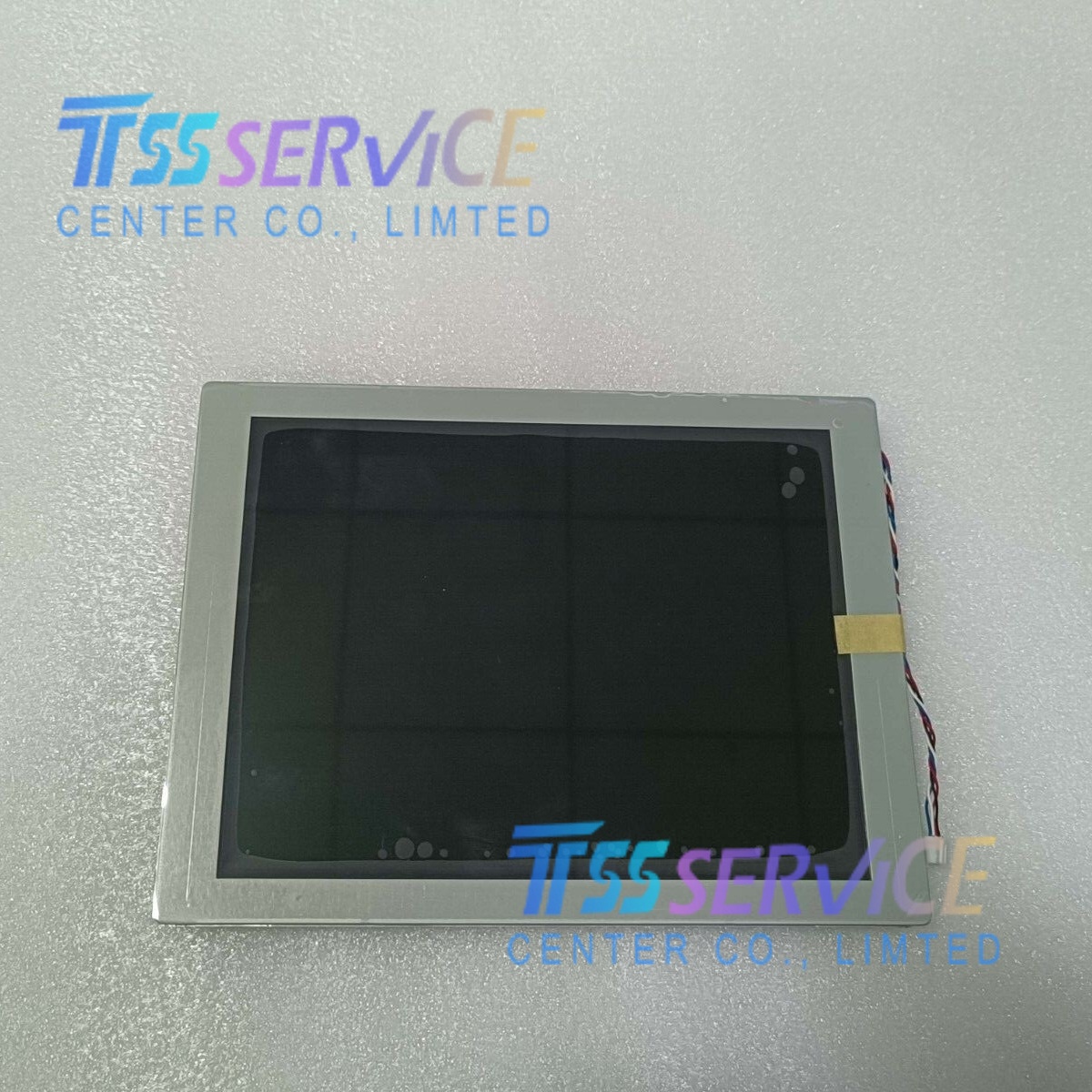

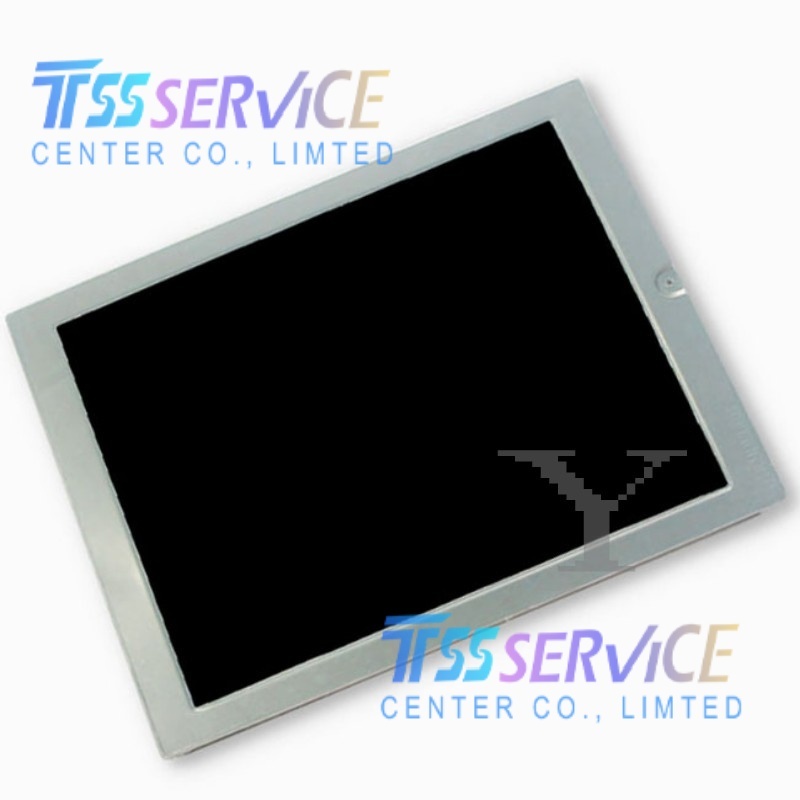

Kyocera TCG075VGLEAAFA-GA01-S 7.5 Inch 640×480 TFT LCD Panel Industrial HMI Display

Name: Kyocera TCG075VGLEAAFA-GA01-S 7.5 Inch 640×480 TFT LCD Panel Industrial HMI Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG075VGLEAAFA-GA01-S
Price: 185 USD
Availability: InStock

SKU: TCG075VGLEAAFA-GA01-S

Model Number: TCG075VGLEAAFA-GA01-S
Diagonal Screen Size: 7.5 Inch
Panel Type: a-Si TFT-LCD, LCM Integrated Touch Module
Native Resolution: 640(RGB) × 480 (VGA), 4:3 Aspect Ratio
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$189.00~~ $185.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG075VGLEAAFA-GA01-S 7.5 Inch 640×480 TFT LCD Panel Industrial HMI Display

Item	Detailed Parameter
Manufacturer	Kyocera
Model Number	TCG075VGLEAAFA-GA01-S
Diagonal Screen Size	7.5 Inch
Panel Type	a-Si TFT-LCD, LCM Integrated Touch Module
Native Resolution	640(RGB) × 480 (VGA), 4:3 Aspect Ratio
Pixel Structure	RGB Vertical Stripe
Typical Brightness	320 cd/m²
Contrast Ratio	500:1 (Typ., TM Mode)
Viewing Angle (U/D/L/R)	80° / 80° / 80° / 80° (CR≥5)
Total Response Time	15ms Tr / 20ms Td (Typ.)
Display Colors	262K, 49% NTSC Color Gamut
Backlight	2 Strings WLED, 50,000 Hours Lifespan, No Built-in Driver
Signal Interface	Parallel RGB (1 Channel, 6-bit), 33 Pins Connector
Touch Function	Built-in 4-Wire Resistive Touch Screen
Supply Voltage	3.3V (Typ.)
Operating Temperature	-20 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃
Grade Condition	Brand New Original Grade A, Fully Pre-tested (LCD + Touch)
