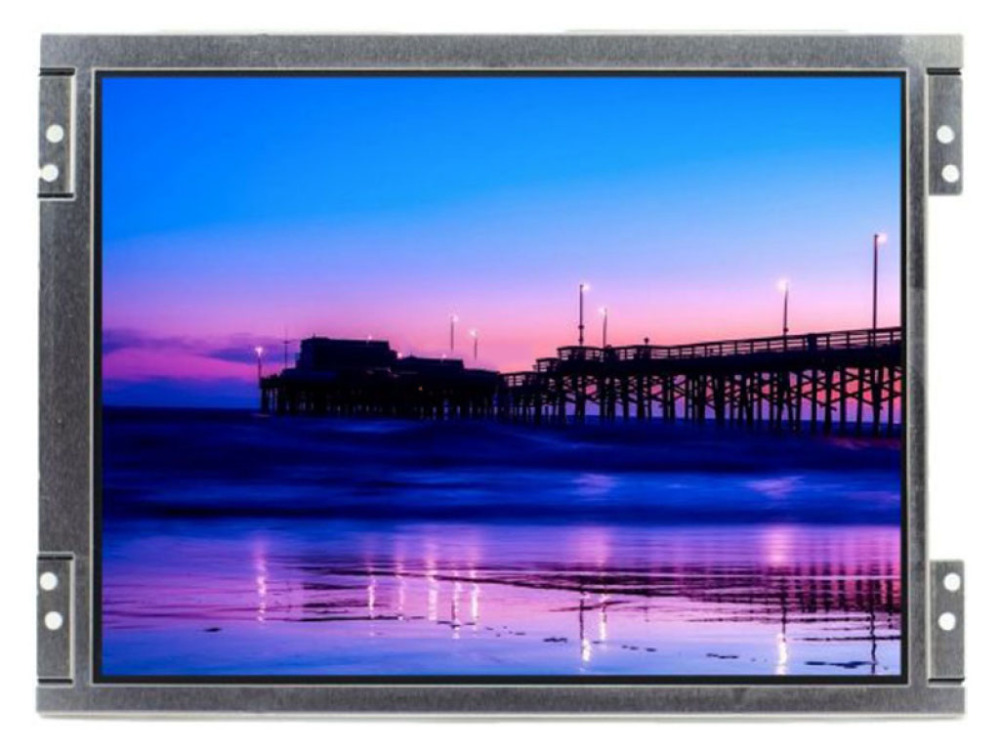

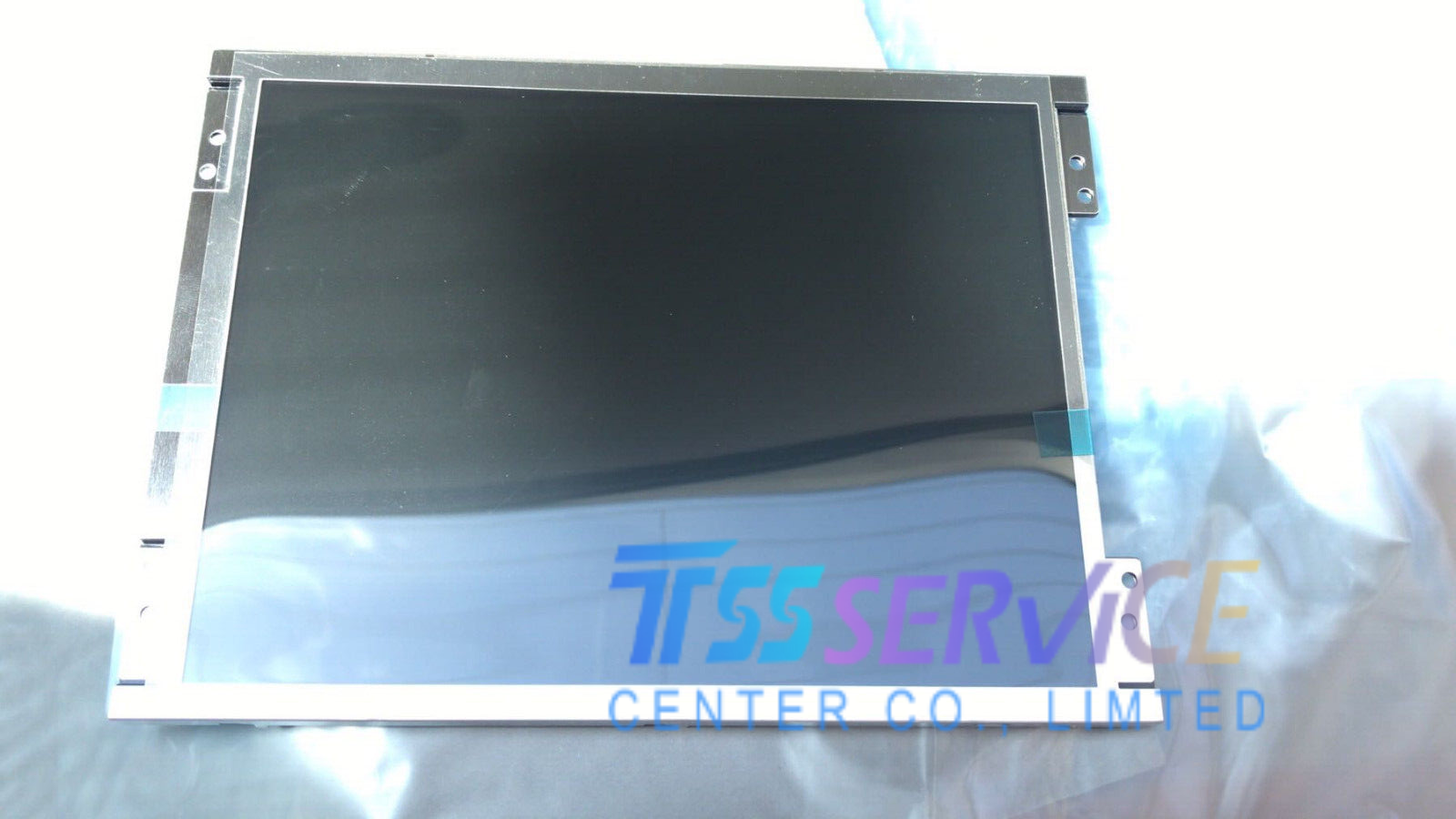

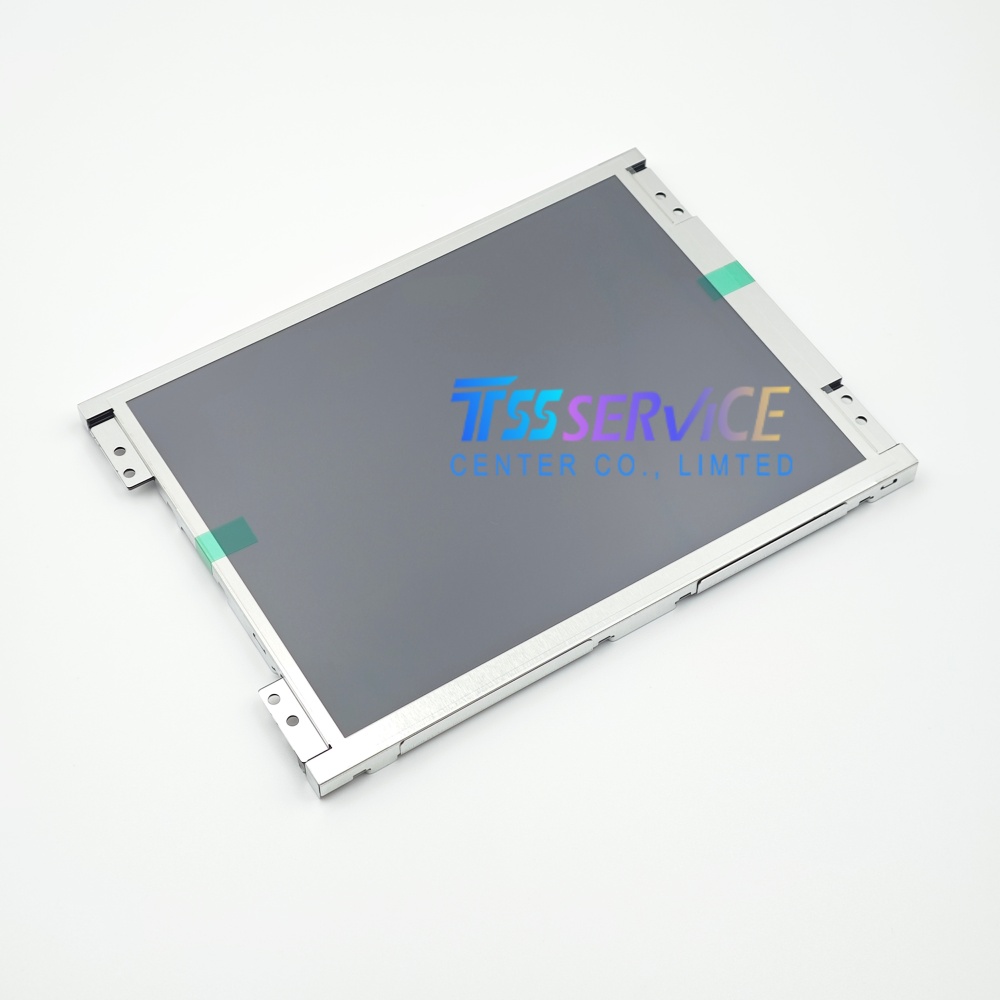

Kyocera TCG084SVLPAAGL-AB20 8.4" SVGA TFT LCD Panel 800x600 Industrial Display Module

Name: Kyocera TCG084SVLPAAGL-AB20 8.4" SVGA TFT LCD Panel 800x600 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG084SVLPAAGL-AB20
Price: 203 USD
Availability: InStock

SKU: TCG084SVLPAAGL-AB20

Model: TCG084SVLPAAGL-AB20
Size: 8.4 inches
Resolution: 800×600 (SVGA)
Display Mode: Transmissive, Normally White

0.0 (0 Reviews)

0 Sold

~~$205.00~~ $203.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG084SVLPAAGL-AB20 8.4" SVGA TFT LCD Panel 800x600 Industrial Display Module

Parameter	Details
Brand	Kyocera
Model	TCG084SVLPAAGL-AB20
Size	8.4 inches
Resolution	800×600 (SVGA)
Display Mode	Transmissive, Normally White
Brightness	320 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	80°/60°/80°/80° (L/R/U/D)
Backlight	WLED, 100,000 hrs lifetime
Interface	LVDS
Active Area	170.4 × 127.8 mm
Outline Dimensions	199.5 × 147.4 × 10.84 mm
Weight	405g (Typ.)
Operating Temperature	-30°C ~ 80°C
Storage Temperature	-30°C ~ 80°C

Applications

Industrial Control Panels: Factory automation, PLC, and HMI systems.
Outdoor Kiosks & POS: Sunlight-readable displays for self-service terminals.
Medical Equipment: Patient monitors and diagnostic devices (non-critical).
Marine & Automotive: Dashboard displays and navigation systems.
Test & Measurement: Oscilloscopes, data loggers, and analytical instruments.
