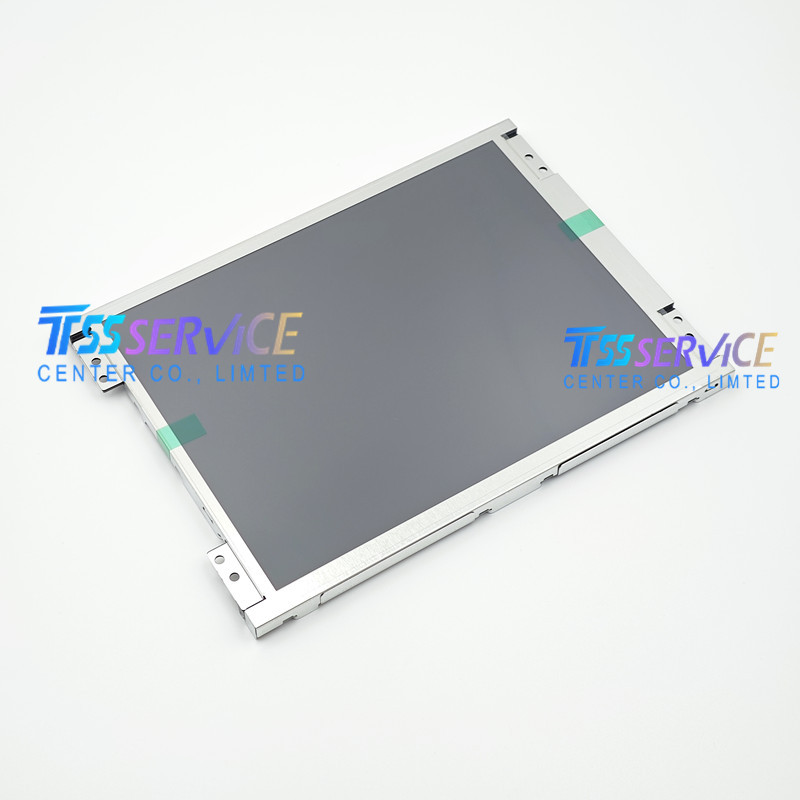

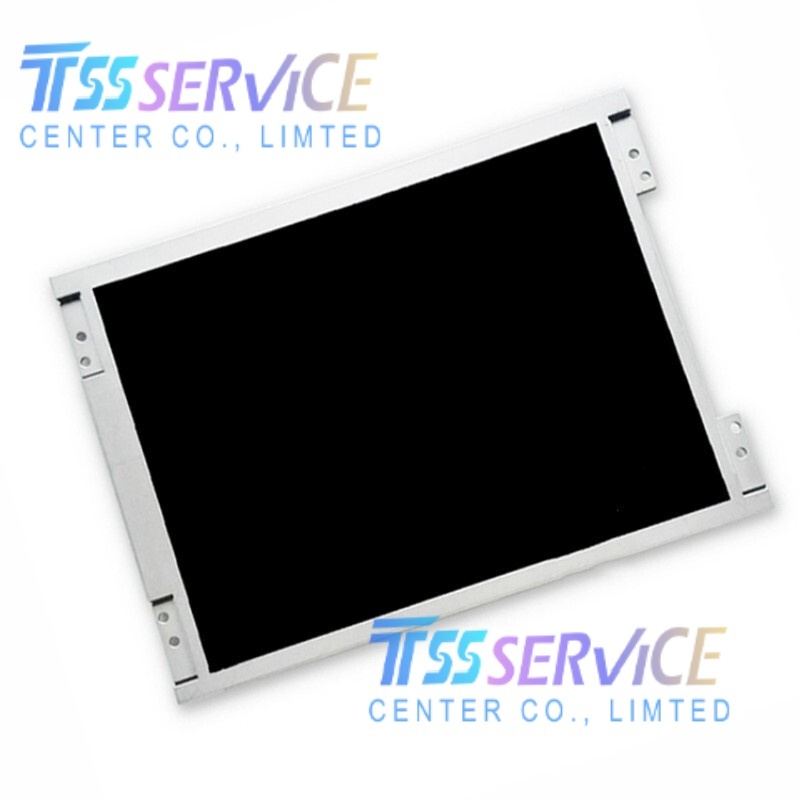

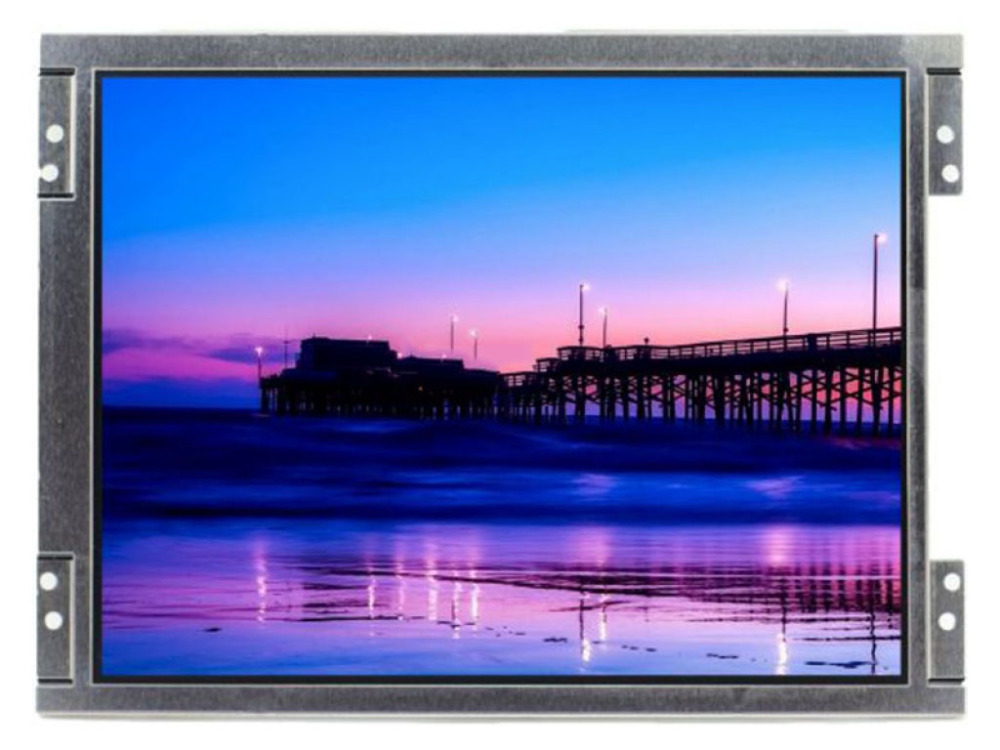

8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel

SKU: TCG084SVLPAANN-AN21-S
Model Number: TCG084SVLPAANN-AN21-S
Brand: KYOCERA Industrial Grade TFT-LCD
Diagonal Size: 8.4 Inch
Native Resolution: 800(RGB) × 600 SVGA, 4:3 Aspect Ratio
Panel Type: a-Si TFT-LCD
0.0 (0 Reviews)
0 Sold
$175.00 $170.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
1/1
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • 8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
  • Description
8.4 Inch Kyocera TCG084SVLPAANN-AN21-S 800×600 Industrial TFT LCD Screen Display Panel
Item Specification Parameter
Model Number TCG084SVLPAANN-AN21-S
Brand KYOCERA
Diagonal Size 8.4 Inch
Native Resolution 800(RGB) × 600 SVGA, 4:3 Aspect Ratio
Panel Type a-Si TFT-LCD
Backlight Edge-lit WLED, Long Service Lifespan
Typical Brightness 400 cd/m²
Contrast Ratio 800:1
Viewing Angle L/R/U/D (CR≥10) 80° / 80° / 80° / 60°
Display Color Depth 16.2M Full True Color
Signal Interface Single Channel LVDS, 20Pin Connector
Refresh Rate 60Hz
Best View Direction 6 O'Clock
Active Display Area 170.4 (W) × 127.8 (H) mm
Overall Outline Dimension 199.5 (W) × 147.4 (H) × 9.5 (T) mm
Surface Treatment Anti-Glare (AG) Hard Coating, Anti-scratch
Touch Function Without touch digitizer
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Input Logic Voltage 3.3V Industrial Standard

Applications

  1. Industrial HMI & Factory Automation Equipment
    CNC machine operation panels, PLC industrial control terminals, injection molding machine screens, robotic control consoles, packaging equipment displays, factory automation monitoring stations, industrial touch control human-machine interfaces.
  2. Medical Diagnostic & Monitoring Instruments
    Bedside patient monitors, portable medical analyzers, ECG & blood pressure testing devices, infusion pump control screens, clinical diagnostic auxiliary displays, veterinary medical inspection equipment.
  3. Test & Measuring Precision Instruments
    Laboratory signal testers, power quality monitoring equipment, environmental gas detection analyzers, optical measuring devices, portable industrial data recorders, oscilloscope auxiliary display modules.
  4. Construction & Agricultural Machinery On-board Displays
    Forklift parameter monitoring screens, tractor control panels, excavator auxiliary dashboards, engineering vehicle operation terminals, agricultural spraying equipment display modules.
  5. Commercial Kiosks & Special Portable Industrial Devices
    Industrial self-service vending machine control screens, factory access control terminals, small outdoor industrial handheld inspection equipment, marine miniature instrument monitors, security industrial monitoring panels.
