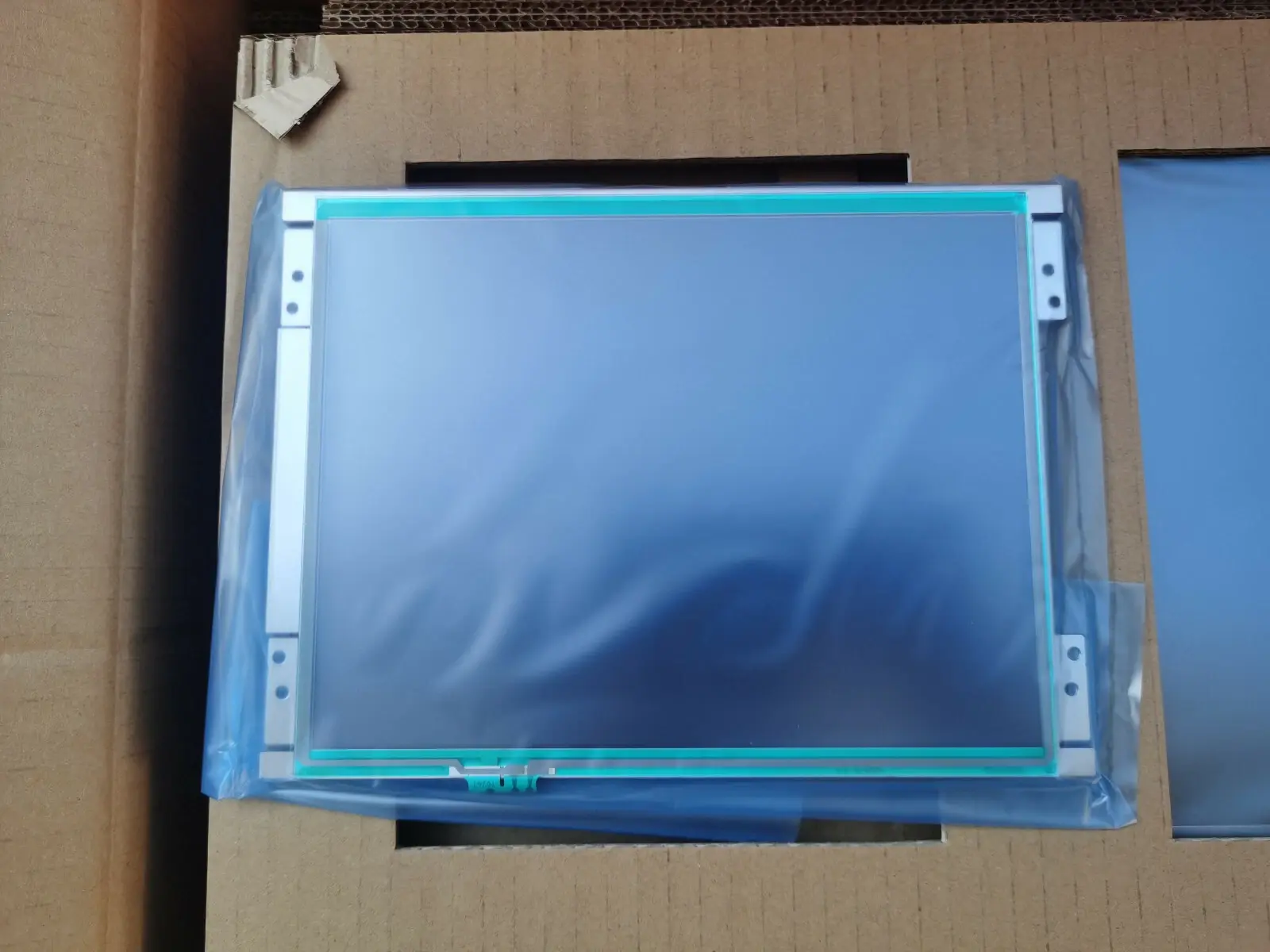

TCG084VGLAAAFA-AA50 8.4'' 640(RGB)×480 Kyocera LCD PANEL

Name: TCG084VGLAAAFA-AA50 8.4'' 640(RGB)×480 Kyocera LCD PANEL
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG084VGLAAAFA-AA50
Price: 169 USD
Availability: InStock

SKU: TCG084VGLAAAFA-AA50

Model P/N：TCG084VGLAAAFA-AA50
Diagonal Size：8.4"
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480, VGA 95PPI
Pixel Format：RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$171.00~~ $169.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

This datasheet describes the TCG084VGLAAAFA-AA50, a high-performance, compact TFT-LCD (Thin-Film Transistor Liquid Crystal Display) module designed for industrial and embedded applications requiring a reliable and clear display solution.

Feature Category	Specification	Details / Notes
General Information	Model	TCG084VGLAAAFA-AA50
	Manufacturer	Kyocera
	Display Type	a-Si TFT-LCD, LCM
	Screen Size	8.4 inches (Diagonal)
Display Core	Resolution	640 (H) × 480 (V) pixels
	Pixel Arrangement	RGB Vertical Stripe
	Active Area (W×H)	170.88 × 128.16 mm
	Aspect Ratio	4:3
	Surface Treatment	Antiglare, Hard coating (2H)
Module Physical	Module Dimensions (W×H×D)	199.5(W)×147.4(H) ×11.55(D) mm
	Mounting	Metal frame with mounting holes
Interface & Electrical	Signal Interface	Parallel RGB (1 ch, 6-bit) , 40 pins Connector
	Power Supply (Typical)	+3.3V (Logic), +5V or +12V (Backlight) *
Optical Performance	Brightness	680 cd/m² (Typ.)
	Viewing Angle	65/65/60/65 (Typ.)(CR≥10)
	Contrast Ratio	500:1 (Typ.) (TM)
Primary Application	Target Use	Industrial HMI, Medical Devices, Test Equipment, POS/Kiosk, Embedded Systems
