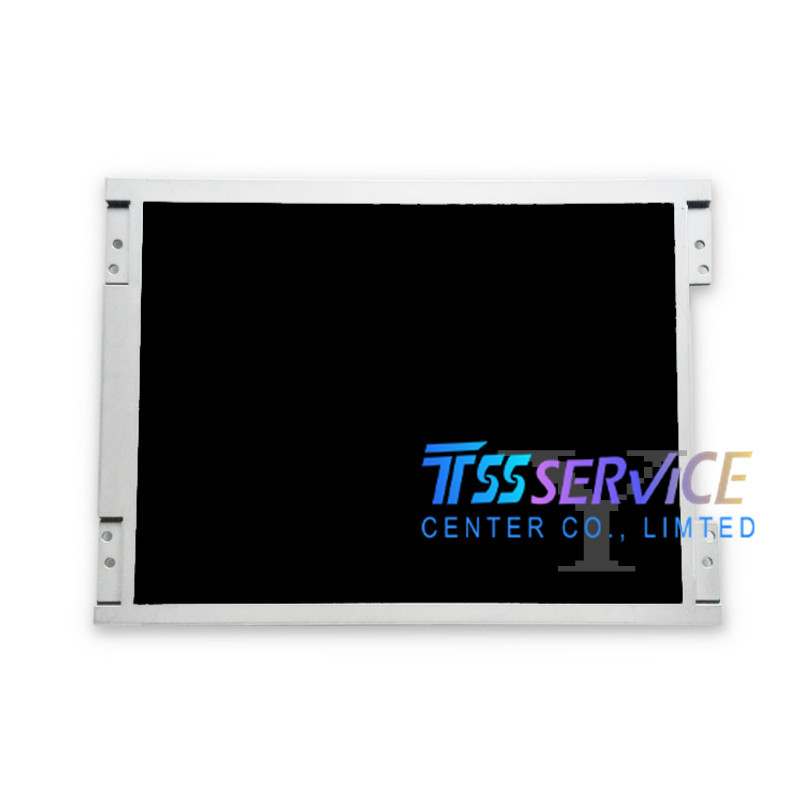

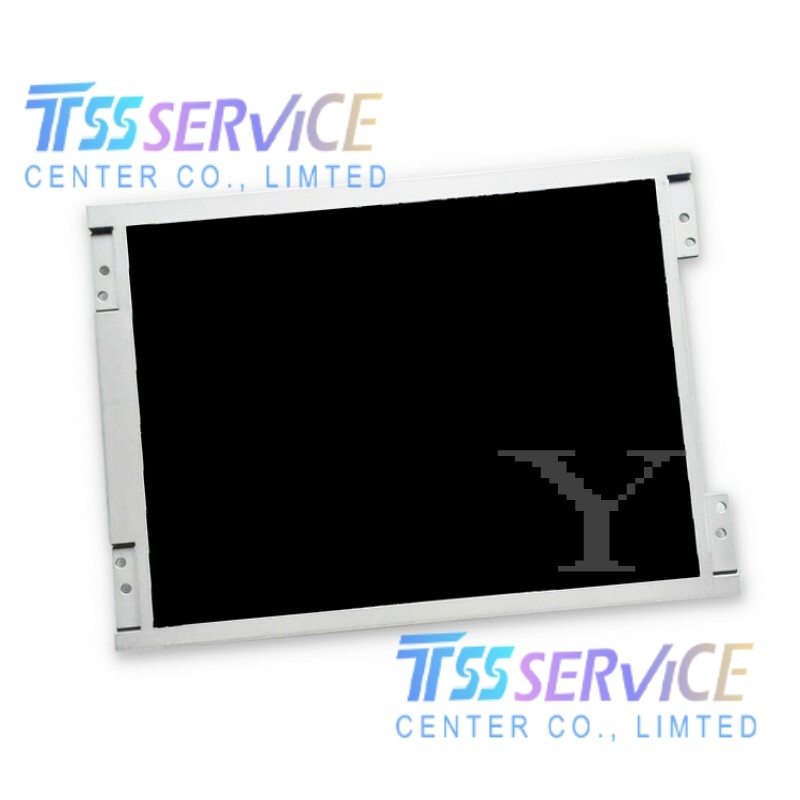

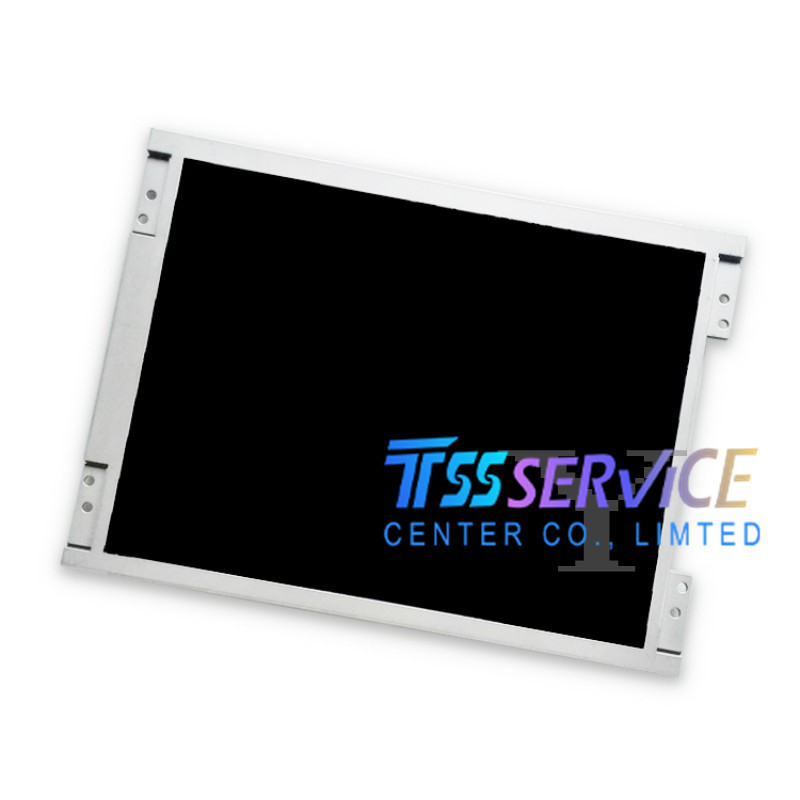

Kyocera TCG084VGLAAANN-AN50-S 8.4 inch LCD Panel Display For Industrial

Name: Kyocera TCG084VGLAAANN-AN50-S 8.4 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG084VGLAAANN-AN50-S
Price: 168 USD
Availability: InStock

SKU: TCG084VGLAAANN-AN50-S

Model: TCG084VGLAAANN-AN50-S
Size: 8.4 inch
Resolution: 640(RGB)×480 (VGA), 96 PPI
Panel Type: a-Si TFT-LCD, Transmissive

0.0 (0 Reviews)

0 Sold

~~$170.00~~ $168.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG084VGLAAANN-AN50-S 8.4 inch LCD Panel Display For Industrial

Item	Specification
Model	TCG084VGLAAANN-AN50-S
Brand	Kyocera (KOE)
Size	8.4 inch (4:3)
Resolution	640(RGB)×480 (VGA), 96 PPI
Panel Type	a-Si TFT-LCD, Transmissive, TN Normally White
Brightness	850 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	65/65/60/65° (L/R/U/D, CR≥10)
Backlight	WLED, 70,000 hrs lifespan, no driver
Interface	CMOS (TTL), 24-bit RGB
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Active Area	170.88 × 128.16 mm
Outline Dimension	192.0 × 144.0 × 10.2 mm
Weight	~320g
Surface	Anti-glare (Matte)
Color Depth	262K colors (6-bit)
Input Voltage	3.3V (Typ.)
Compliance	RoHS

Applications

Industrial HMI & Control Panels: PLC interfaces, CNC machines, factory automation terminals.
Medical Equipment: Patient monitors, diagnostic devices, lab analyzers (non-critical).
Outdoor & Kiosk Systems: Outdoor information terminals, parking kiosks, marine displays.
Transportation & Heavy Machinery: Construction vehicle dashboards, railway control panels.
Test & Measurement: Data loggers, environmental monitors, industrial test benches.
