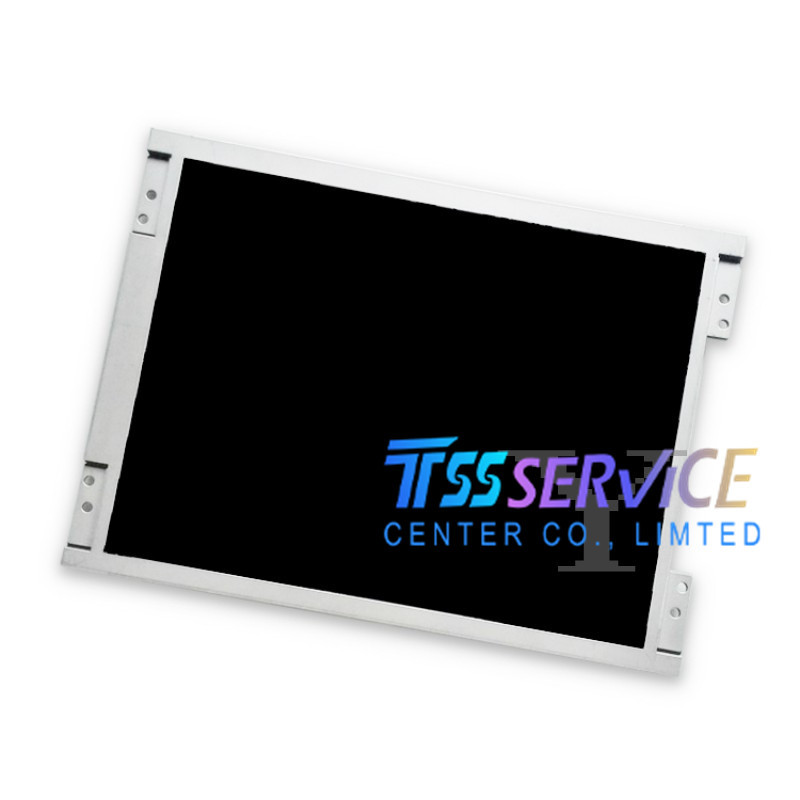

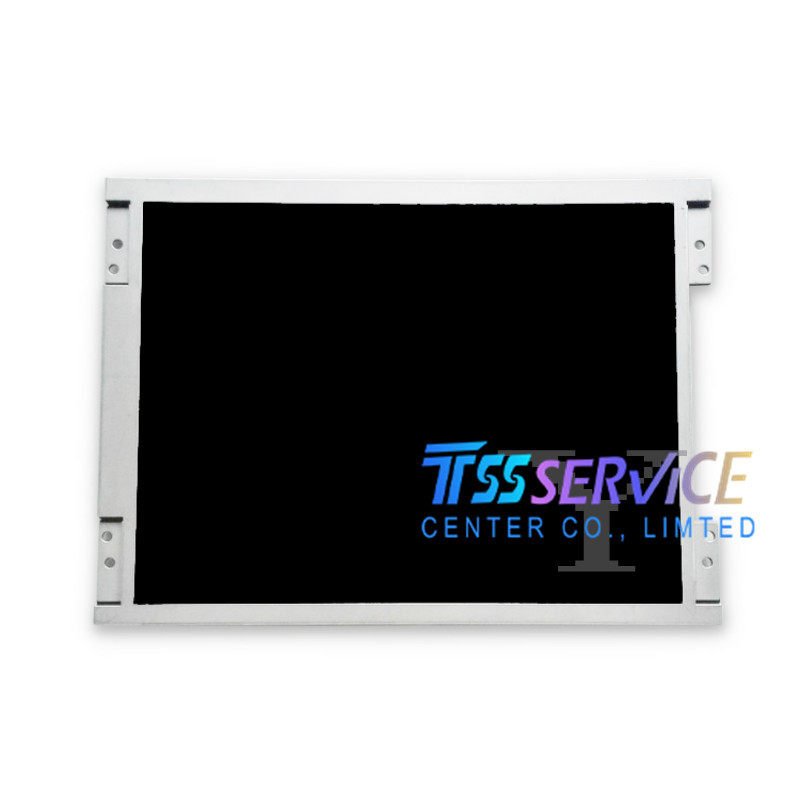

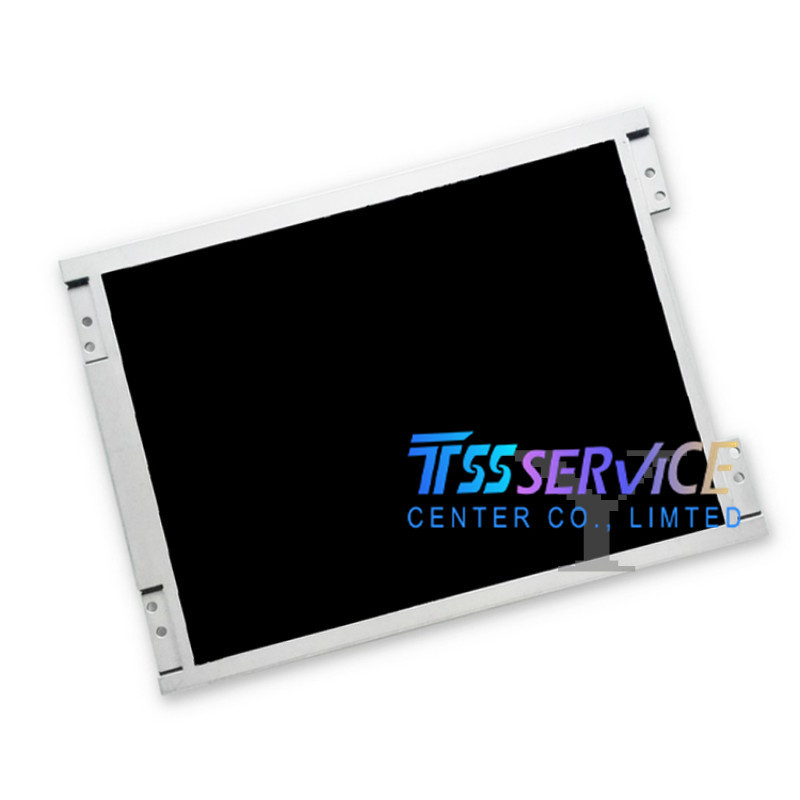

Kyocera TCG084VGLAAFA-AN20 8.4 inch LCD Panel For Industrial
| Parameter |
Value |
Unit |
Note |
| Manufacturer |
Kyocera (OPTREX) |
— |
|
| Model |
TCG084VGLAAFA-AN20 |
— |
|
| Diagonal Size |
8.4 |
inch |
|
| Resolution |
640(RGB) × 480 |
pixels |
VGA format |
| Panel Type |
a‑Si TFT‑LCD, TN |
— |
|
| Display Mode |
Normally White |
— |
|
| Surface Treatment |
Anti‑Glare (AG) |
— |
|
| Brightness (Typ.) |
450 |
cd/m² |
|
| Contrast Ratio (Typ.) |
500:1 |
— |
|
| Viewing Angle (Typ.) |
65/65/60/65 |
° |
U/D/L/R (CR≥10) |
| Color Depth |
262K |
colors |
6‑bit RGB |
| Backlight |
WLED (edge‑lit) |
— |
|
| Backlight Life |
70,000 |
hrs |
Typ. |
| Interface |
Parallel RGB (1‑channel, 6‑bit) |
— |
40‑pin connector |
|
|
|
|
| Active Area |
170.88 × 128.16 |
mm |
|
| Outline Dimension |
199.5(W) × 147.4(H) × 9.0(D) |
mm |
|
| Pixel Pitch |
0.089(W) × 0.267(H) |
mm |
|
| Weight |
320 |
g |
|
| Operating Temp. |
−20 to +70 |
°C |
Industrial grade |
| Storage Temp. |
−30 to +80 |
°C |
|
| Logic Voltage |
3.3 |
V |
Typ. |
| Backlight Voltage |
18.4–20.4 |
V |
Typ./Max. |
| Compliance |
RoHS |
— |
|
This 8.4‑inch industrial LCD is widely used in
industrial control, factory automation, embedded HMI, and stable display
