| Model Number |

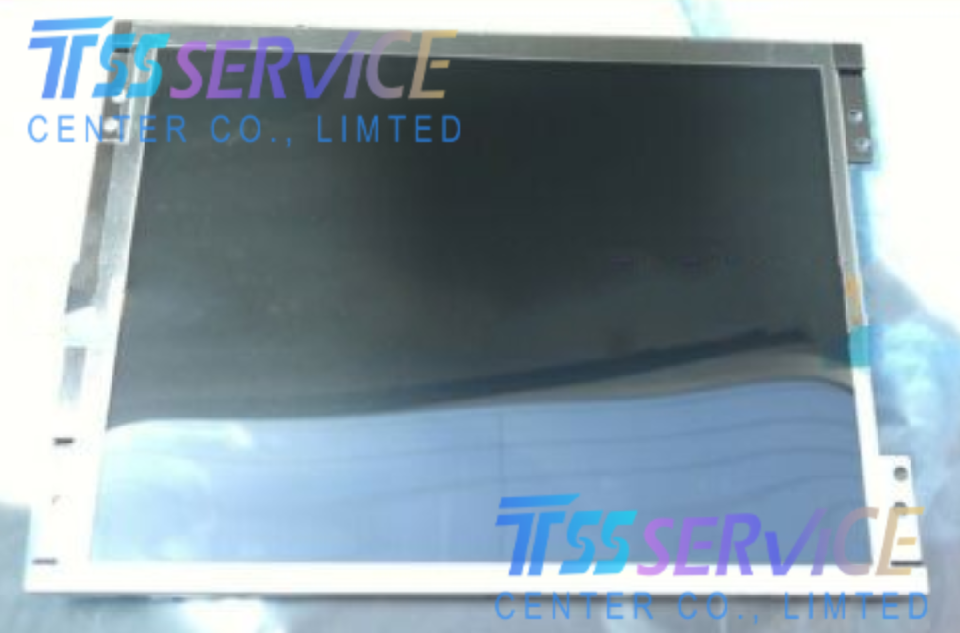

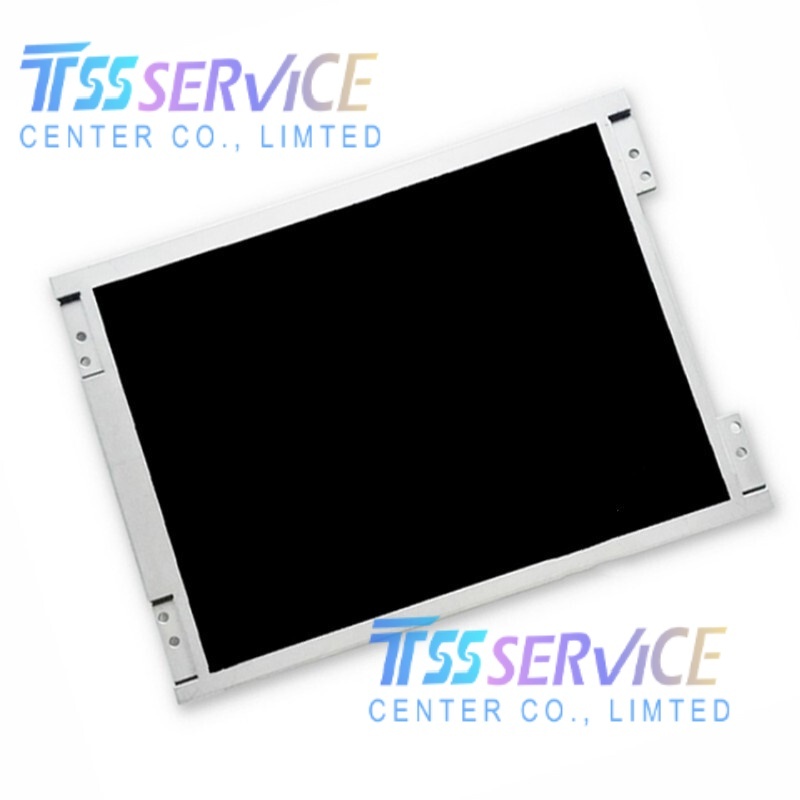

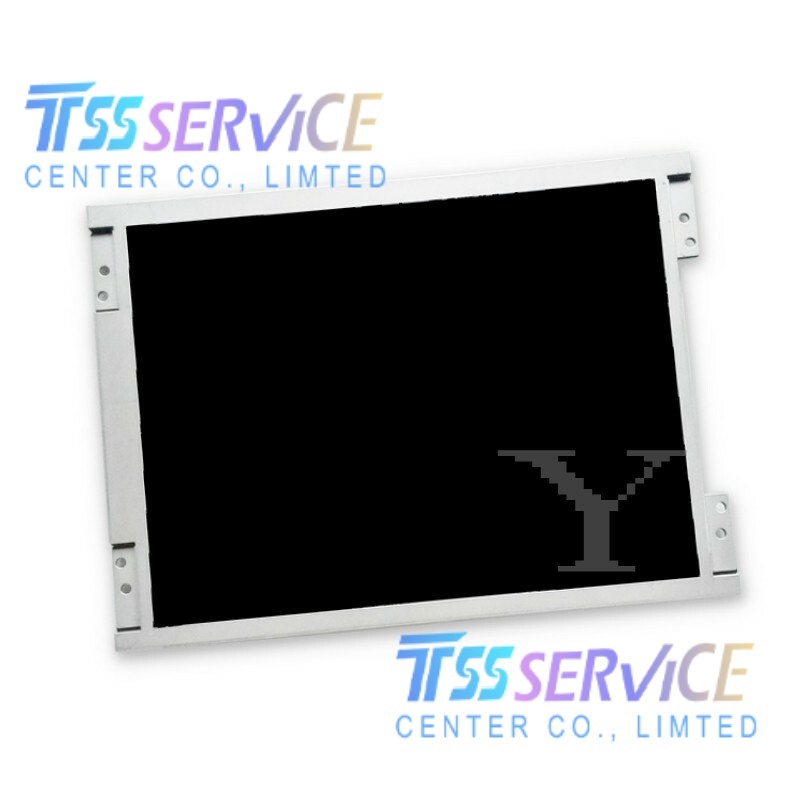

TCG085WVLQDPGJ-GC00 |
| Brand |
KYOCERA Industrial a-Si TFT-LCD LCM |
| Diagonal Display Size |
8.5 Inch Landscape |
| Native Resolution |
800(RGB) × 480 WVGA, 15:9 Aspect Ratio, 109 PPI |
| Pixel Layout |
RGB Vertical Stripe Arrangement |
| Panel Technology |
AWV Wide View, Normally Black, Transmissive |
| Active Display Area |
184.8 (W) × 110.88 (H) mm |
| Overall Outline Dimension |
210 (W) × 134 (H) × 9.2 (T) mm |
| Net Panel Weight |
Approx 310g |
| Surface Treatment |
Clear Hard Coating, Anti-scratch |
| Typical Brightness |
320 cd/m² |
| Typical Contrast Ratio |
500:1 (TM Transmission Mode) |
| Viewing Angle L/R/U/D (CR≥10) |
85° / 85° / 85° / 85° Full Symmetric Ultra Wide View |
| View Direction |
Full Symmetric All-Angle Display |
| Typical Response Time Tr/Td |
12ms / 18ms |
| Refresh Frequency |
60Hz Standard Industrial Rate |
| Display Color Performance |
262K Colors (6-bit Single Channel), 50% NTSC Gamut, 70% sRGB Coverage |
| Backlight Light Source |
Edge-lit WLED, Lifespan 100,000 Hours, No On-board LED Driver IC |
| Signal Interface |
Single Channel CMOS Parallel RGB 6-bit, 40Pin FPC Connector |
| Typical Input Logic Voltage |
3.3V |
| Touch Screen Function |
Without Touch Digitizer (4-wire resistive touch glass optional) |
| Operating Temperature Range |
-20℃ ~ +70℃ |
| Storage Temperature Range |
-30℃ ~ +80℃ |
