TCG101WXLPAANN-AN20 10.1inch 1280×800 Kyocera Lcd Panel

SKU: TCG101WXLPAANN-AN20
Model P/N:TCG101WXLPAANN-AN20
Diagonal Size:10.1"
Panel Type:a-Si TFT-LCD, LCM
Resolution:1280(RGB)×800, WXGA  149PPI
Pixel Format:RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$185.00 $180.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
1/1
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • TCG101WXLPAANN-AN20 10.1iinch 1280(RGB)×800 Kyocera TFT-LCD IN STOCK
  • Description

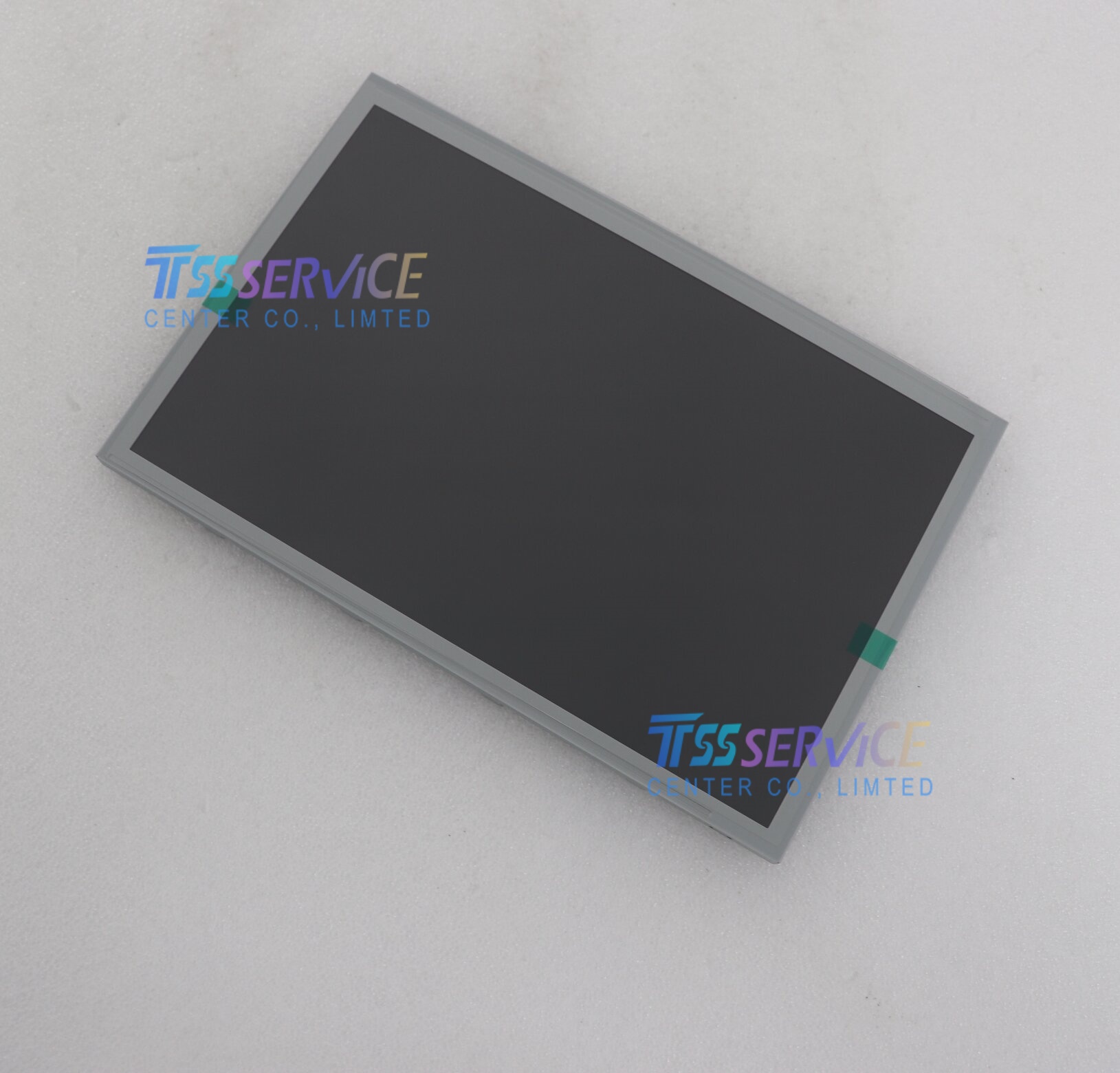

TCG101WXLPAANN-AN20 — 10.1" 1280×800 Industrial LCD Panel

Kyocera · a-Si TFT-LCD Module

The TCG101WXLPAANN-AN20 is a 10.1-inch WXGA (1280×800) industrial LCD panel manufactured by Kyocera. Combining high 500 cd/m² brightness, a wide 16:10 format with 149 PPI detail, and a long-life WLED backlight with integrated LED driver, this in-production panel is an ideal choice for embedded systems, automation, medical and self-service equipment.

Key Specifications

Parameter Value
Brand Kyocera
Diagonal Size 10.1 inch
Resolution 1280(RGB) × 800, WXGA
Aspect Ratio 16:10
Pixel Density 149 PPI
Luminance 500 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
Viewing Angle 80/80/80/80 (L/R/U/D) (CR≥10)
Viewing Direction 6 o'clock
Display Mode TN, Normally White, Transmissive
Response Time 8/22 ms (Tr/Td)
Display Colors 16.2M (6-bit + FRC)
Backlight WLED, 50,000 hrs + built-in LED Driver

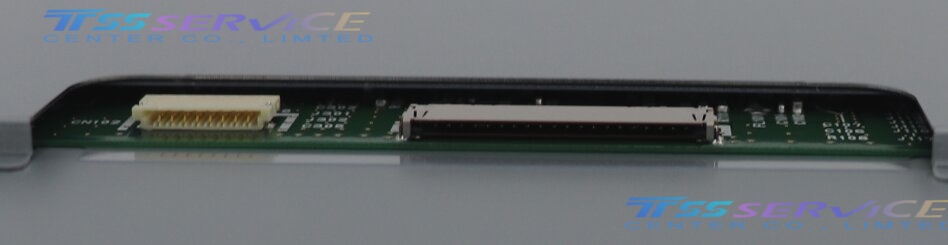

Interface LVDS (1 ch, 8-bit), 20 pins
Supply Voltage 3.3V (Typ.)
Operating Temperature −20 ~ +70 °C
Storage Temperature −30 ~ +80 °C
Production Status In Production

Typical Applications

  • Industrial HMI & Automation — machine control panels, PLC HMIs, factory automation displays
  • POS, Kiosk & Self-Service — point-of-sale terminals, information kiosks, ticketing machines
  • Medical & Laboratory Equipment — patient monitors, diagnostic instruments, analyzers
  • Test & Measurement — oscilloscopes, spectrum analyzers, bench instruments
  • Portable & Handheld Devices — rugged tablets, field terminals, battery-powered instruments
  • Building & Transportation — building automation, HVAC controls, vehicle auxiliary displays
