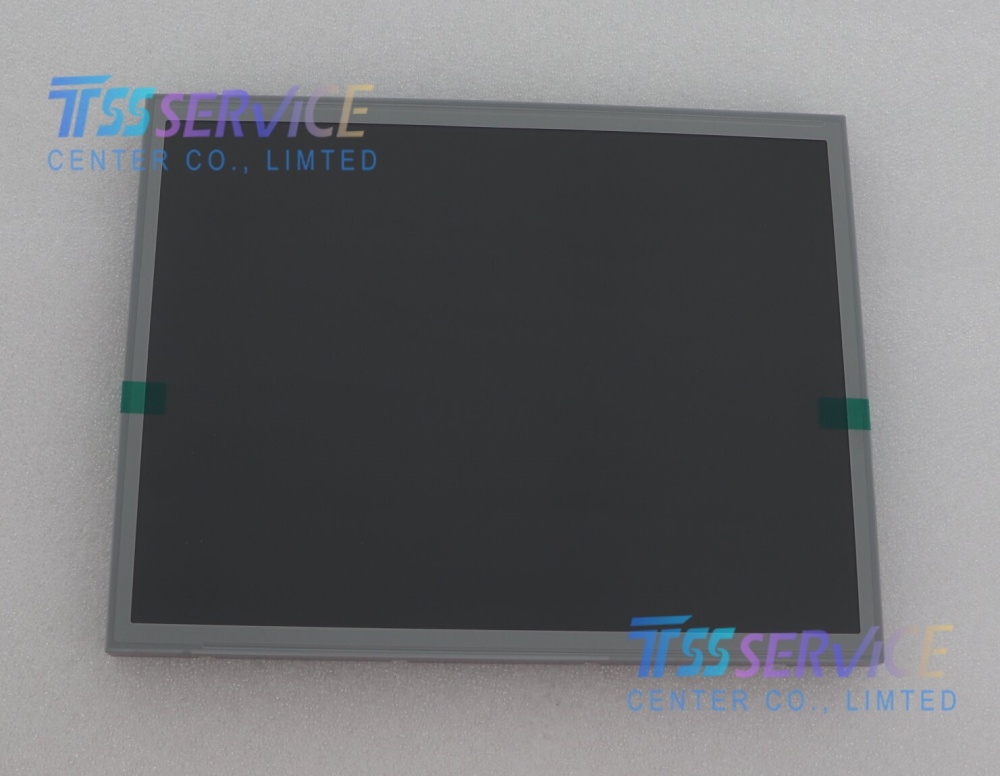

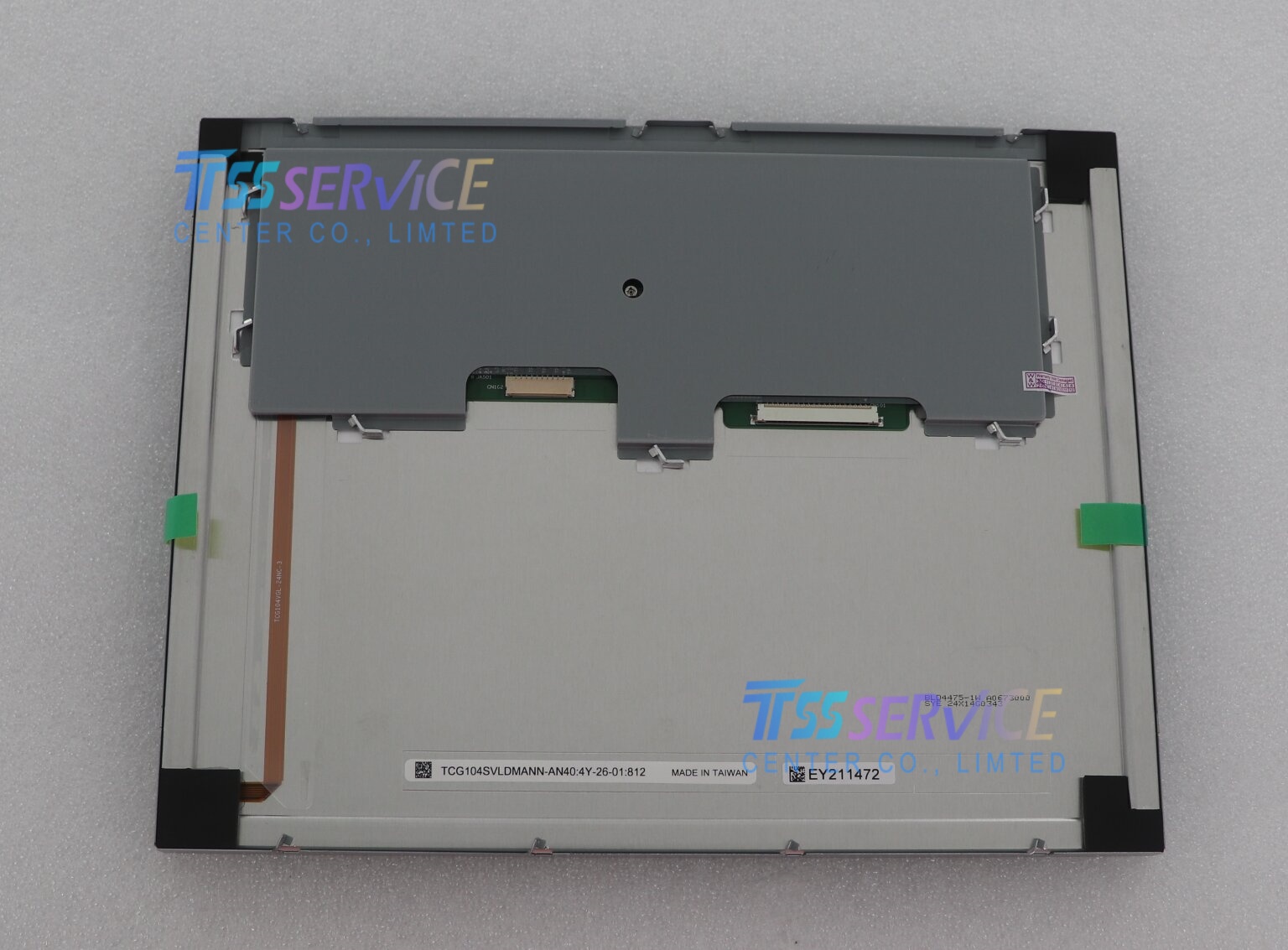

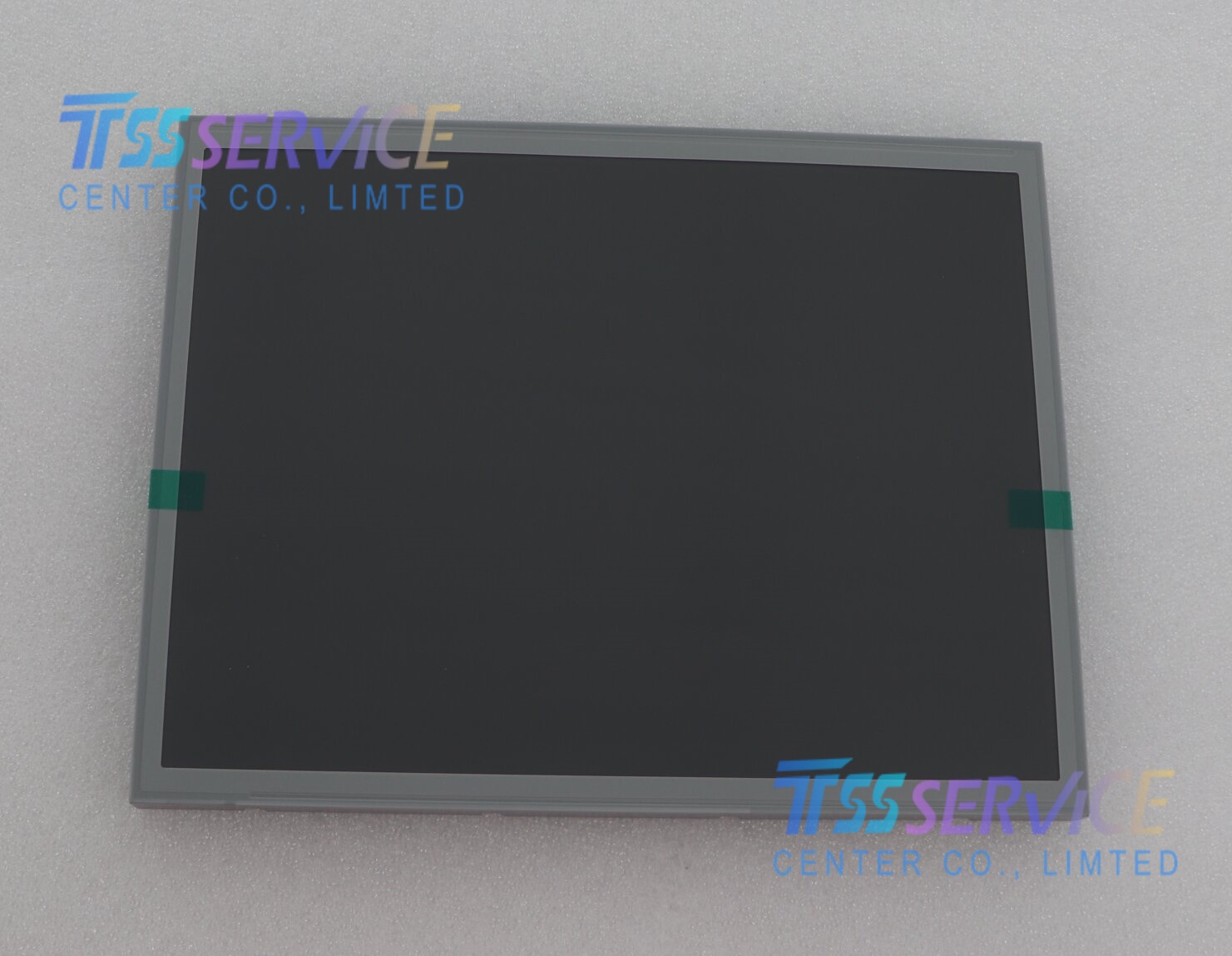

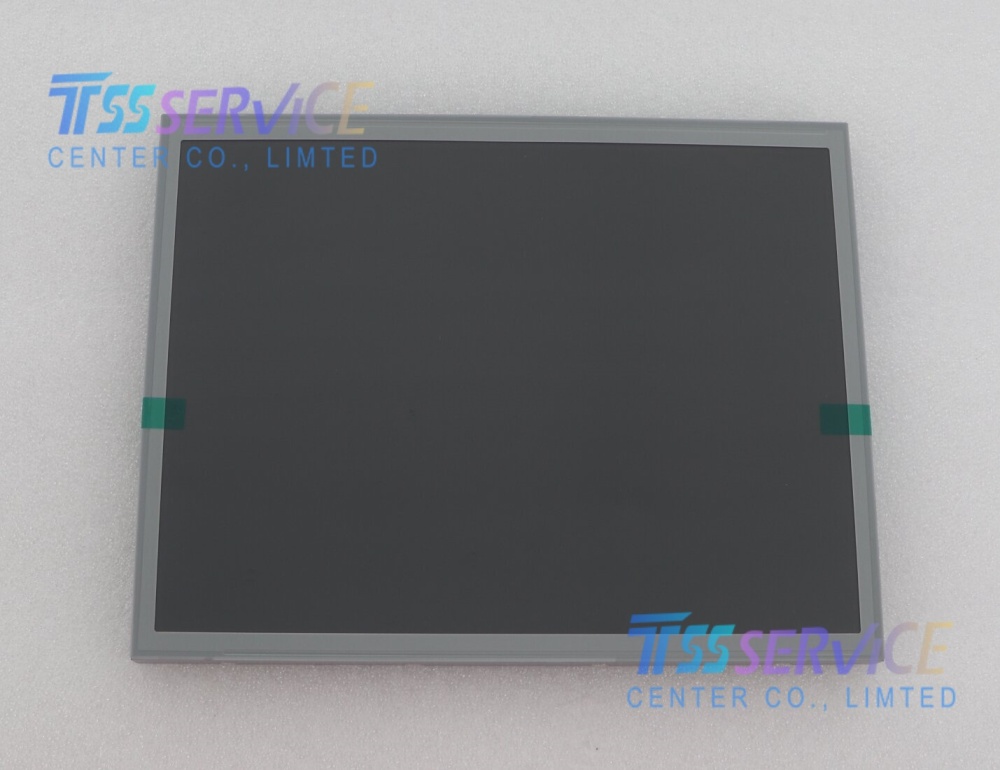

Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial

SKU: TCG104SVLDMANN-AN40

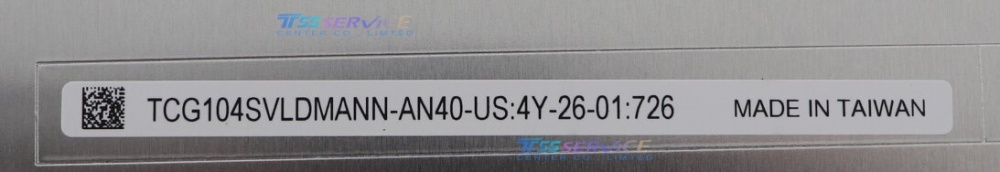

Model P/N: TCG104SVLDMANN-AN40
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 800(RGB)×600, 4:3, SVGA
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$172.00 $169.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
1/1
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
  • Description
Kyocera TCG104SVLDMANN-AN40 10.4 inch 800×600 LCD Panel Screen For Industrial
Parameter Details
Manufacturer Kyocera
Part Number TCG104SVLDMANN-AN40
Panel Type a-Si TFT-LCD, LCM
Diagonal Size 10.4 inch
Resolution 800(RGB) × 600 (SVGA), 96 PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2 (W) × 158.4 (H) mm
Outline Dimensions 230 (W) × 180.2 (H) × 10.8 (D) mm
Display Mode Transmissive, AWV (Advanced Wide View), Normally Black
Brightness 1000 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angles 70/70/60/70 (Typ.)(CR≥10)
Backlight WLED (White LED), long-life backlight
Color Depth 16.7M (8-bit)
Interface LVDS (8-bit)
Operating Temperature -30°C to +80°C
Storage Temperature -30°C to +80°C
Touch Panel None
Production Status Mass Production (since Q4 2022)

Typical Applications

  • Industrial Control Panels & HMI
    Factory automation, process control systems, PLC interfaces, industrial monitors.
  • Test & Measurement Equipment
    Oscilloscopes, signal analyzers, data loggers, precision instrumentation.
  • Medical & Healthcare Devices
    Patient monitors, diagnostic equipment, clinical displays (non-safety-critical use).
  • Transportation & Marine
    In-vehicle displays, ship navigation systems, avionics (non-safety-critical).
  • Outdoor & Harsh Environment
    Outdoor kiosks, industrial outdoor terminals, high-durability embedded systems.
  • Embedded Systems & IoT
    Industrial IoT gateways, ruggedized computing, smart machinery interfaces.
