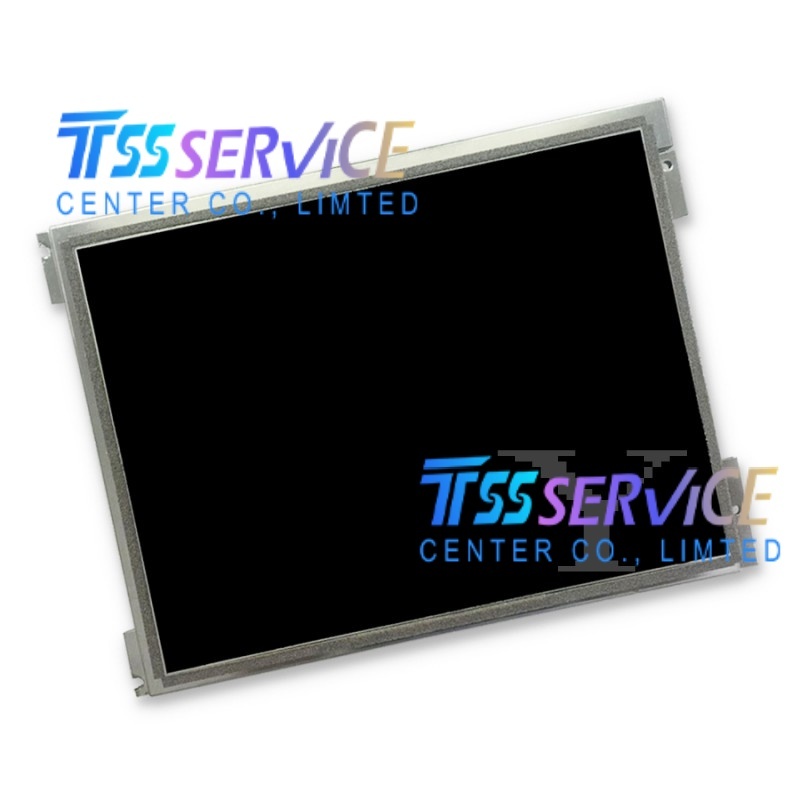

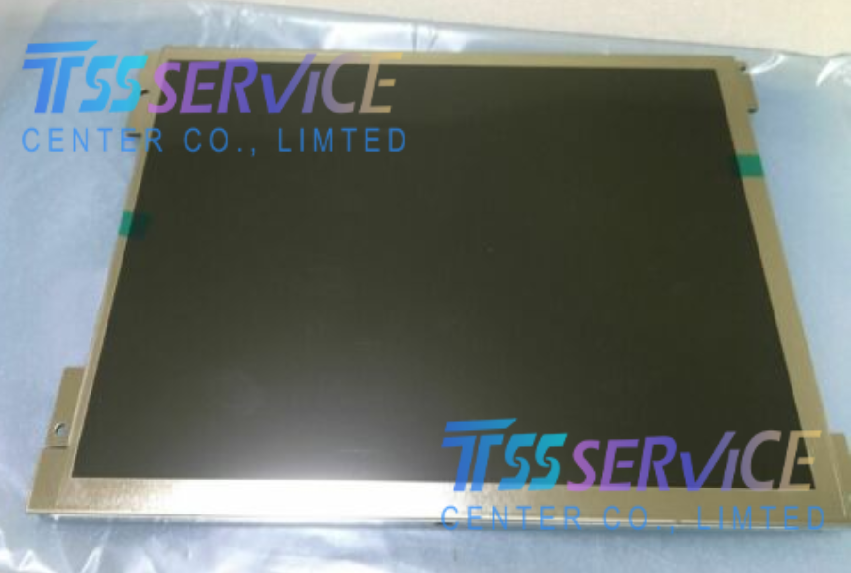

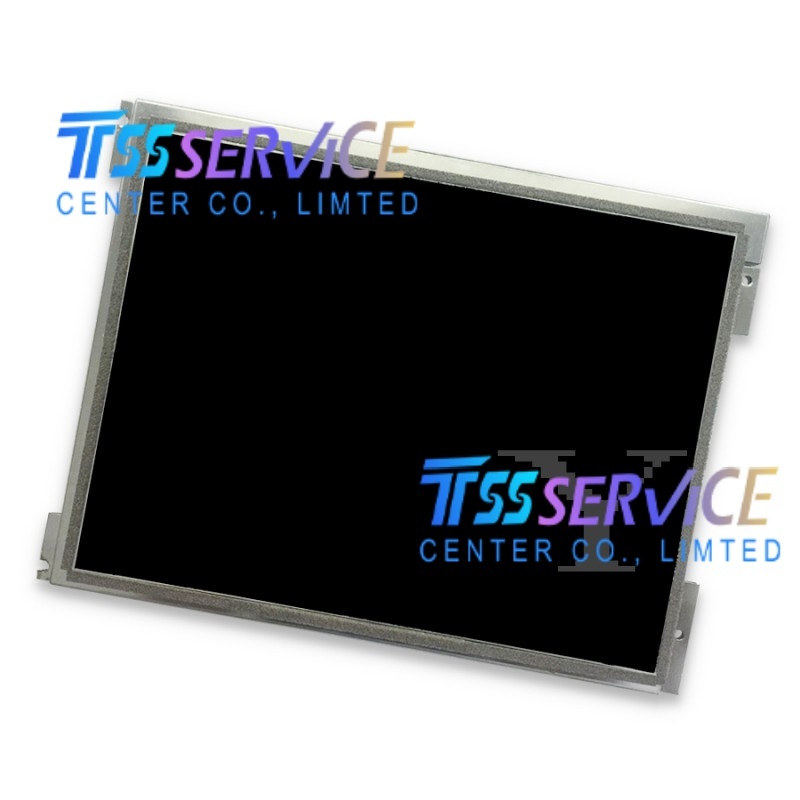

TCG104SVLPAAGP-AB20 Kyocera 10.4 Inch SVGA Industrial TFT LCD Display for HMI Medical Vehicle

Name: TCG104SVLPAAGP-AB20 Kyocera 10.4 Inch SVGA Industrial TFT LCD Display for HMI Medical Vehicle
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG104SVLPAAGP-AB20
Price: 230 USD
Availability: InStock

SKU: TCG104SVLPAAGP-AB20

Model: TCG104SVLPAAGP-AB20
Screen Size: 10.4 Inch (Diagonal)
Resolution: 800(RGB)×600 (SVGA)
Display Mode: TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$235.00~~ $230.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG104SVLPAAGP-AB20 Kyocera 10.4 Inch SVGA Industrial TFT LCD Display for HMI Medical Vehicle

Parameter	Specification
Brand	Kyocera
Model	TCG104SVLPAAGP-AB20
Screen Size	10.4 Inch (Diagonal)
Resolution	800(RGB)×600 (SVGA)
Display Mode	TN, Normally White, Transmissive
Brightness	450 cd/m² (Typical)
Contrast Ratio	900:1 (Typical)
Viewing Angle (CR≥10)	80°/80°/80°/60° (L/R/U/D)
Backlight Type	WLED, Built-in Driver, 70,000 Hours Lifespan
Interface	1 Channel LVDS, 6/8 Bit, 30-Pin Connector
Supply Voltage	3.3V (Logic) / 12V (Backlight)
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃

Application

Industrial Control Equipment: Industrial HMI human-machine interface, CNC machine tools, injection molding machines, automated production line operation panels, industrial tablet displays.
Medical Devices: Patient monitors, ultrasound diagnostic equipment, medical detection terminals, hospital intelligent display screens.
Vehicle & Construction Machinery: Industrial vehicle display terminals, forklift, engineering machinery instrument panels, special vehicle monitoring screens.
Smart Commercial Terminals: Self-service kiosks, vending machine displays, IoT intelligent monitoring terminals, industrial monitoring equipment.
Marine & Aerospace Auxiliary: Marine control display screens, aviation auxiliary display equipment, outdoor industrial monitoring terminals.
