Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Parameter | Specification |
|---|---|

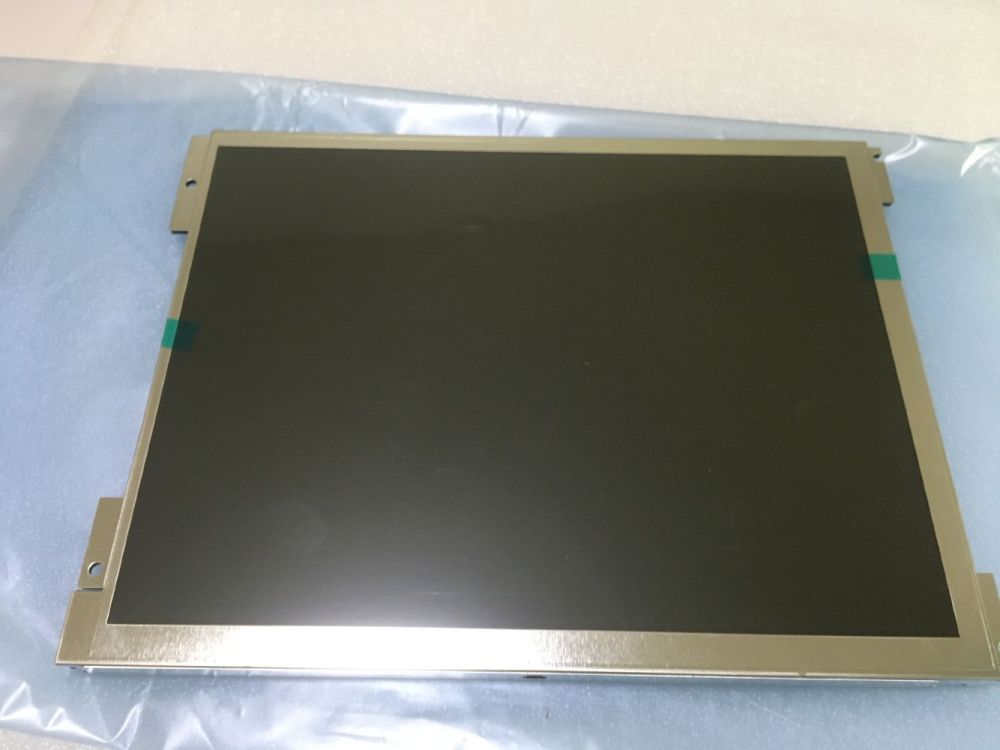

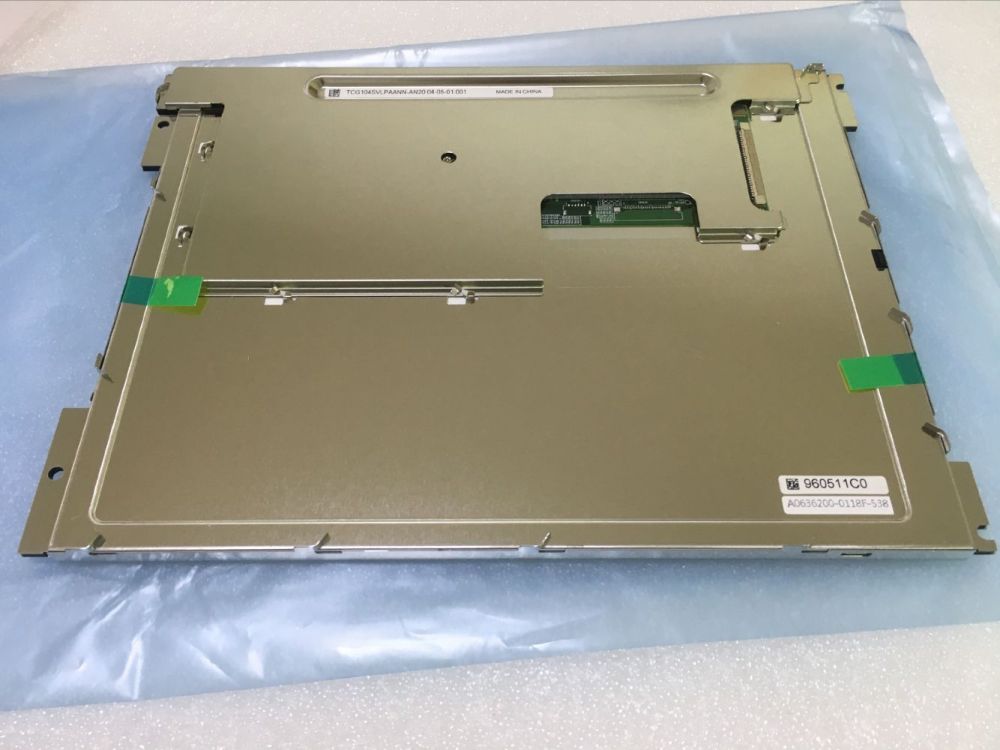

| Model Number | TCG104SVLPAANN-AN20-S |
| Manufacturer | Kyocera |
| Display Type | a-Si TFT-LCD, Transmissive |
| Screen Size | 10.4 inches (diagonal) |
| Resolution | 800 × 600 pixels (SVGA) |
| Aspect Ratio | 4:3 |
| Active Area | 211.2 mm × 158.4 mm |
| Brightness (Typical) | 450 cd/m² (Typ.) |
| Contrast Ratio (Typical) | 900:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response Time | 8/22 (Typ.)(Tr/Td) |
| Color Depth | 262K/16.2M 51% NTSC |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Backlight Type | LED, Edge-lit |
| Backlight Lifetime | 50,000 hours (Typical, to 50% brightness) |
| Interface | LVDS (2 channel, 6-bit) |
| Power Supply | 3.3V (Logic), 24V/12V (Backlight options available) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
