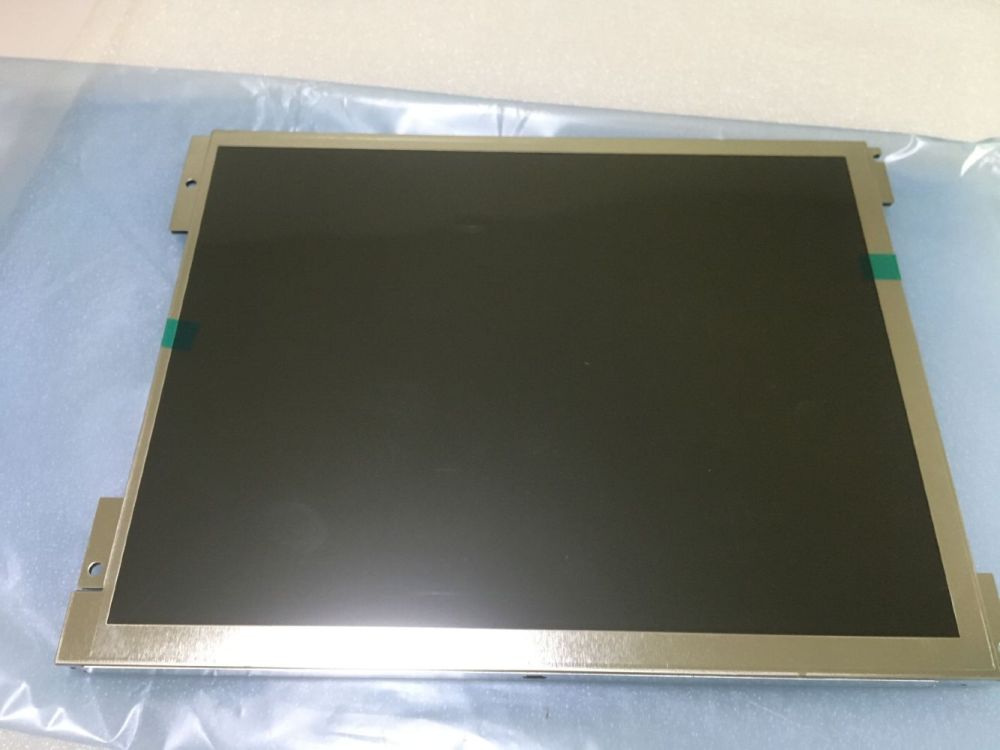

TCG104SVLPAANN-AN20-SA 10.4inch Lcd Display Panel for Kyocera

Name: TCG104SVLPAANN-AN20-SA 10.4inch Lcd Display Panel for Kyocera
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG104SVLPAANN-AN20-SA
Price: 205 USD
Availability: InStock

SKU: TCG104SVLPAANN-AN20-SA

Model P/N：TCG104SVLPAANN-AN20-SA
Diagonal Size：10.4"
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600, SVGA 96PPI
Pixel Format：RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$210.00~~ $205.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TCG104SVLPAANN-AN20-SA is a premium 10.4-inch industrial-grade TFT-LCD display module manufactured by Kyocera. Designed for mission-critical applications where reliability, durability, and superior optical performance are paramount, this display excels in harsh environments and demanding operating conditions.

Parameter	Specification
Model Number	TCG104SVLPAANN-AN20-SA
Manufacturer	Kyocera
Display Type	a-Si TFT LCD
Screen Size	10.4 inches (diagonal)
Resolution	800 × 600 pixels (SVGA)
Aspect Ratio	4:3
Active Area	211.2 × 158.4 mm
Brightness	450 cd/m² (typical)
Contrast Ratio	900:1 (typical)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Response Time	8/22 (Typ.)(Tr/Td)
Color Depth	262K / 16.7M colors
Surface Treatment	Anti-Glare, Hard Coating (3H)
Backlight Type	LED, Edge Light
Backlight Lifetime	50,000 hours (typical, to 50% brightness)
Interface	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Power Supply	3.3V (logic), 24V/12V (backlight options)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

Q: What if the product doesn't work ?

A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.

Q: Do you conduct tests before shipment?

A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
