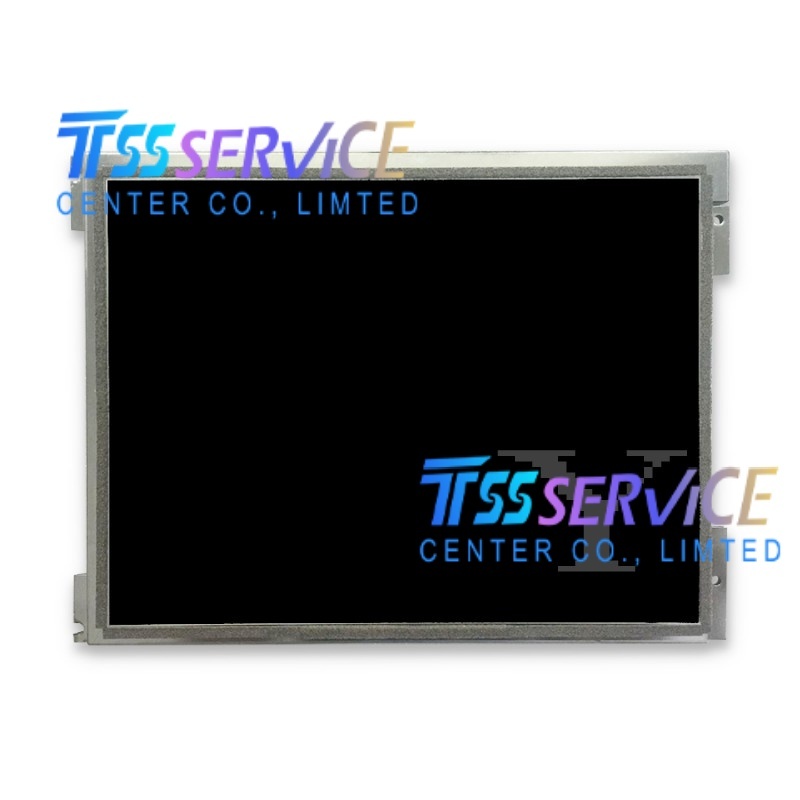

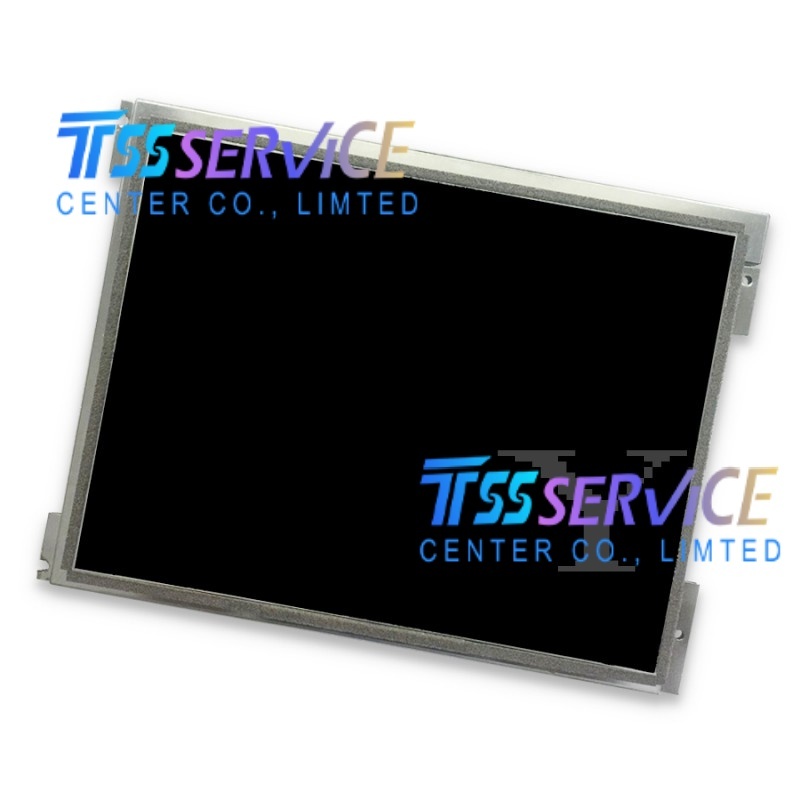

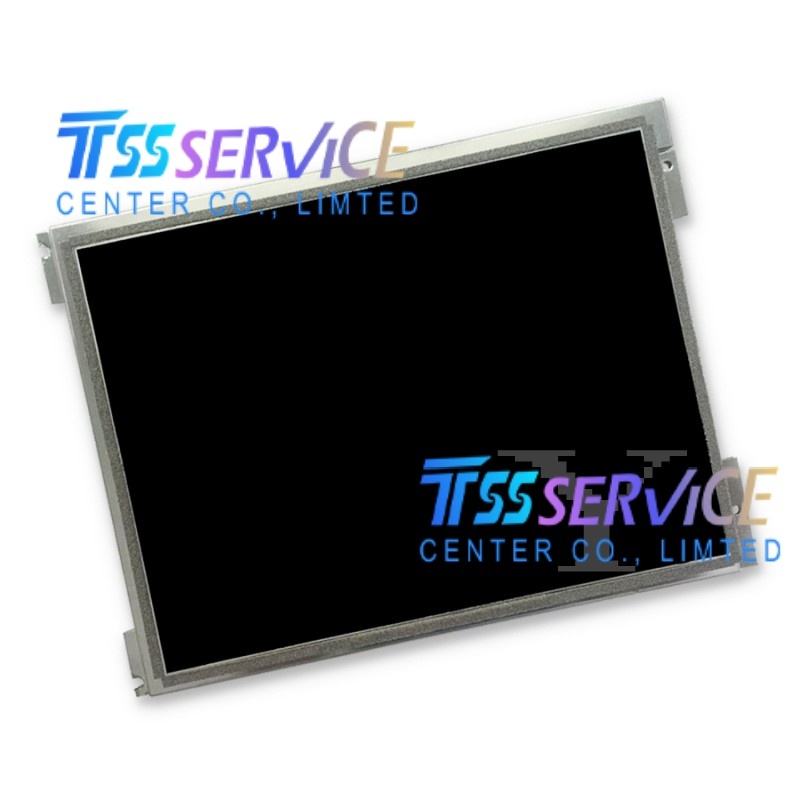

Kyocera TCG104SVLPAANN-AN20AK 10.4 Inch SVGA 800×600 Industrial TFT LCD Display Panel Screen
| Spec Item |
Detailed Parameter |
| Brand |
KYOCERA (Kyocera Display) |
| Model |
TCG104SVLPAANN-AN20AK |
| Screen Size |
10.4 inch, 4:3 Aspect Ratio |
| Native Resolution |
800(RGB)×600 SVGA |
| Display Type |
TN, Normally White, Transmissive a-Si TFT-LCD |
| Active Area |
211.2(H)×158.4(V) mm |
| Overall Dimension |
240.7×180.2×9.0 mm |
| Typical Brightness |
450 cd/m² |
| Contrast Ratio |
900:1(Typ.) |
| View Angle(H/V) |
80/80/80/60(CR≥10) |
| Response Time |
Tr=8ms / Td=22ms(Typ.) |
| Color Gamut |
51% NTSC, 262K/16.2M Colors |
| Backlight |
Built-in Driver WLED, 50,000H Service Life |
| Interface |
30Pin 1CH LVDS(6/8bit) |
| Supply Voltage |
3.3V DC |
| Operating Temp |
-20℃ ~ +70℃ |
| Storage Temp |
-30℃ ~ +80℃ |
| Surface |
Anti-Glare Matte Polarizer |
| Touch Panel |
Without Touchscreen |
| Net Weight |
~1000g |
Application
1. CNC & Injection Molding HMI
CNC machine tool operation panel, plastic injection molding controller, die-casting equipment display; anti-glare screen eliminates workshop lamp reflection, stable within common factory temperature range
2. Medical Testing Equipment
Lab analytical instrument, portable medical diagnostic equipment, clinical inspection machine original screen replacement; Kyocera stable panel meets medical long-running demand
3. Automation & PLC Control Terminal
Factory automation control box, frequency converter panel, packaging equipment HMI; mature LVDS drive, abundant driver board matching resources
4. Construction Machinery Onboard Screen
Light engineering vehicle, small loader monitoring display; industrial temperature range adapts indoor & semi-open construction environment
5. Old Equipment Refurbishment & Embedded Development
Discontinued industrial equipment screen refurbish, industrial single-board computer development screen, customized embedded terminal display upgrade
