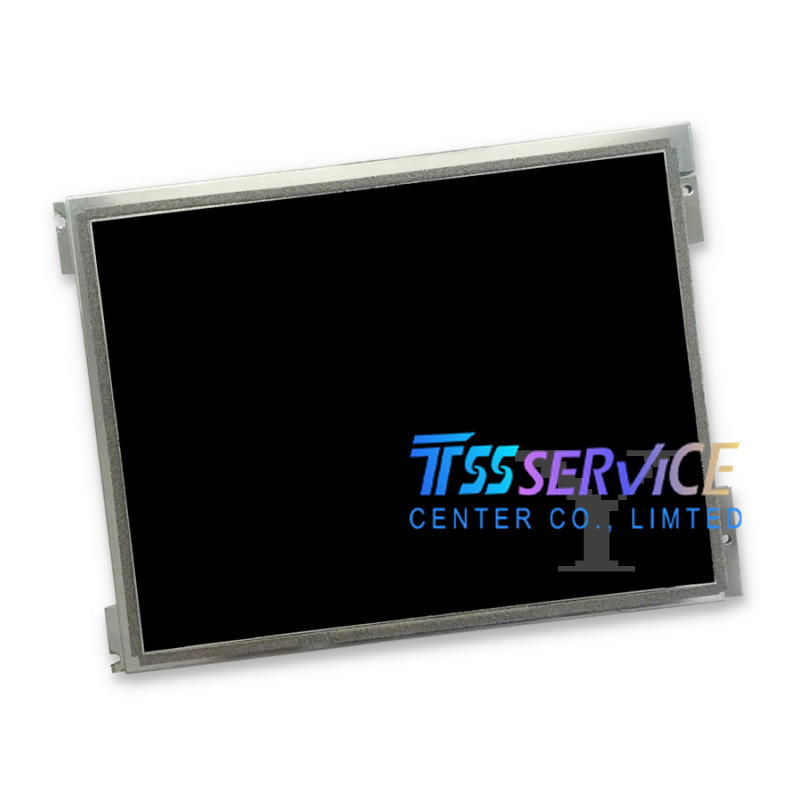

TCG104SVLQAPNN-AN20-S LCD Display is a 10.4-inch LCD screen from KYOCERA brand without touch. It has a resolution of 800x600 pixels (SVGA), a brightness of 400 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 500:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.
SPECIFICATION
| Active Area |
211.2(W)×158.4(H) mm |
Bezel Opening |
215.4(W)×162.2(H) mm |
| Outline Size |
240.7(W)×180.2(H) ×9.5(D) mm |
Surface |
Antiglare |
| Brightness |
400 cd/m² (Typ.) |
Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Display Mode |
AWV, Normally Black, Transmissive |
Q:If I place order now，when will you ship the goods of TCG104SVLQAPNN-AN20-S?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods TCG104SVLQAPNN-AN20-S ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:Can you give me a discount if I need a large quantity of TCG104SVLQAPNN-AN20-S?
A:Of course！If you make a large order, we will give you a discount.
