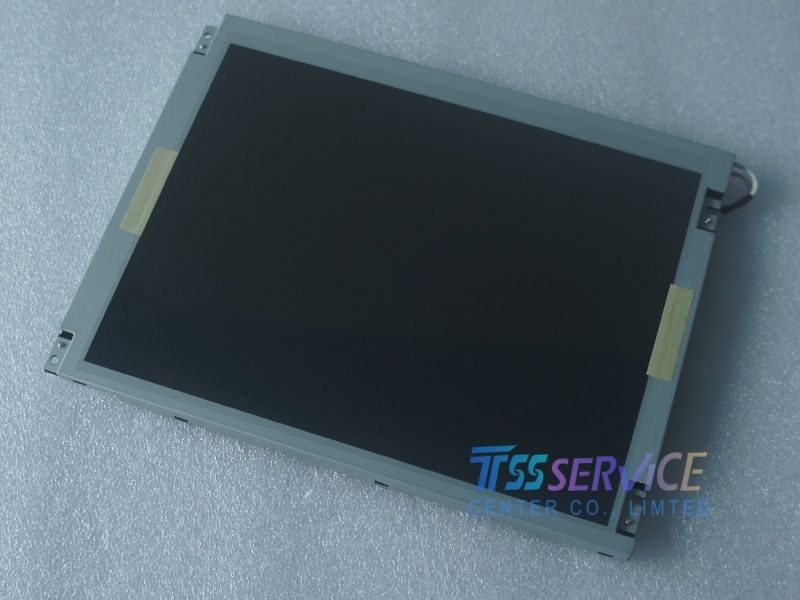

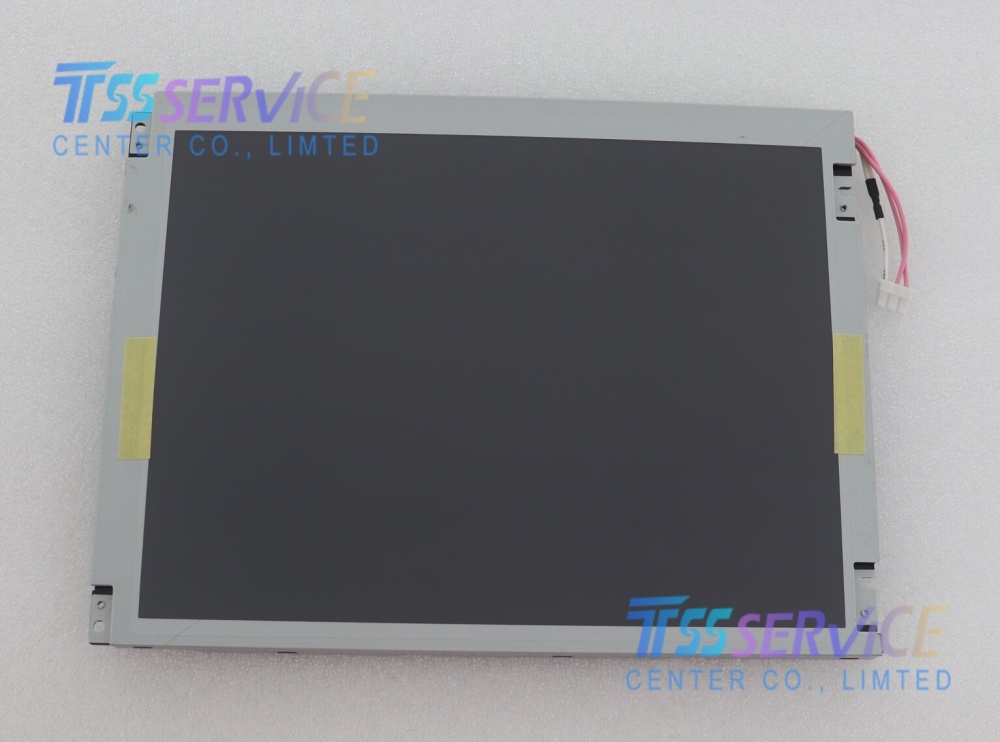

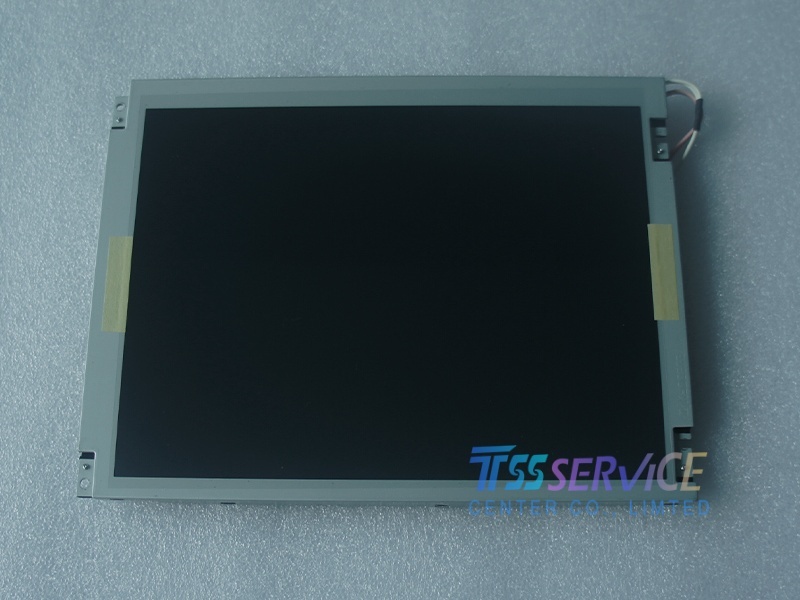

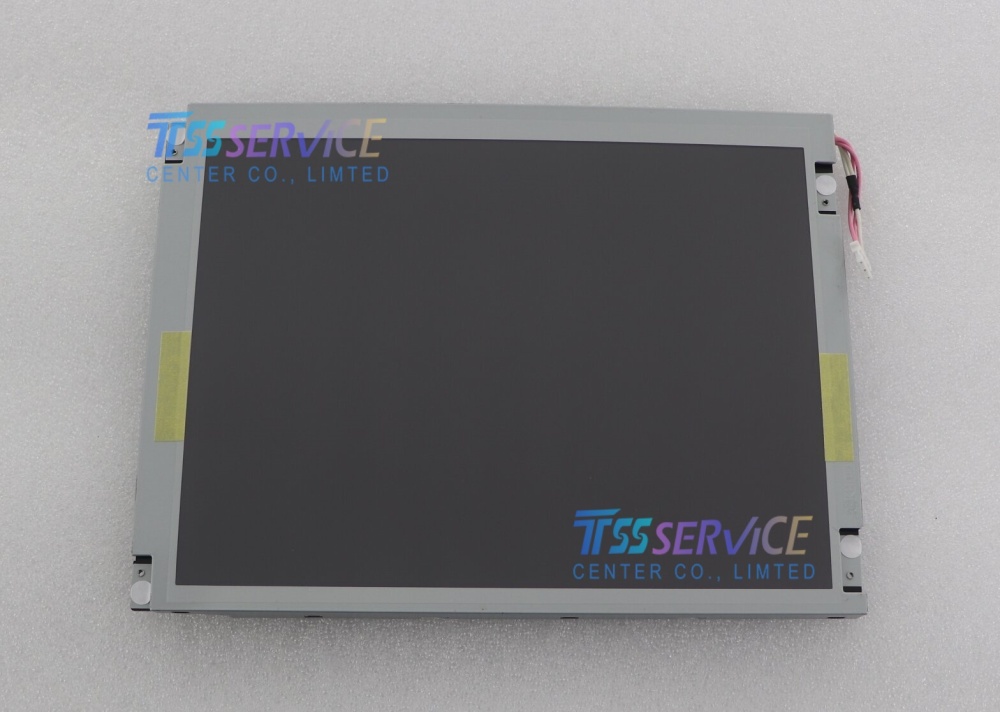

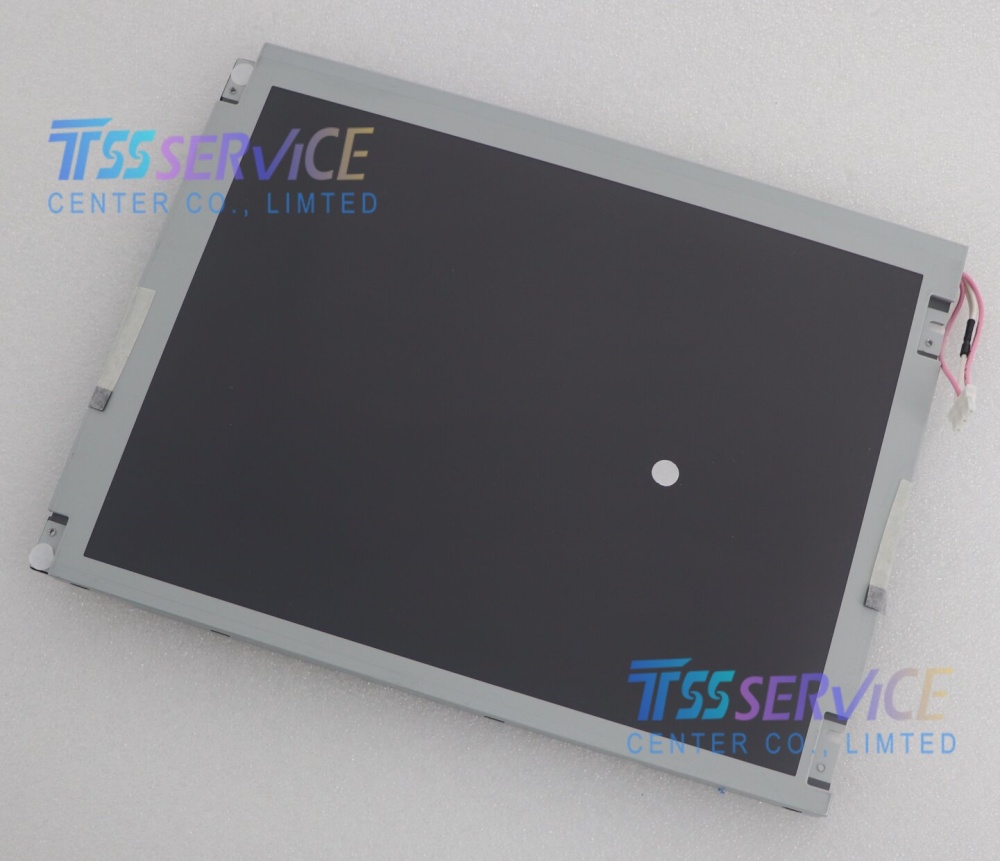

TCG104VG2AA-A00 | Kyocera 10.4" VGA CCFL Industrial TFT-LCD Module
TCG104VG2AA-A00 is a classic 10.4-inch VGA industrial TFT LCD module manufactured by Kyocera Display, adopting AWV normally black transmissive technology, dual side CCFL backlight, single-channel 6-bit parallel RGB TTL 31-pin FPC connector, matte anti-glare surface and symmetrical full wide viewing angle. Its standard operating temperature range is -10℃~+70℃, typical brightness 450 cd/m², high 750:1 contrast ratio, reinforced metal anti-interference frame, no built-in touch screen and compatible with external 4-wire resistive touch overlay. It is the base standard version of TCG104VG2AA series, widely used for factory automation HMI, injection molding machine control panels, laboratory analytical instruments, light-duty construction machinery on-board terminals and maintenance replacement of legacy industrial equipment.
| Parameter Item |
Specification Details |
| Full Part Number |
TCG104VG2AA-A00 |
| Manufacturer |
Kyocera Display (京瓷) |
| Diagonal Size |
10.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
640(H) × 480(V) pixels (VGA, 76 PPI) |
| Display Technology |
a-Si TFT-LCD, AWV mode, Normally Black, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.330 mm (H) × 0.330 mm (V) |
| Active Area (AA) |
211.2 mm (W) × 158.4 mm (H) |
| Overall Outline Dimension |
243.0 mm (W) × 185.1 mm (H) × 10.5 mm (Thickness) |
| Typical Brightness |
450 cd/m² (high brightness for bright indoor workshop) |
| Typical Contrast Ratio |
750:1 |
| Viewing Angle (L/R/U/D, CR≥5) |
85° / 85° / 85° / 85°, full symmetrical wide viewing angle |
| Response Time (Tr / Td) |
14 ms / 9 ms typical |
| Display Color Depth |
262K colors (6-bit single channel), 52% NTSC gamut, 71% sRGB coverage |
| Backlight System |
Dual top-edge CCFL lamp, service life ≥50,000 hours, external inverter required |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 31-pin standard FPC connector |
| Logic Supply Voltage |
3.3 VDC / 5.0 VDC (Typ.) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, scratch-resistant hard coating |
| Housing Structure |
Reinforced metal shielding frame, anti-electromagnetic interference & anti-vibration |
| Operating Temperature |
-10°C ~ +70°C (standard industrial temp, narrower than G04/G06 -20℃ version) |
| Storage & Transport Temp |
-20°C ~ +80°C |
| Net Weight |
Approx. 580 g |
| Version Difference vs G04/G06 |
A00 base version: operating temp -10~70℃; G04/G06 upgraded wide temp -20~70℃ & enhanced ESD protection, same mechanical dimension & pin definition, fully interchangeable |
| Compliance Standard |
RoHS compliant industrial grade |
| Production Status |
Discontinued original mass production, sufficient stock for equipment maintenance & retrofit projects |
